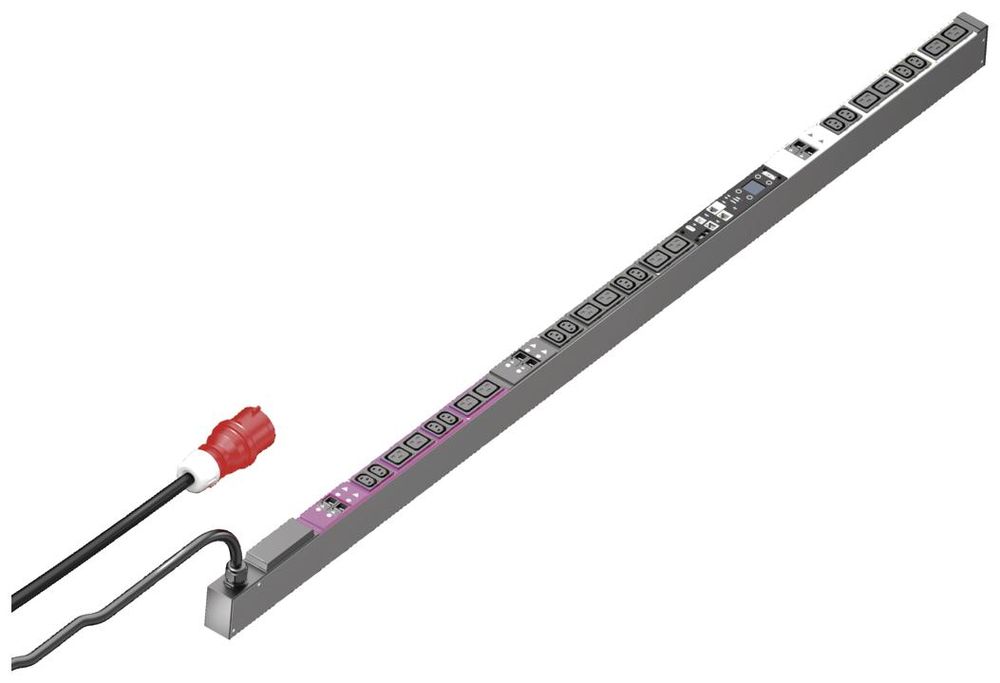

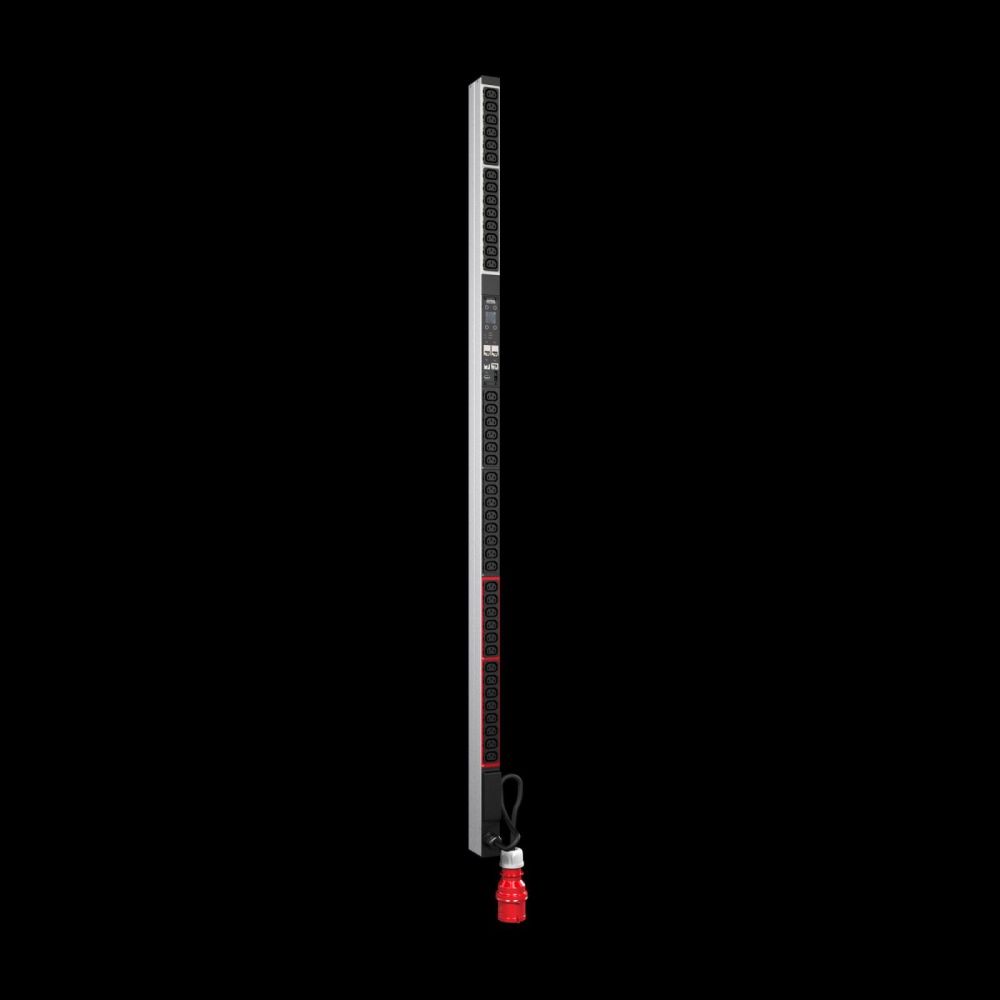

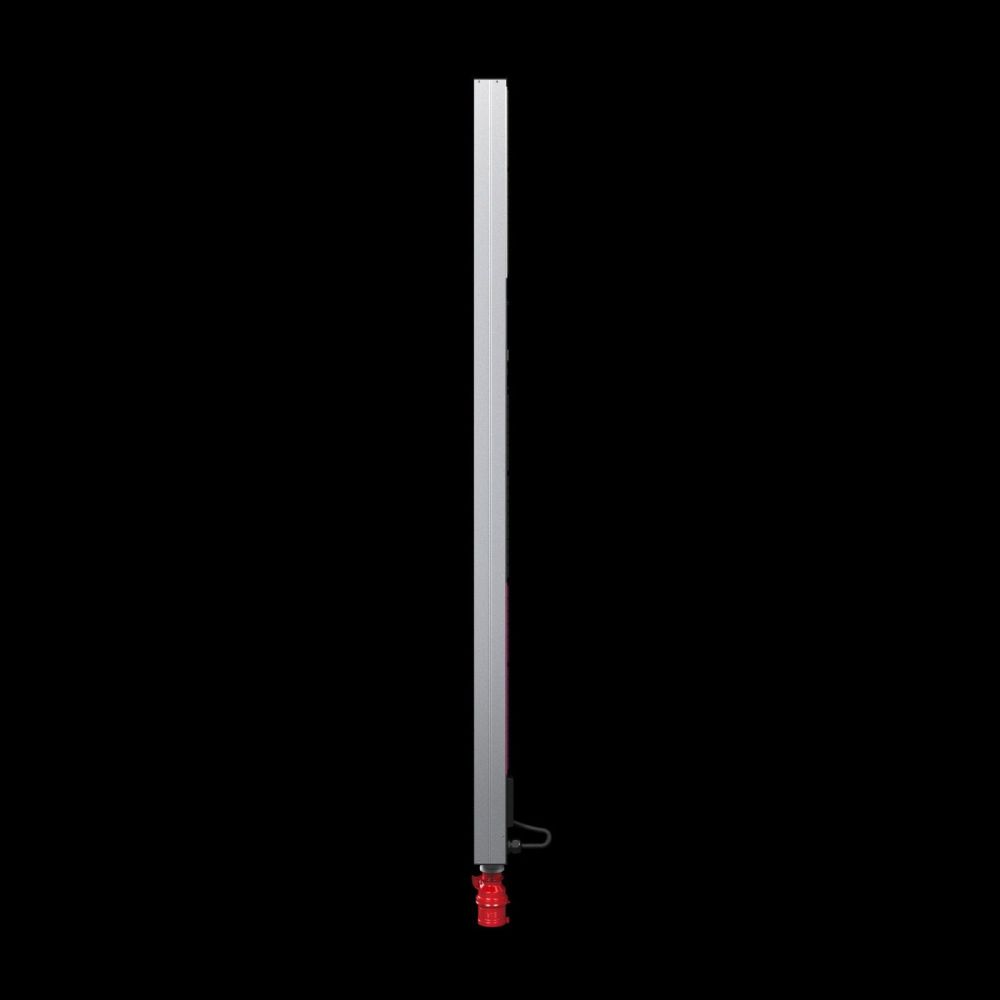

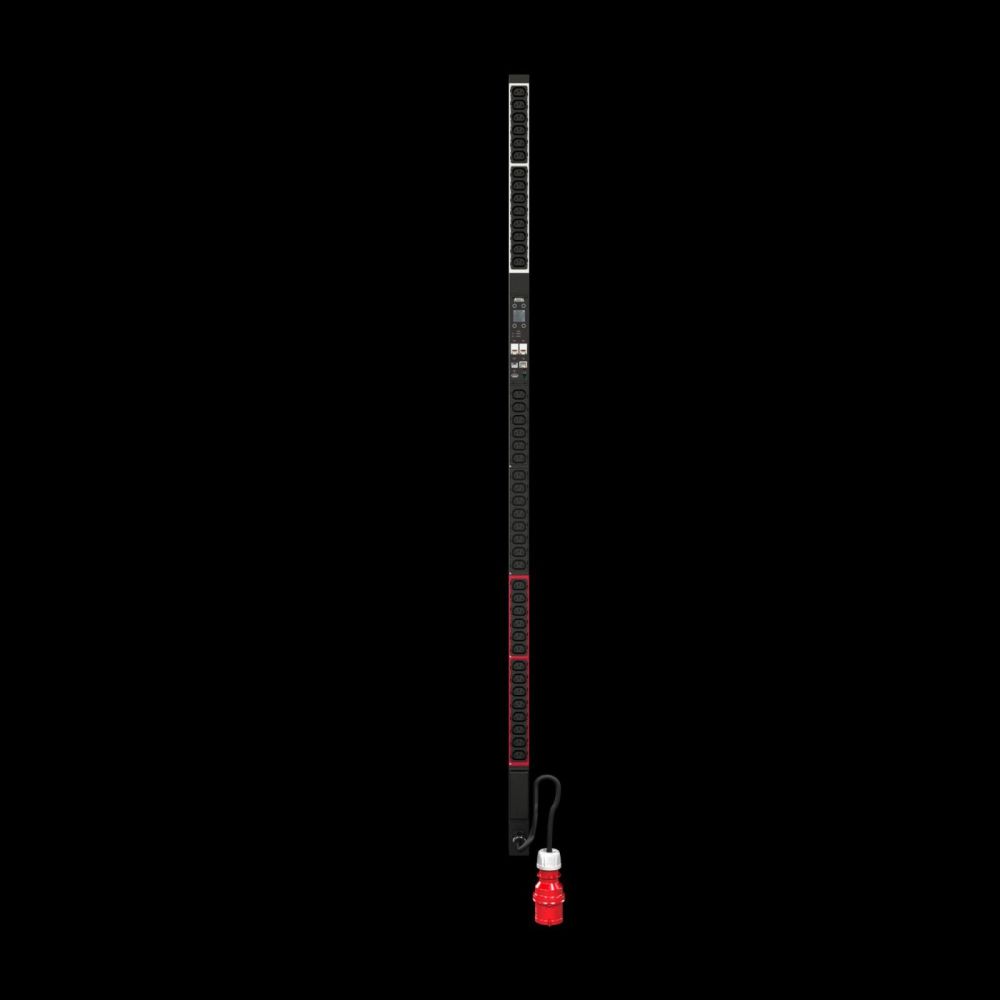

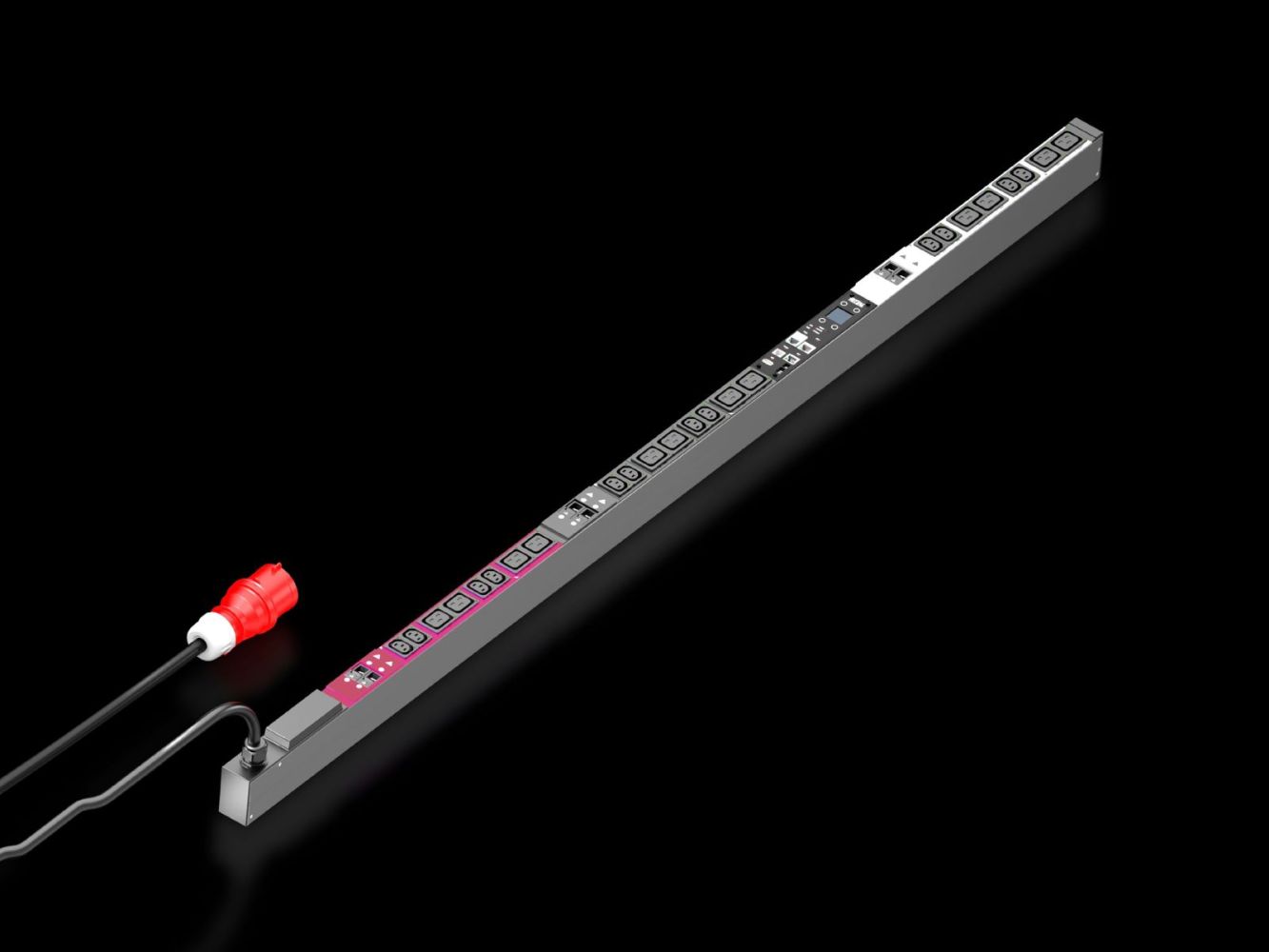

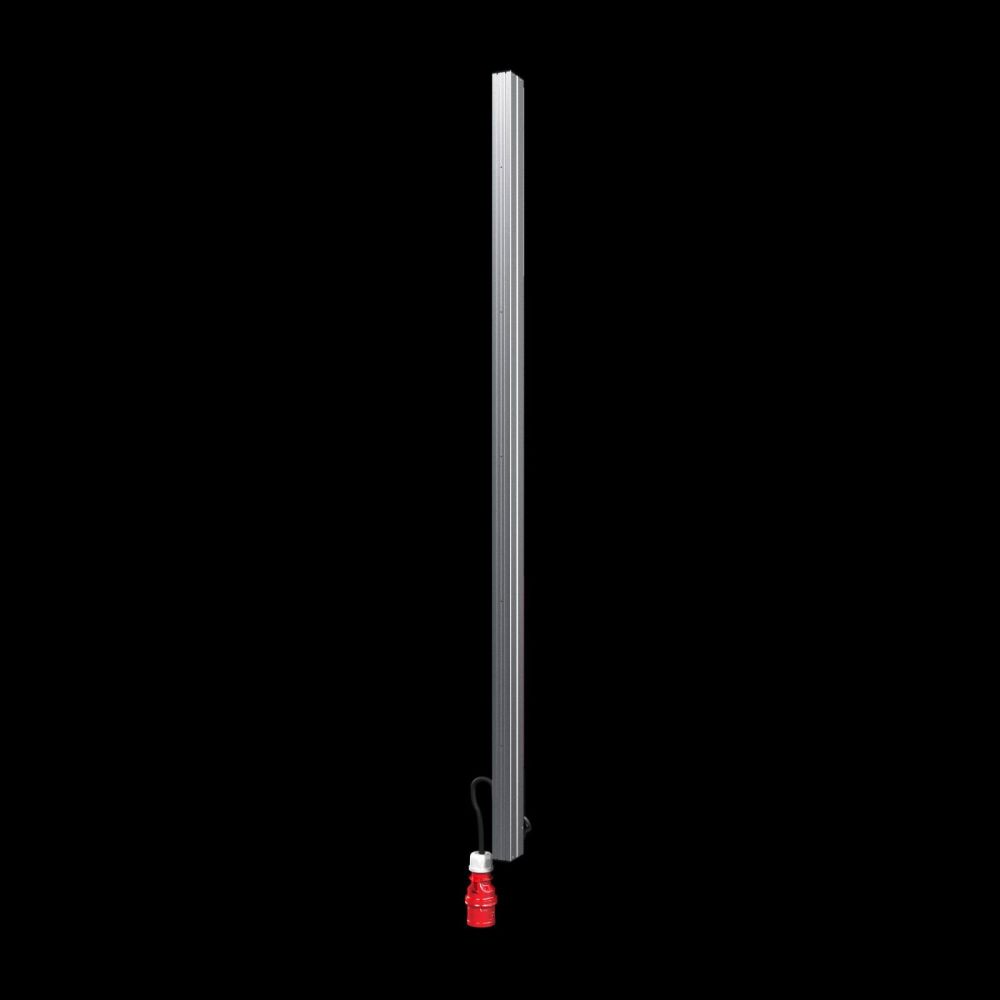

Rittal 7979539 DK PDU metered plus 32A/3P CEE 12xC13+12xC19

Your rating:
Average rating
product review for Rittal 7979539 DK PDU metered plus 32A/3P CEE 12xC13+12xC19
( 4.5 / 5 ) 2 ratings
Rittal 7979539
This image may differ from the desired article.
Rittal 7979539Rittal 7979539Rittal 7979539Rittal 7979539Rittal 7979539Rittal 7979539Rittal 7979539Rittal 7979539
2.008,91 EUR 2.094,87 EUR
( 2.390,60 EUR incl. VAT )
≈ £1,681.46  |  ≈ $2,207.79
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 7979539 DK PDU metered plus 32A/3P CEE 12xC13+12xC19
Datasheet:file_download Download
Lieske Part No.:1910670
Mfg Part No: 7979539
UPC/EAN: 4028177948457
Weight:0.001 kg
Type:DK 7979539

Product information for Rittal 7979539:

DK PDU metered+, compact basic power distribution including energy measurement per output, with network interface and display, BLT: 44x1695x70 mm, IEC 60 320: 12x C13 + 12x C19

General
ModelPDU, metered plus
MaterialAluminium profile, black anodised, mounting slots: plastic
Scope of deliveryIncluding mounting hardware
OptionsOvervoltage protection Type 3 with replaceable diverters during operation, with status monitoring, integrable in PDU housing, differential current measurement (Type B) per input/phase/fuse, monitoring of optional overvoltage protection, CMC III CAN-Bus sensors for environment monitoring connectable, max. 16 sensors, other housing colours available
Description of measurement functionsMeasurement per phase or input, additional measurement per output socket, powerful CPU (ARM Cortex A8), digital input (potential-free contact), additional alarm output/relay output (changeover contact)
Width44 mm
Depth70 mm
Length1.695 mm
Number of sockets and type12 x C13 / 12 x C19
Socket outlets12 x C 13, 12 x C 19
Rated operating voltage400 V (AC)
Rated current (max.)32 A
Nominal power22 kW
Power suppliesNumber: 1, phases per input: 3~
Connection cable length3 m
Electrical connection typeCEE
InterfacesUSB 2.0 port (USB-A) for mass configuration, firmware update & data logging, CAN-Bus interface (RJ45) for max. 16 environment sensors, serial interface RS232 (RJ12) for LTE unit, scripting, CLI, use of own certificates/TLS 1.2, email sending on alarm (SMTP), user management including rights management, LDAP(S)/Radius/Active Directory integration, Syslog server integration (max. 2 servers), fully redundant Ethernet interface 10/100/1000 Mbit/s
Number of RJ45 ports for sensor units max6
PoliciesEMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU
StandardsEN 62368-1, EN 61000-3, EN 61000-4, EN 61000-6, EN 62053-21
ProtocolsWeb server (HTTP, HTTPS, SSL) SSH, Telnet, NTP, TCP/IP v4 & v6, DHCP, DNS, SNMP v1, v2c & v3, Modbus/TCP, OPC-UA, MIB for integration into 3rd party DCIM software, FTP/SFTP (update/file transfer)
Operating temperature range5 °C...50 °C
Humidity (non-condensing)10...95 %
Storage temperature range-20 °C...70 °C
Suitable forHousing type: VX IT cabinet frame: ≥ 1,800 mm, housing type: VX IT 19"-profile rails: ≥ 2,000 mm


Product data sheet
Datasheet for Rittal 7979539, EAN: 4028177948457
