Rittal 7979722 PDU surge protection, rated power: 7.4 kW, rated voltage: 230 V,

Your rating:
Average rating
product review for Rittal 7979722 PDU surge protection, rated power: 7.4 kW, rated voltage: 230 V,
( 4.6 / 5 ) 7 ratings
Rittal 7979722
This image may differ from the desired article.
Rittal 7979722Rittal 7979722
-10% 158,70 EUR 176,10 EUR
( 188,85 EUR incl. VAT )
≈ £132.83  |  ≈ $174.41
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >10 pieces
1x Rittal 7979722 PDU surge protection, rated power: 7.4 kW, rated voltage: 230 V,
Datasheet:file_download Download
Lieske Part No.:1775588
Mfg Part No: 7979722
UPC/EAN: 4028177948532
Weight:2.42 kg
Type:DK 7979722

Product information for Rittal 7979722:

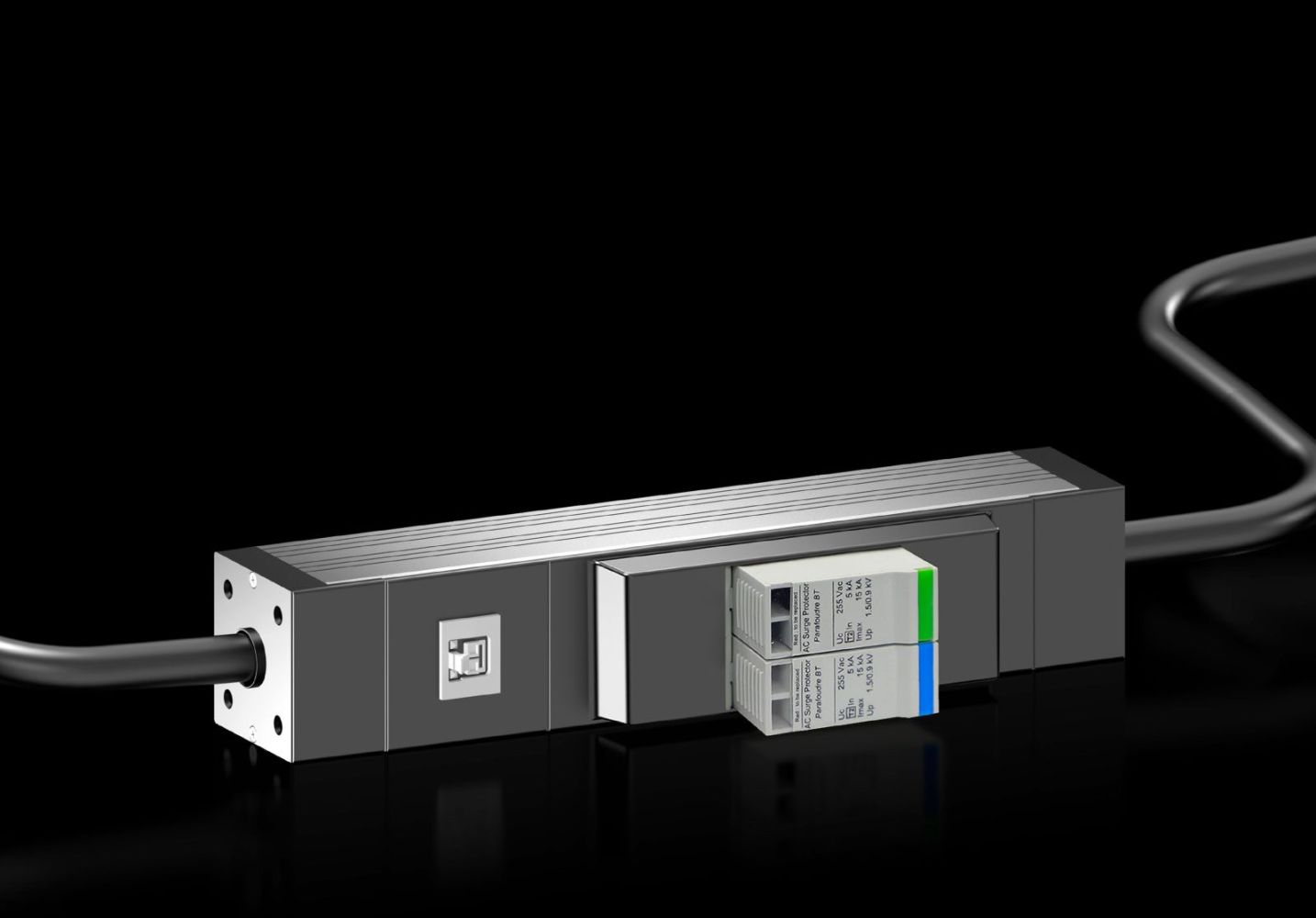

The Rittal DK 7979722 is a surge protection module of Type 3 design, specifically developed for end-device protection in electrical installations. It serves as the final stage in the surge protection chain and protects sensitive electronic components from transient voltage spikes caused by lightning strikes or network disturbances. The module is mounted directly onto the enclosure frame and is intended for use in TN-S networks. The rated power is 7.4 kW with a maximum rated current of 32 A, making it suitable for applications with medium to high power density. The electrical connection is made via CEE plug/coupling, ensuring a secure and standardized connection.

Applications
This surge protection module is universally applicable in industrial, commercial, and IT infrastructures where sensitive devices such as servers, network equipment, or control systems need protection from voltage spikes. It is particularly suitable for installations operated in enclosures or data centers, where high availability and quick maintenance are required. Mounting on the enclosure frame enables space-saving installation, minimizing space requirements within the enclosure.

Functions and Equipment in Detail
The module features a potential-free alarm contact that can transmit status information to higher-level systems such as building management systems (BMS). This enables centralized monitoring of the protection module and early response in case of faults. Additionally, an optical status monitoring indicator is integrated directly into the surge arrester, visually displaying the operational status. The plug-in design allows for easy maintenance, as faulty arresters can be replaced without interrupting the power supply.

Technology Explained Simply
The Type 3 surge protection operates as the final stage in the protection chain and is not designed to absorb large energy volumes, but to protect end devices from minor yet damaging voltage spikes. The surge arresters are rated for 7.4 kW power and 32 A rated current, ensuring safe protection for typical IT and control systems. The connection cables are made of cable type H05VV-F3G4.0, each 1 m in length for input and output, enabling flexible and secure cabling. The housing material is an aluminum extruded profile, anodized, in color RAL 9005, providing high mechanical stability and corrosion resistance.

Compatibility and Accessories
The module is designed for use in TN-S networks and requires pre-installed surge protection devices of Type 1 and Type 2 in the building installation or power distributor. It is available in various versions for 16 A and 32 A phase current, as well as for single-phase and three-phase systems. The use of CEE connectors ensures universal compatibility with common connection points in enclosures and distributors.

Installation and Mounting
Mounting is done directly onto the enclosure frame, with the module being plugged into the frame via a plug-in system. Fixing is done using the mounting hardware included in the delivery. The pre-wired cabling with CEE connectors allows for immediate operational installation without additional wiring work. The compact design with dimensions 44 mm (width) × 75 mm (height) × 250 mm (length) optimizes space usage within the enclosure.

Operational Advantages
Operation of the module is characterized by high availability, as faulty arresters can be quickly replaced without interrupting the power supply. The optical status indicator and potential-free alarm contact enable continuous monitoring and early fault detection. The maintenance-friendly plug-in design reduces maintenance effort and increases operational safety. Compliance with standards IEC 61 643-11 and EN 61 643-11, as well as directives Low Voltage Directive 2014/35/EU and EMC Directive 2014/30/EU, ensures conformity with applicable safety and EMC requirements.

General
ModelSurge protection Type 3
MaterialAluminium extruded profile, anodized
ColourRAL 9005
Scope of deliveryIncluding mounting hardware
Nominal power7,4 kW
Electrical connection typeCEE plug/coupler
Rated current (max.)32 A
PoliciesLow Voltage Directive 2014/35/EU, EMC Directive 2014/30/EU
StandardsIEC 61 643-11, EN 61 643-11
Width44 mm
Height75 mm
Length250 mm
Input cable connection (type/length)H05VV-F3G4.0, 1 m
Connection output cable (type/length)H05VV-F3G4.0, 1 m


Product data sheet
Datasheet for Rittal 7979722, EAN: 4028177948532
