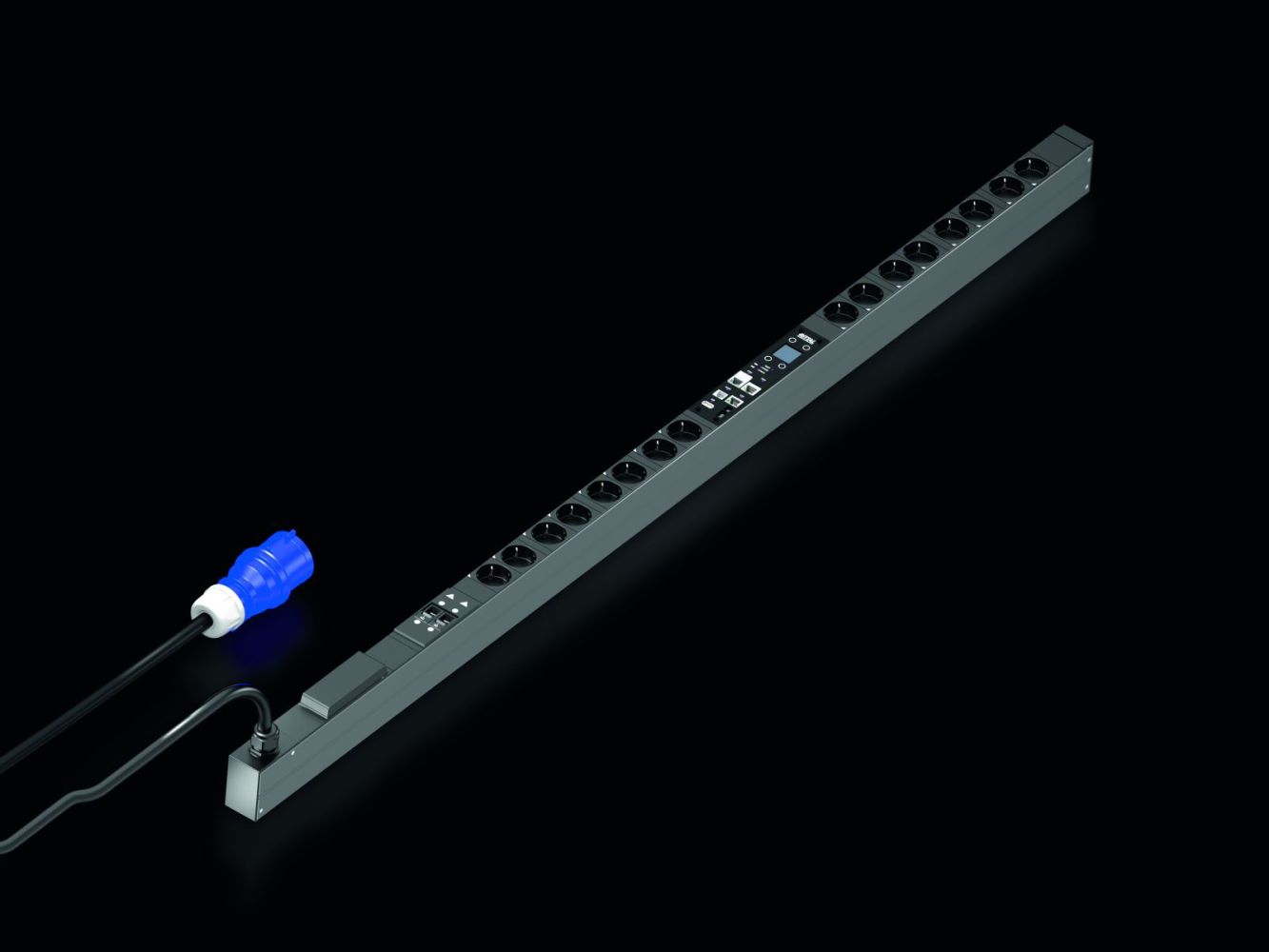

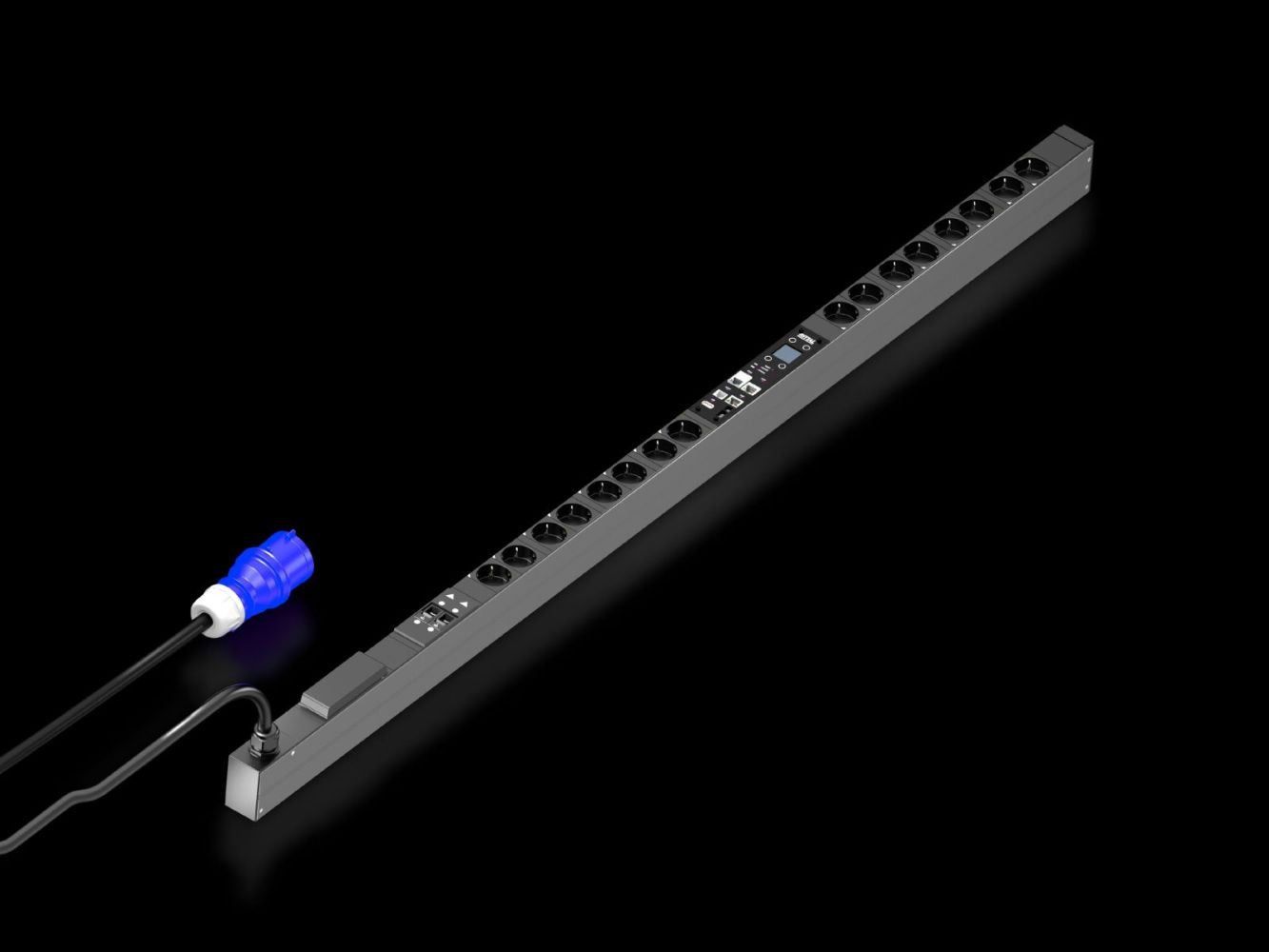

Rittal 7979414 PDU managed, 32A/230V, 1~, CEE 7/3: 16 x Schuko

Your rating:
Average rating
product review for Rittal 7979414 PDU managed, 32A/230V, 1~, CEE 7/3: 16 x Schuko
( 4 / 5 ) 1 ratings
Rittal 7979414

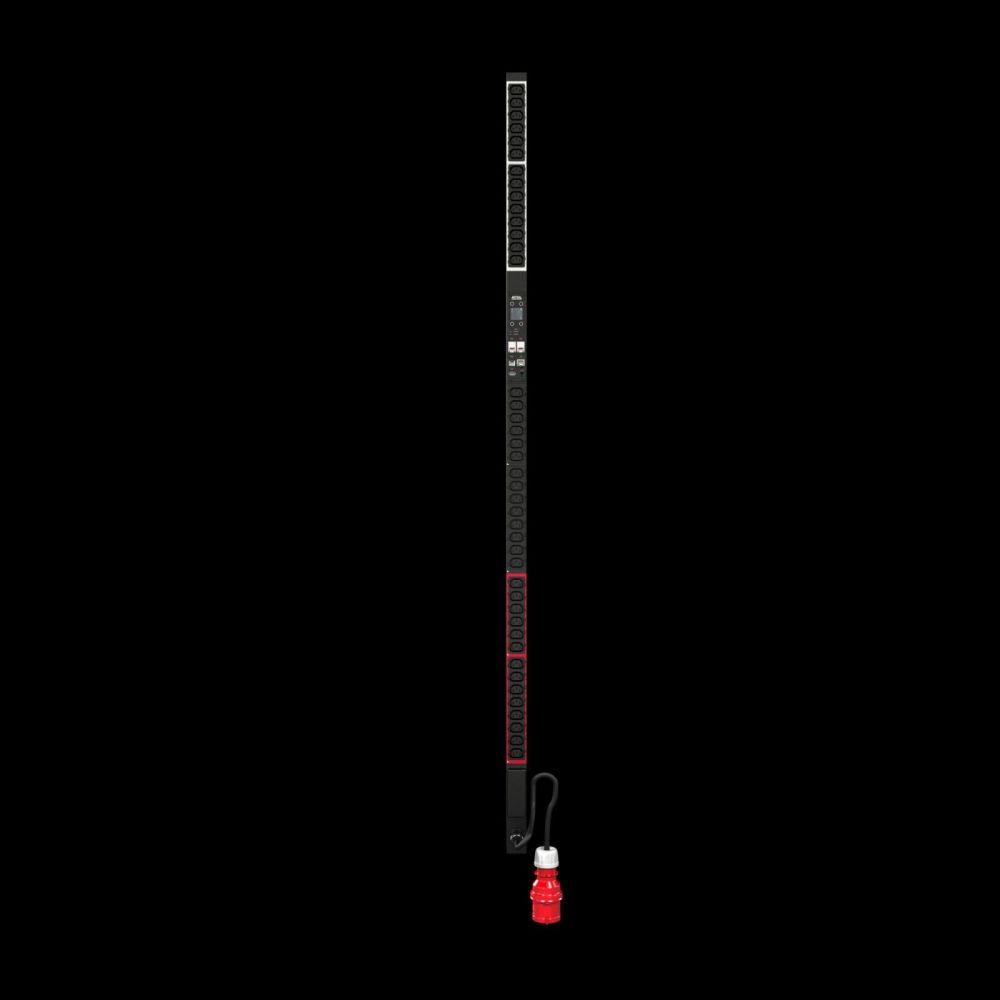

This image may differ from the desired article.
Rittal 7979414Rittal 7979414Rittal 7979414Rittal 7979414Rittal 7979414Rittal 7979414Rittal 7979414Rittal 7979414
1.490,30 EUR 1.524,79 EUR
( 1.773,46 EUR incl. VAT )
≈ £1,247.38  |  ≈ $1,637.84
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 7979414 PDU managed, 32A/230V, 1~, CEE 7/3: 16 x Schuko
Datasheet:file_download Download
Lieske Part No.:1101071
Mfg Part No: 7979414
UPC/EAN: 4028177948112
Weight:0.001 kg
Type:DK 7979414

Product information for Rittal 7979414:

The Rittal DK 7979414 is a managed PDU (Power Distribution Unit) for use in IT network and server racks. It is designed for vertical power distribution in 19-inch enclosures and provides comprehensive energy measurement and monitoring functions for each individual output socket. The unit is housed in a compact aluminium profile with a black anodized surface and features 16 Schuko sockets (Type F, CEE 7/3). Power supply is via a CEE plug with a rated operating voltage of 230 V (AC) and a maximum rated current of 32 A, corresponding to a rated power of 7.4 kW. The PDU is self-powered and does not require an external power supply.

Applications

The PDU is designed for use in IT infrastructures, particularly in Rittal VX IT or TS IT racks with a minimum length of 1,800 mm. When mounted vertically, it can be installed tool-free in Zero-U-Space. The colour-coded phase marking (L1=pink, L2=black, L3=white) facilitates identification and maintenance. The unit is intended for indoor use, with an operating temperature range of 5 °C to 50 °C and a humidity range of 10 % to 95 % (non-condensing).

Functions and Equipment in Detail

The PDU features an integrated, fully redundant power supply that can be fed from all phases to ensure fault-tolerant operation. Measurement accuracy is ±1 % (kWh) according to EN 62053-21. Each output socket can be individually monitored, with configurable thresholds for voltage, current, and power. The switching function allows programmable on/off behaviour upon voltage recovery (on, off, last state) as well as programmable switching based on time or logical conditions. Relay states are stored even during power failure, ensuring stable recovery.

Technology Explained Simply

The PDU is equipped with a powerful ARM Cortex A8 processor, enabling processing of measurement and control data. An integrated real-time clock with battery backup (up to 10 years, replaceable) ensures accurate timekeeping even during power failure. A bright TFT display with 128x128 pixels (RGB) and backlighting shows performance data and basic configuration. The display unit is rotatable by 180° and replaceable, allowing correct orientation when mounted vertically. Multicolour LEDs (green/yellow/red) indicate the switching state and thresholds for each output socket. An integrated electromagnetic buzzer enables acoustic alarm for critical events.

Compatibility and Accessories

The PDU is equipped with a variety of interfaces, including a fully redundant Ethernet interface (10/100/1000 Mbit/s), a USB 2.0 interface (USB-A) for mass configuration, firmware updates, and data logging, and a CAN-Bus interface (RJ45) for connecting up to 16 CMC III environmental sensors. A serial RS232 interface (RJ12) allows connection of LTE modules, scripting, and CLI access. The PDU supports protocols such as HTTP/HTTPS, SSH, Telnet, NTP, TCP/IP v4 & v6, DHCP, DNS, SNMP v1, v2c & v3, Modbus/TCP, OPC-UA, and FTP/SFTP. Integration into DCIM software is possible via MIBs. Optionally, a Type 3 surge protection device with replaceable discharge elements during operation can be integrated and monitored. Differential current measurement (Type B) is possible per input, phase, or fuse. The PDU comes with a tool-free mounting kit for VX IT racks, and the delivery includes mounting hardware.

Installation and Mounting

Installation is tool-free in the Zero-U-Space of Rittal VX IT or TS IT racks with a minimum length of 1,800 mm. The unit is designed for vertical mounting, with the display unit oriented accordingly. The power cable has a length of 3 m and is fitted with a CEE plug. Installation does not require additional power supply for the PDU itself.

Operational Advantages

The PDU offers high operational reliability through redundant power supply and integrated fault detection. Individual monitoring and control of outputs enables precise energy management and load distribution. Support for protocols such as SNMP, Modbus/TCP, and OPC-UA simplifies integration into existing network and monitoring systems. The ability to connect environmental sensors via CAN-Bus extends functionality for environmental monitoring. The PDU is designed for use in professional IT environments where reliable and controlled power supply is required. Measurement accuracy according to EN 62053-21 ensures reliable energy accounting. The integrated real-time clock with long battery backup ensures continuous timekeeping, even during power failure. The PDU is certified in accordance with the EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU, as well as standards EN 62368-1, EN 61000-3, EN 61000-4, EN 61000-6, and EN 62053-21. Batteries are not included in the delivery scope.

General
ModelPDU, managed
MaterialAluminium profile, black anodised, mounting slots: plastic
Scope of deliveryIncluding mounting hardware
OptionsOvervoltage protection Type 3 with replaceable diverters during operation, with status monitoring, integrable in PDU housing, differential current measurement (Type B) per input/phase/fuse, monitoring of optional overvoltage protection, CMC III CAN-Bus sensors for environment monitoring connectable, max. 16 sensors, other housing colours available
Width44 mm
Depth70 mm
Length1.495 mm
Number of sockets and type16 x Schuko (Type F, CEE 7/3)
Socket outlets16 x Schuko
Rated operating voltage230 V (AC)
Rated current (max.)32 A
Nominal power7,4 kW
Power suppliesNumber: 1, Phases per input: 1~
Connection cable length3 m
Electrical connection typeCEE
InterfacesUSB 2.0 port (USB-A) for mass configuration, firmware update & data logging, CAN-Bus interface (RJ45) for max. 16 environment sensors, serial interface RS232 (RJ12) for LTE unit, scripting, CLI, use of own certificates/TLS 1.2, email sending on alarm (SMTP), user management including rights management, LDAP(S)/Radius/Active Directory integration, Syslog server integration (max. 2 servers), fully redundant Ethernet interface 10/100/1000 Mbit/s
Number of RJ45 ports for sensor units max2
PoliciesEMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU
StandardsEN 62368-1, EN 61000-3, EN 61000-4, EN 61000-6, EN 62053-21
ProtocolsWeb server (HTTP, HTTPS, SSL) SSH, Telnet, NTP, TCP/IP v4 & v6, DHCP, DNS, SNMP v1, v2c & v3, Modbus/TCP, OPC-UA, MIB for integration into 3rd party DCIM software, FTP/SFTP (update/file transfer)
Operating temperature range5 °C...50 °C
Humidity (non-condensing)10...95 %
Storage temperature range-20 °C...70 °C
Suitable forHousing type: VX IT cabinet frame: ≥ 1,800 mm, housing type: VX IT 19"-profile rails: ≥ 1,800 mm


Product data sheet
Datasheet for Rittal 7979414, EAN: 4028177948112

Questions & answers

What is the delivery time of Rittal 7979414 PDU managed, 32A/230V, 1~, CEE 7/3: 16 x Schuko?

The article Rittal 7979414 PDU managed, 32A/230V, 1~, CEE 7/3: 16 x Schuko is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 7979414 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 7979414 PDU managed, 32A/230V, 1~, CEE 7/3: 16 x Schuko always at the best possible price. We can give you a discount of 2% on Rittal 7979414 PDU managed, 32A/230V, 1~, CEE 7/3: 16 x Schuko if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
