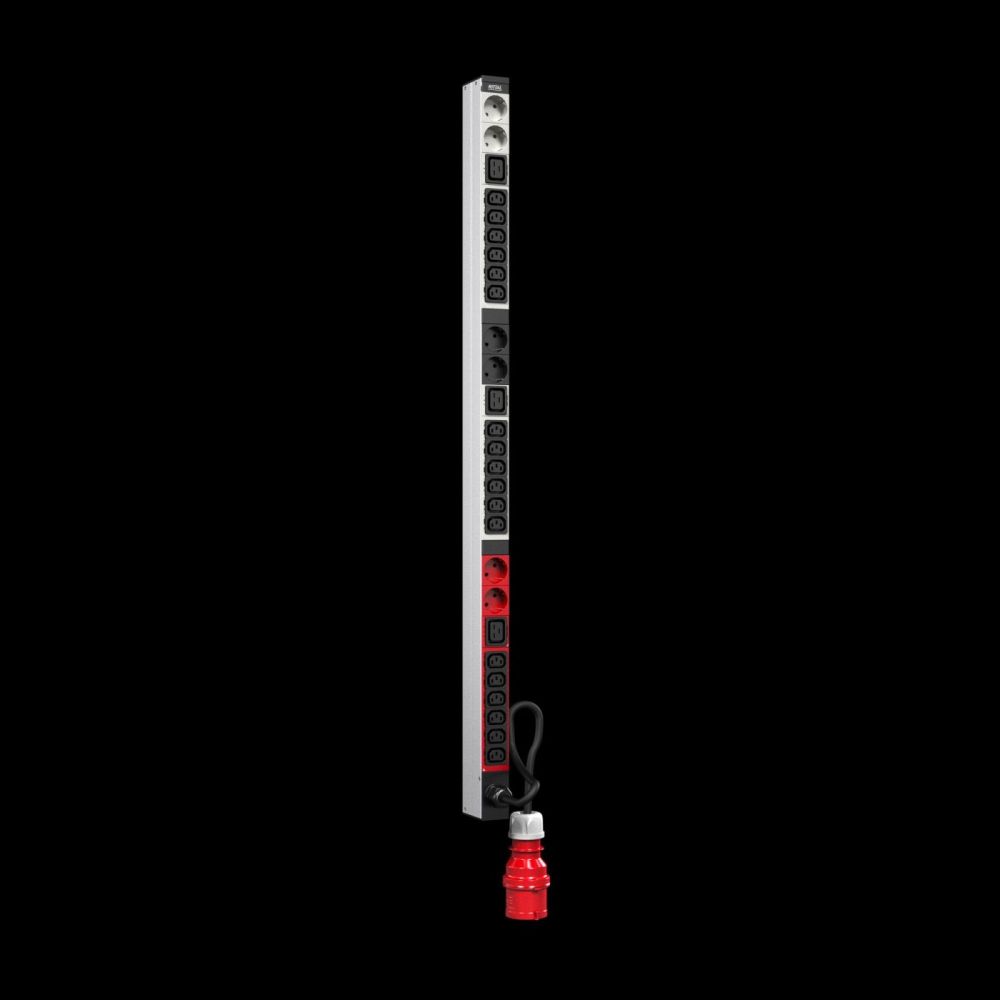

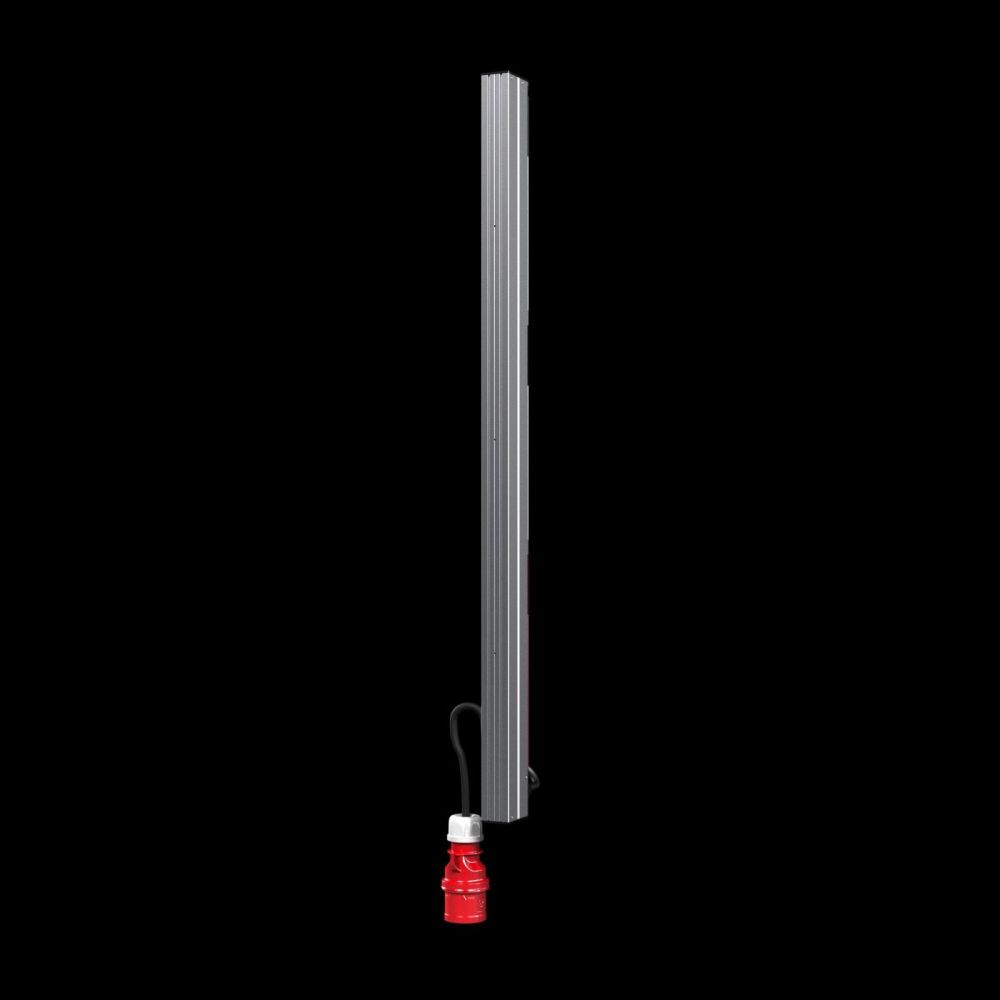

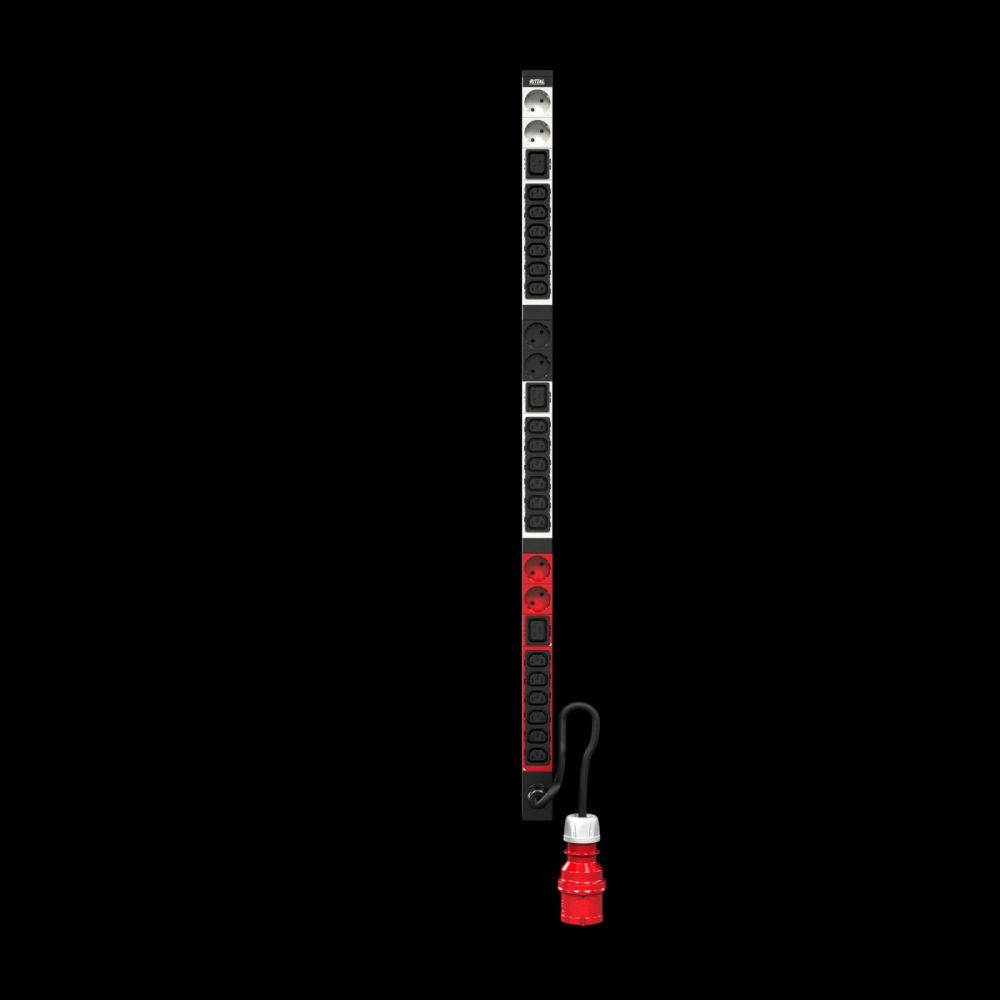

Rittal 7979112 PDU basic 32A/1P CEE 16xC13+2xC19
|
230,46 EUR |
|
|
( 274,25 EUR incl. VAT ) ≈ £192.90 | ≈ $253.28 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >50 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1714666 |
| Mfg Part No: | 7979112 |
| UPC/EAN: | 4028177947412 |
| Weight: | 3.52 kg |
| Type: | DK 7979112 |
Product information for Rittal 7979112:
Applications
The PDU basic is intended for use in IT server and network enclosures, particularly in racks of types VX IT and TX CableNet. It is compatible with enclosure frames with a minimum length of 1,200 mm and can be mounted both horizontally in the 48,3 cm ( 19 inch ) plane and vertically. Notably, it can be mounted in Zero-U-Space, preserving valuable rack space. Tool-free mounting in Rittal VX IT and TS IT racks is achieved using a supplied universal holder, enabling quick and secure installation.
Functions and Equipment in Detail
The power distribution unit is equipped with a plug locking mechanism for IEC C14 and C20 plugs, preventing accidental disconnection of plugs. This enhances operational safety, especially in environments with high equipment density. Unused outlets can be sealed using covers available as accessories, preventing unintentional overloading of individual phases or circuits. The fuse circuits and phases are colour-coded (L1 = pink, L2 = black, L3 = white), which facilitates identification in multi-phase configurations. Although the PDU basic offers only single-phase supply, this colour-coding is standardized across the product family.
Technology Explained Simply
The PDU basic is designed for operation in a temperature range of 5 °C to 50 °C and tolerates humidity levels of 10 % to 95 % (non-condensing). Storage temperature can range from -20 °C to 70 °C. Compliance with standards EN 62368-1, EN 61000-3, EN 61000-4, EN 61000-6, and EN 62053-21 ensures safety and functionality in IT environments. Compliance with the EMC Directive 2014/30/EU and the Low Voltage Directive 2014/35/EU guarantees electromagnetic compatibility and safety for use in public and commercial electrical installations.
Compatibility and Accessories
The PDU basic is suitable for mounting in VX IT enclosure frames, VX IT 48,3 cm ( 19 inch ) profile rails, and TX CableNet enclosures with a minimum length of 1,200 mm. Various accessories are available, including Type 3 surge protection with replaceable discharge modules during operation, which can be integrated into the PDU housing. Additionally, CAN-Bus cables for the CMC III monitoring system, covers for C13 and C19 outlets, mounting adapters, and numeric code locks for the CMC III system are available. These components enable extended monitoring and protection of the power distribution.
Mounting and Installation
Mounting is tool-free in Rittal VX IT and TS IT racks using the supplied universal holder. The PDU can be installed both horizontally and vertically, with vertical mounting in Zero-U-Space being particularly space-saving. The supplied fastening materials allow for secure and stable anchoring in the rack. The CEE plug connection cable is pre-installed, making the PDU operational immediately after installation.
Operational Advantages
The PDU basic provides reliable and structured power supply for IT systems. The integrated plug locking mechanism and the option to cover unused outlets enhance operational safety. Tool-free mounting and compatibility with common IT rack systems reduce installation effort. Compliance with international standards and directives ensures safe and reliable use in professional environments. Options such as surge protection and monitoring systems extend functionality and enable proactive operational monitoring.
| General | |
| Model | PDU Basic |
| Material | Aluminium extruded profile, anodized, socket positions: plastic |
| Scope of delivery | Plug lock for IEC C14, C20 plugs, including mounting hardware |
| Options | Surge protection Type 3 with replaceable discharge devices during operation, with status monitoring, integrable in PDU enclosure, other enclosure colours available |
| Width | 44 mm |
| Depth | 70 mm |
| Length | 845 mm |
| Number of sockets and type | 16 x C13 / 2 x C19 |
| Rated operating voltage | 230 V (AC) |
| Rated current (max.) | 32 A |
| Nominal power | 7,4 kW |
| Power supplies | Number: 1, Phases per input: 1~ |
| Connection cable length | 3 m |
| Electrical connection type | CEE |
| Policies | EMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU |
| Standards | EN 62368-1, EN 61000-3, EN 61000-4, EN 61000-6, EN 62053-21 |
| Operating temperature range | 5 °C...50 °C |
| Humidity (non-condensing) | 10...95 % |
| Storage temperature range | -20 °C...70 °C |
| Suitable for | Enclosure type: VX IT Enclosure frame: ≥ 1.200 mm, Enclosure type: VX IT 19"-profile rails: ≥ 1.200 mm, Enclosure type: TX CableNet: ≥ 1.200 mm |
