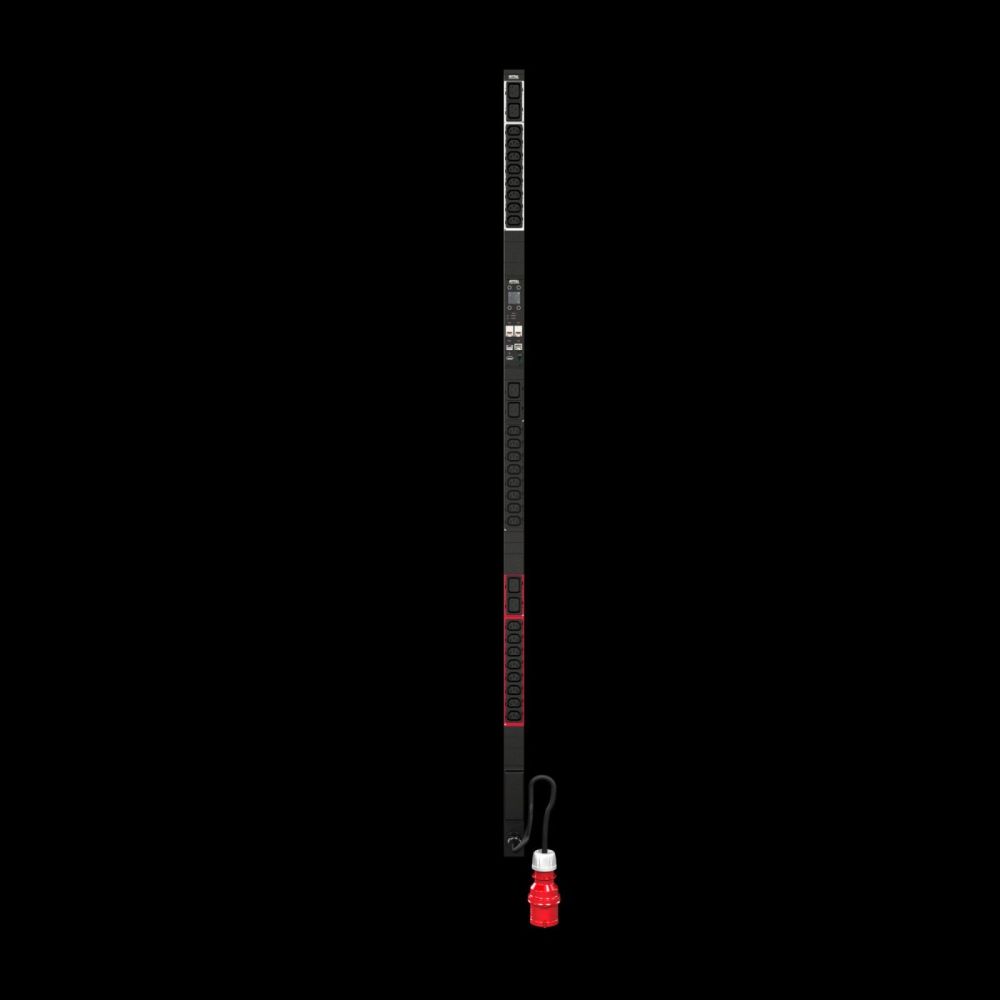

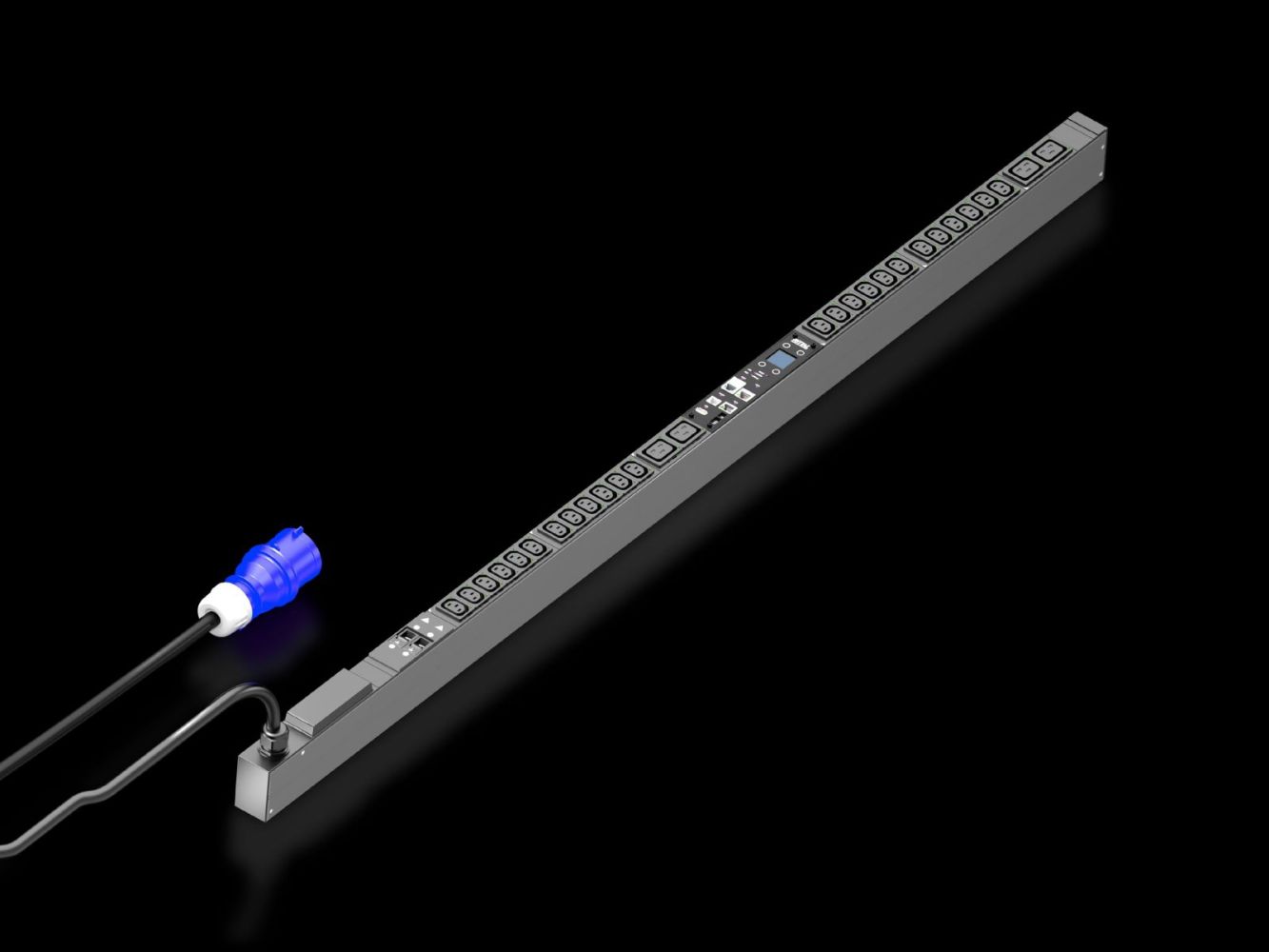

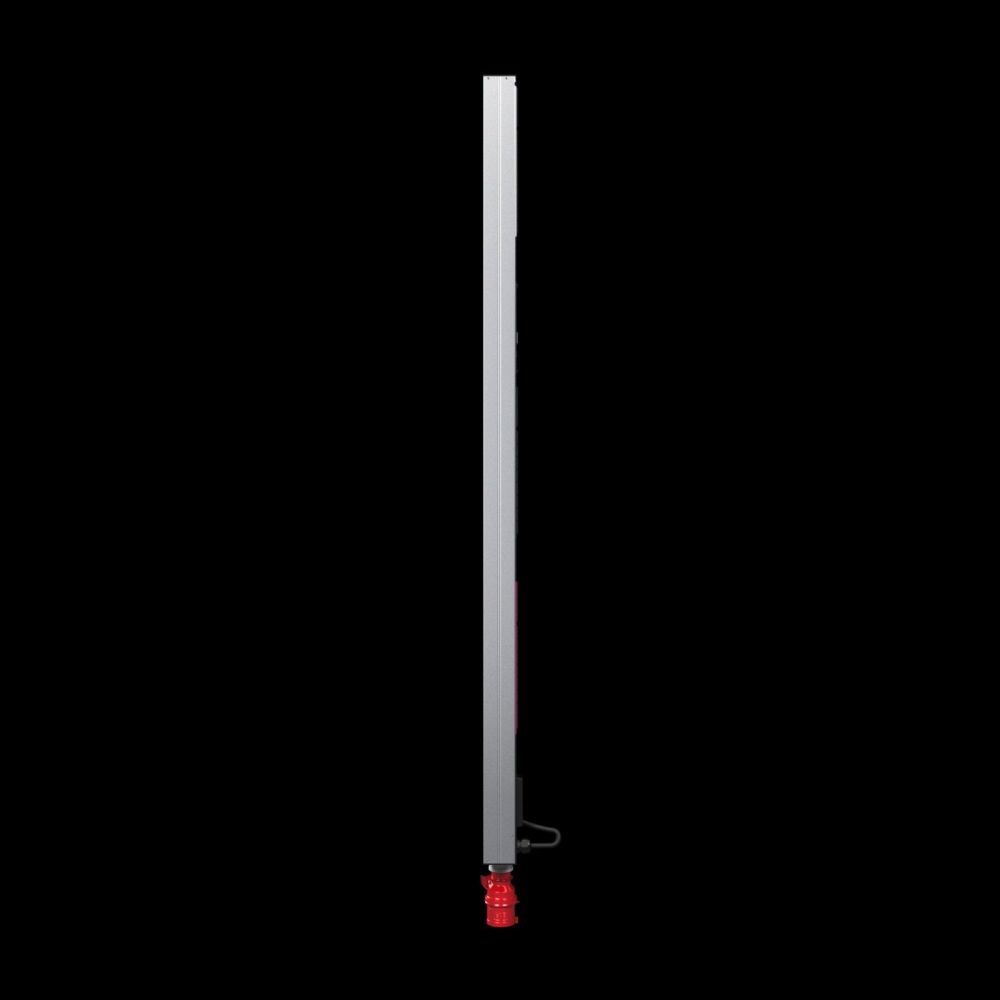

Rittal 7979256 PDU metered RCM, 32A/230V, 1~, 24 x C13 + 4 x C19

Your rating:
Average rating
product review for Rittal 7979256 PDU metered RCM, 32A/230V, 1~, 24 x C13 + 4 x C19
( 4 / 5 ) 3 ratings
Rittal 7979256
This image may differ from the desired article.
Rittal 7979256Rittal 7979256Rittal 7979256Rittal 7979256Rittal 7979256Rittal 7979256Rittal 7979256Rittal 7979256
-5% 1.090,68 EUR 1.143,79 EUR
( 1.297,91 EUR incl. VAT )
≈ £912.90  |  ≈ $1,198.66
plus delivery charges: 100,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 7979256 PDU metered RCM, 32A/230V, 1~, 24 x C13 + 4 x C19
Datasheet:file_download Download
Lieske Part No.:2069690
Mfg Part No: 7979256
UPC/EAN: 4028177967946
Weight:5.7 kg
Type:DK 7979256

Product information for Rittal 7979256:

The Rittal DK 7979256 is a PDU (Power Distribution Unit) with integrated energy measurement per phase and differential current measurement (RCM / Type B), specifically designed for use in IT network and server racks. The device serves for power distribution and monitoring in data centers and IT infrastructures, with differential current measurement performed per 16 A fuse. The PDU is housed in a compact aluminum profile enclosure with a black anodized surface, measuring 1,695 mm in length, 44 mm in width, and 70 mm in depth. Power supply is via a CEE connection cable with a length of 3 m, with a rated operating voltage of 230 V AC. The maximum rated power is 7.4 kW at a rated current of 32 A.

Applications

The PDU is suitable for use in Rittal VX IT rack frames with a minimum length of 1,800 mm, as well as in VX IT 48,3 cm ( 19 inch ) profile rails with a minimum length of 1,800 mm. Vertical mounting is tool-free in Zero-U-Space, enabling installation in existing racks without additional mounting effort. The color-coded phase marking (L1=pink, L2=black, L3=white) facilitates assignment and maintenance. The PDU is self-powered and does not require external power supply.

Functions and Equipment in Detail

The PDU features 24 C13-type outlets and 4 C19-type outlets, made of plastic. The integrated energy measurement is performed per phase or input, with a measurement accuracy of ±1 % (kWh) according to EN 62 053-21. The differential current measurement (Type B – AC/DC) per fuse covers a measurement range of 0 mA to 100 mA. The PDU is equipped with a bright TFT display (128x128 pixels, RGB) with backlight and energy-saving mode. The display shows power data and the basic configuration of the PDU. The display unit is rotatable by 180° and replaceable, ensuring correct display regardless of mounting position.

Technology Explained Simply

The PDU is equipped with a powerful CPU (ARM Cortex A8) enabling processing of measurement data and control of interfaces. Power supply is via an integrated, fully redundant power supply unit, which can be powered from all phases, ensuring fault-tolerant power supply. The integrated real-time clock with battery backup (max. 10 years, replaceable) ensures accurate time measurement even during power failure. An integrated electromagnetic buzzer enables acoustic alarm in case of exceeding set thresholds. Thresholds for voltage, current, and power are adjustable, allowing individual configuration of warnings and alarms. An operating hour counter (total and cyclic, resettable) records the operating time of the PDU.

Compatibility and Accessories

The PDU is equipped with a variety of interfaces, including a fully redundant Ethernet interface (10/100/1000 Mbit/s), a USB 2.0 interface (USB-A) for mass configuration, firmware updates, and data logging, as well as a CAN-Bus interface (RJ45) for connecting up to 16 CMC III CAN-Bus sensors for environmental monitoring. A serial interface RS232 (RJ12) enables connection of an LTE unit, scripting, and CLI. The PDU supports protocols such as Web server (HTTP, HTTPS, SSL), SSH, Telnet, NTP, TCP/IP v4 & v6, DHCP, DNS, SNMP v1, v2c & v3, Modbus/TCP, OPC-UA, and FTP/SFTP. Integration into 3rd party DCIM software is possible via MIB. User management including rights management, LDAP(S)/Radius/Active Directory integration, and Syslog server connection (max. 2 servers) enables centralized management. Email notification in case of alarm (SMTP) is also integrated. Optionally, a Type 3 surge protector with replaceable discharge elements during operation and status monitoring is available, which can be integrated into the PDU enclosure. Monitoring of the optional surge protector is also possible. Other enclosure colors are optionally available.

Mounting and Installation

Mounting is tool-free in the Zero-U-Space of Rittal VX IT or TS IT racks. The PDU is designed for use in IT infrastructures requiring high availability and reliability.

Operational Advantages

The PDU offers high measurement accuracy, redundant power supply, and comprehensive monitoring functions. The integrated real-time clock and operating hour counter enable precise documentation of operating time. Acoustic alarm and adjustable thresholds ensure early detection of faults. Support for many protocols and interfaces facilitates integration into existing IT infrastructures. The energy-saving design with low self-consumption reduces the device’s own energy consumption.

Operating Environment

The PDU is designed for an operating temperature range of 5 °C to 50 °C and a humidity range of 10 % to 95 % (non-condensing). The storage temperature range is -20 °C to 70 °C. The PDU complies with the EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU, as well as standards EN 62368-1, EN 61000-3, EN 61000-4, EN 61000-6, and EN 62053-21.

Note: Batteries are not included in the delivery scope.

General
ModelPDU, metered, Incl. RCM
MaterialAluminium profile, black anodised, mounting slots: plastic
Scope of deliveryIncluding mounting hardware
Optionssurge protection Type 3 with replaceable discharge devices during operation, with status monitoring, integrable into PDU housing, monitoring of optional surge protection, CMC III CAN-Bus sensors for environmental monitoring connectable, max. 16 sensors, other housing colours available
Description of measurement functionsDifferential current measurement (Type B – AC/DC) per fuse, measurement range 0 mA – 100 mA, energy measurement per phase or supply, powerful CPU (ARM Cortex A8), digital input (voltage-free contact), additional alarm output/relay output (changeover contact)
Width44 mm
Depth70 mm
Length1.695 mm
Number of sockets and type24 x C13 / 4 x C19
Rated operating voltage230 V AC
Rated current (max.)32 A
Nominal power7,4 kW
Power suppliesNumber: 1, Phases per input: 1~
Connection cable length3 m
Electrical connection typeCEE
InterfacesUSB 2.0 port (USB-A) for mass configuration, firmware update & data logging, CAN-Bus interface (RJ45) for max. 16 environment sensors, serial interface RS232 (RJ12) for LTE unit, scripting, CLI, use of own certificates/TLS 1.2, email sending on alarm (SMTP), user management including rights management, LDAP(S)/Radius/Active Directory integration, Syslog server integration (max. 2 servers), fully redundant Ethernet interface 10/100/1000 Mbit/s
Number of RJ45 ports for sensor units max2
PoliciesEMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU
StandardsEN 62368-1, EN 61000-3, EN 61000-4, EN 61000-6, EN 62053-21
ProtocolsWeb server (HTTP, HTTPS, SSL) SSH, Telnet, NTP, TCP/IP v4 & v6, DHCP, DNS, SNMP v1, v2c & v3, Modbus/TCP, OPC-UA, MIB for integration into 3rd party DCIM software, FTP/SFTP (update/file transfer)
Operating temperature range5 °C...50 °C
Humidity (non-condensing)10...95 %
Storage temperature range-20 °C...70 °C
Suitable forHousing type: VX IT cabinet frame: ≥ 1,800 mm, housing type: VX IT 19"-profile rails: ≥ 1,800 mm
