Rittal 7979116 PDU basic 32A/1P CEE 24xC13+4xC19
|
281,21 EUR 286,12 EUR |
|
|
( 334,64 EUR incl. VAT ) ≈ £235.37 | ≈ $309.05 plus delivery charges: 55,00 € |
|
| Made to order · Expected to be available from 24.11.2026info_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1714665 |
| Mfg Part No: | 7979116 |
| UPC/EAN: | 4028177947450 |
| Weight: | 4.54 kg |
| Type: | DK 7979116 |
Product information for Rittal 7979116:
Applications

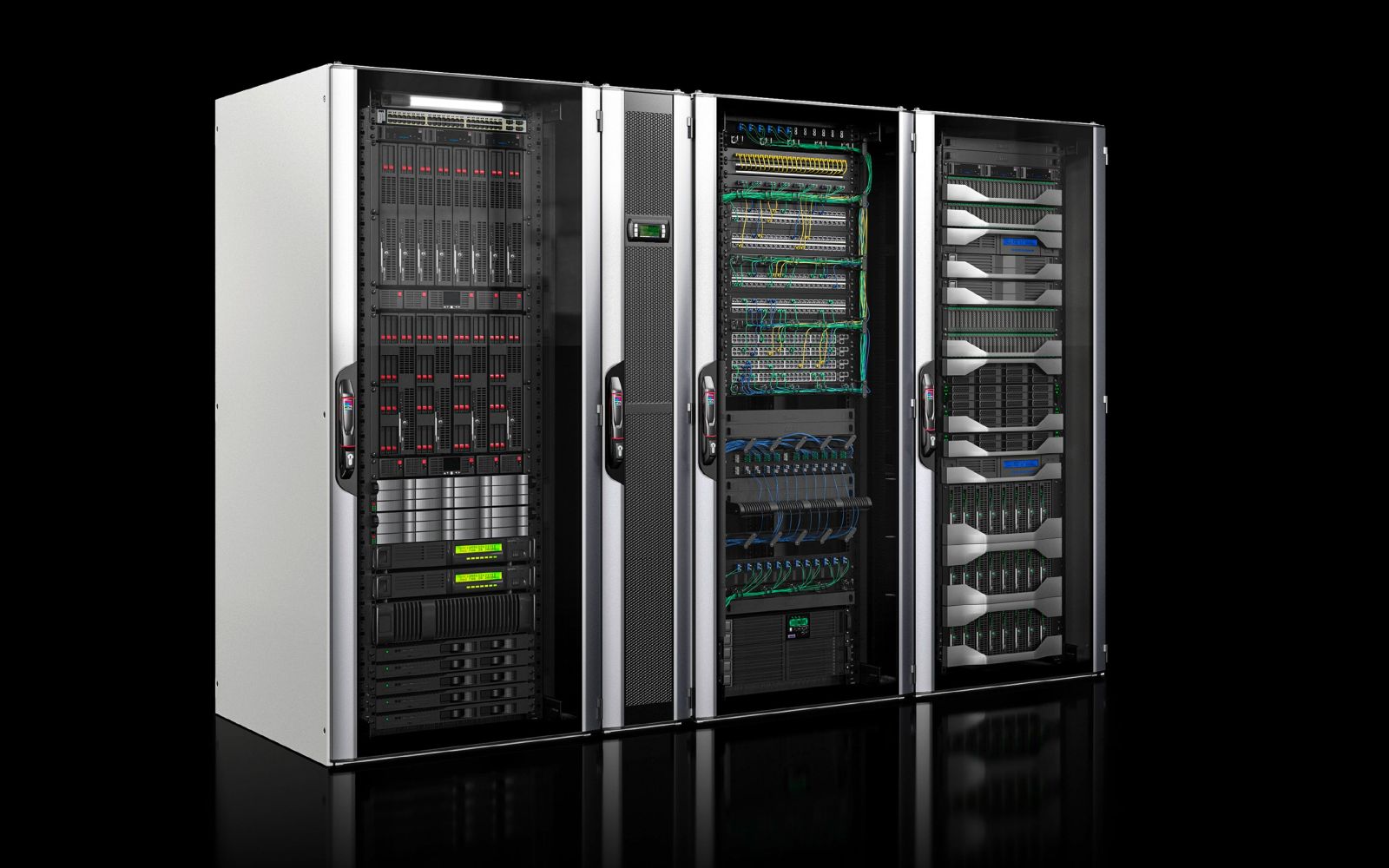

The PDU is designed for use in IT infrastructures, particularly in server and network enclosures requiring reliable and structured power supply. It is compatible with enclosure types such as VX IT frame, VX IT 48,3 cm ( 19 inch ) profile rails, and TX CableNet, provided they have a minimum length of 1,800 mm. Thus, the power distribution unit is suitable for standard IT enclosures in high-rack environments.
Functions and Equipment in Detail

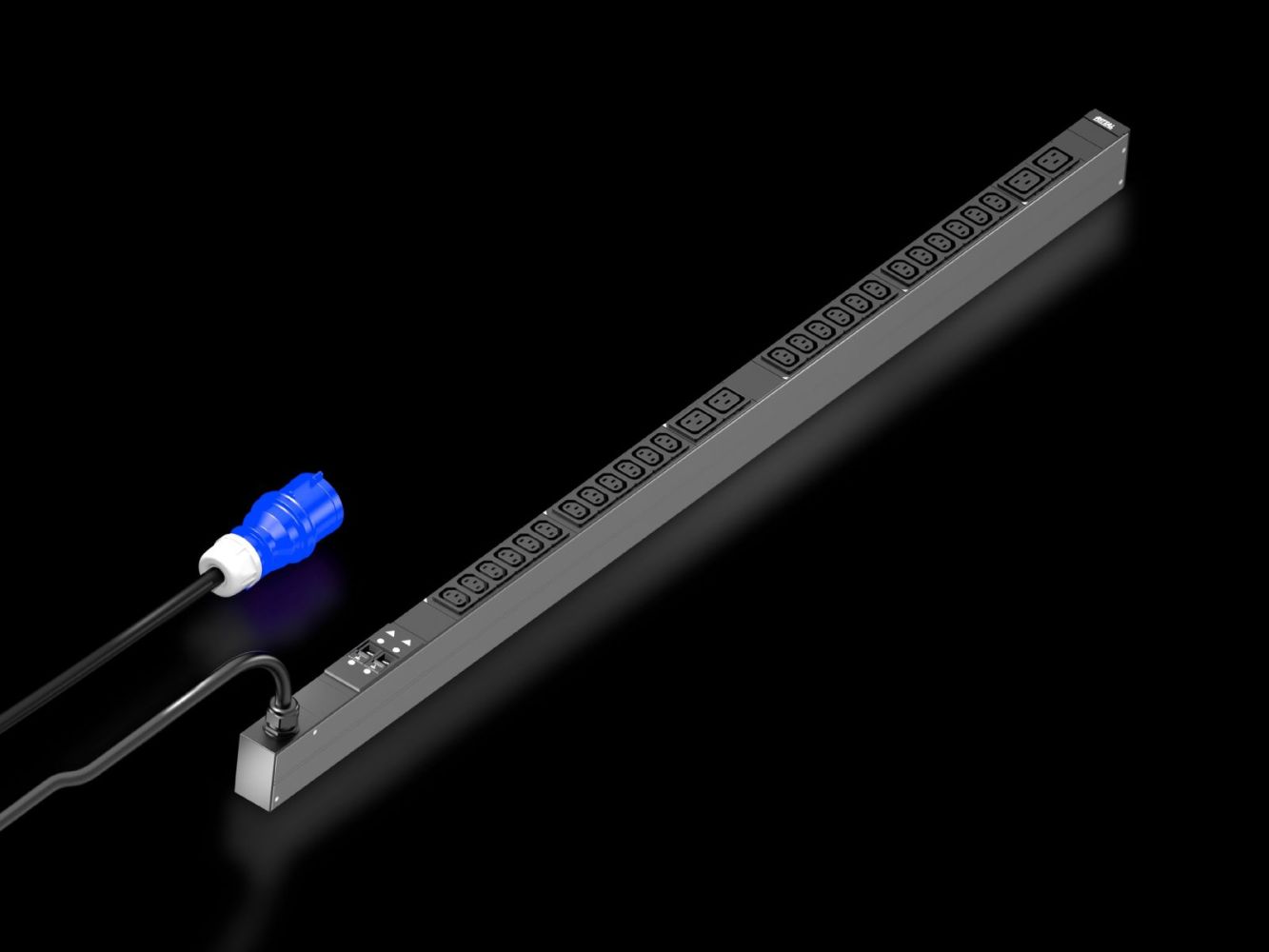

The power distribution unit features a total of 28 outlets: 24 outlets of type IEC 60320/C13 and 4 outlets of type IEC 60320/C19. These enable the power supply for servers, network devices, and other IT components. The outlets are made of plastic and are firmly mounted in the enclosure. To prevent accidental disconnection, locking mechanisms for IEC C14 and C20 plugs are included in the delivery. Unused outlets can be sealed with accessories available separately, preventing unintentional overloading of individual phases or circuits.
Technology Explained Simply

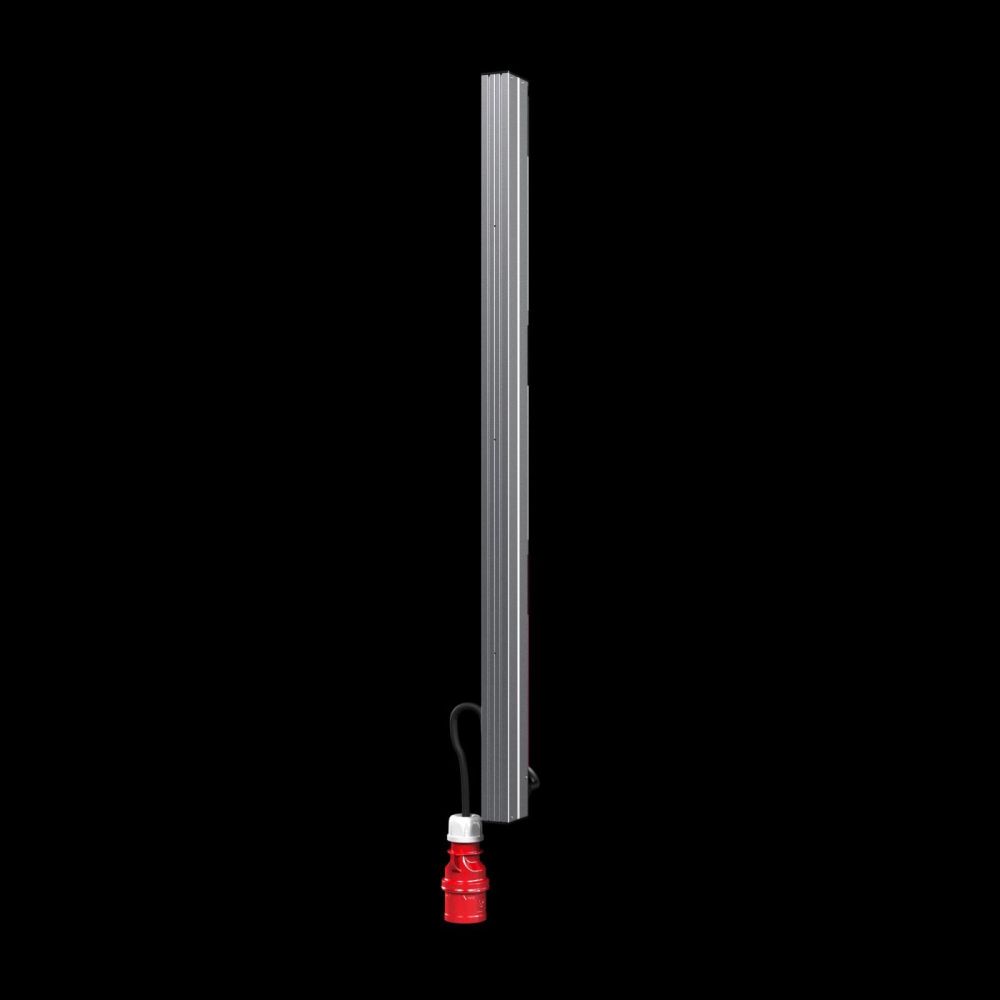

The PDU basic is delivered with a permanently mounted connection cable, 3 m long, equipped with a CEE plug. The rated operating voltage is 230 V (AC), with a maximum rated current of 32 A, corresponding to a rated power of 7.4 kW. The power distribution unit is designed for single-phase supply (1~). The enclosure is made of an aluminum extruded profile, anodized, ensuring high mechanical stability and corrosion resistance. The operating temperature range is between 5 °C and 50 °C, with relative humidity (non-condensing) between 10 % and 95 %. Storage is possible in the range of -20 °C to 70 °C.
Compatibility and Accessories
The PDU is suitable for mounting in Rittal VX IT and TS IT enclosures, as well as in TX CableNet systems, provided the minimum length of 1,800 mm is maintained. Accessories include, among others, covers for C13 and C19 outlets, mounting adapters, CAN-Bus cable for the CMC III monitoring system, and a Type 3 surge protection module. The latter can be inserted and replaced during operation and features status monitoring. The PDU basic can optionally be equipped with a Type 3 surge protection module, which can be integrated into the enclosure.
Mounting and Installation

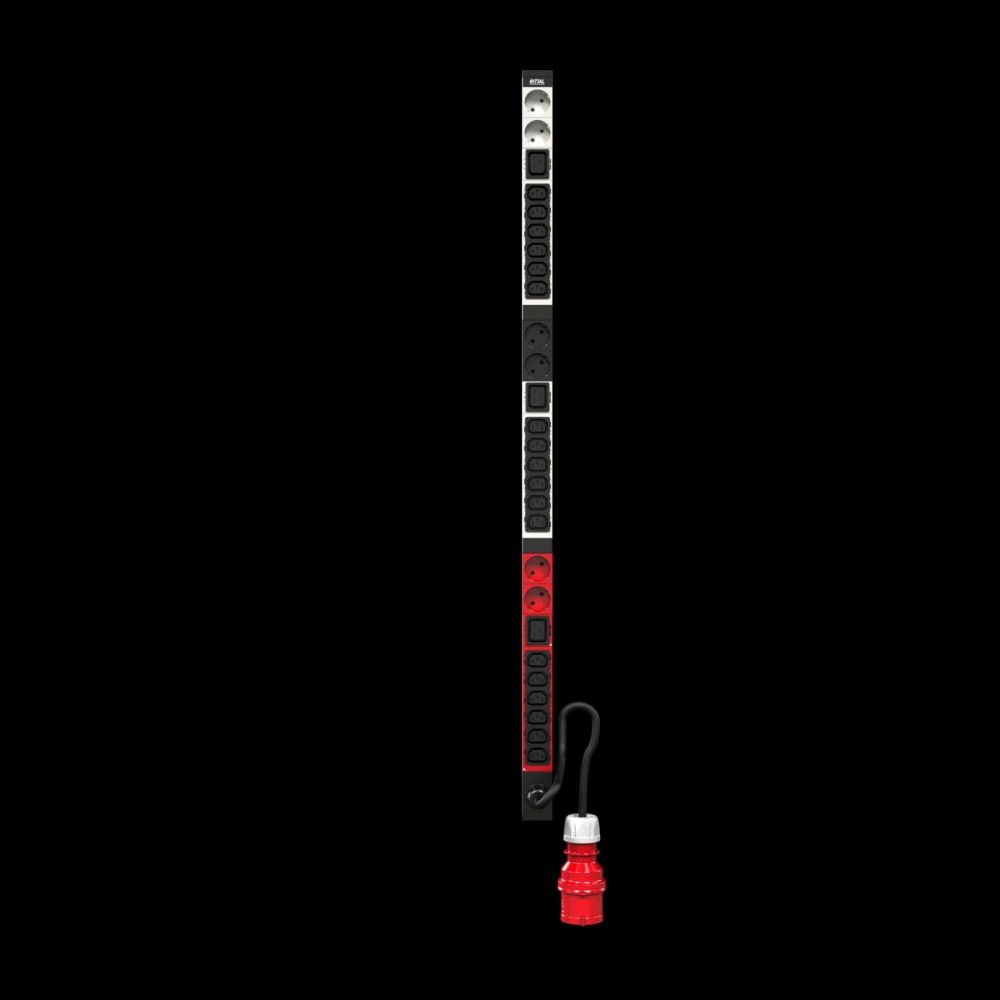

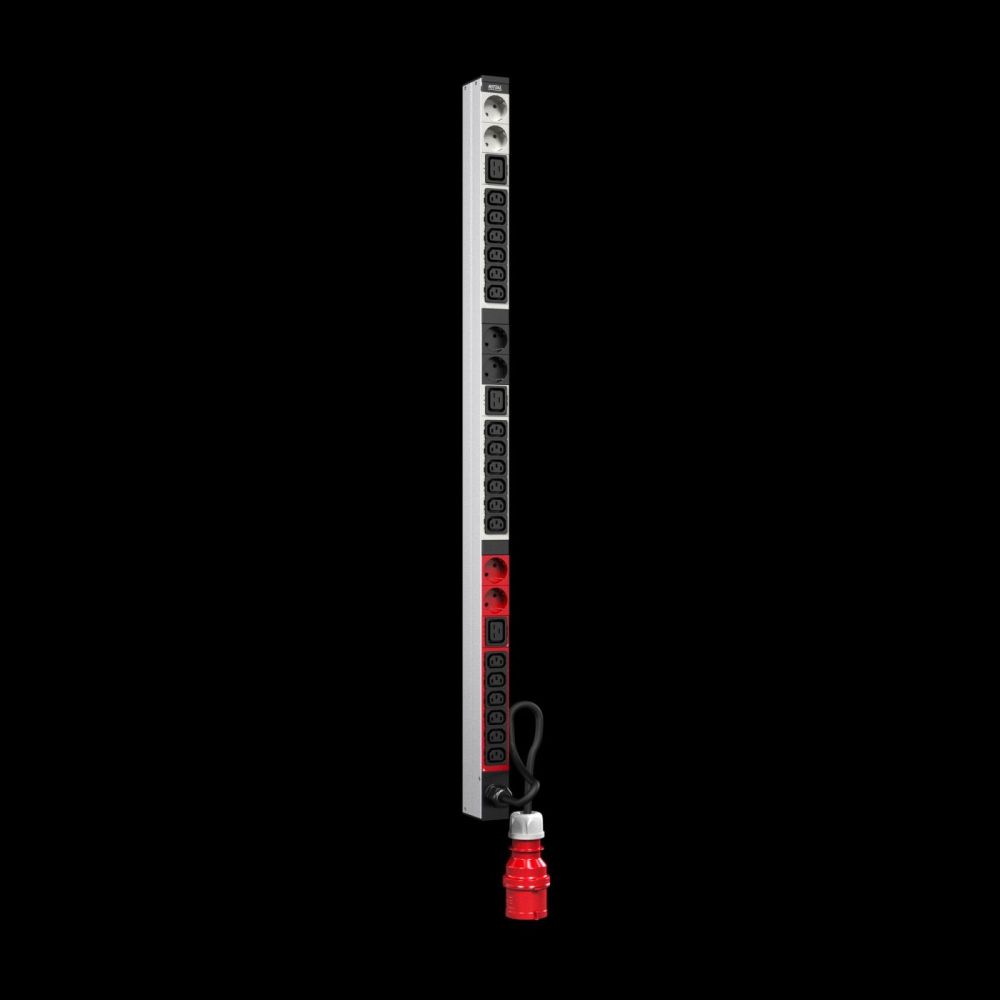

Mounting is tool-free in the Zero-U-Space of Rittal VX IT and TS IT enclosures using the included mounting kit. Horizontal mounting in the 48,3 cm ( 19 inch )-plane is also possible. Mounting materials are included in the delivery. The color coding of phases (L1=pink, L2=black, L3=white) supports circuit assignment, especially in multi-phase systems. The PDU is immediately ready for use, as the connection cable is already mounted.
Advantages in Operation
The PDU basic offers a robust and reliable power distribution with high mechanical stability. The tool-free mounting in Zero-U-Space enables efficient installation without additional tools. The integrated plug locking and the option to cover unused outlets increase safety and prevent overloads. Compliance with standards EN 62368-1, EN 61000-3, EN 61000-4, EN 61000-6, and EN 62053-21, as well as conformity with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU, ensures safety and functionality in operation.
| General | |
| Model | PDU Basic |
| Material | Aluminium extruded profile, anodized, socket positions: plastic |
| Scope of delivery | Plug lock for IEC C14, C20 plugs, including mounting hardware |
| Options | Surge protection Type 3 with replaceable discharge devices during operation, with status monitoring, integrable in PDU enclosure, other enclosure colours available |
| Width | 44 mm |
| Depth | 70 mm |
| Length | 1.295 mm |
| Number of sockets and type | 24 x C13 / 4 x C19 |
| Rated operating voltage | 230 V (AC) |
| Rated current (max.) | 32 A |
| Nominal power | 7,4 kW |
| Power supplies | Number: 1, Phases per input: 1~ |
| Connection cable length | 3 m |
| Electrical connection type | CEE |
| Policies | EMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU |
| Standards | EN 62368-1, EN 61000-3, EN 61000-4, EN 61000-6, EN 62053-21 |
| Operating temperature range | 5 °C...50 °C |
| Humidity (non-condensing) | 10...95 % |
| Storage temperature range | -20 °C...70 °C |
| Input cable connection (type/length) | 3 m |
| Suitable for | Cabinet type: VX IT, rack frame: ≥ 1,800 mm, cabinet type: VX IT 19"-profile rails: ≥ 1,800 mm, cabinet type: TX CableNet: ≥ 1,800 mm |
