Rittal 7979815 PDU basic UK 32A/230V, 1~, IEC 60 320: 4x C19, 16x B

Your rating:
Average rating
product review for Rittal 7979815 PDU basic UK 32A/230V, 1~, IEC 60 320: 4x C19, 16x B
( 4.5 / 5 ) 2 ratings
Rittal 7979815
This image may differ from the desired article.
Rittal 7979815Rittal 7979815Rittal 7979815
245,53 EUR
( 292,18 EUR incl. VAT )
≈ £205.51  |  ≈ $269.84
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >10 pieces
1x Rittal 7979815 PDU basic UK 32A/230V, 1~, IEC 60 320: 4x C19, 16x B
Datasheet:file_download Download
Lieske Part No.:1893609
Mfg Part No: 7979815
UPC/EAN: 4028177948617
Weight:5 kg
Type:DK 7979815

Product information for Rittal 7979815:

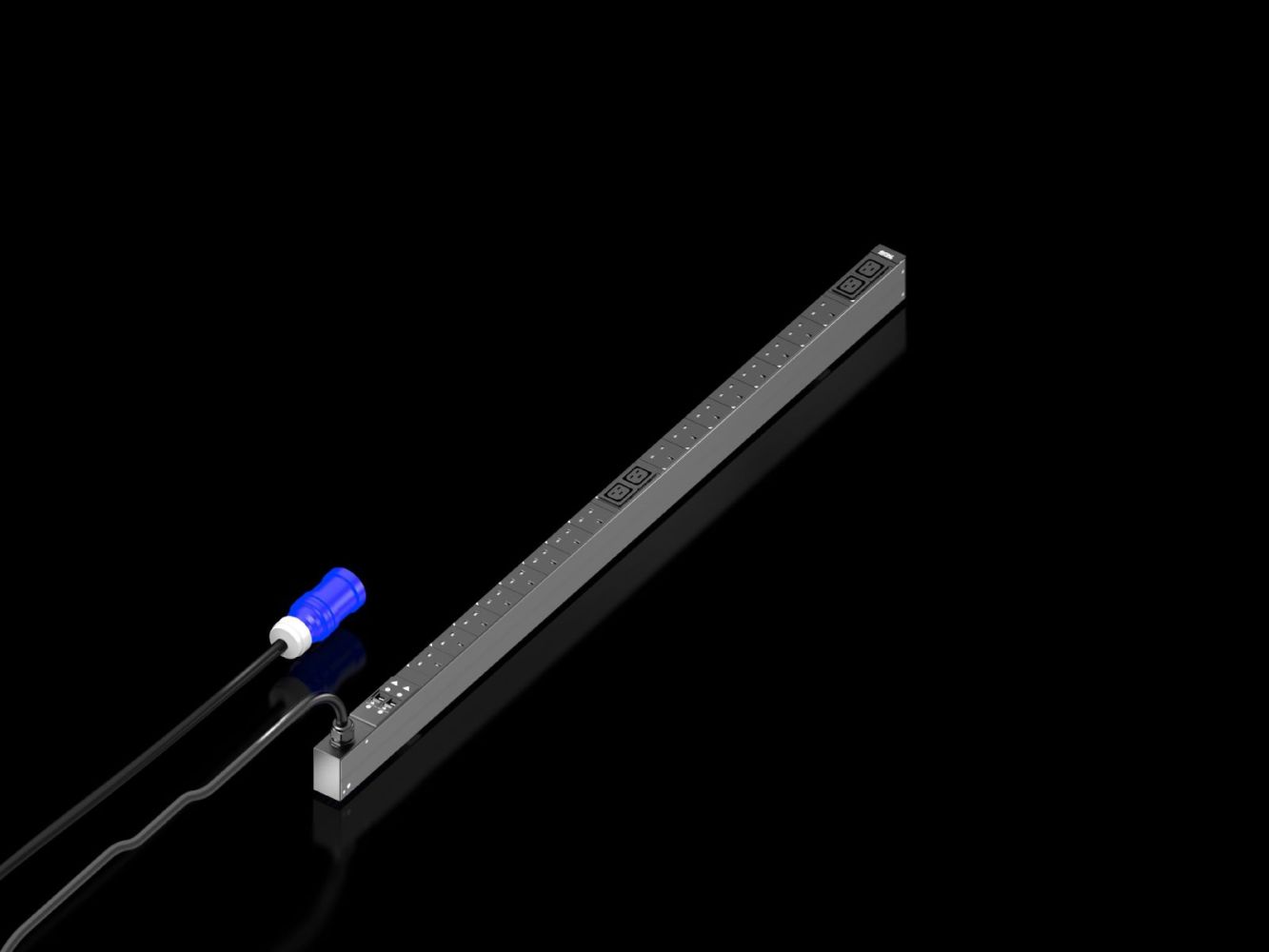

The Rittal DK 7979815 is a PDU (Power Distribution Unit) in Basic UK design, specifically designed for use in IT network and server racks. It serves as power distribution for devices with UK plugs (BS 1363) and offers a compact, tool-free installation in Rittal VX IT and TX CableNet enclosures with a minimum length of 1,800 mm. The unit features a robust construction made of aluminium profile, black anodized, and is designed for use in data centres and freestanding racks. The power distribution is immediately ready for use, as it is equipped with a permanently mounted connection cable connected to the power supply via a CEE plug.

Applications

The PDU is designed for use in IT infrastructures, particularly in server and network racks, where reliable and structured power supply is required. It is suitable for applications where devices with BS 1363 plugs (UK standard) are connected, such as in the United Kingdom or other regions using this plug type. The vertical mounting in the Zero-U area enables efficient use of cabinet space. The unit is designed for operation in environments with a temperature range of 5 °C to 50 °C and humidity of 10 % to 95 % (non-condensing).

Functions and Equipment in Detail

The power distribution provides a total of 20 outlets: 16 x BS 1363 (UK socket) and 4 x C19 (IEC 60320). The outlets are made of plastic and are securely mounted in the enclosure. Phases and fuse circuits are colour-coded (L1=pink, L2=black, L3=white), enabling clear assignment in multi-phase systems. Protection is provided by compact circuit breakers of type Carling with a rated current of 16 A. The maximum rated power is 7.4 kW at a rated current of 32 A. The unit is equipped with a 3 m long connection cable connected to the power supply via a CEE plug.

Technology Explained Simply

The PDU is designed for single-phase supply (1~) and operates at a nominal voltage of 230 V. Power supply is via a permanently mounted cable connected directly to the power source. The unit is optimized for use in IT infrastructures, where low power consumption and compact design increase efficiency. The tool-free mounting enables quick installation in VX IT and TS IT racks using special Plug-&-Play mounting elements included in the delivery. Outlets can optionally be secured with locking mechanisms to prevent accidental disconnection of plugs. Unused outlets can be covered with accessories available separately to avoid unintentional overloading of individual phases or circuits.

Compatibility and Accessories

The PDU is compatible with Rittal VX IT cabinet frames, VX IT 48,3 cm ( 19 inch ) profile rails, and TX CableNet enclosures, provided they have a minimum length of 1,800 mm. Various accessories are available, including monitoring systems CMC III with CAN-bus cables in different lengths (0.5 m, 1.0 m, 1.5 m), covers for C13 and C19 outlets, mounting adapters, a universal lock for C14/C20 plugs, a numeric code lock for CMC III, a VX IT CMC III transponder reader, and a PDU surge protection device (article number 7979722). These options allow for functional expansion, for example by integrating a Type 3 surge protection device with replaceable discharge elements during operation and status monitoring.

Mounting and Installation

Mounting is tool-free in the specified Rittal enclosures. The included mounting materials enable quick and secure installation. Vertical mounting in the Zero-U area optimizes space usage in the cabinet. The unit is immediately ready for use, as the connection cable is already installed. Installation requires no additional tools or components.

Operational Advantages

The PDU provides reliable power distribution with clear markings for phases and fuse circuits, simplifying maintenance and fault diagnosis. Tool-free mounting and compact design reduce installation time. The use of robust aluminium profile and plastic outlets ensures long service life. Options for monitoring and protection extend functionality without affecting the basic power distribution function. Compliance with standards EN 62368-1, EN 61000-3, EN 61000-4, EN 61000-6, and EN 62053-21, as well as conformity with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU, ensures safety and reliability in operation.

General
ModelBasic UK
Technical dataColour coding of phases and fuse circuits (L1=pink, L2=black, L3=white), compact circuit breakers (16 A - Carling type)
MaterialAluminium profile, black anodised, mounting slots: plastic
Scope of deliveryIncluding mounting hardware
OptionsSurge protection Type 3 with replaceable discharge modules during operation, with status monitoring, integrable in PDU housing, surge protection Type 3 with replaceable discharge modules during operation, with status monitoring, integrable in PDU housing
Width44 mm
Depth70 mm
Length1.495 mm
Number of sockets and type16 x BS 1363 / 4 x C19
Socket outlets16 x BS 1363, 4 x C 19
Rated current (max.)32 A
Nominal power7,4 kW
Power suppliesNumber: 1, Phases per input: 1~
Connection cable length3 m
Electrical connection typeCEE
PoliciesEMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU
StandardsEN 62368-1, EN 61000-3, EN 61000-4, EN 61000-6, EN 62053-21
Operating temperature range5 °C...50 °C
Humidity (non-condensing)10...95 %
Storage temperature range-25 °C...70 °C
Suitable forCabinet type: VX IT, rack frame: ≥ 1,800 mm, cabinet type: VX IT 19"-profile rails: ≥ 1,800 mm, cabinet type: TX CableNet: ≥ 1,800 mm


Product data sheet
Datasheet for Rittal 7979815, EAN: 4028177948617

Questions & answers

What is the delivery time of Rittal 7979815 PDU basic UK 32A/230V, 1~, IEC 60 320: 4x C19, 16x B?

The article Rittal 7979815 PDU basic UK 32A/230V, 1~, IEC 60 320: 4x C19, 16x B is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 7979815 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 7979815 PDU basic UK 32A/230V, 1~, IEC 60 320: 4x C19, 16x B always at the best possible price. We can give you a discount of 2% on Rittal 7979815 PDU basic UK 32A/230V, 1~, IEC 60 320: 4x C19, 16x B if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
