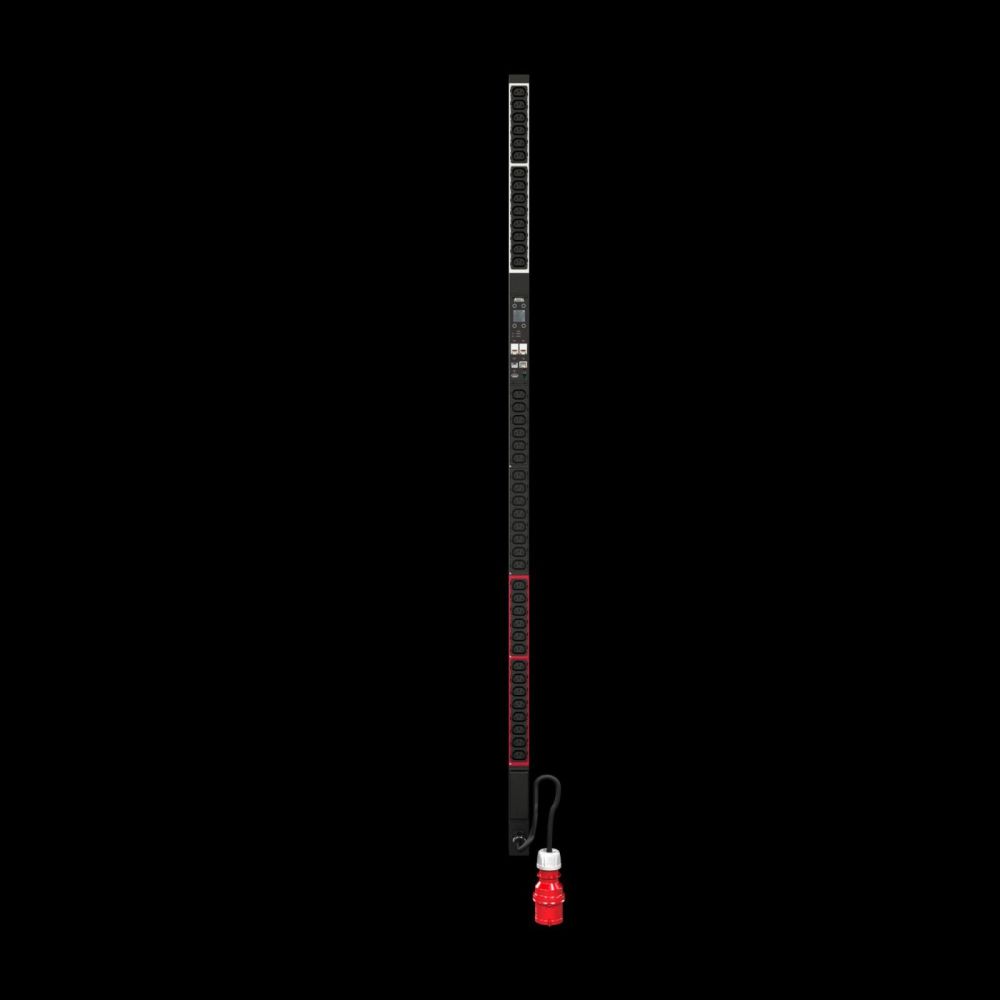

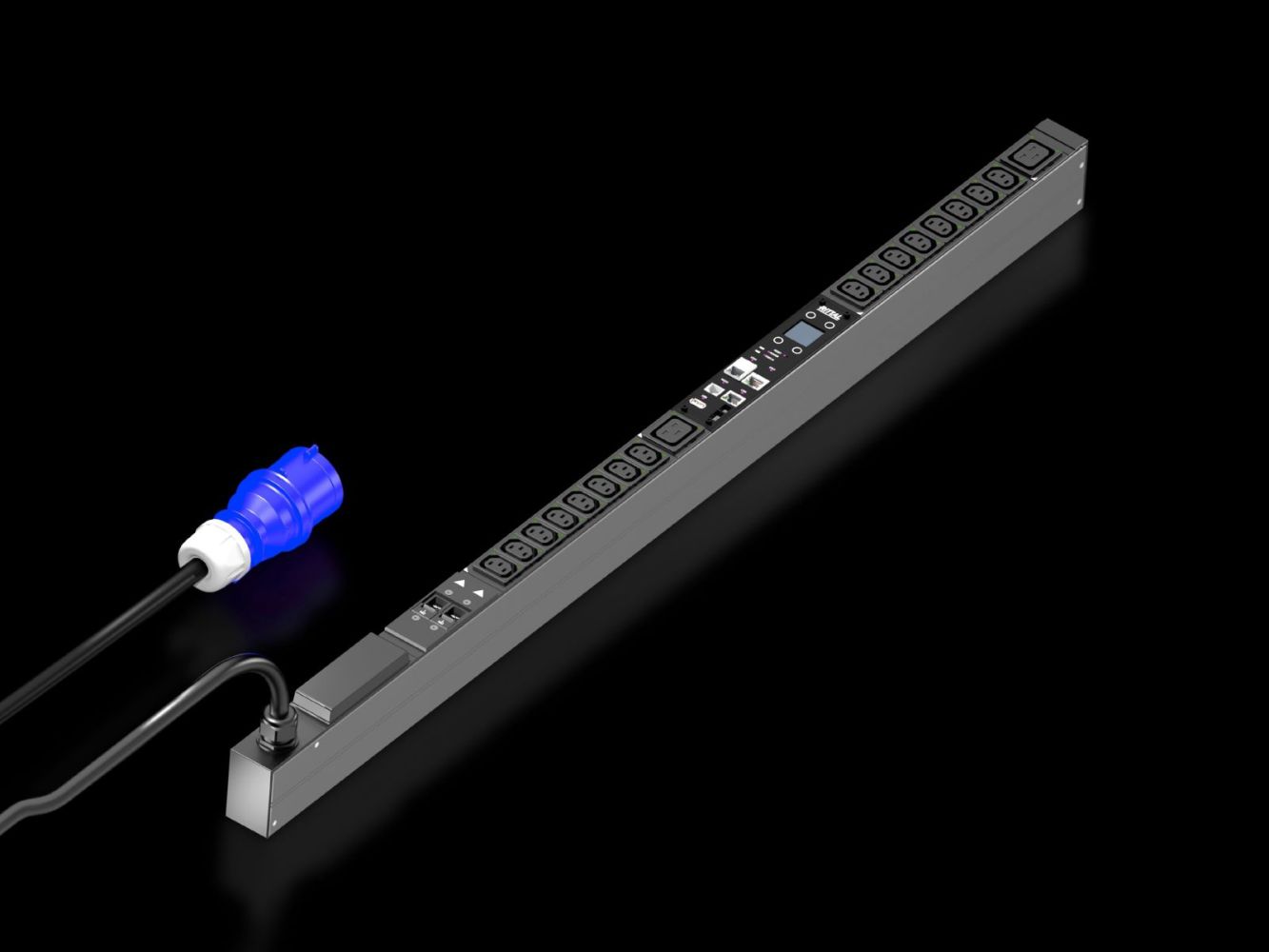

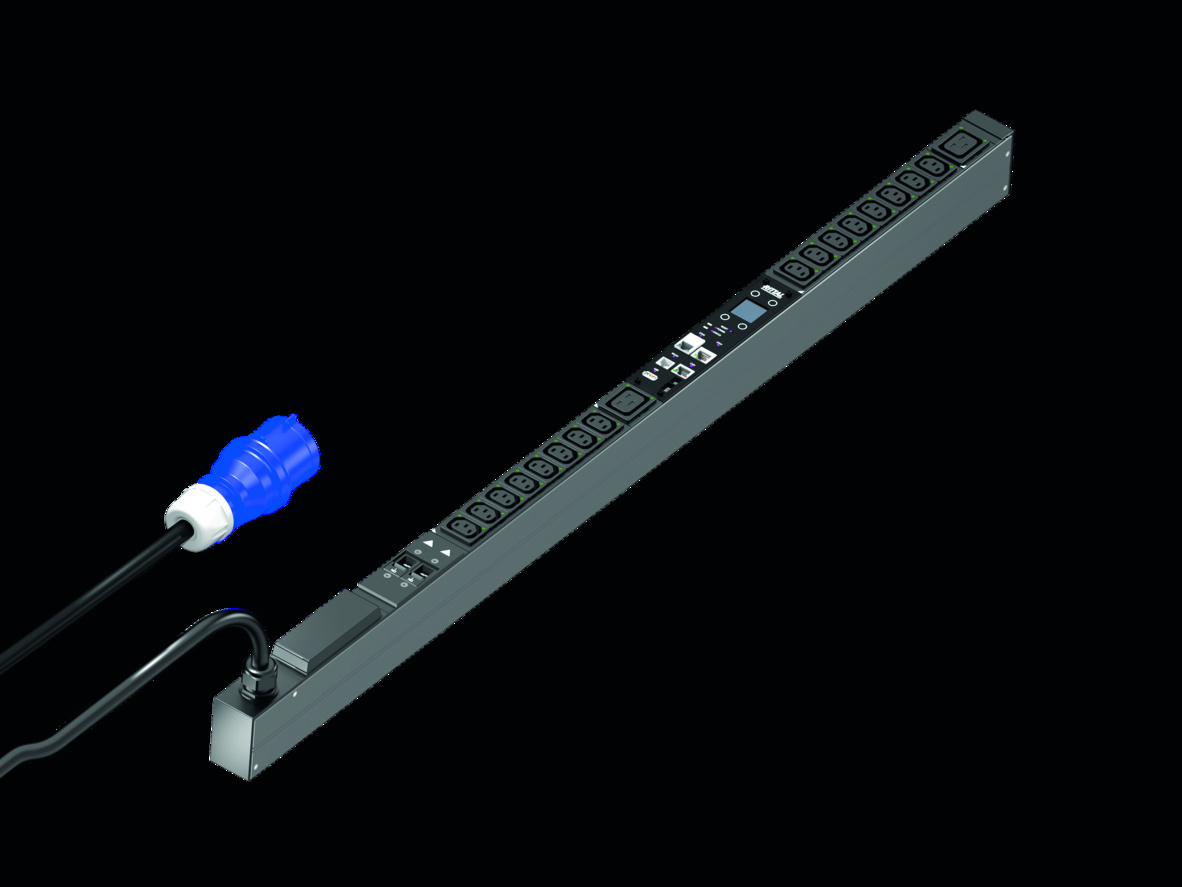

Rittal 7979512 PDU metered plus, 32A/230V, 1P~, 16 x C13 + 2 x C19
|
-9% 1.371,84 EUR 1.499,69 EUR |
|
|
( 1.632,49 EUR incl. VAT ) ≈ £1,148.23 | ≈ $1,507.65 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 5 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1101081 |
| Mfg Part No: | 7979512 |
| UPC/EAN: | 4028177948310 |
| Weight: | 0.001 kg |
| Type: | DK 7979512 |
Product information for Rittal 7979512:
Applications
The DK 7979512 is intended for use in racks of type VX IT or TS IT, particularly in cabinet frames with a minimum length of 1,200 mm or in 48,3 cm ( 19 inch ) profile rails with a minimum length of 1,800 mm. When mounted vertically, it can be installed tool-free in Zero-U-Space. The colour-coded phase marking (L1=pink, L2=black, L3=white) facilitates assignment and securing of power circuits. The PDU is self-powered, meaning no external power supply is required for control and measurement functions.
Functions and Equipment in Detail
The PDU features 16 C13 sockets and 2 C19 sockets made of plastic. Energy measurement is performed per phase or input as well as per individual outlet socket. Measurement accuracy is ±1 % (kWh) according to standard EN 62053-21. An integrated real-time clock with battery backup (maximum 10 years, replaceable) ensures continuous time display even during power failure. An integrated electromagnetic buzzer enables acoustic alarm signaling. Adjustable thresholds for voltage, current, and power can be individually configured per outlet socket. The PDU is powered redundantly across all phases, ensuring fault-tolerant operation.
Technology Explained Simply
Control is managed by a powerful CPU (ARM Cortex A8), which handles measurement and control functions. A bright TFT display with 128x128 pixels (RGB) and backlighting shows power data and basic configuration. The display is rotatable 180° within the housing and replaceable, ensuring optimal readability in different mounting positions. Multicolour LEDs (green/yellow/red) indicate the switching state and thresholds per outlet socket. A power LED indicates voltage status. The PDU includes a digital input (potential-free contact) and an additional alarm output/relay output (changeover contact) for external signals.
Compatibility and Accessories
The PDU supports connection to CMC III CAN-Bus sensors for environmental monitoring, with up to 16 sensors connectable. The CAN-Bus interface (RJ45) enables communication with these sensors. Optionally, a Type 3 surge protection device with replaceable discharge elements during operation and status monitoring can be integrated. Differential current measurement (Type B) per input, phase, or fuse is also possible. The PDU is equipped with a USB 2.0 port (USB-A) for mass configuration, firmware updates, and data logging. A serial interface RS232 (RJ12) allows connection to LTE units, scripting, and CLI. The fully redundant Ethernet interface (10/100/1000 Mbit/s) supports protocols such as HTTP, HTTPS, SSL, SSH, Telnet, NTP, TCP/IP v4 & v6, DHCP, DNS, SNMP v1, v2c & v3, Modbus/TCP, OPC-UA, and FTP/SFTP. Integration into DCIM software is possible via MIB. Email alerts on alarm (SMTP), user management including rights management, and integration with LDAP(S), Radius, or Active Directory are also integrated. Connection to Syslog servers (up to 2 servers) is also possible.
Mounting and Installation
Mounting is tool-free in the Zero-U-Space of VX IT or TS IT racks. The delivery includes mounting hardware required for installation. The PDU is designed for use in IT infrastructures requiring reliable power distribution and monitoring.
Operational Advantages
The DK 7979512 offers high measurement accuracy, redundant power supply, and comprehensive network interface. Individual threshold settings per outlet socket enable precise monitoring of connected devices. The integrated real-time clock and acoustic alarm ensure reliable operational monitoring. The energy-saving design with low self-consumption reduces the PDU’s own energy demand. Support for protocols such as SNMP, Modbus/TCP, and OPC-UA enables easy integration into existing monitoring and management systems. The PDU is designed for operating temperatures from 5 °C to 50 °C and humidity from 10 % to 95 % (non-condensing). Storage temperature ranges from -20 °C to 70 °C. Compliance with standards EN 62368-1, EN 61000-3, EN 61000-4, EN 61000-6, and EN 62053-21, as well as conformity with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU, ensures the safety and functionality of the device.
| General | |
| Model | PDU, metered plus |
| Material | Aluminium profile, black anodised, mounting slots: plastic |
| Scope of delivery | Including mounting hardware |
| Options | Overvoltage protection Type 3 with replaceable diverters during operation, with status monitoring, integrable in PDU housing, differential current measurement (Type B) per input/phase/fuse, monitoring of optional overvoltage protection, CMC III CAN-Bus sensors for environment monitoring connectable, max. 16 sensors, other housing colours available |
| Description of measurement functions | Measurement per phase or input, additional measurement per output socket, powerful CPU (ARM Cortex A8), digital input (potential-free contact), additional alarm output/relay output (changeover contact) |
| Width | 44 mm |
| Depth | 70 mm |
| Length | 1.095 mm |
| Number of sockets and type | 16 x C13 / 2 x C19 |
| Socket outlets | 16 x C 13, 2 x C 19 |
| Rated operating voltage | 230 V (AC) |
| Rated current (max.) | 32 A |
| Nominal power | 7,4 kW |
| Power supplies | Number: 1, Phases per input: 1~ |
| Connection cable length | 3 m |
| Electrical connection type | CEE |
| Interfaces | USB 2.0 port (USB-A) for mass configuration, firmware update & data logging, CAN-Bus interface (RJ45) for max. 16 environment sensors, serial interface RS232 (RJ12) for LTE unit, scripting, CLI, use of own certificates/TLS 1.2, email sending on alarm (SMTP), user management including rights management, LDAP(S)/Radius/Active Directory integration, Syslog server integration (max. 2 servers), fully redundant Ethernet interface 10/100/1000 Mbit/s |
| Number of RJ45 ports for sensor units max | 2 |
| Policies | EMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU |
| Standards | EN 62368-1, EN 61000-3, EN 61000-4, EN 61000-6, EN 62053-21 |
| Protocols | Web server (HTTP, HTTPS, SSL) SSH, Telnet, NTP, TCP/IP v4 & v6, DHCP, DNS, SNMP v1, v2c & v3, Modbus/TCP, OPC-UA, MIB for integration into 3rd party DCIM software, FTP/SFTP (update/file transfer) |
| Operating temperature range | 5 °C...50 °C |
| Humidity (non-condensing) | 10...95 % |
| Storage temperature range | -20 °C...70 °C |
| Suitable for | Housing type: VX IT cabinet frame: ≥ 1,200 mm, housing type: VX IT 19"-profile rails: ≥ 1,800 mm |
