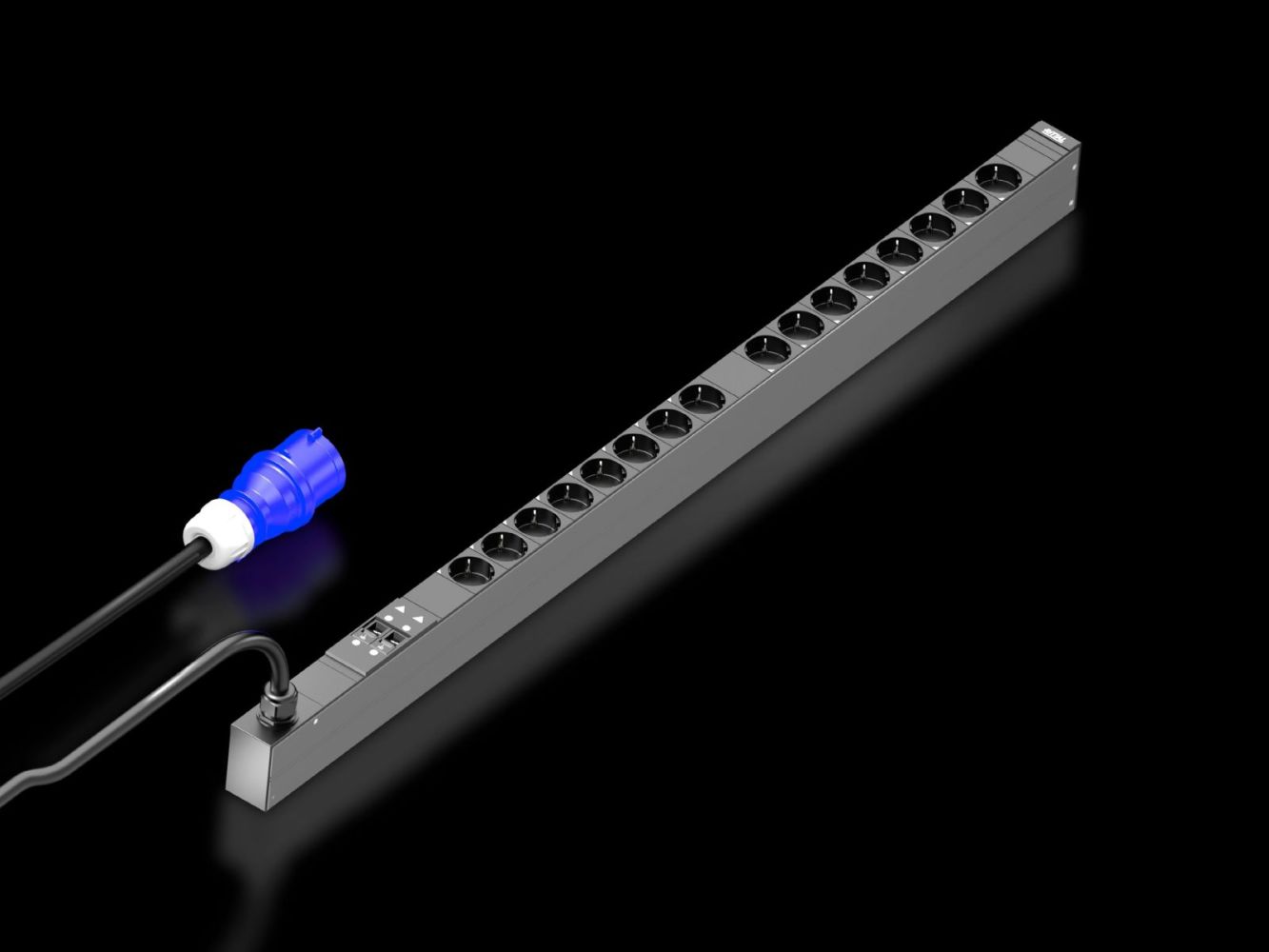

Rittal 7979114 PDU basic 32A/1P CEE 16xCEE7/3 Schuko

Your rating:
Average rating
product review for Rittal 7979114 PDU basic 32A/1P CEE 16xCEE7/3 Schuko
( 4 / 5 ) 1 ratings
Rittal 7979114

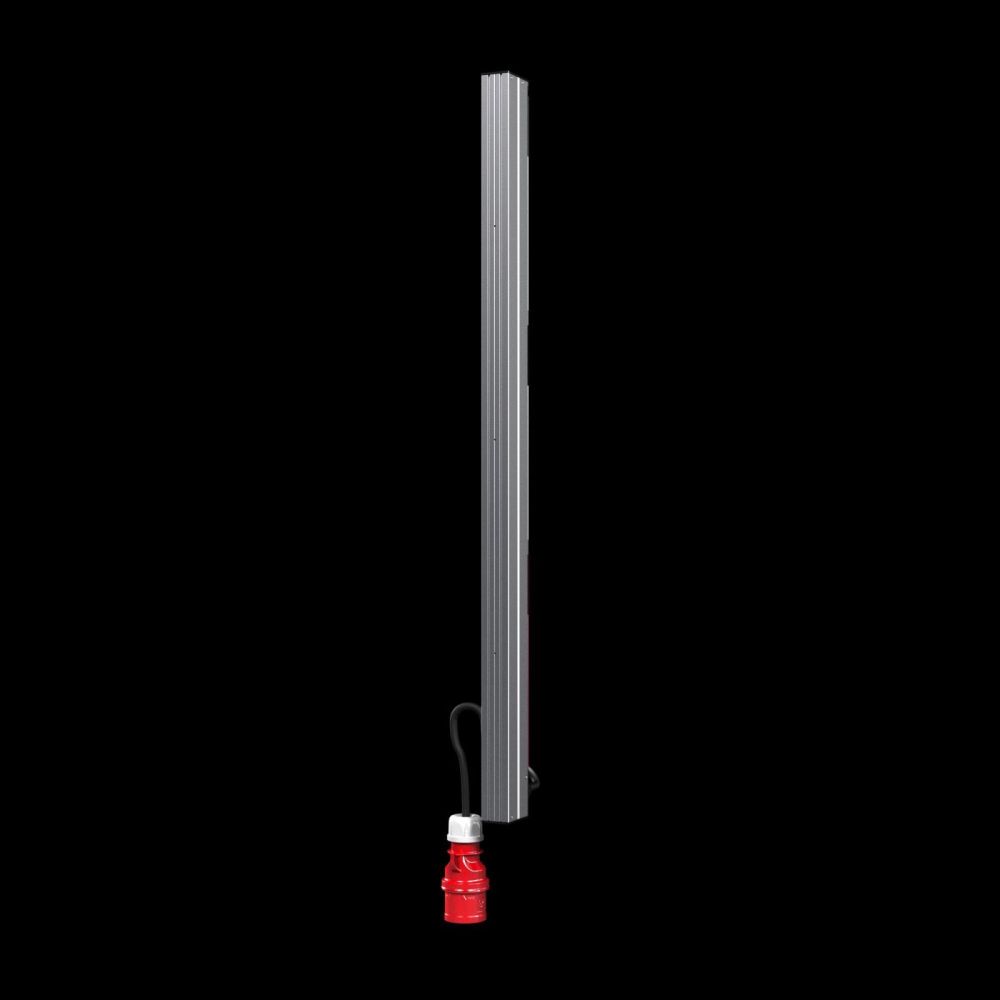

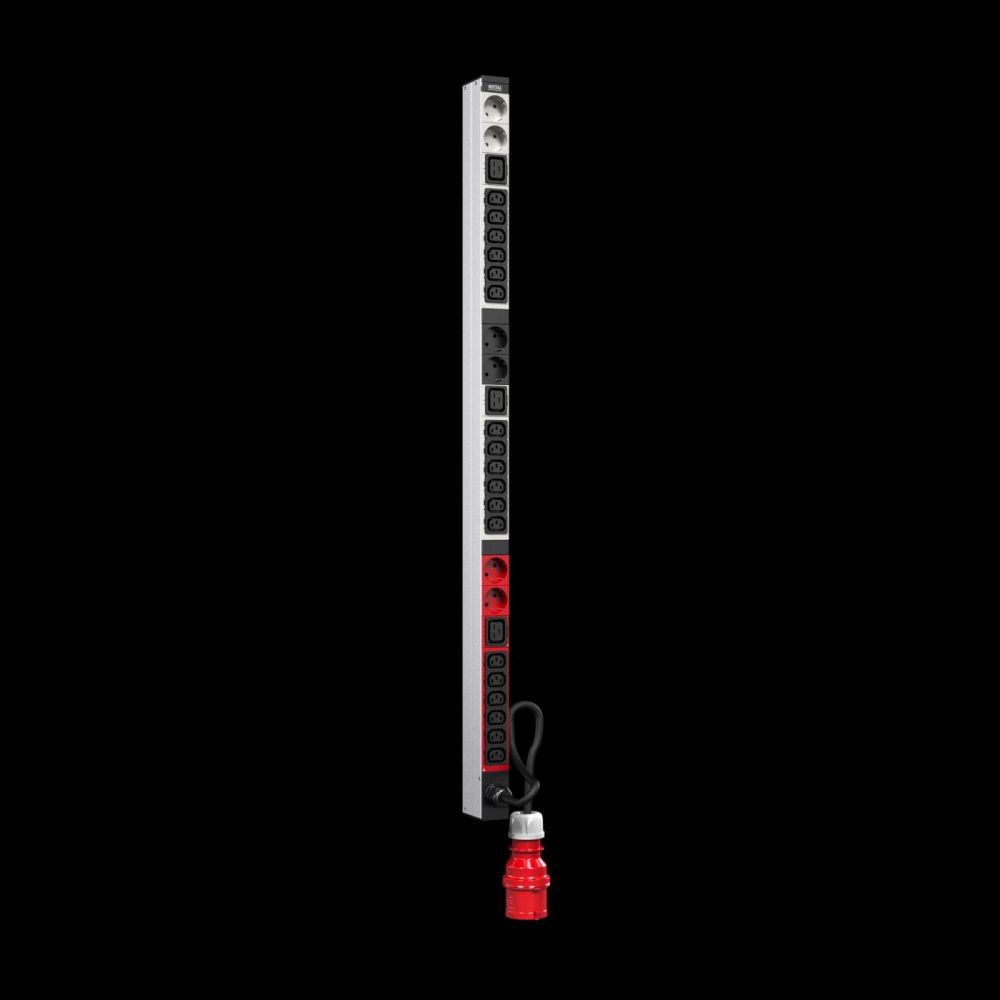

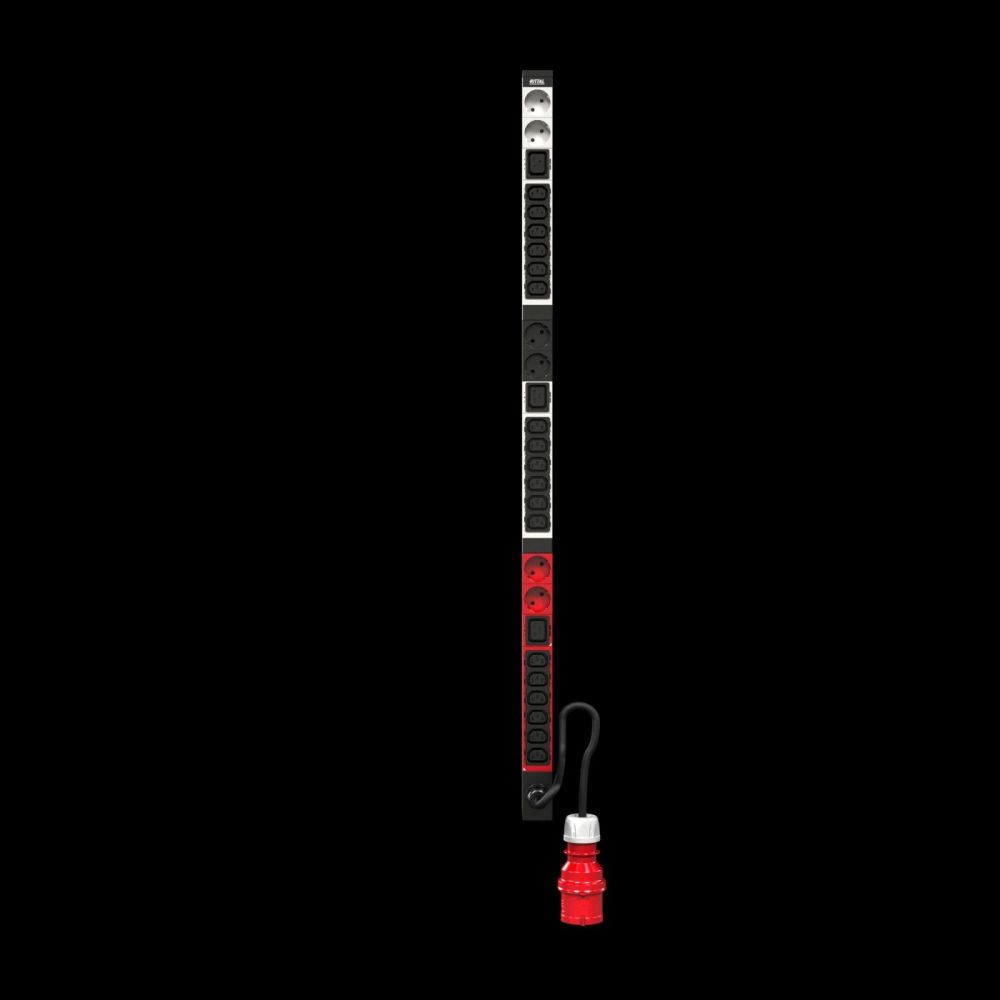

This image may differ from the desired article.
Rittal 7979114Rittal 7979114Rittal 7979114Rittal 7979114Rittal 7979114Rittal 7979114Rittal 7979114Rittal 7979114
184,35 EUR
( 219,38 EUR incl. VAT )
≈ £154.30  |  ≈ $202.60
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >10 pieces
1x Rittal 7979114 PDU basic 32A/1P CEE 16xCEE7/3 Schuko
Datasheet:file_download Download
Lieske Part No.:1056060
Mfg Part No: 7979114
UPC/EAN: 4028177947436
Weight:4.68 kg
Type:DK 7979114

Product information for Rittal 7979114:

The Rittal DK 7979114 is a PDU Basic power distribution unit, specifically designed for use in IT server and network enclosures. It serves as a compact base power distribution unit, equipping every IT rack with a professional power supply. The unit is suitable for vertical mounting in the Zero-U-Space of Rittal VX IT- or TS IT-enclosures and can be installed tool-free using the included universal holder. The power distribution unit features a robust aluminium extrusion profile, anodized, and plastic sockets, ensuring high mechanical stability and durability.

Applications
The PDU basic is designed for use in IT infrastructures, particularly in server and network enclosures, where reliable and structured power supply is required. It is suitable for racks with an enclosure frame width of at least 1,200 mm or 48,3 cm ( 19 inch ) profile rails with a length of at least 1,800 mm. Vertical mounting in the Zero-U-Space enables efficient use of available space without requiring U-frames.

Functions and Equipment in Detail
The power distribution unit provides 16 sockets of type Schuko (CEE 7/3), rated for an operating voltage of 230 V (AC). The maximum rated current is 32 A, corresponding to a rated power of 7.4 kW. Power input is via a CEE connection type with a supply cable of 3 m length, allowing flexible positioning within the rack. The sockets are equipped with a plug lock for IEC C14 and C20 plugs to prevent accidental disconnection. The delivery includes the required mounting hardware.

Technology Explained Simply
The PDU basic is designed for operation in a temperature range of 5 °C to 50 °C and tolerates humidity levels of 10 to 95 % (non-condensing). Storage temperature can range from -20 °C to 70 °C. The unit complies with the directives EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU, as well as standards EN 62368-1, EN 61000-3, EN 61000-4, EN 61000-6, and EN 62053-21, ensuring safety and functionality in IT environments. Phase color coding (L1 = pink, L2 = black, L3 = white) supports circuit identification, especially in multi-phase systems.

Compatibility and Accessories
The PDU basic is designed for Rittal VX IT- and TS IT-enclosures. As accessories, Type 3 surge protection modules are available, featuring replaceable discharge units that can be integrated into the PDU enclosure. These modules support status monitoring. Additionally, covers for C13 and C19 sockets can be used to seal unused sockets and prevent accidental overloading of individual phases. Other components such as CAN-Bus cables or mounting adapters are also available to enable integration into existing monitoring systems like CMC III.

Mounting and Installation
Mounting is tool-free in the Zero-U-Space of VX IT- and TS IT-enclosures using the included universal holder. Fixing is done using the mounting hardware provided, ensuring quick and secure installation. Vertical mounting allows optimal use of enclosure space, especially in racks with limited height.

Operational Advantages
The PDU basic provides reliable power supply for IT systems with high load capacity. The integrated plug lock and the option to cover unused sockets enhance safety and prevent unintended power interruptions. Compatibility with monitoring systems such as CMC III enables centralized control and monitoring of power distribution. The robust construction from aluminium extrusion profile ensures long service life and high mechanical stability in industrial and IT environments.

General
ModelPDU Basic
MaterialAluminium extruded profile, anodized, socket positions: plastic
Scope of deliveryPlug lock for IEC C14, C20 plugs, including mounting hardware
OptionsSurge protection Type 3 with replaceable discharge devices during operation, with status monitoring, integrable in PDU enclosure, other enclosure colours available
Width44 mm
Depth70 mm
Length1.095 mm
Number of sockets and type16 x Schuko (Type F, CEE 7/3)
Rated operating voltage230 V (AC)
Rated current (max.)32 A
Nominal power7,4 kW
Power suppliesNumber: 1, Phases per input: 1~
Connection cable length3 m
Electrical connection typeCEE
PoliciesEMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU
StandardsEN 62368-1, EN 61000-3, EN 61000-4, EN 61000-6, EN 62053-21
Operating temperature range5 °C...50 °C
Humidity (non-condensing)10...95 %
Storage temperature range-20 °C...70 °C
Suitable forHousing type: VX IT cabinet frame: ≥ 1,200 mm, housing type: VX IT 19"-profile rails: ≥ 1,800 mm


Product data sheet
Datasheet for Rittal 7979114, EAN: 4028177947436

Questions & answers

What is the delivery time of Rittal 7979114 PDU basic 32A/1P CEE 16xCEE7/3 Schuko?

The article Rittal 7979114 PDU basic 32A/1P CEE 16xCEE7/3 Schuko is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 7979114 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 7979114 PDU basic 32A/1P CEE 16xCEE7/3 Schuko always at the best possible price. We can give you a discount of 2% on Rittal 7979114 PDU basic 32A/1P CEE 16xCEE7/3 Schuko if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
