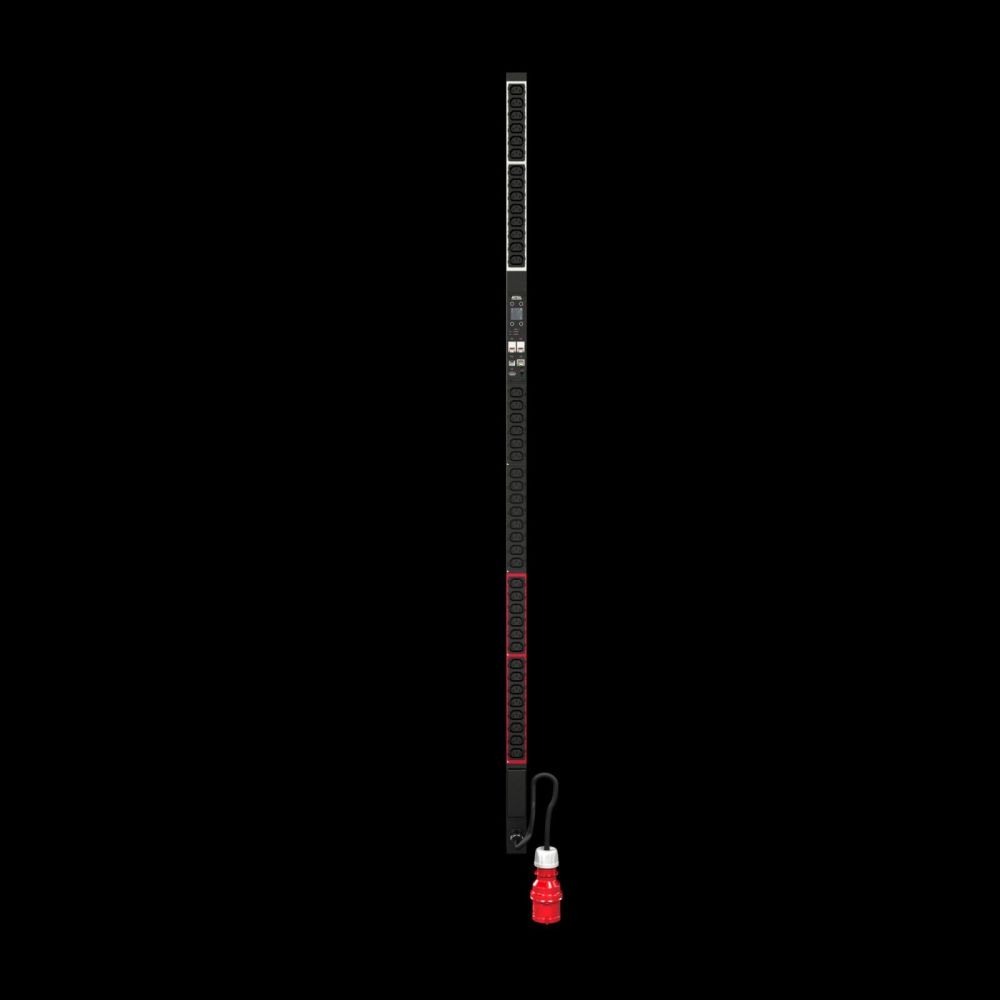

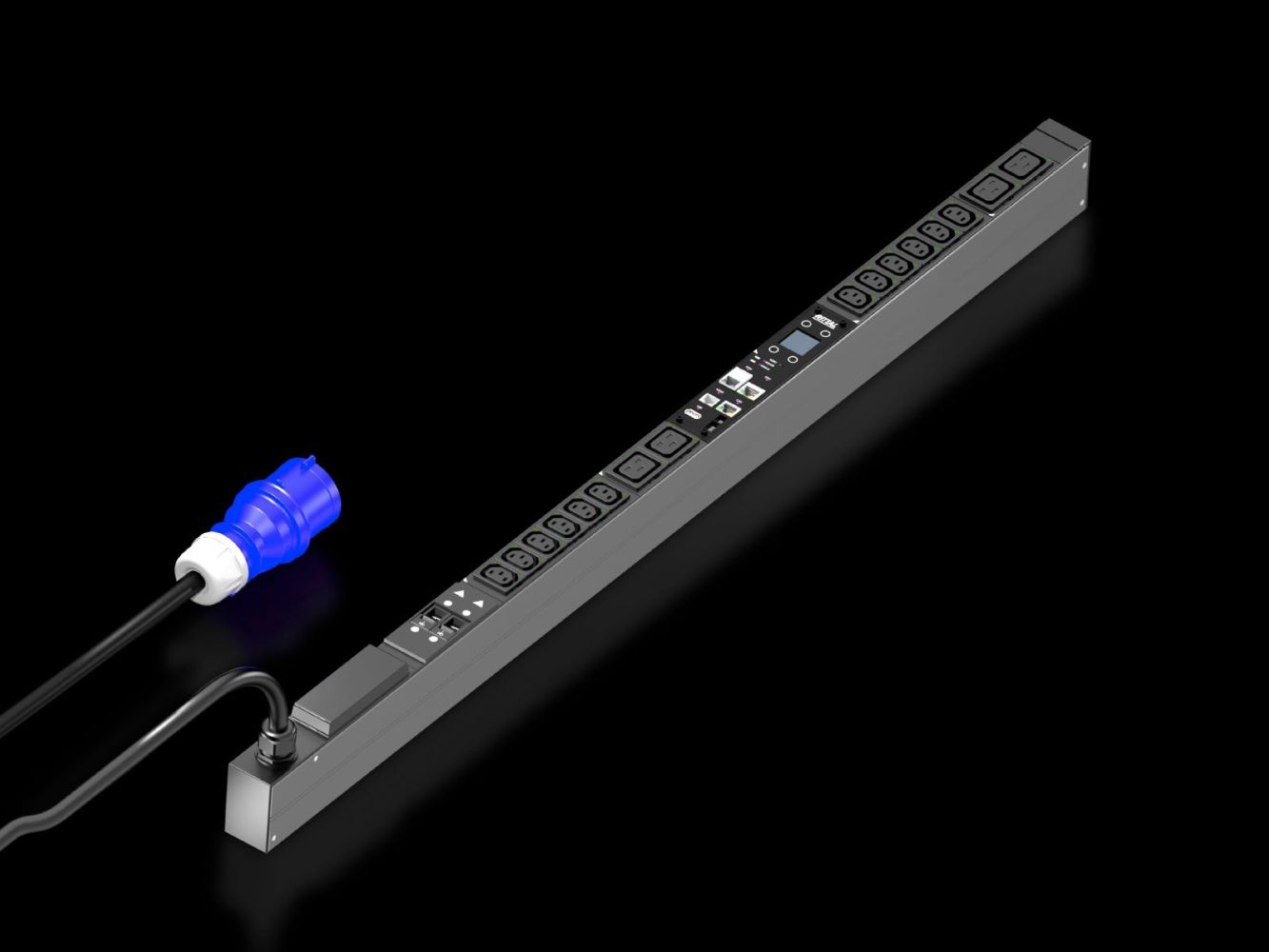

Rittal 7979413 PDU managed, 32A/230V, 1~, 12 x C13 + 4 x C19
|
-9% 1.453,95 EUR 1.593,82 EUR |
|
|
( 1.730,20 EUR incl. VAT ) ≈ £1,216.96 | ≈ $1,597.89 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 5 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1910664 |
| Mfg Part No: | 7979413 |
| UPC/EAN: | 4028177948105 |
| Weight: | 4.5 kg |
| Type: | DK 7979413 |
Product information for Rittal 7979413:
Applications
This PDU is specifically designed for use in Rittal VX IT and TS IT racks, where tool-free mounting in the Zero-U-Space is possible. It is suitable for IT infrastructures requiring precise power distribution and monitoring, particularly in data centres, server rooms, and network areas. The phase colour coding (L1=pink, L2=black, L3=white) simplifies assignment and maintenance.
Functions and Equipment in Detail
The DK 7979413 features an integrated, fully redundant power supply that can be fed from all phases to ensure fault-tolerant operation. Measurement accuracy is ±1 % (kWh) according to standard EN 62 053-21. Each outlet socket can be individually monitored, with adjustable thresholds for voltage, current, and power. The PDU offers programmable switching functions, including sequential switching of outputs upon voltage recovery to avoid inrush current peaks. Relay states are retained even during power failure, and the bistable relays enable high switching capacity even with high inrush currents up to 300 A.
Technology Explained Simply
The PDU is equipped with a bright TFT display (128x128 pixels, RGB) that is rotatable and replaceable. It displays power data and basic configuration. Multicoloured LEDs (green/yellow/red) indicate the switching state and thresholds for each outlet socket. An integrated electromagnetic buzzer provides acoustic alarm notification. The real-time clock is equipped with a battery backup that lasts up to 10 years and is replaceable. The PDU is self-powered and does not require an external power source. It features a powerful CPU (ARM Cortex A8) and supports a wide range of protocols, including HTTP, HTTPS, SSH, Telnet, SNMP v1/v2c/v3, Modbus/TCP, OPC-UA, and FTP/SFTP.
Compatibility and Accessories
The PDU includes a CAN-Bus interface (RJ45) to connect up to 16 CMC III environmental sensors. An optional Type 3 surge protection can be integrated, offering replaceable discharge devices during operation and status monitoring. Differential current measurement (Type B) is possible per input, phase, or fuse. The PDU can be combined with an optional surge protection (part number 7979722). Additional accessories include CAN-Bus cables (0.5 m, 1.0 m, 1.5 m), covers for C13 and C19 sockets, mounting adapters, a universal lock for C14/C20 plugs, a numeric code lock for CMC III, and a CMC III transponder reader.
Mounting and Installation
Mounting is tool-free in the Zero-U-Space of Rittal VX IT or TS IT racks. The delivery includes the required mounting hardware. The PDU is suitable for enclosure types with a cabinet frame ≥ 1,200 mm or 19-inch profile rails ≥ 1,800 mm. The supply cable is 3 m long and features a CEE plug.
Operational Advantages
The DK 7979413 enables precise power distribution and monitoring, enhancing energy efficiency and system availability. The integrated network interface (fully redundant Ethernet interface 10/100/1000 Mbit/s) allows integration into DCIM systems. Support for protocols such as SNMP, Modbus/TCP, and OPC-UA facilitates integration into existing monitoring and management solutions. The ability to use custom certificates and TLS 1.2 increases security. Email alerting (SMTP) and connection to Syslog servers (up to 2 servers) support network monitoring. User management with rights management, as well as integration with LDAP(S), Radius, or Active Directory, enables central user administration. The PDU is designed for operating temperatures from 5 °C to 50 °C and humidity from 10 % to 95 % (non-condensing). Storage temperature is -20 °C to 70 °C.
The PDU complies with the EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU, as well as standards EN 62368-1, EN 61000-3, EN 61000-4, EN 61000-6, and EN 62053-21. Interfaces include USB 2.0 (USB-A) for mass configuration, firmware updates, and data logging, CAN-Bus (RJ45) for environmental sensors, and a serial interface RS232 (RJ12) for LTE unit, scripting, and CLI. The PDU also supports connection to 3rd-party DCIM software via MIBs. Emergency power supply for the web server is provided via PoE, enabling sequential shutdown of outputs during power failure. An additional alarm output/relay output (changeover contact) is also available. The PDU is designed for IT infrastructures requiring high reliability, security, and energy efficiency.
| General | |
| Model | PDU, managed |
| Material | Aluminium profile, black anodised, mounting slots: plastic |
| Scope of delivery | Including mounting hardware |
| Options | Overvoltage protection Type 3 with replaceable diverters during operation, with status monitoring, integrable in PDU housing, differential current measurement (Type B) per input/phase/fuse, monitoring of optional overvoltage protection, CMC III CAN-Bus sensors for environment monitoring connectable, max. 16 sensors, other housing colours available |
| Width | 44 mm |
| Depth | 70 mm |
| Length | 1.095 mm |
| Number of sockets and type | 12 x C13 / 4 x C19 |
| Socket outlets | 12 x C 13, 4 x C 19 |
| Rated operating voltage | 230 V (AC) |
| Rated current (max.) | 32 A |
| Nominal power | 7,4 kW |
| Power supplies | Number: 1, Phases per input: 1~ |
| Connection cable length | 3 m |
| Electrical connection type | CEE |
| Interfaces | USB 2.0 port (USB-A) for mass configuration, firmware update & data logging, CAN-Bus interface (RJ45) for max. 16 environment sensors, serial interface RS232 (RJ12) for LTE unit, scripting, CLI, use of own certificates/TLS 1.2, email sending on alarm (SMTP), user management including rights management, LDAP(S)/Radius/Active Directory integration, Syslog server integration (max. 2 servers), fully redundant Ethernet interface 10/100/1000 Mbit/s |
| Number of RJ45 ports for sensor units max | 2 |
| Policies | EMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU |
| Standards | EN 62368-1, EN 61000-3, EN 61000-4, EN 61000-6, EN 62053-21 |
| Protocols | Web server (HTTP, HTTPS, SSL) SSH, Telnet, NTP, TCP/IP v4 & v6, DHCP, DNS, SNMP v1, v2c & v3, Modbus/TCP, OPC-UA, MIB for integration into 3rd party DCIM software, FTP/SFTP (update/file transfer) |
| Operating temperature range | 5 °C...50 °C |
| Humidity (non-condensing) | 10...95 % |
| Storage temperature range | -20 °C...70 °C |
| Suitable for | Housing type: VX IT cabinet frame: ≥ 1,200 mm, housing type: VX IT 19"-profile rails: ≥ 1,800 mm |
Questions & answers
What is the delivery time of Rittal 7979413 PDU managed, 32A/230V, 1~, 12 x C13 + 4 x C19?
The article Rittal 7979413 PDU managed, 32A/230V, 1~, 12 x C13 + 4 x C19 is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 7979413 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 7979413 PDU managed, 32A/230V, 1~, 12 x C13 + 4 x C19 always at the best possible price. We can give you a discount of 2% on Rittal 7979413 PDU managed, 32A/230V, 1~, 12 x C13 + 4 x C19 if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
