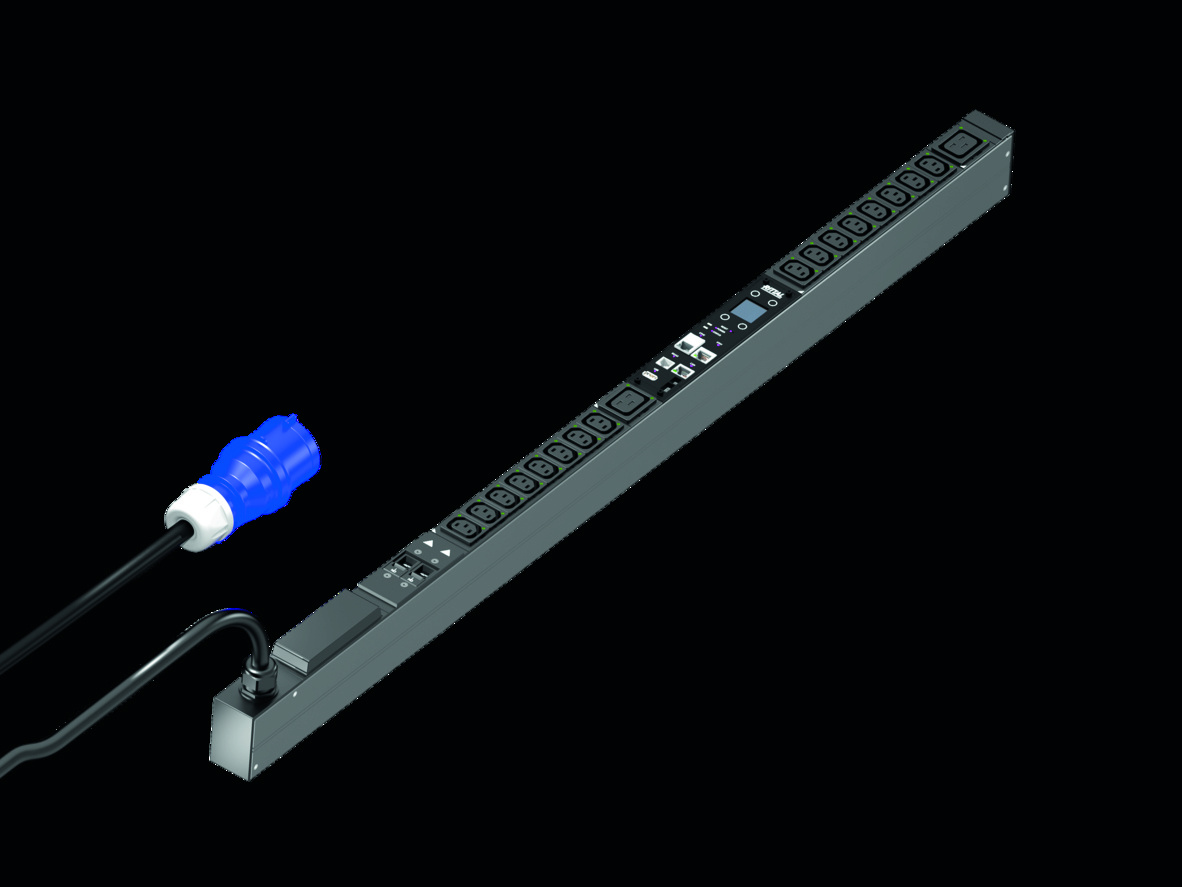

Rittal 7979312 PDU switched, 32A/230V, 1~, 16 x C13 + 2 x C19

Your rating:
Average rating
product review for Rittal 7979312 PDU switched, 32A/230V, 1~, 16 x C13 + 2 x C19
( 4 / 5 ) 2 ratings
Rittal 7979312
This image may differ from the desired article.
Rittal 7979312Rittal 7979312Rittal 7979312Rittal 7979312Rittal 7979312Rittal 7979312Rittal 7979312
-9% 1.198,53 EUR 1.316,52 EUR
( 1.426,25 EUR incl. VAT )
≈ £1,003.17  |  ≈ $1,317.18
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 7979312 PDU switched, 32A/230V, 1~, 16 x C13 + 2 x C19
Datasheet:file_download Download
Lieske Part No.:1101058
Mfg Part No: 7979312
UPC/EAN: 4028177947870
Weight:4.5 kg
Type:DK 7979312

Product information for Rittal 7979312:

The Rittal DK 7979312 is a switched PDU (Power Distribution Unit) for use in IT network and server racks. It serves as an intelligent power distribution unit with integrated energy measurement per phase and enables individual switching control of the output sockets. The device is designed for use in 48,3 cm ( 19 inch )-racks and offers a compact form factor with a width of 44 mm, a length of 1,095 mm, and a depth of 70 mm. The PDU is rated for an operating voltage of 230 V (AC), with a nominal current of 32 A and a nominal power of 7.4 kW. Power supply is via a CEE connection cable with a length of 3 m.

Applications

The PDU is specifically designed for use in IT infrastructures, particularly in racks of the Rittal VX IT or TS IT type. When mounted vertically, it can be installed tool-free in the Zero-U-Space, saving rack space. The color-coded phase marking (L1=pink, L2=black, L3=white) facilitates assignment and maintenance. The PDU is suitable for enclosure types with a cabinet frame ≥ 1,200 mm or 48,3 cm ( 19 inch )-profile rails ≥ 1,800 mm.

Functions and Equipment in Detail

The PDU features 16 C13 sockets and 2 C19 sockets, each individually switchable. The switching function is performed via bistable relays, which enable low power consumption and high switching capacity, even with inrush currents up to 300 A. The relay states are retained even during power failure. The PDU offers programmable switching behavior, for example, sequential switching after power restoration, to avoid overloading peaks. The switching behavior after power restoration is also programmable (on, off, last status).

Technology Explained Simply

The PDU is equipped with an integrated, fully redundant power supply unit that can be powered from all phases. The power supply is fault-tolerant and redundant across all phases. Measurement accuracy is ±1 % (kWh) according to EN 62053-21. Measurement functions include voltage, current, frequency, active power, active energy, apparent power, apparent energy, power factor (cosPhi), phase angle, neutral conductor current measurement, and imbalance detection. Fuse monitoring is available for PDUs with integrated fuses. The PDU features a bright TFT display with 128x128 pixels (RGB), backlighting, and an energy-saving mode. The display unit is rotatable by 180° and replaceable. Multicolored LEDs (green/yellow/red) indicate switching states and warning or alarm thresholds per phase or input. A power LED indicates voltage status.

Compatibility and Accessories

The PDU supports connection of CMC III CAN-Bus sensors for environmental monitoring, with up to 16 sensors connectable. Interfaces include a USB 2.0 port (USB-A) for mass configuration, firmware update, and data logging, a CAN-Bus interface (RJ45) for sensors, a serial interface RS232 (RJ12) for LTE unit, scripting, CLI, use of custom certificates/TLS 1.2, email alerts on alarm (SMTP), user management including rights management, LDAP(S)/Radius/Active Directory integration, Syslog server integration (max. 2 servers), and a fully redundant Ethernet interface 10/100/1000 Mbit/s. Protocols include web server (HTTP, HTTPS, SSL), SSH, Telnet, NTP, TCP/IP v4 & v6, DHCP, DNS, SNMP v1, v2c & v3, Modbus/TCP, OPC-UA, MIB for integration into 3rd party DCIM software, and FTP/SFTP (update/file transfer). The PDU is equipped with an integrated electromagnetic buzzer for acoustic alarm. Adjustable thresholds for voltage, current, and power enable flexible monitoring. An operating hour counter (total and cyclic, resettable) is also integrated. The integrated real-time clock features battery backup (up to 10 years, battery replaceable).

Mounting and Installation

Mounting is tool-free in the Zero-U-Space of Rittal VX IT or TS IT racks. The delivery includes mounting hardware. The PDU is self-powered and requires no external power supply. The connection cable has a length of 3 m and is fitted with a CEE plug.

Operational Advantages

The PDU offers high measurement accuracy, individual control of outputs, redundant power supply, and comprehensive monitoring capabilities. The integrated real-time clock and operating hour counter support operational monitoring. Support for protocols such as SNMP, Modbus/TCP, and OPC-UA enables integration into existing DCIM systems. The PDU is designed for use in environments with an operating temperature of 5 °C to 50 °C and humidity of 10 % to 95 % (non-condensing). Storage temperature is -20 °C to 70 °C. The PDU complies with the EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU, as well as standards EN 62368-1, EN 61000-3, EN 61000-4, EN 61000-6, and EN 62053-21. Materials consist of an aluminum profile, black anodized, and plastic for the sockets. The design is energy-efficient with low power consumption. Batteries are not included in the delivery scope.

General
ModelPDU, switched
MaterialAluminium profile, black anodised, mounting slots: plastic
Scope of deliveryIncluding mounting hardware
Width44 mm
Depth70 mm
Length1.095 mm
Number of sockets and type16 x C13 / 2 x C19
Rated operating voltage230 V (AC)
Rated current (max.)32 A
Nominal power7,4 kW
Power suppliesPhases per input: 1~
Connection cable length3 m
Electrical connection typeCEE
InterfacesUSB 2.0 port (USB-A) for mass configuration, firmware update & data logging, CAN-Bus interface (RJ45) for max. 16 environment sensors, serial interface RS232 (RJ12) for LTE unit, scripting, CLI, use of own certificates/TLS 1.2, email sending on alarm (SMTP), user management including rights management, LDAP(S)/Radius/Active Directory integration, Syslog server integration (max. 2 servers), fully redundant Ethernet interface 10/100/1000 Mbit/s
Number of RJ45 ports for sensor units max2
PoliciesEMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU
StandardsEN 62368-1, EN 61000-3, EN 61000-4, EN 61000-6, EN 62053-21
ProtocolsWeb server (HTTP, HTTPS, SSL) SSH, Telnet, NTP, TCP/IP v4 & v6, DHCP, DNS, SNMP v1, v2c & v3, Modbus/TCP, OPC-UA, MIB for integration into 3rd party DCIM software, FTP/SFTP (update/file transfer)
Operating temperature range5 °C...50 °C
Humidity (non-condensing)10...95 %
Storage temperature range-20 °C...70 °C
Suitable forHousing type: VX IT cabinet frame: ≥ 1,200 mm, housing type: VX IT 19"-profile rails: ≥ 1,800 mm


Product data sheet
Datasheet for Rittal 7979312, EAN: 4028177947870
