Rittal 7030430 DK CMC III leakage sensor

Your rating:
Average rating
product review for Rittal 7030430 DK CMC III leakage sensor
( 4.6 / 5 ) 25 ratings
Rittal 7030430
This image may differ from the desired article.
Rittal 7030430Rittal 7030430
-18% 275,94 EUR 336,36 EUR
( 328,37 EUR incl. VAT )
≈ £230.96  |  ≈ $303.26
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 7030430 DK CMC III leakage sensor
Datasheet:file_download Download
Lieske Part No.:1189710
Mfg Part No: 7030430
UPC/EAN: 4028177695825
Weight:0.283 kg
Type:DK 7030430

Product information for Rittal 7030430:

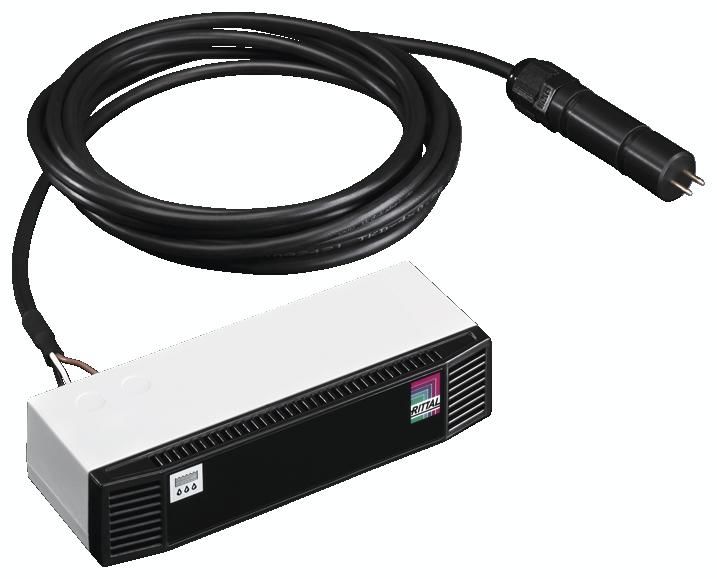

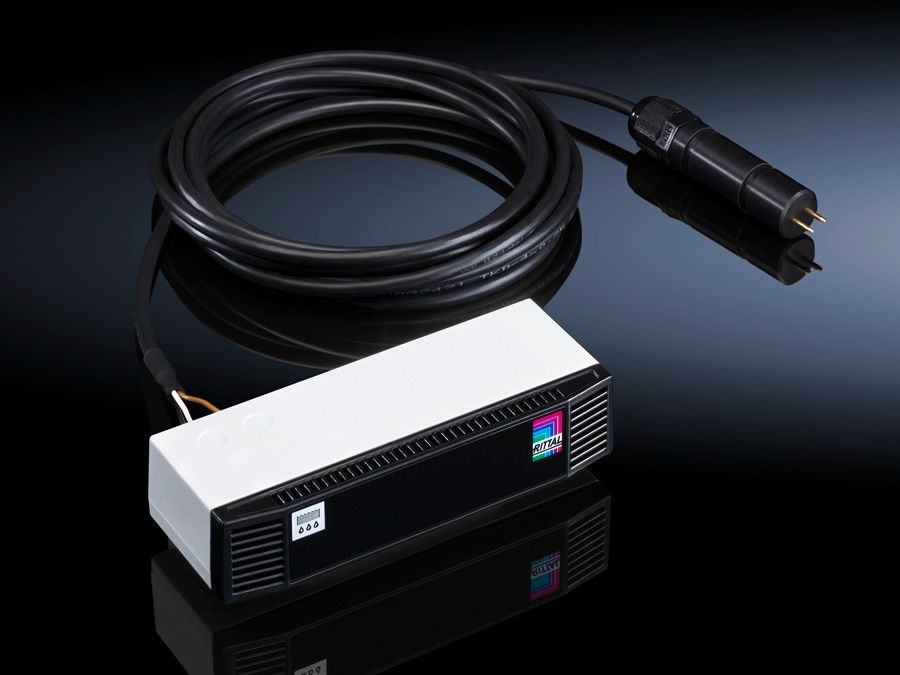

DK CMC III leakage sensor, measuring method: conductivity monitoring, consisting of:, compact plastic housing, external sensor probe

General
ModelLeakage sensor
ApplicationsMonitoring of cabinets in IT, industry and building technology. Monitoring of cabinets, rooms and containers in IT environment.
Function principleSettings can be made via the CMC III Processing Unit or via the IoT Interface. The CMC III leakage sensor features an external sensor, mounted perpendicular to the floor. The sensor monitors the floor for conductive liquids (leakage) using two contacts.
MaterialPlastic, front: smooth, housing: textured
ColourFront: RAL 9005, housing: RAL 7035
Scope of deliverySensor, mounting plate, including fastening material, external sensor probe with connecting cable
Connection to CAN busDirect
Interfaces2 x RJ45 CAN-Bus, terminal
Number of participants per IoT interface (max.)32
Number of participants PU compact (max.)4
Number of participants PU (max.)32
Number of PDU participants (max.)16
Measuring methodconductivity measurement
Width110 mm
Height30 mm
Depth40 mm
Operating temperature range5 °C...45 °C
Humidity (non-condensing)5...95 %
PCF/VE (Cradle-to-Gate)1.1 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 7030430, EAN: 4028177695825
