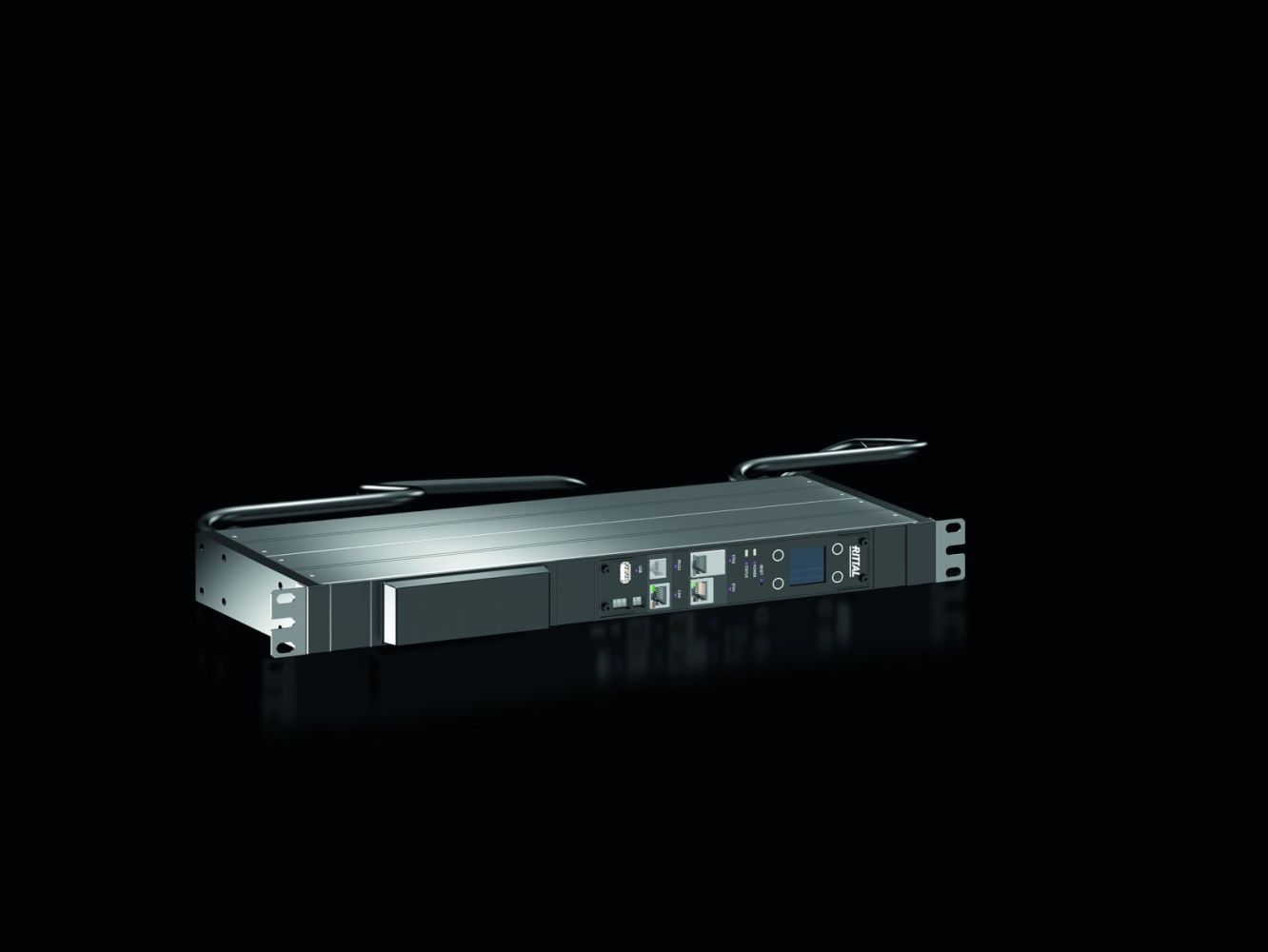

Rittal 7979711 RCM measuring module 48,3 cm ( 19 inch ) inline meter 16A/1P CEE input and output
|
-10% 983,25 EUR 1.086,84 EUR |
|
|
( 1.170,07 EUR incl. VAT ) ≈ £822.98 | ≈ $1,080.59 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: 4 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1101086 |
| Mfg Part No: | 7979711 |
| UPC/EAN: | 4028177948488 |
| Weight: | 3.34 kg |
| Type: | DK 7979711 |
Product information for Rittal 7979711:
Applications
The module is designed for use in industrial and IT infrastructures where accurate energy consumption measurement and leakage current monitoring are required. It is suitable, for example, for monitoring servers, network devices, or other IT systems supplied via a PDU. The integrated differential current measurement (Type B) allows monitoring of leakage currents, increasing the safety of connected devices. The unit is rated for a nominal power of 3.7 kW and a nominal current of 16 A for single-phase supply.
Functions and Equipment in Detail
The DK 7979711 captures all essential electrical parameters, such as voltage, current, power, and energy consumption, with a typical measurement accuracy of ±1 %. The data can be queried via an integrated network interface or locally via a TFT display. The unit features a fully redundant Ethernet interface with two RJ45 connectors (10/100/1000 Mbit/s), one of which supports PoE (Power over Ethernet). This enables autonomous operation without additional power supply components. Additionally, a USB 2.0 port (USB-A) is available for mass configuration, firmware updates, and data logging.
Technology Explained Simply
The integrated differential current measurement (Type B) detects leakage currents that may indicate insulation faults or other electrical disturbances. If predefined thresholds are exceeded, an acoustic alarm can be activated. The unit features a CAN-Bus interface (RJ45), allowing up to 16 CMC III environmental sensors to be connected to capture additional data such as temperature or humidity. A serial interface RS232 (RJ12) enables connection to LTE modules, scripting functions, CLI access, and the use of custom certificates and TLS 1.2. The unit also supports email alerts via SMTP, user management with rights management, and integration with LDAP(S), Radius, or Active Directory. Additionally, it can be connected to up to two Syslog servers.
Compatibility and Accessories
The module is designed for use with PDU basic or modular PDUs without integrated measurement functionality. It is equipped with pre-assembled connection cables: the input cable (H05VV-F3G2.5, 2 m) and the output cable (H05VV-F3G2.5, 1.2 m) are fitted with CEE connectors, ensuring immediate readiness for use. The unit is designed for use in 48,3 cm ( 19 inch ) racks and fits standard rack installations.
Installation and Mounting
Mounting is performed by inserting the unit into the supply line of the device to be monitored. The unit is inserted into the power supply loop, requiring only a brief interruption of operation. The compact 1 HE housing made of anodized aluminium extruded profile (RAL 9005) is robust and designed for industrial environments. Dimensions are 450 mm (width), 144 mm (height), and 44 mm (depth).
Operational Advantages
The DK 7979711 offers high measurement accuracy, low self-consumption, and energy-efficient design. The integrated web server functionality enables autonomous operation without additional control units. Support for protocols such as TLS 1.2, LDAP(S), Radius, and Active Directory ensures secure and integrated use in existing IT infrastructures. The unit complies with the Low Voltage Directive 2014/35/EU and the EMC Directive 2014/30/EU, as well as standards EN 62368-1, EN 61000-4, EN 61000-6, and EN 55 022.
| General | |
| Model | 16 A / single-phase |
| Material | Aluminium extruded profile, anodized |
| Basic colour | RAL 9005 |
| Colour | RAL 9005 |
| Options | CMC III CAN-Bus sensors for environmental monitoring connectable, max. 16 sensors |
| Nominal power | 3,7 kW |
| Electrical connection type | CEE plug/coupler |
| Phases per feed | 1~ |
| Rated current (max.) | 16 A |
| Policies | Low Voltage Directive 2014/35/EU, EMC Directive 2014/30/EU |
| Standards | EN 62368-1, EN 61000-4, EN 61000-6, EN 55 022 |
| Width | 450 mm |
| Height | 144 mm |
| Depth | 44 mm |
| Interfaces | Fully redundant Ethernet interface 10/100/1000 Mbit/s (2x RJ45, 1x with PoE), USB 2.0 port (USB-A) for mass configuration, firmware update & datalogging, CAN-Bus interface (RJ45) for max. 16 environment sensors, serial interface RS232 (RJ12) for LTE unit, scripting, CLI, use of own certificates/TLS 1.2, email sending on alarm (SMTP), user management including rights management, LDAP(S)/Radius/Active Directory integration, Syslog server integration (max. 2 servers) |
| Input cable connection (type/length) | H05VV-F3G2.5, 2 m |
| Connection output cable (type/length) | H05VV-F3G2.5, 1,2 m |
