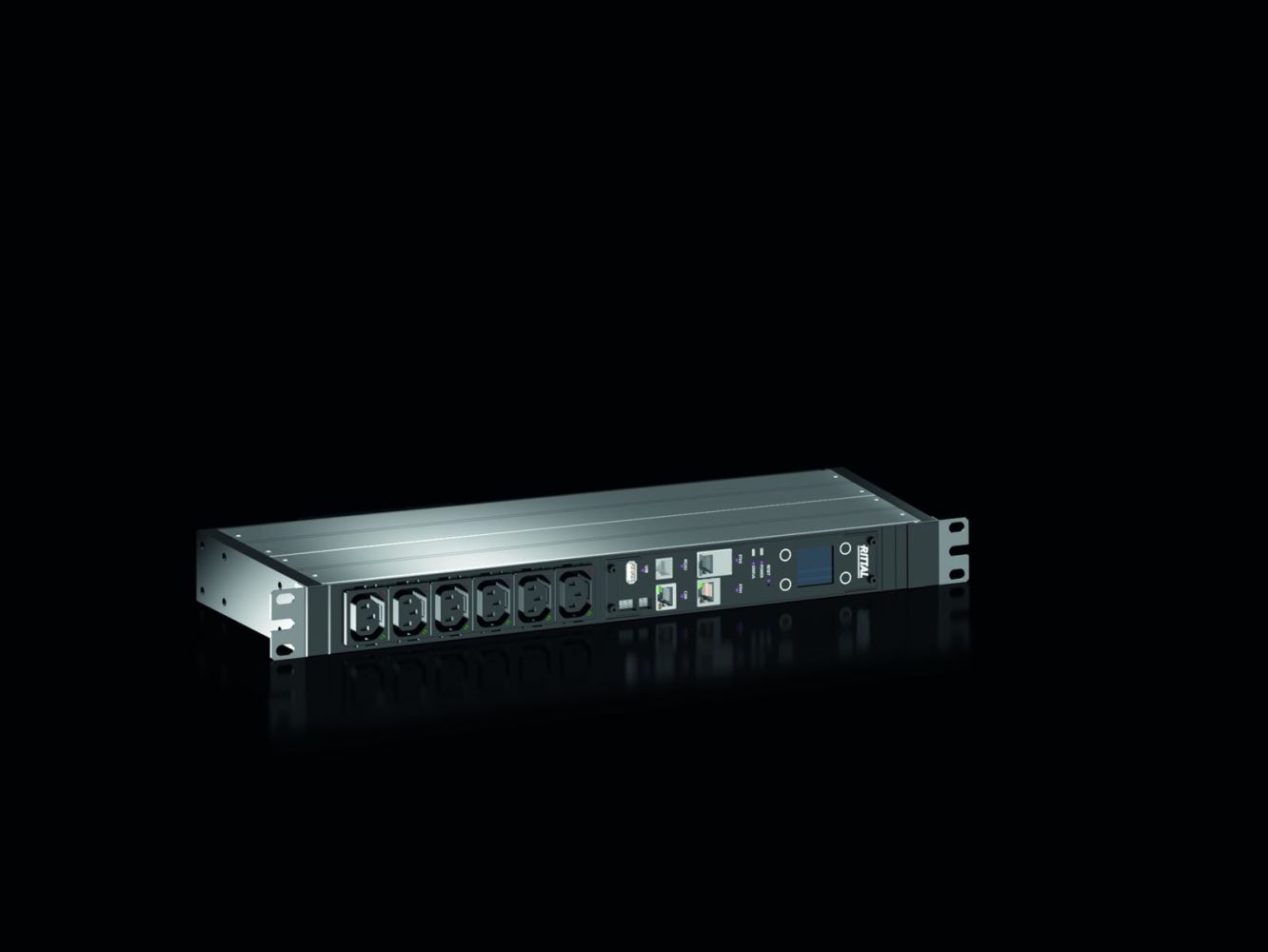

Rittal 7979502 PDU metered plus, 16A/230V, 1~, 6x C13
|
-9% 1.053,52 EUR 1.158,79 EUR |
|
|
( 1.253,69 EUR incl. VAT ) ≈ £881.80 | ≈ $1,157.82 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 5 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1101078 |
| Mfg Part No: | 7979502 |
| UPC/EAN: | 4028177948266 |
| Weight: | 0.123 kg |
| Type: | DK 7979502 |
Product information for Rittal 7979502:
Applications include power supply and monitoring in data centers, server rooms, and IT infrastructures where precise energy management and load monitoring are required. The PDU is designed for use in VX IT enclosure frames with a minimum depth of 800 mm. Installation is toolless, with phase color coding (L1=pink, L2=black, L3=white) enabling easy assignment. Energy efficiency is supported by a power-saving design and low self-consumption.
Functions and equipment in detail include an integrated, fully redundant power supply that can be fed from all phases, ensuring fault-tolerant operation. Measurement functions include voltage, current, frequency, active power, active energy, apparent power, apparent energy, power factor (cosPhi), phase angle, and neutral conductor current measurement for unbalanced load detection. Measurement accuracy is ±1 % (kWh) according to EN 62053-21. A bright TFT display with 128x128 pixels (RGB) and backlighting shows power data and basic configuration. The display is rotatable by 180° and replaceable, allowing operation regardless of mounting position. Multicolor LEDs (green/yellow/red) indicate the switching status and thresholds per outlet socket. An integrated electromagnetic buzzer enables acoustic alarm signaling.
Technology explained simply is based on a powerful CPU (ARM Cortex A8) handling data processing and communication. The PDU features an integrated real-time clock with battery backup (up to 10 years, replaceable), ensuring time continuity even during power failure. The network interface includes a fully redundant Ethernet interface (10/100/1000 Mbit/s) for communication with monitoring systems and DCIM software. Additionally, a USB 2.0 interface (USB-A) is available for firmware updates and data logging, as well as a CAN-Bus interface (RJ45) for connecting up to 16 CMC III environment sensors. A serial RS232 interface (RJ12) enables integration of LTE modules, scripting, and CLI access. The PDU supports protocols such as HTTP/HTTPS, SSH, Telnet, NTP, TCP/IP v4 & v6, DHCP, DNS, SNMP v1/v2c/v3, Modbus/TCP, OPC-UA, and FTP/SFTP. User management includes rights management, LDAP(S)/Radius/Active Directory integration, and Syslog server connection (up to 2 servers). Email alarms can be sent via SMTP.
Compatibility and accessories include connection to CMC III CAN-Bus sensors for environmental monitoring (up to 16 sensors). Compatible accessories include CAN-Bus cables in various lengths (0.5 m, 1.0 m, 1.5 m), connection cables (e.g. PSM C19/C20 16 A 1.8 m), covers for C13 and C19 sockets, mounting adapters for TE 8000, universal locks for C14/C20 plugs, an RCM measurement module 48,3 cm ( 19 inch ) inline meter, numeric code locks, transponder readers, surge protection modules Type 3, and an online comfort handle VX with master key function. The PDU is designed for use in VX IT systems and requires a minimum depth of 800 mm.
Installation and mounting is toolless in the Zero-U-Space of VX IT or TS IT racks. Mounting is done on 48,3 cm ( 19 inch ) profile rails, and the PDU is self-powered, requiring no external power supply.
Operational advantages include precise energy measurement per outlet, fault-tolerant power supply, comprehensive network interfaces, and integration into existing monitoring systems. Adjustable thresholds for voltage, current, power, and per outlet socket enable individual alarm configuration. The integrated real-time clock and acoustic buzzer support operational monitoring. The PDU is designed for operating temperatures from 5 °C to 50 °C and humidity levels from 10 % to 95 % (non-condensing). Storage is possible in the range of -20 °C to 70 °C. Compliance with standards EN 62368-1, EN 61000-3, EN 61000-4, EN 61000-6, and EN 62053-21, as well as directives EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU, ensures safety and functionality.
The PDU is made of aluminum profile, black anodized, with sockets made of plastic. Dimensions are 450 mm (length) × 44 mm (height) × 144 mm (depth). Materials and construction are designed for use in IT infrastructures, with the PDU being self-powered and requiring no external power supply. Delivery includes mounting hardware, but does not include connection cables, which must be provided by the customer.
| General | |
| Model | 19" version |
| Material | Aluminium profile, black anodised, mounting slots: plastic |
| Scope of delivery | Including mounting hardware, without connection cable, must be provided by customer |
| Options | CMC III CAN-Bus sensors for environmental monitoring connectable, max. 16 sensors |
| Description of measurement functions | Measurement per phase or input, additional measurement per output socket, powerful CPU (ARM Cortex A8), digital input (potential-free contact), additional alarm output/relay output (changeover contact) |
| Height | 44 mm |
| Depth | 144 mm |
| Length | 450 mm |
| Number of sockets and type | 6 x C13 |
| Socket outlets | 6 x C 13 |
| Rated operating voltage | 230 V (AC) |
| Rated current (max.) | 16 A |
| Nominal power | 3,7 kW |
| Power supplies | Number: 1, Phases per input: 1~ |
| Electrical connection type | C20 |
| Interfaces | USB 2.0 port (USB-A) for mass configuration, firmware update & data logging, CAN-Bus interface (RJ45) for max. 16 environment sensors, serial interface RS232 (RJ12) for LTE unit, scripting, CLI, use of own certificates/TLS 1.2, email sending on alarm (SMTP), user management including rights management, LDAP(S)/Radius/Active Directory integration, Syslog server integration (max. 2 servers), fully redundant Ethernet interface 10/100/1000 Mbit/s |
| Policies | EMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU |
| Standards | EN 62368-1, EN 61000-3, EN 61000-4, EN 61000-6, EN 62053-21 |
| Protocols | Web server (HTTP, HTTPS, SSL) SSH, Telnet, NTP, TCP/IP v4 & v6, DHCP, DNS, SNMP v1, v2c & v3, Modbus/TCP, OPC-UA, MIB for integration into 3rd party DCIM software, FTP/SFTP (update/file transfer) |
| Operating temperature range | 5 °C...50 °C |
| Humidity (non-condensing) | 10...95 % |
| Storage temperature range | -20 °C...70 °C |
| Suitable for | Housing type: VX IT cabinet frame: ≥ 800 mm, Housing type: VX IT 19"-profile rails: ≥ 800 mm |
