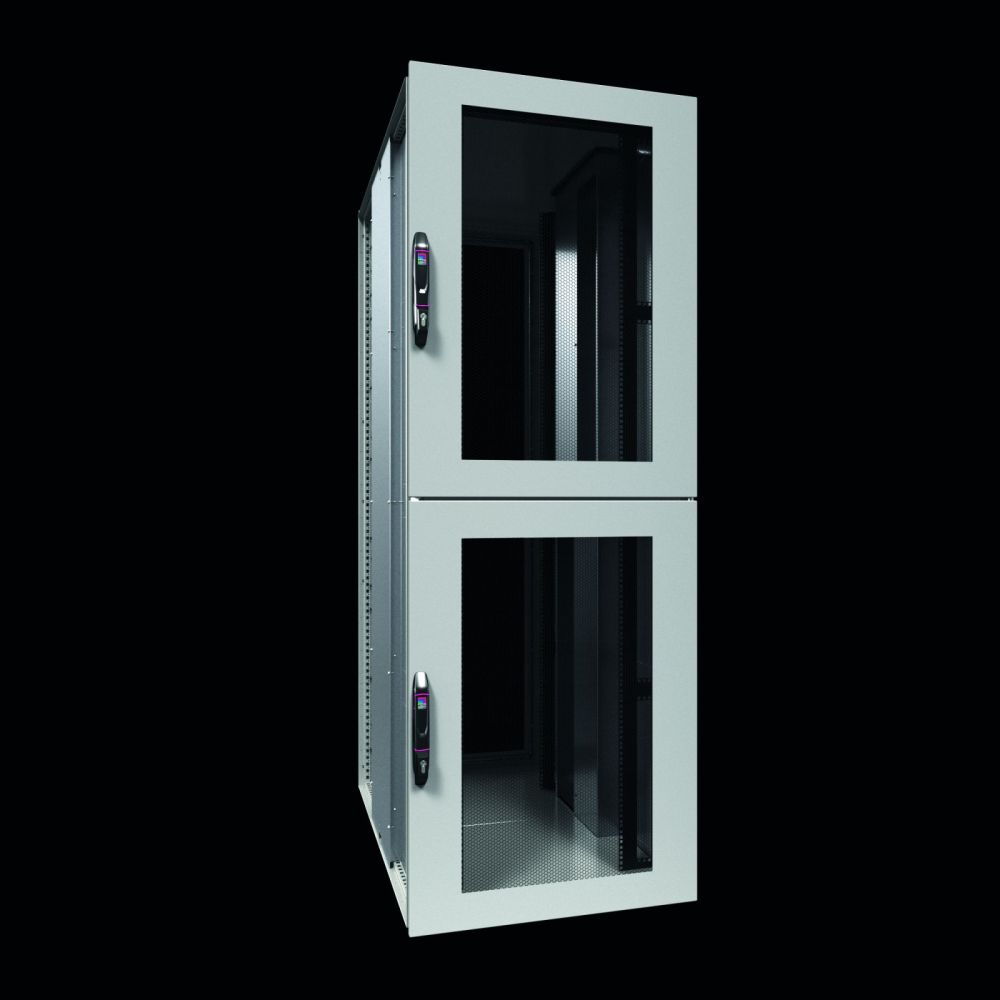

Rittal 5316175 VX IT Compartment Rack, ventilated, 2 doors, 2 x 23 U
|
2.720,56 EUR |
|
|
( 3.237,47 EUR incl. VAT ) ≈ £2,277.11 | ≈ $2,989.90 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1101775 |
| Mfg Part No: | 5316175 |
| UPC/EAN: | 4028177950115 |
| Weight: | 216 kg |
| Type: | VX 5316175 |
Product information for Rittal 5316175:
Applications
The VX IT Compartment Rack is designed for use in data centres, server rooms, IT infrastructures, and other technical facilities where clear separation of systems and secure, structured cabling are required. The separate compartments allow parallel use by different departments or systems without any physical or electrical interaction. The ventilated doors ensure sufficient air circulation to guarantee cooling of installed devices.
Functions and Equipment in Detail
The housing features two separate, ventilated front and rear doors, each allowing an opening angle of up to 130°. In baying, the opening angle is reduced to a maximum of 115°. The doors are equipped with a 2-point rod lock, ensuring secure closure. The doors are double-parted and ventilated, enabling optimal air circulation within the compartments. The mounting levels are fitted with universal mounting brackets and are depth-variable with a pitch of 12.5 mm. The 48,3 cm ( 19 inch ) mounting level is present at the front and rear of each compartment and can be adjusted independently. The level spacing in the delivered state is 740 mm, but can be individually adjusted.
Technology Explained Simply
The housing is made of sheet steel, with the enclosure frame, roof plate, and front and rear doors each being 1.5 mm thick. The base plate has a thickness of 1.0 mm, and the profile rails are made of 2.5 mm thick sheet steel. The colouring is done in RAL 7035 for the housing frame and flat parts, while the 48,3 cm ( 19 inch ) mounting level, hinges, and handles are painted in RAL 9005. The pre-assembled, two-part base construction is extendable and closed, enabling easy assembly and maintenance. The air baffle plates in the 48,3 cm ( 19 inch ) mounting frame are integrated and ensure targeted airflow. Additionally, vertical 1 HE 48,3 cm ( 19 inch ) mounting cutouts are present on the right and left sides of each compartment, which can be used as additional space for internal expansion or cable routing.
Compatibility and Accessories
The rack is designed for mounting 48,3 cm ( 19 inch ) devices and offers 2 x 23 HE per compartment. The 48,3 cm ( 19 inch ) mounting is done with 482.6 mm (48,3 cm ( 19 inch )) mounting levels, located at the front and rear of each compartment. For power supply, various PDU options are available: vertical PDU with IEC C20 socket (maximum length 1,000 mm) or CEE plug/16 A, 1~/3~, as well as 48,3 cm ( 19 inch ) PDU with IEC C20 socket or CEE plug/16 A, 1~. Compatible accessories include routing panels, slide rails, component shelves, drawers, cable routing trough panels, document clips, and magnetic change frames for labelling. PDU mounting can be done either vertically in the rear space or within the 48,3 cm ( 19 inch ) mounting level.
Mounting and Installation
The VX IT Compartment Rack is pre-assembled and can be installed all-around in baying. The door hinges are reversible from right to left, allowing flexible placement. The level spacing is individually adjustable, enabling adaptation to different device heights. The pre-assembled 48,3 cm ( 19 inch ) mounting level with universal mounting brackets simplifies installation. The integrated air baffle plates and ventilated doors support efficient cooling of installed devices. The base construction is extendable and allows for easy assembly and maintenance.
Advantages in Operation
The physical separation of the compartments ensures high security and prevents unwanted interactions between different systems. The independent adjustability of the mounting levels enables flexible use and adaptation to different devices. The ventilated doors and integrated air baffle plates ensure optimal cooling. The pre-assembled construction reduces assembly time and simplifies installation. Compatibility with various PDUs and accessories expands the rack's application possibilities. The maximum load capacity is 1,000 kg for the entire housing, with each compartment capable of supporting up to 500 kg. The robust sheet steel construction and pre-assembled design ensure high stability and durability.
| General | |
| Technical data | maximum load capacity 500 kg per compartment |
| Material | Cabinet frame: steel sheet, 1.5 mm, roof sheet: steel sheet, 1.5 mm, floor sheet: steel sheet, 1.0 mm, front and rear doors: steel sheet, 1.5 mm, profile rails: steel sheet, 2.5 mm |
| Basic colour | RAL 7035 |
| Colour | Cabinet frame and flat parts: RAL 7035, 19" mounting surface, hinges and handles painted in RAL 9005 |
| Width | 800 mm |
| Height | 2.200 mm |
| Depth | 1.200 mm |
| Layer spacing (as delivered) | 740 mm |
| Number of front doors | 2 |
| Number of rear doors | 2 |
| 19" mounting | 2 x 23 U, including 482.6 mm (19") mounting plane, front and rear per compartment, individually, independently adjustable |
| Built-in PDU vertical in rear space | Vertical PDU with IEC C20 connector (max. PDU length 1,000 mm), Order no. 7979.117/.118/.217/.317/.417, Vertical PDU – CEE plug/16 A, 1~/3~, Order no. 7979.110/.111/.130/.132/.135/.210/.310/.410/.510/.230/.330/.430/.530 |
| Built-in PDU within the 19” mounting plane | 19"-PDU with IEC C20 connector, part no. 7979.102/.202/.302/.402/.502, 19"-PDU – CEE plug/16 A, 1~, part no. 7979.103/.203/.303/.403/.503 |
| Model | Compartment Rack, 2 x 23 U |
| Roof type | Roof sheet, single-piece, with double-sided cable routing in the middle part of the roof |
| Door configuration | Maximum door opening angle 130°, including 2-point rod lock |
| Door configuration rear | 2-way split, ventilated |
| Front door configuration | 2-way split, ventilated |
| Profile rail version | 19" profile rails in VX IT Compartment Rack |
| Floor version | Floor frame with pre-mounted, extendable, two-part, closed floor plate |
| 19" rack configuration | 19"-plane front and rear, 19" mounting plane with universal mounting brackets, front and rear, adjustable depth, 12.5 mm pitch, screwed to left and right partition walls, with integrated airflow guides, airflow guide with integrated vertical 1 HE 19" mounting cutout on right and left per compartment, additional space for internal build or cable routing. |
| Mounting type for profile rail | 19"-level front and rear |
| Load capacity | 1.000 kg |
| Note | Depending on type and location of installation, the door opening angle may vary in the specific application |
| Base material | steel sheet |
Questions & answers
What is the delivery time of Rittal 5316175 VX IT Compartment Rack, ventilated, 2 doors, 2 x 23 U?
The article Rittal 5316175 VX IT Compartment Rack, ventilated, 2 doors, 2 x 23 U is currently in stock
According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 5316175 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 5316175 VX IT Compartment Rack, ventilated, 2 doors, 2 x 23 U always at the best possible price. We can give you a discount of 2% on Rittal 5316175 VX IT Compartment Rack, ventilated, 2 doors, 2 x 23 U if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
