Rittal 7979130 PDU basic 16A/3P CEE 9xC19
|
165,49 EUR |
|
|
( 196,93 EUR incl. VAT ) ≈ £138.52 | ≈ $181.87 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 593687 |
| Mfg Part No: | 7979130 |
| UPC/EAN: | 4028177947467 |
| Weight: | 2.86 kg |
| Type: | DK 7979130 |
Product information for Rittal 7979130:
Applications
The PDU is designed for use in IT infrastructures, particularly in server and network enclosures. It is suitable for enclosure types of the Rittal VX IT, where the enclosure frame or the 48,3 cm ( 19 inch ) profile rails must have a minimum length of 1,200 mm. The power distribution unit is designed for operation in environments with a temperature range of 5 °C to 50 °C and relative humidity of 10 % to 95 % (non-condensing). The storage temperature range is -20 °C to 70 °C.
Functions and Equipment in Detail

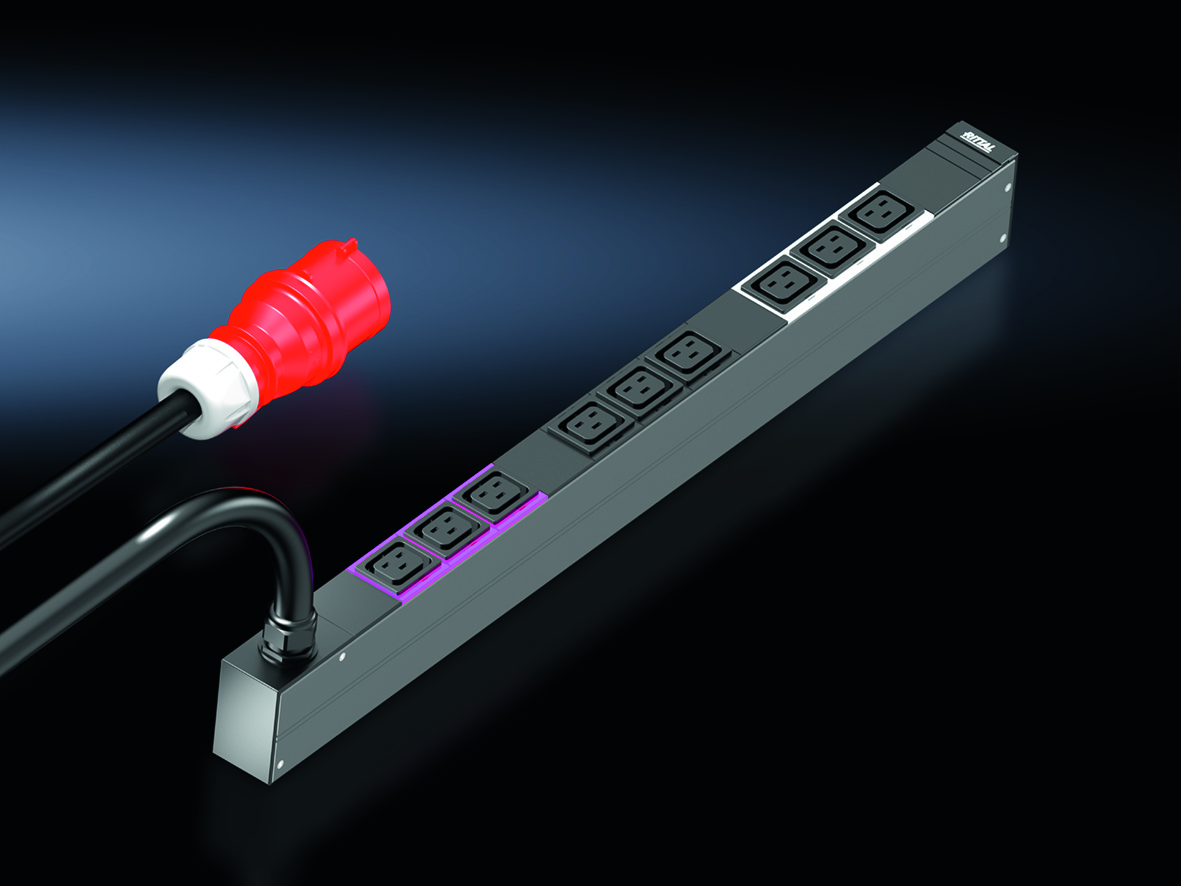

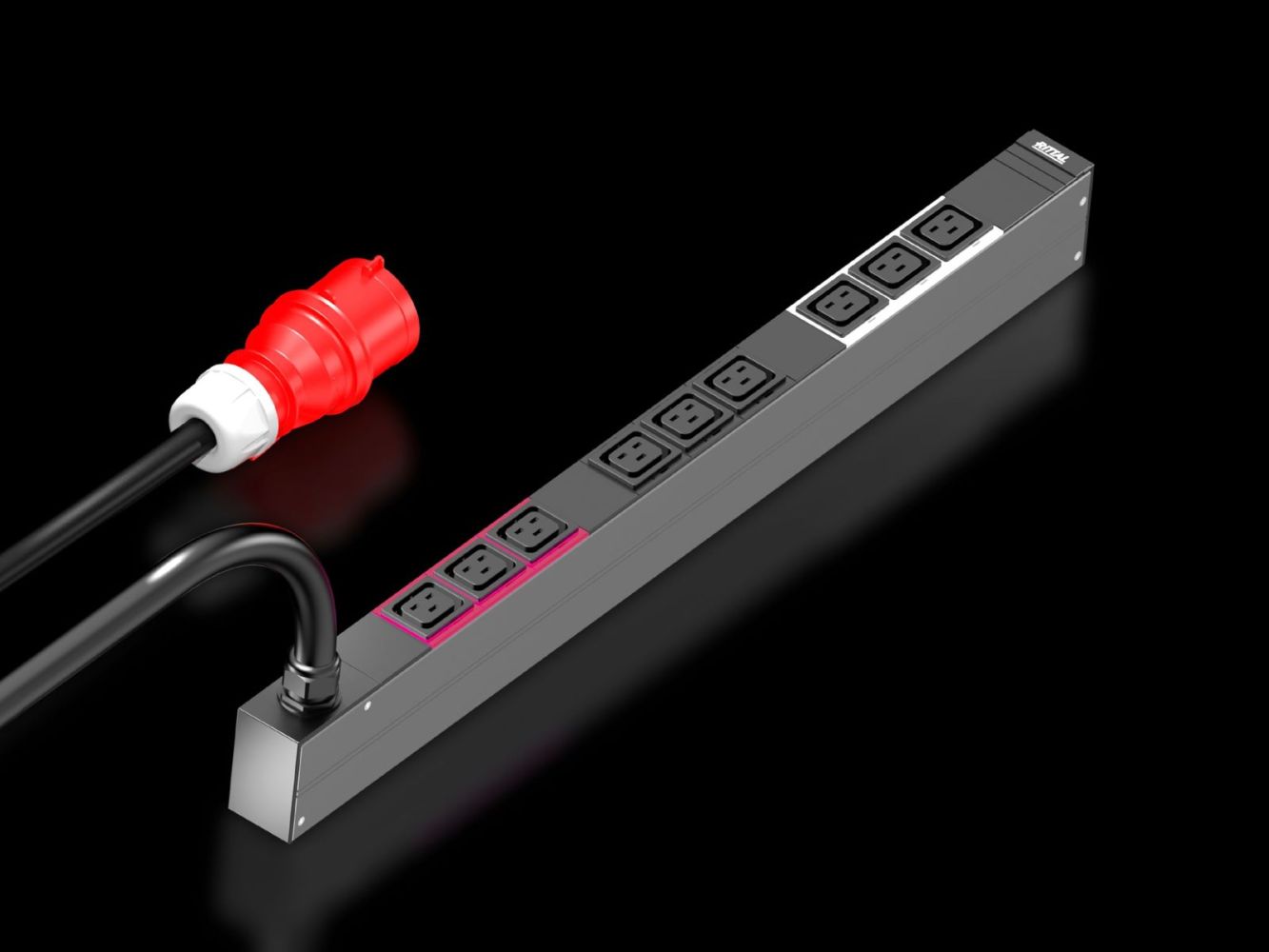

The PDU features 9 sockets of type IEC 60320/C19, divided into three phases (L1, L2, L3) with three sockets per phase. The phases are colour-coded: L1 in pink, L2 in black, L3 in white, to ensure clear assignment and prevent overloading. The sockets are made of plastic and are securely mounted in the housing. To prevent accidental disconnection, a socket locking mechanism for IEC C14 and C20 plugs is included in the delivery. Unused sockets can be sealed with accessories available separately, to prevent unintentional overloading of individual phases.
Technology Explained Simply
The power distribution unit is designed for a rated operating voltage of 400 V (AC) and supports a rated power of 11 kW with a maximum rated current of 16 A. Power input is via a CEE connection type with a supply cable of length 3 m, making the PDU immediately ready for use. The power distribution unit complies with standards EN 62368-1, EN 61000-3, EN 61000-4, EN 61000-6, and EN 62053-21, as well as the directives EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU. The housing is made of anodized aluminium extruded profile, offering high mechanical stability and corrosion resistance.
Compatibility and Accessories
The PDU is specifically designed for Rittal VX IT enclosures with a minimum length of 1,200 mm. Various accessory options are available, including a Type 3 surge protection device with replaceable discharge elements during operation, which can be integrated into the PDU housing. Additionally, CAN-Bus cables for the monitoring system CMC III, covers for C13 and C19 sockets, mounting adapters, and numeric code locks are available. The PDU can be equipped with a potential-free alarm contact for status monitoring of the surge protection device.
Mounting and Installation
Mounting is tool-free in the Zero-U-Space of Rittal VX IT or TS IT racks using the included universal holder. The fastening materials are included in the delivery. Vertical mounting enables efficient use of enclosure space, while horizontal mounting in the 48,3 cm ( 19 inch ) plane ensures standard installation. The PDU is immediately ready for use, as the supply cable is already installed.
Operational Advantages
The PDU provides reliable power distribution with clear phase markings, enabling safe and overload-free operation. The tool-free mounting and integrated socket locking mechanism increase safety and efficiency in operation. Compatibility with the Rittal VX IT system and the ability to integrate surge protection modules make the PDU a flexible solution for modern IT infrastructures. The robust aluminium construction ensures long service life and high mechanical load capacity.
| General | |
| Model | PDU Basic |
| Material | Aluminium extruded profile, anodized, socket positions: plastic |
| Scope of delivery | Plug lock for IEC C14, C20 plugs, including mounting hardware |
| Options | Surge protection Type 3 with replaceable discharge devices during operation, with status monitoring, integrable in PDU enclosure, other enclosure colours available |
| Width | 44 mm |
| Depth | 70 mm |
| Length | 695 mm |
| Number of sockets and type | 9 x C19 |
| Rated operating voltage | 400 V (AC) |
| Rated current (max.) | 16 A |
| Nominal power | 11 kW |
| Power supplies | Number: 1, phases per input: 3~ |
| Connection cable length | 3 m |
| Electrical connection type | CEE |
| Policies | EMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU |
| Standards | EN 62368-1, EN 61000-3, EN 61000-4, EN 61000-6, EN 62053-21 |
| Operating temperature range | 5 °C...50 °C |
| Humidity (non-condensing) | 10...95 % |
| Storage temperature range | -20 °C...70 °C |
| Suitable for | Housing type: VX IT cabinet frame: ≥ 1,200 mm, housing type: VX IT 19"-profile rails: ≥ 1,200 mm |
