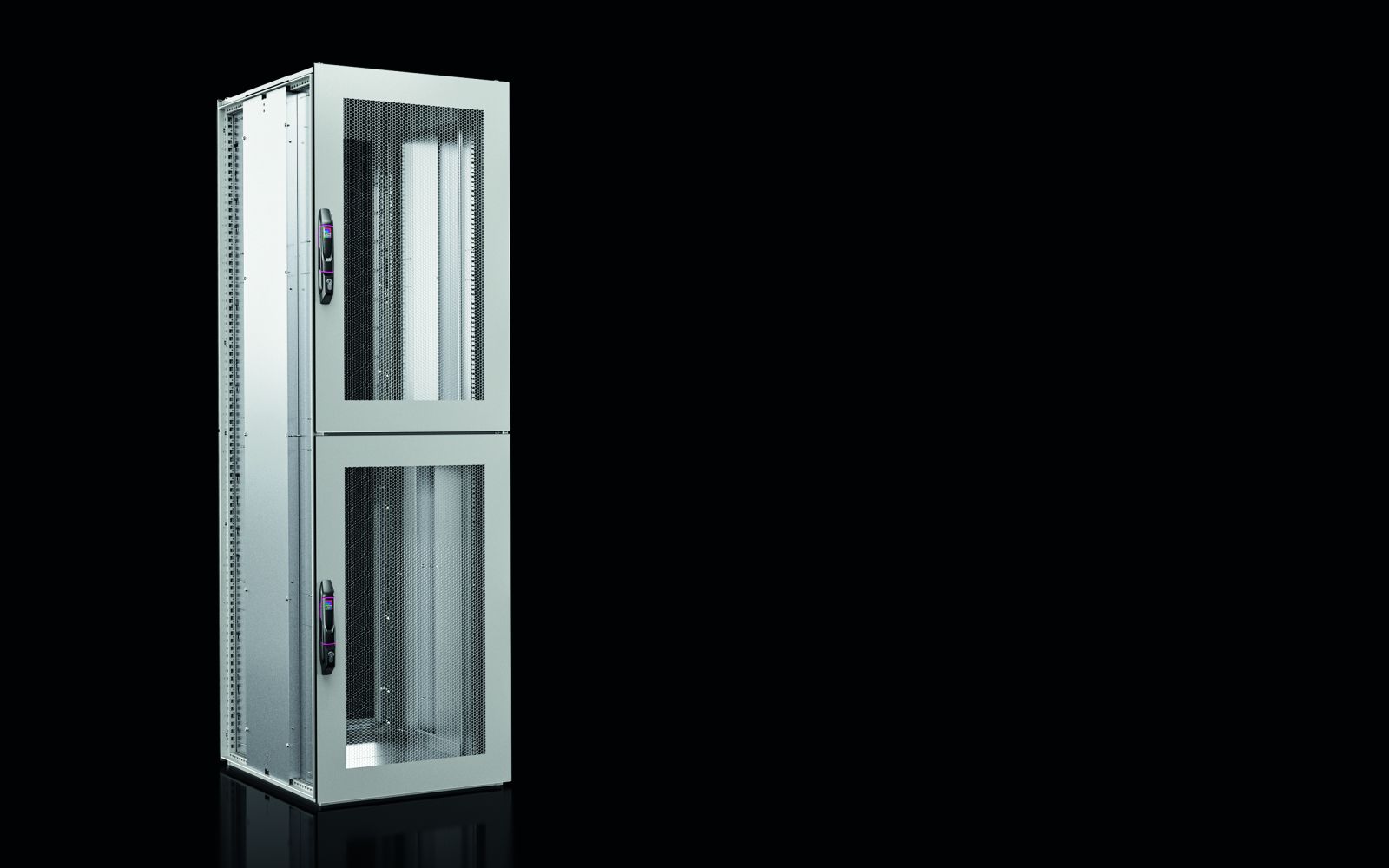

Rittal 5314175 VX IT Compartment Rack, ventilated, 2 doors, 2 x 23 U
|
2.708,83 EUR |
|
|
( 3.223,51 EUR incl. VAT ) ≈ £2,267.29 | ≈ $2,977.00 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: 1 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1101774 |
| Mfg Part No: | 5314175 |
| UPC/EAN: | 4028177950078 |
| Weight: | 202 kg |
| Type: | VX 5314175 |
Product information for Rittal 5314175:
Applications
The VX IT Compartment Rack is suitable for use in data centres, server rooms or technical rooms where a clear separation of IT infrastructures is required. The separate compartments allow simultaneous use by different departments or for different applications, without physical or electrical interference. The all-round baying enables flexible placement in existing row configurations.
Functions and Equipment in Detail
The housing is pre-assembled and offers a 48,3 cm ( 19 inch ) mounting plane of 482.6 mm at the front and rear in each compartment. These mounting planes are depth-adjustable and can be adjusted independently, with a pitch of 12.5 mm. Mounting is done on the integrated partition panels on the left and right. The plane spacing is pre-set at 740 mm at delivery, but can be individually adjusted. The front and rear doors open to an angle of 130°, which may be reduced to 115° in baying. The doors are equipped with comfort handles for half cylinders, enabling security locking. The enclosure frame and door materials are made of sheet steel, with frame and door sheets having a thickness of 1.5 mm, the base sheet 1.0 mm, and the profile rails 2.5 mm. The enclosure frames and flat parts are painted in RAL 7035, while the 48,3 cm ( 19 inch ) mounting planes, hinges and handles are in RAL 9005.
Technology Explained Simply
The integrated air baffle plates in the 48,3 cm ( 19 inch ) mounting frame ensure targeted airflow to optimise device cooling. The vertical 1 HE 48,3 cm ( 19 inch ) mounting cutouts on the sides of each compartment provide additional space for internal installation or cable routing. The roof plate is single-piece and features double-sided cable routing in the middle section, facilitating top-side cabling. The base plate is two-piece, pull-out and closed, enabling easy installation and maintenance. The equipotential bonding connection is already integrated, and the housing is prepared for the attachment of earthing straps.
Compatibility and Accessories
The VX IT Compartment Rack is designed for mounting 48,3 cm ( 19 inch ) devices and supports the installation of PDU systems. Vertically in the rear space, PDUs with IEC C20 connectors (maximum length 1,000 mm) or CEE plugs/16 A (1~/3~) can be mounted. Within the 48,3 cm ( 19 inch ) mounting plane, 48,3 cm ( 19 inch ) PDUs with IEC C20 connectors or CEE plugs/16 A, 1~ are compatible. Suitable accessories include, among others, cable routing panels, glide rails, drawers, document clamps, and various PDU types, suitable for individual compartment outfitting.
Installation and Mounting
The enclosure is pre-assembled and can be installed directly. Mounting of 48,3 cm ( 19 inch ) devices is done on the pre-defined mounting profiles, which are depth-adjustable. The doors are fitted with hinges that can be reversed from right to left, allowing flexible placement. Baying is possible on all sides, enabling integration into existing row configurations.
Operational Advantages
The separate compartments offer high access security and allow individual configuration for different applications. The integrated air baffle plates and ventilated doors ensure efficient cooling. The pre-assembled equipment and depth-adjustable mounting planes reduce installation time. The equipotential bonding connection and preparation for earthing straps meet electrical safety requirements. The load capacity of 500 kg per compartment and the total load capacity of 1,000 kg make the housing suitable for demanding applications.
Dimensions
The housing has a width of 800 mm, a height of 2,200 mm, and a depth of 1,000 mm. The plane spacing is pre-set at 740 mm at delivery, but can be individually adjusted. The number of front and rear doors is 2 each.
Colour Scheme
The enclosure frames and flat parts are painted in RAL 7035, while the 48,3 cm ( 19 inch ) mounting planes, hinges and handles are in RAL 9005. This colour scheme ensures a professional appearance and is typical for IT infrastructure enclosures.
Accessories
Compatible accessories include, among others, cable routing panels, glide rails, drawers, document clamps, and various PDU models, suitable for individual compartment outfitting.
| General | |
| Technical data | maximum load capacity 500 kg per compartment |
| Material | Cabinet frame: steel sheet, 1.5 mm, roof sheet: steel sheet, 1.5 mm, floor sheet: steel sheet, 1.0 mm, front and rear doors: steel sheet, 1.5 mm, profile rails: steel sheet, 2.5 mm |
| Basic colour | RAL 7035 |
| Colour | Cabinet frame and flat parts: RAL 7035, 19" mounting surface, hinges and handles painted in RAL 9005 |
| Width | 800 mm |
| Height | 2.200 mm |
| Depth | 1.000 mm |
| Layer spacing (as delivered) | 740 mm |
| Number of front doors | 2 |
| Number of rear doors | 2 |
| 19" mounting | 2 x 23 U, including 482.6 mm (19") mounting plane, front and rear per compartment, individually, independently adjustable |
| Built-in PDU vertical in rear space | Vertical PDU with IEC C20 connector (max. PDU length 1,000 mm), Order no. 7979.117/.118/.217/.317/.417, Vertical PDU – CEE plug/16 A, 1~/3~, Order no. 7979.110/.111/.130/.132/.135/.210/.310/.410/.510/.230/.330/.430/.530 |
| Built-in PDU within the 19” mounting plane | 19"-PDU with IEC C20 connector, part no. 7979.102/.202/.302/.402/.502, 19"-PDU – CEE plug/16 A, 1~, part no. 7979.103/.203/.303/.403/.503 |
| Model | Compartment Rack, 2 x 23 U |
| Roof type | Roof sheet, single-piece, with double-sided cable routing in the middle part of the roof |
| Door configuration | Maximum door opening angle 130°, including 2-point rod lock |
| Door configuration rear | 2-way split, ventilated |
| Front door configuration | 2-way split, ventilated |
| Profile rail version | 19" profile rails in VX IT Compartment Rack |
| Floor version | Floor frame with pre-mounted, extendable, two-part, closed floor plate |
| 19" rack configuration | 2 x 23 U, 19"-rack front and rear, 19"-mounting rack with universal mounting brackets, front and rear, depth adjustable, pitch 12.5 mm, screwed to left and right partition walls, with integrated air guide plates, air guide plate with integrated vertical 1 U 19"-mounting cutout on right and left per compartment, additional space for internal installation or cable routing |
| Mounting type for profile rail | 19"-level front and rear |
| Load capacity | 1.000 kg |
| Note | Depending on type and location of installation, the door opening angle may vary in the specific application |
| Base material | steel sheet |
