Rittal 5301515 VX IT transport kit for VX empty enclosures

Your rating:
Average rating
product review for Rittal 5301515 VX IT transport kit for VX empty enclosures
( 4 / 5 ) 2 ratings
Rittal 5301515
This image may differ from the desired article.
Rittal 5301515Rittal 5301515
152,84 EUR
( 181,88 EUR incl. VAT )
≈ £127.93  |  ≈ $167.97
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 5301515 VX IT transport kit for VX empty enclosures
Datasheet:file_download Download
Lieske Part No.:1714691
Mfg Part No: 5301515
UPC/EAN: 4028177952485
Weight:3.56 kg
Type:VX 5301515

Product information for Rittal 5301515:

The Rittal Transport-Kit VX 5301515 is an accessory set for the mobile transportation of VX empty enclosures. It enables simple and secure movement of empty enclosures from storage or shipping location to the installation site, without requiring additional transport equipment or aids. The kit is specifically designed for the VX enclosure series and allows efficient handling during the assembly and installation phase.

Applications

The Transport-Kit is primarily used in industrial and commercial environments where enclosures or empty housings must be assembled or positioned at various locations. It is particularly useful in electrical installation, during the assembly of control and distribution enclosures, and in manufacturing, where flexible positioning of enclosures is required. The swivel castors enable manual movement of enclosures over flat surfaces, thereby reducing physical strain on the installer.

Functions and Equipment in Detail

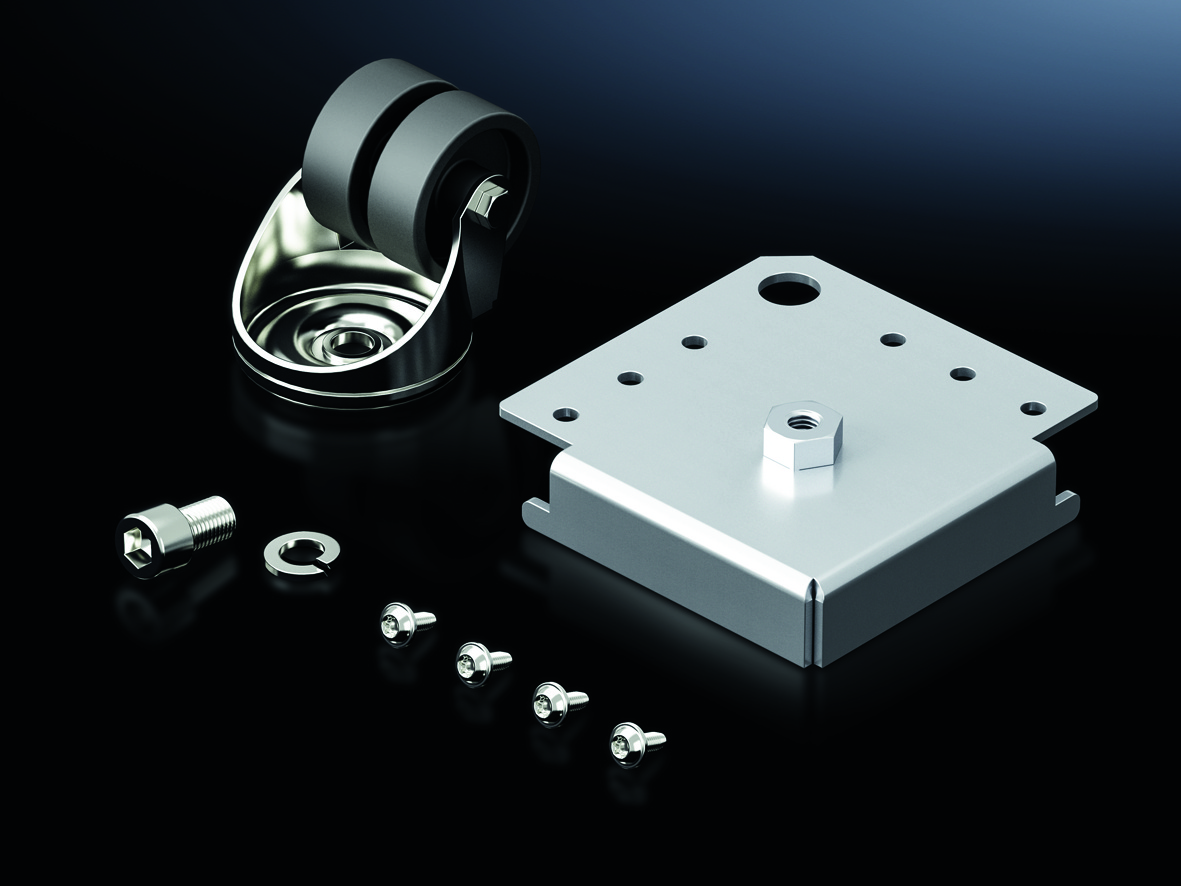

The kit includes four swivel castors, each equipped with mounting brackets. These brackets are used for secure attachment to the designated mounting points on the base of the VX empty enclosure. Additionally, mounting hardware is included in the delivery scope, which is necessary for installing the castors. The swivel castors are designed to enable safe and directed movement of the enclosure, with the rotational capability of the castors ensuring flexible steering.

Technology Explained Simply

The overall height of the enclosure increases by 58 mm once the Transport-Kit is mounted, as the castors provide a corresponding lift height. This value is critical for planning the mounting height and positioning of the enclosure in the operational environment. The maximum static load is 2000 N per castor set, defining the load capacity of the entire kit including the enclosure weight. This corresponds to a load of approximately 204 kg per castor set, with the total load distributed across all four castors. Installation requires that the base area of the enclosure is open at the mounting points to allow for attachment of the brackets and castors.

Compatibility and Accessories

The Transport-Kit is specifically designed for VX empty enclosures, including the VX IT series. It is not intended for other enclosure types, as the mounting points and construction are tailored to the specific dimensions and mounting points of the VX series. Use with other enclosure models is not guaranteed and may result in damage or instability.

Mounting and Installation

Installation is carried out by attaching the four swivel castors to the designated points on the base of the enclosure. The mounting brackets are attached to the enclosure, and the castors are mounted using the included mounting hardware. The mounting points must be accessible, meaning the base area of the enclosure must not be sealed or obstructed by other components at these locations.

Advantages in Operation

Using the Transport-Kit reduces physical effort when moving heavy enclosures. The swivel castors enable precise and controlled movement, minimizing the risk of damage to the enclosure or floor covering. The integrated mounting solution ensures secure installation that does not loosen during transport. The maximum load capacity of 2000 N per castor set ensures sufficient stability for most standard enclosure configurations.

General
Scope of delivery4 casters including mounting brackets, including mounting hardware
Height58 mm
Height (note)Total height = cabinet height + 58 mm
Mounting noteThe floor area must be open at the mounting points
Load capacityMax. static load: 2000 N per roller set including housing


Product data sheet
Datasheet for Rittal 5301515, EAN: 4028177952485

Questions & answers

What is the delivery time of Rittal 5301515 VX IT transport kit for VX empty enclosures?

The article Rittal 5301515 VX IT transport kit for VX empty enclosures is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 5301515 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 5301515 VX IT transport kit for VX empty enclosures always at the best possible price. We can give you a discount of 2% on Rittal 5301515 VX IT transport kit for VX empty enclosures if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
