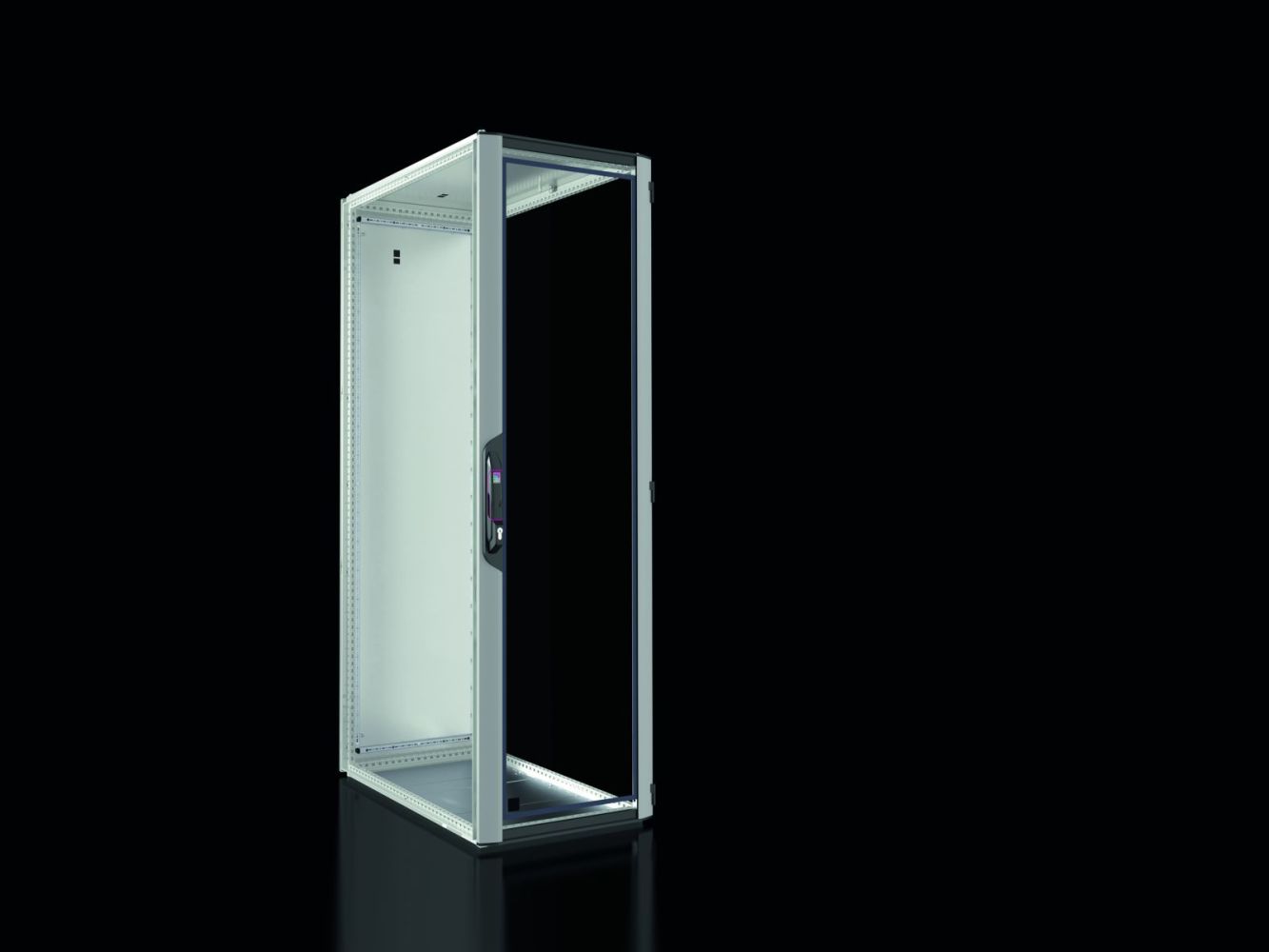

Rittal 5308190 Server rack VX IT closed IP55 600x2000x1000 mm 42 U

Your rating:
Average rating
product review for Rittal 5308190 Server rack VX IT closed IP55 600x2000x1000 mm 42 U
( 4 / 5 ) 2 ratings
Rittal 5308190
This image may differ from the desired article.
Rittal 5308190Rittal 5308190Rittal 5308190Rittal 5308190Rittal 5308190Rittal 5308190Rittal 5308190
894,93 EUR
( 1.064,97 EUR incl. VAT )
≈ £749.06  |  ≈ $983.53
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: 3 pieces
1x Rittal 5308190 Server rack VX IT closed IP55 600x2000x1000 mm 42 U
Datasheet:file_download Download
Lieske Part No.:1775546
Mfg Part No: 5308190
UPC/EAN: 4028177945043
Weight:86.4 kg
Type:VX 5308190

Product information for Rittal 5308190:

The Rittal VX 5308190 is a network/server rack of the VX IT series, designed as a blank enclosure without pre-installed 48,3 cm ( 19 inch ) internal mounting. It is intended for the protected installation of IT and electronics components in environments requiring enhanced protection. The enclosure has dimensions W x H x D 600 x 2000 x 1000 mm and provides space for 42 height units (HE). The construction is made of steel sheet and aluminium, with the front door made of aluminium featuring a viewing door of single-pane safety glass (3 mm). The rear is equipped with a closed steel sheet door. The surface of the rack frame is dip-primed, while the rear door and roof are dip-primed and powder-coated; the front door is anodized/painted. The base colour of the enclosure is RAL 7035, with vertical profiles on the front door in silver and horizontal profiles in RAL 9005; handles and hinges are also in RAL 9005.

Applications include use in IT infrastructures, server rooms, data centres, or industrial environments where protection rating IP 55 is required. The rack is designed for direct rack-based climate control and is suitable for individual expansion solutions. However, the protection rating IP 55 is only achieved in combination with a baying seal or screwed side panels. The IK code IK08 ensures high mechanical protection against impact and vibrations.

Functions and equipment in detail include a single-piece, closed roof construction and a multi-piece base tray with base sheet, ensuring stable mounting. The front door opens to 180°, the rear door to 130°, with actual opening angles varying depending on installation location. The doors are fitted with comfort handles for half cylinders, enabling secure and convenient operation. Fastening is done via integrated blind rivet nuts M6 in the frame, which do not compromise the protection rating. The horizontal profiles feature an integrated groove above the PU foam seal to protect it from damage.

Technology explained simply shows that the frame structure consists of rolled, 9-fold bent closed hollow profiles, welded and arranged symmetrically on all sides. The perforation follows a 25 mm grid, enabling flexible mounting. The profiles are rounded at all edges, and there are square holes around the perimeter for use with cage nuts and metric screws up to M8. The base sheet is multi-piece and can be removed and replaced. The baying seal and seal set for the base sheet are included in the delivery scope.

Compatibility and accessories include various modules and components suitable for individual expansion. These include, for example, component shelves for frame mounting, insert modules such as PSM 6x C13 or 4x Schuko, connection cables for 3-phase or UPS systems, cable ties, cable clips for C-profile rails, system lights, and hook-and-loop fasteners. These components can be added as needed to adapt the rack to specific requirements.

Mounting and installation are performed via the integrated base frame with reinforcement, allowing direct screwing of the rack to the floor from the inside. The doors are fitted with 180° and 130° hinges, ensuring extensive accessibility. The pre-mounted 12 x 48,3 cm ( 19 inch ) fasteners (1 HE, conductive) and 25 internal hex screws (conductive) facilitate internal mounting. The rack is delivered without pre-mounted profile rails, allowing flexible adaptation to specific requirements.

Operational advantages include high mechanical stability, easy mounting, and flexibility in individual equipment. The IP 55 protection rating safeguards against dust and splashing water, making the rack suitable for outdoor or humid environments. The IK08 rating ensures protection against mechanical stress. The use of single-pane safety glass in the front door ensures clear visibility of installed components without compromising protection. Integrated mounting elements and pre-mounted fastening components reduce installation time and increase installation reliability.

General
MaterialSheet steel, aluminium, vision door: single-pane safety glass, 3 mm, front door: aluminium, 1.25 mm, rear door: sheet steel, 1.5 mm
Surface protectionCabinet frame: dip-primed, rear door and roof: dip-primed, powder-coated, front door: aluminium, anodized/painted
Basic colourRAL 7035
ColourHousing frame, rear door and roof: RAL 7035, front door: vertical profiles, silver, and horizontal profiles RAL 9005, handle and hinges: RAL 9005
Width600 mm
Height2.000 mm
Depth1.000 mm
Height units42 HE
Roof typeOne-piece, closed
Door configuration rearSteel sheet door, closed, single-piece, 130° hinges
Front door configurationAluminium front door, closed, single-piece, 180° hinges
Profile rail versionNone
Floor versionfloor tray with floor plate, multi-part, closed
Mounting type for profile railNone
Degree of protection IP according to EN 60 529IP 55 only in combination with gasket for rowing or screwed side walls
IK codeIK08
NoteDepending on type and location of installation, the door opening angle may vary in the specific application
Base materialsteel sheet
PCF/VE (Cradle-to-Gate)212.9 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 5308190, EAN: 4028177945043

Questions & answers

What is the delivery time of Rittal 5308190 Server rack VX IT closed IP55 600x2000x1000 mm 42 U?

The article Rittal 5308190 Server rack VX IT closed IP55 600x2000x1000 mm 42 U is currently in stock

According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 5308190 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 5308190 Server rack VX IT closed IP55 600x2000x1000 mm 42 U always at the best possible price. We can give you a discount of 2% on Rittal 5308190 Server rack VX IT closed IP55 600x2000x1000 mm 42 U if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
