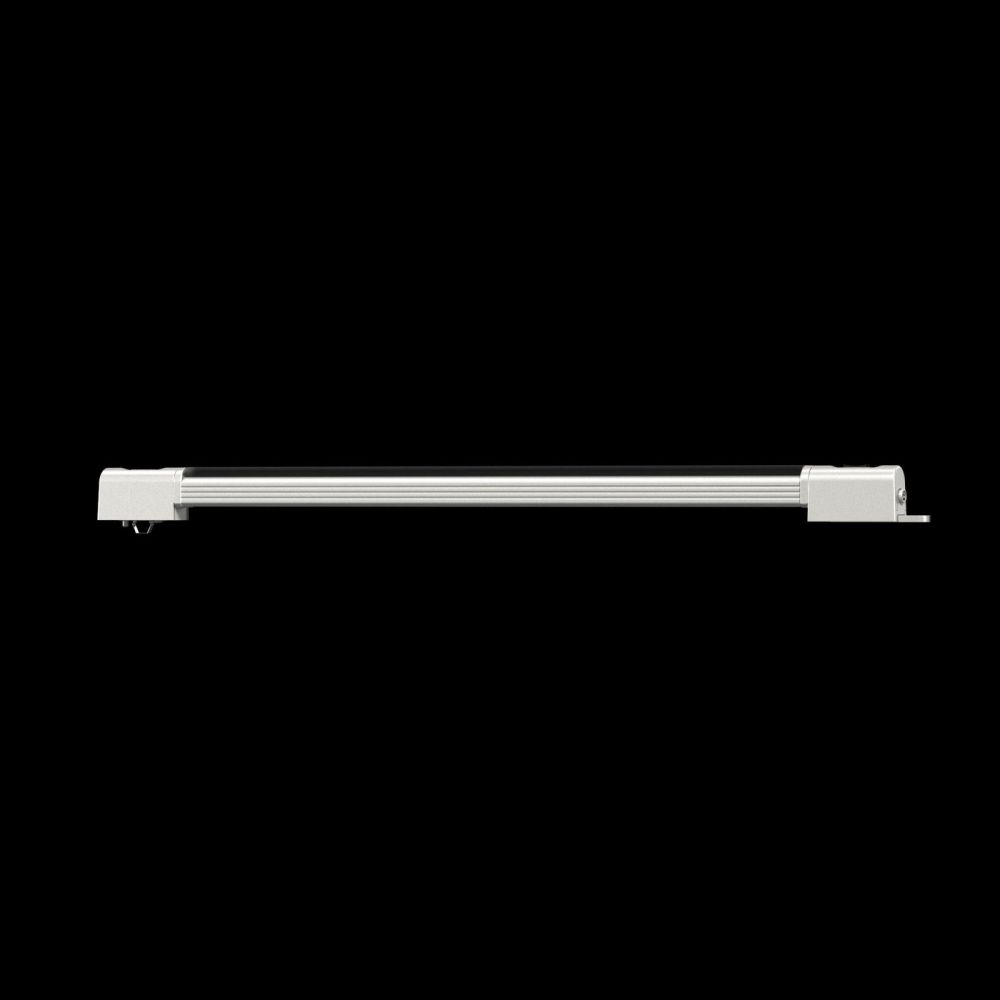

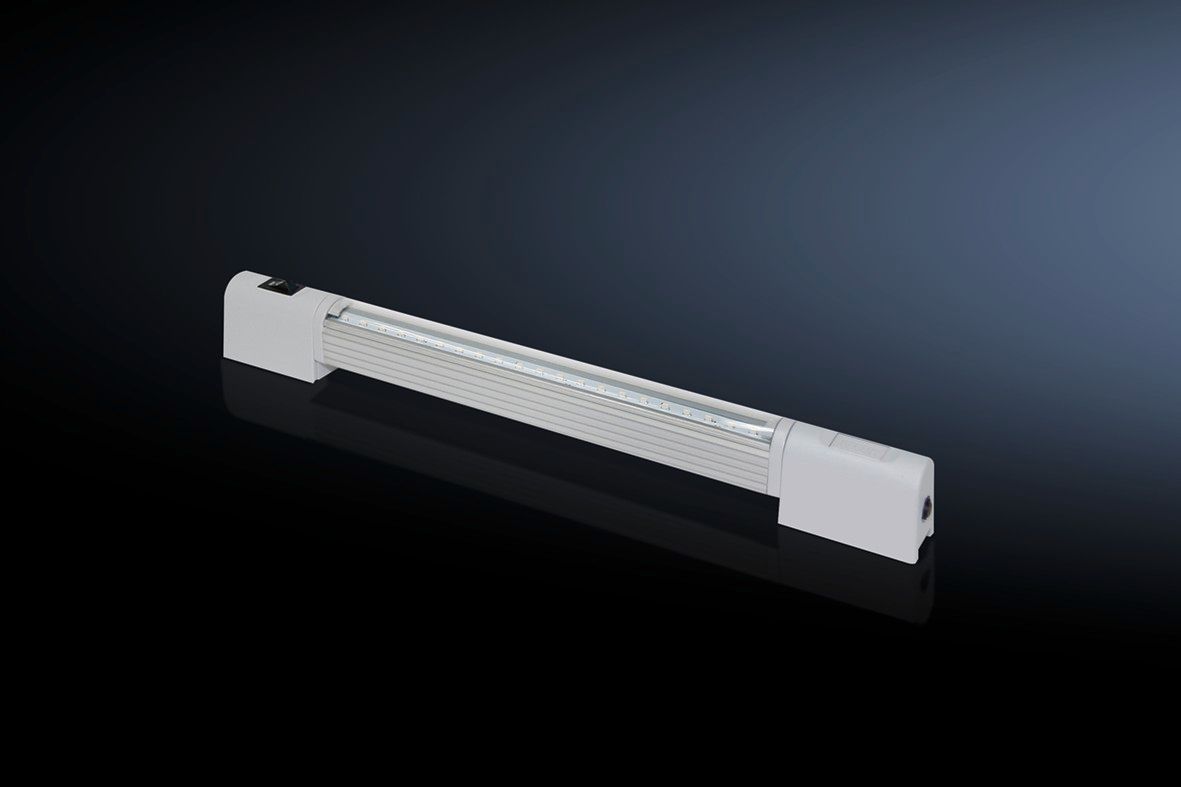

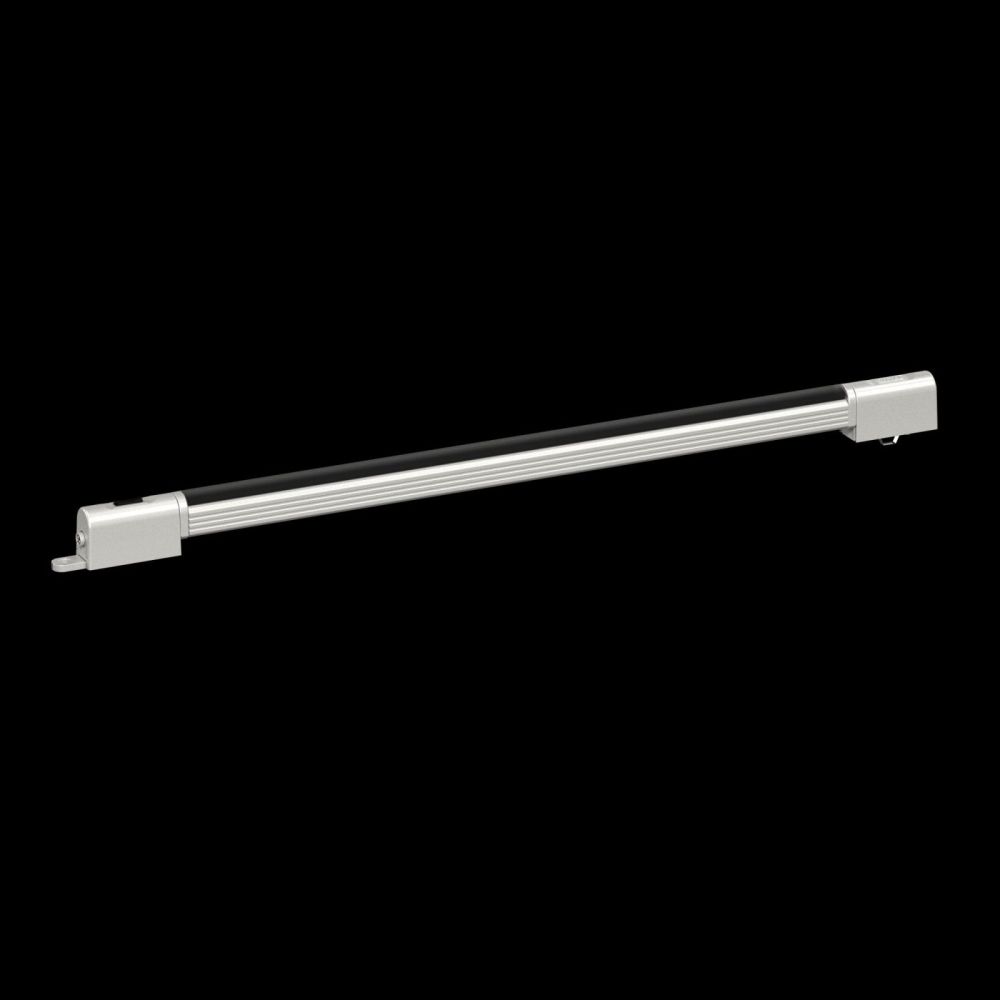

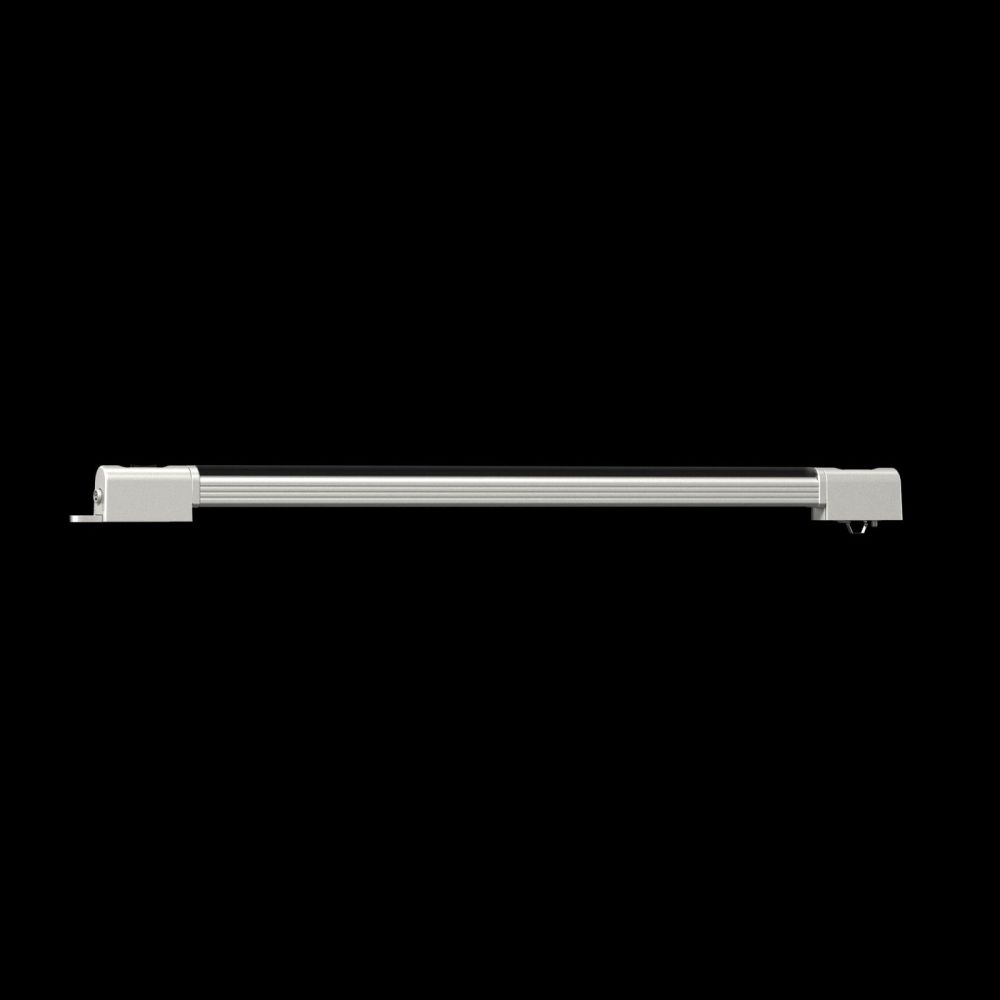

Rittal 4140810 System light LED compact
|
93,50 EUR |
|
|
( 111,27 EUR incl. VAT ) ≈ £78.26 | ≈ $102.76 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 358540 |
| Mfg Part No: | 4140810 |
| UPC/EAN: | 4028177630123 |
| Weight: | 0.242 kg |
| Type: | SZ 4140810 |
Product information for Rittal 4140810:
Safe, thanks to operation in the extra-low safety voltage range.
Economical energy use.
Low-maintenance thanks to the use of LEDs.
May be connected to a door-operated switch.
Function principle: Integral through-wiring.
Universal attachment options.
Vertically hinged light cone
Material: Light body: Extruded aluminium
Light cover: Polycarbonate (halogen-free)
Light ends: PC-ABS
Colour: Similar to RAL 7035
Protection category IP to IEC 60 529: IP 20
Supply includes: LED system light with clip and screw mounting kits
Light
Light cover
Assembly parts
Product modification: From December 2015, the existing LED technology will be replaced with a new generation. The benefit to you: Double the luminous flux compared with the current version.
Note: Only intended for use in enclosures and sealed cases
When using on customer-supplied power packs, it is important to obtain the requisite approvals depending on the application
When configuring rows of lights, the maximum rated current is 2 amperes
Packs of: 1 pc(s).
EAN: 4028177630123
Customs tariff number: 94054099
eCl@ss 5.1: 27189241
eCl@ss 7.0: 27189241
ETIM 6.0: EC000321
Dimensions: Width: 230 mm
Height: 32.8 mm
Depth: 20.64 mm
Rated operating voltage: 24 V (DC)
Voltage tolerance: ± 10 %
Installation options: TS horizontal section of the roof frame: direct
TS, SE vertical section: direct
SE extrusions at the front and rear of the roof frame: direct
SE extrusions at the side of the roof frame: direct
AE, CM, TP: with magnetic attachment
AE: with rail for interior installation
Mounting dimensions: Mounting distance – clip/magnet: 175 mm
Mounting distance – screw attachment: 250 mm
Rated current: With DC (max.): 0.04 A
Note: When configuring rows of lights, the maximum rated current is 2 amperes
Equipment (electrical): Light: LEDs, cold white
Protection category: III (SELV)

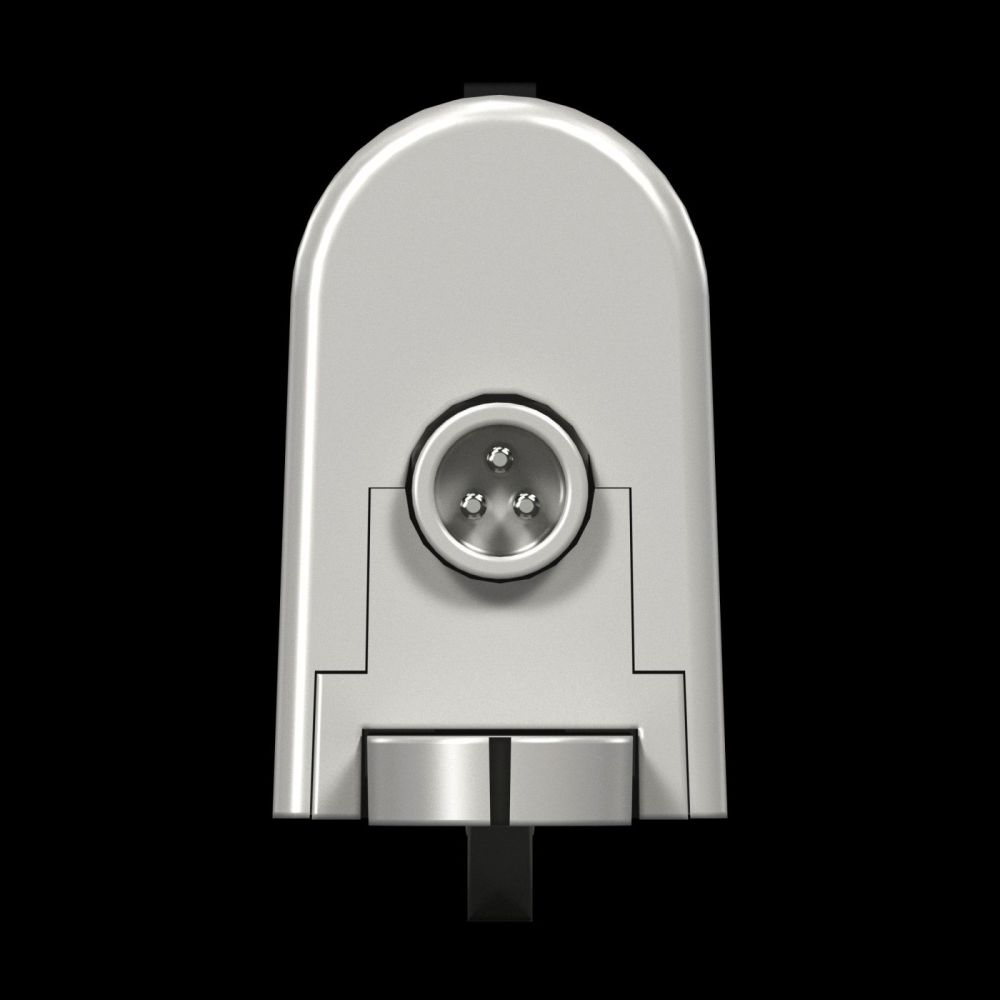

Connection options: Power supply via connectors
Connection options: Door-operated switch
Connection options: Through-wiring (creating rows of lights)

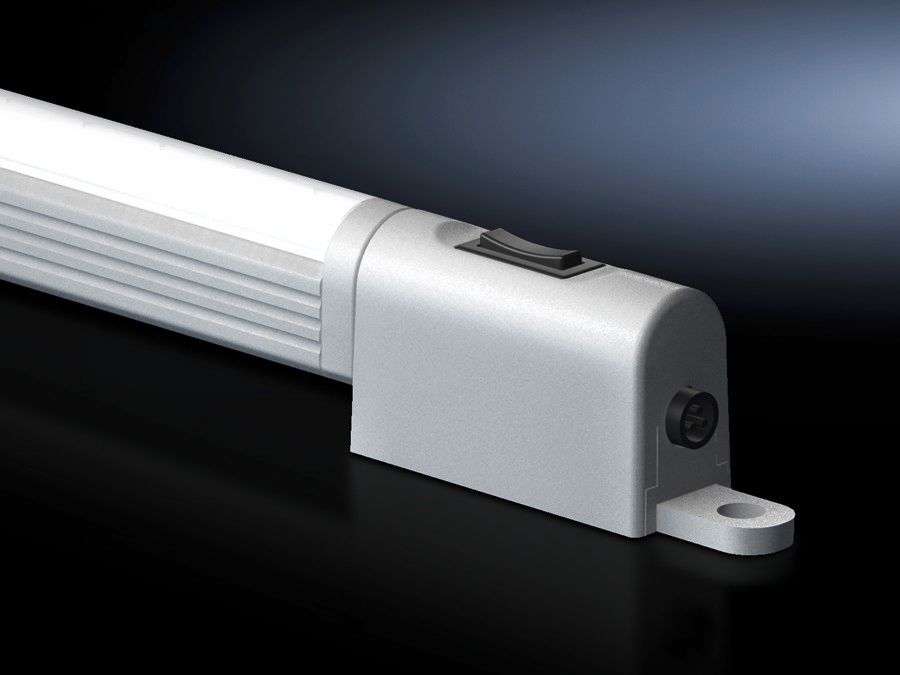

Switch (type): Integral, on/off/door-operated switch mode
Rated insulation voltage: Depending on the power pack
Rated impulse withstand voltage, phase to earth: Depending on the power pack
Rated impulse withstand voltage, phase to phase: Depending on the power pack
Number of LEDs: 10
Light – installation type: Screw-fastening
Clip attachment
Magnetic attachment (accessory)
Light cover: yes
Light cone adjustment: yes
Weight/pack: 0.24 kg
| General | |
| Function principle | Integrated through-wiring., Universal mounting options., Pivotable light beam. |
| Material | Luminaire body: extruded aluminium, luminaire cover: polycarbonate (halogen-free), luminaire ends: PC-ABS |
| Colour | Similar to RAL 7035 |
| Scope of delivery | Compact LED system light, lamp, lamp cover, including mounting hardware |
| Mounting distance screws | 250 mm |
| Connection options | Power supply via connectors, door position switch, through wiring (installation of light rows) |
| Lamp type | LEDs, cool white |
| Protection class | III (SELV) |
| Switch (type) | Integrated on/off/door position switch |
| Luminaires mounting type | Screwing, clip mounting, magnetic mounting (accessory) |
| Rated impulse voltage withstand, phase to ground | dependent on power supply |
| Rated impulse withstand voltage phase to phase | dependent on power supply |
| Rated insulation voltage | dependent on power supply |
| Rated current max DC note | When installing rows of luminaires, the maximum rated current is 2 Ampere |
| At DC | 0,04 A |
| Number of LEDs | 10 |
| Mounting spacing clip/magnet | 175 mm |
| Mounting options | Directly on cabinet profile with 25 mm mounting grid, via mounting kit magnet, AE: with rail for indoor installation |
| Note | Use is intended only in control cabinets and enclosed enclosures. When used with customer-specific power supplies, ensure that these have the required approvals according to the application. When assembling rows of luminaires, the maximum rated current is 2 Ampere. |
| Width | 230 mm |
| Height | 32,8 mm |
| Depth | 20,64 mm |
| Rated operating voltage | 24 V (DC) |
| Degree of protection IP according to IEC 60 529 | IP 20 |
| Lamp cover | |
| Beam angle adjustment | |
