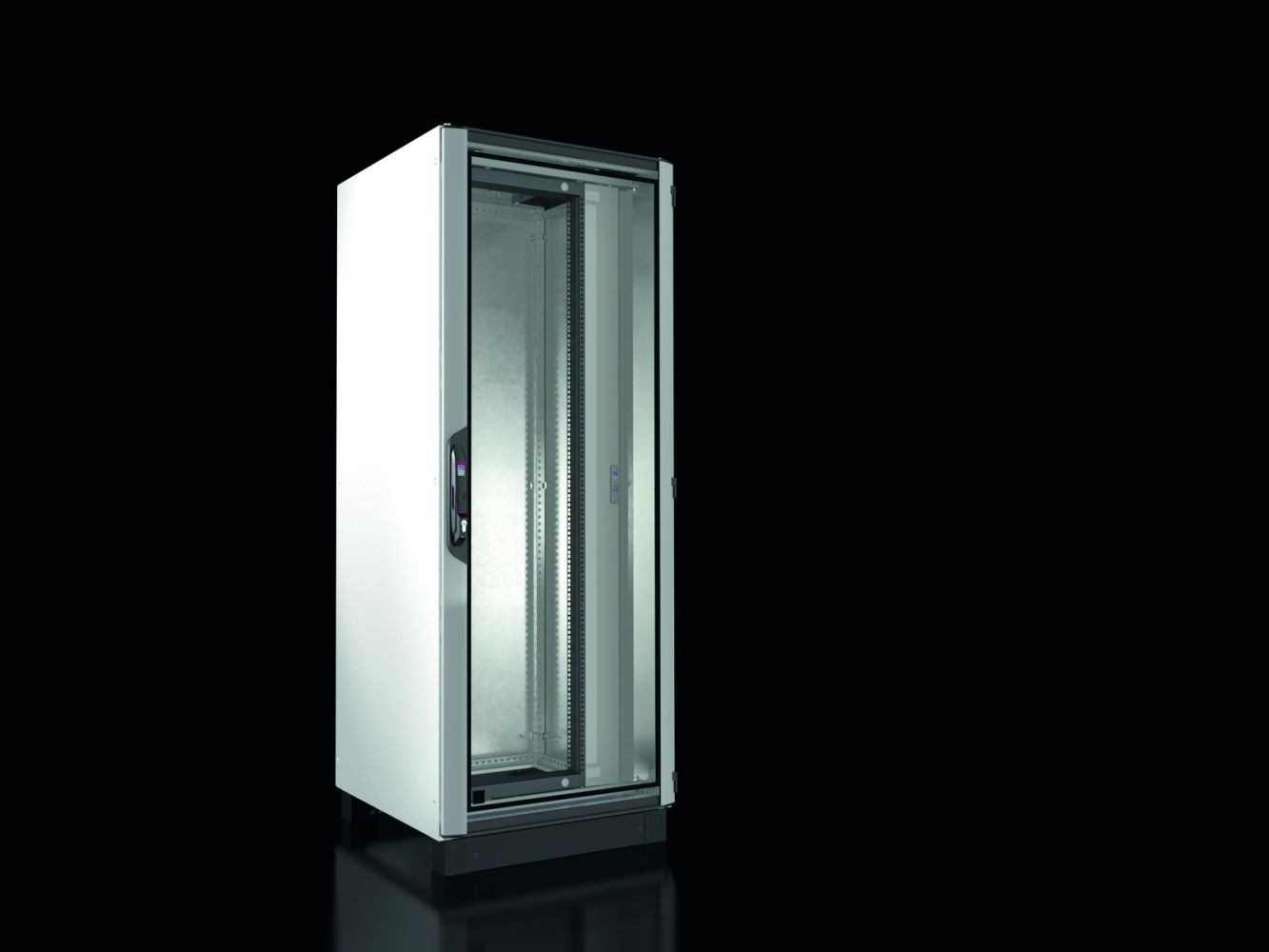

Rittal 5307157 Server rack VX IT closed 800x2100x800 mm 40 U
|
-8% 1.574,35 EUR 1.705,06 EUR |
|
|
( 1.873,48 EUR incl. VAT ) ≈ £1,317.73 | ≈ $1,730.21 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1775550 |
| Mfg Part No: | 5307157 |
| UPC/EAN: | 4028177944985 |
| Weight: | 150 kg |
| Type: | VX 5307157 |
Product information for Rittal 5307157:
Applications
This rack is suitable for use in data centres, server rooms, IT infrastructures, and other environments where direct rack-based climate control is required. The pre-assembled design with integrated swing frame allows direct access to the rear of 48,3 cm ( 19 inch ) components, with a door opening angle of 130°. This facilitates installation, maintenance, and inspection of devices. The load capacity of 3,500 N ensures stable and safe use even under high mechanical loads.
Functions and Equipment in Detail
The rack is equipped with a swing frame, enabling the installation of 48,3 cm ( 19 inch ) units across the full rack height. The 48,3 cm ( 19 inch ) plane is mounted with a swing frame of 482.6 mm (48,3 cm ( 19 inch )), ensuring optimal use of the mounting space. Mounting clearances are 150 mm at the front and 520 mm at the rear, providing sufficient space for cable routing and air circulation. The roof is multi-part and removable, with side cable entry at the depth and a covered opening for fan plate, facilitating integration of ventilation systems. The base module is mounted at the front as a viewing panel, enhancing visual appearance while providing a stable foundation.
Technology Explained Simply
The rack is constructed from sheet steel, aluminium, and plastic. The surface of the rack frame is dip-primed, the interior assembly is painted, while the rear panel and roof are dip-primed and powder-coated. The front door is made of aluminium, anodized/painted, with vertical profiles in silver and horizontal profiles in RAL 9005. The base colour of the enclosure is RAL 7035, with interior assembly, plinth, handle, and hinges in RAL 9005. The IK08 protection class ensures high protection against mechanical impacts, suitable for use in industrial or public spaces. The PCF value (Cradle-to-Gate) is 369.6 kg CO2 eq (Category B), describing the environmental impact of the product.
Compatibility and Accessories
The rack is compatible with various accessories that extend its functionality. These include plinth corner pieces with plinth trim panel, routing panels in various heights, insert modules such as PSM 6x C13, connection cables for 3-phase or UPS systems, cable ties, system lights, cable clips, internal hexagon socket screws, cable managers, hook-and-loop fasteners, busbar, cage nuts, and socket strips. These elements allow individual adaptation to specific operational requirements.
Mounting and Installation
The rack is pre-assembled and delivered with a VX plinth system of 100 mm height, which is ventilated. Installation is carried out using levelling feet M12 with plinth adapters, which are included. Additionally, spacers for raising the roof plate above the fan opening are included to enable passive ventilation. The delivery also includes 12 x 48,3 cm ( 19 inch ) fasteners 1 HE, 25 internal hexagon socket screws, 4 combination rails, and 10 cable routing brackets, which are necessary for mounting and cabling. Installation is performed via screwed side panels, and the pre-assembled elements significantly simplify the installation process.
Operational Advantages
The rack offers high load capacity, a secure viewing door with comfort handle, optimal cable routing via side cable entry, and direct access to the rear of devices via the swing frame. The IK08 protection class ensures high mechanical protection, and the pre-assembled design significantly reduces installation time. The integrated ventilation and fan plate opening in the roof support efficient cooling of installed components. The colour design in RAL 7035 and RAL 9005 ensures a professional appearance that integrates well into modern IT environments.
| General | |
| Material | Sheet steel, aluminium, plastic, vision door: single-pane safety glass, 3 mm, front door: aluminium, 1.25 mm |
| Surface protection | Cabinet frame: dip-primed, interior: painted, rear panel and roof: dip-primed, powder-coated, front door: aluminium, anodized/painted |
| Basic colour | RAL 7035 |
| Colour | Housing frame, rear panel and roof: RAL 7035, front door: vertical profiles, silver, and horizontal profiles RAL 9005, interior construction, base: RAL 9005, handle and hinges: RAL 9005 |
| Width | 800 mm |
| Height | 2.000 mm |
| Depth | 800 mm |
| Height units | 40 HE |
| Height including socket | 2.100 mm |
| Mounting clearance to 19" plane, front/back | 150 mm / 520 mm |
| Model | Swing frame |
| Roof type | multi-part, removable, with side cable entry at depth and covered opening for fan sheet |
| Door configuration rear | Rear panel |
| Front door configuration | Aluminium front door, closed, single-piece, 180° hinges |
| Profile rail version | Swing frame |
| Floor version | Floor module front mounted as sight shield |
| 19" rack configuration | Swivel frame 482.6 mm (19"), mounted |
| Load capacity | 3.500 N |
| IK code | IK08 |
| Note | Depending on type and location of installation, the door opening angle may vary in the specific application |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 369.6 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
