Rittal 4315810 System light LED compact connection accessory (freight shipping)

Your rating:
Average rating
product review for Rittal 4315810 System light LED compact connection accessory (freight shipping)
( 4.5 / 5 ) 56 ratings
Rittal 4315810
This image may differ from the desired article.
Rittal 4315810Rittal 4315810
35,05 EUR 35,08 EUR
( 41,71 EUR incl. VAT )
≈ £29.34  |  ≈ $38.52
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >500 pieces
1x Rittal 4315810 System light LED compact connection accessory (freight shipping)
Datasheet:file_download Download
Lieske Part No.:704112
Mfg Part No: 4315810
UPC/EAN: 4028177630161
Weight:0.222 kg
Type:SZ 4315810

Product information for Rittal 4315810:

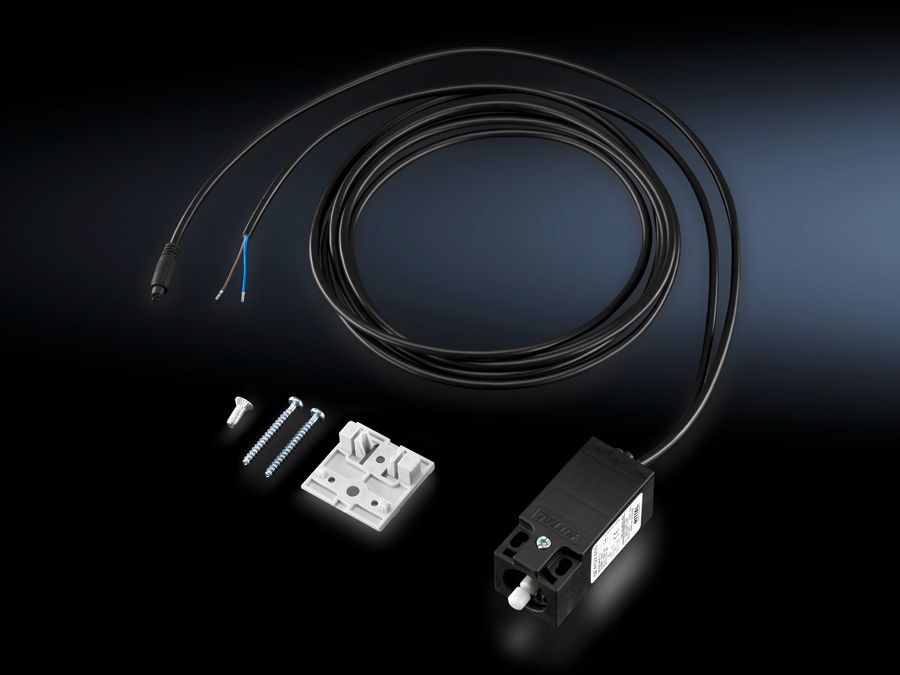

The article SZ 4315810 from Rittal is a door position switch with integrated LED connection cable, specifically designed for use with the LED Compact system light. The connection cable has a length of 3,000 mm and is equipped with an open end/cable socket, enabling flexible connection to other components. The switch is used to signal the door status – open or closed – and is typically installed in enclosures to ensure operational safety standards. Its use in combination with the LED Compact system light enables visual indication of the door status, simplifying maintenance and monitoring of enclosures.

Applications
The door position switch is intended for use in industrial enclosures, particularly in systems where visual monitoring of the door status is required. It is compatible with LED Compact system lights with article numbers 4140.810, 4140.820, 4140.830, and 4140.840. These lights are typically mounted in enclosures to indicate operational status or warnings. The switch functions to electrically detect the enclosure door status and transmit this signal to the light, so for example, an LED illuminates when the door is open.

Functions and Equipment in Detail
The switch is designed as a mechanical door contact switch that closes or opens an electrical contact when the enclosure door is opened or closed. The integrated connection cable with a length of 3,000 mm allows flexible positioning of the switch within the enclosure, with the open end or cable socket enabling direct connection to the system light’s connection point. The use of an LED connection cable is specifically designed for integration into LED-based indication systems, with power supply and signal transmission occurring over the same cable.

Technology Explained Simply
The door position switch operates as a mechanical switch activated by the movement of the enclosure door. When the door is opened, the switch is actuated and closes the electrical contact. This signal is transmitted via the 3,000 mm long connection cable to the LED Compact system light, which then triggers a visual indication (e.g., LED illumination). The connection cable is equipped with an open end or cable socket, allowing for simple and flexible connection to the light’s connection points. The use of an LED connection cable is specifically designed for integration into LED systems, with power supply and signal transmission occurring over the same cable. The length of 3,000 mm provides sufficient flexibility for installation in enclosures of various sizes.

Compatibility and Accessories
The switch is specifically developed for the LED Compact system light and is compatible with models with article numbers 4140.810, 4140.820, 4140.830, and 4140.840. These lights are typically mounted in enclosures and serve to visually indicate operational status or warnings. The combination of door position switch and system light enables direct signal transmission, allowing the enclosure door status to be visually indicated.

Mounting and Installation
Mounting is done directly on the enclosure door, positioning the switch so that it is actuated when the door is opened or closed. The 3,000 mm long connection cable allows flexible positioning and connection to the system light. The connection is made via the open end or cable socket, establishing a direct electrical connection to the light’s connection point. Installation requires no special tools or additional mounting materials, as the switch is designed for standard installation in enclosures.

Advantages in Operation
The use of the door position switch provides reliable and visual monitoring of the door status in enclosures. Integration with the LED Compact system light enables direct signal transmission, enhancing operational safety standards. The 3,000 mm long connection cable offers installation flexibility, and the use of an LED connection cable is specifically designed for integration into LED systems. The mechanical construction is suitable for industrial use, ensuring long service life and high reliability. The combination of switch and light reduces installation complexity and enables quick fault detection through visual indication.

General
ModelDoor position switch with cable for LED (open end/cable connector)
Length3.000 mm
NoteDoor position switch 4127010 including connection cable LED (open end/cable connector)
Suitable for part no.4140.810, 4140.820, 4140.830, 4140.840


Product data sheet
Datasheet for Rittal 4315810, EAN: 4028177630161

Questions & answers

What is the delivery time of Rittal 4315810 System light LED compact connection accessory (freight shipping)?

The article Rittal 4315810 System light LED compact connection accessory (freight shipping) is currently in stock

According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 4315810 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 4315810 System light LED compact connection accessory (freight shipping) always at the best possible price. We can give you a discount of 2% on Rittal 4315810 System light LED compact connection accessory (freight shipping) if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
