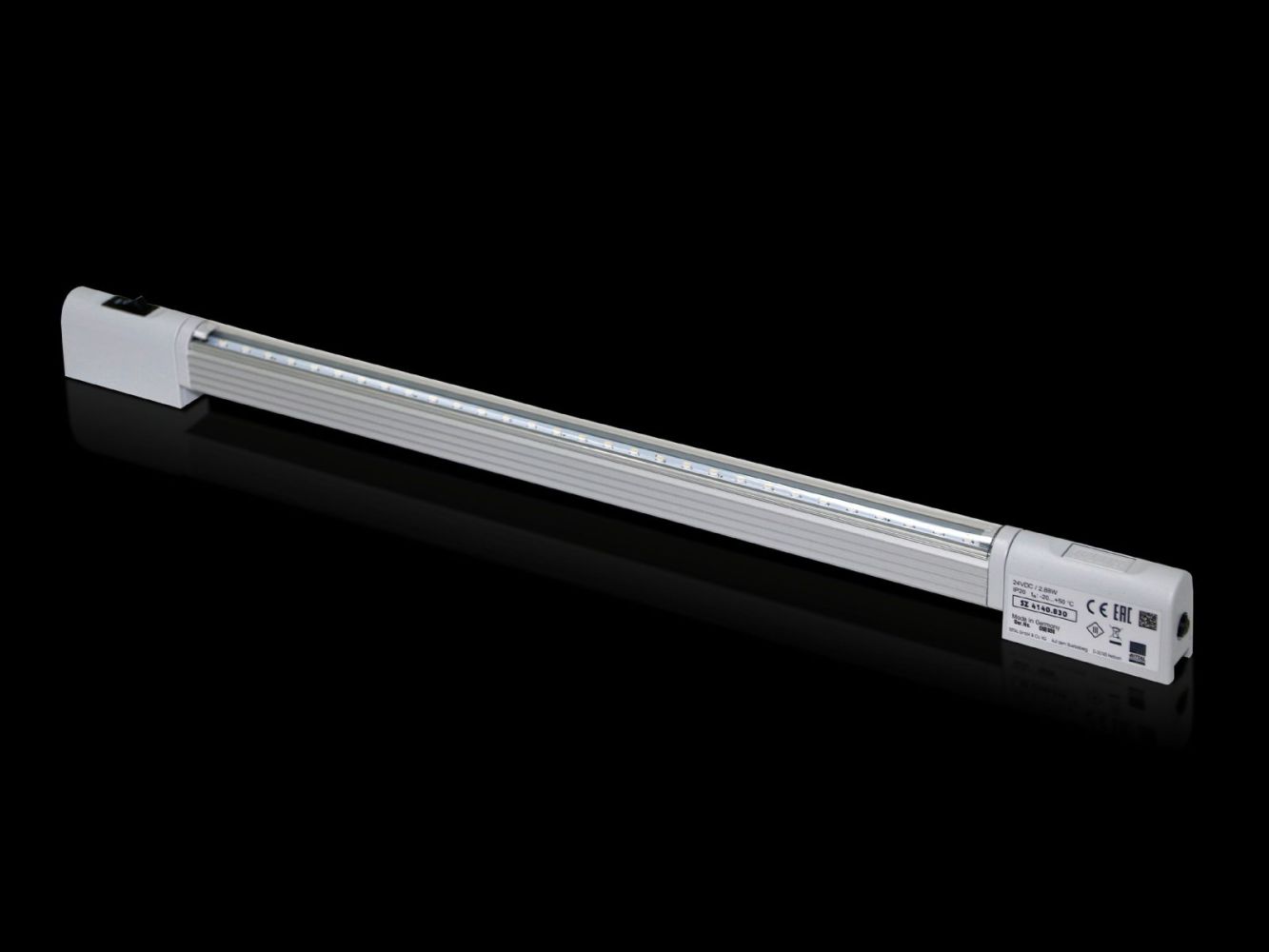

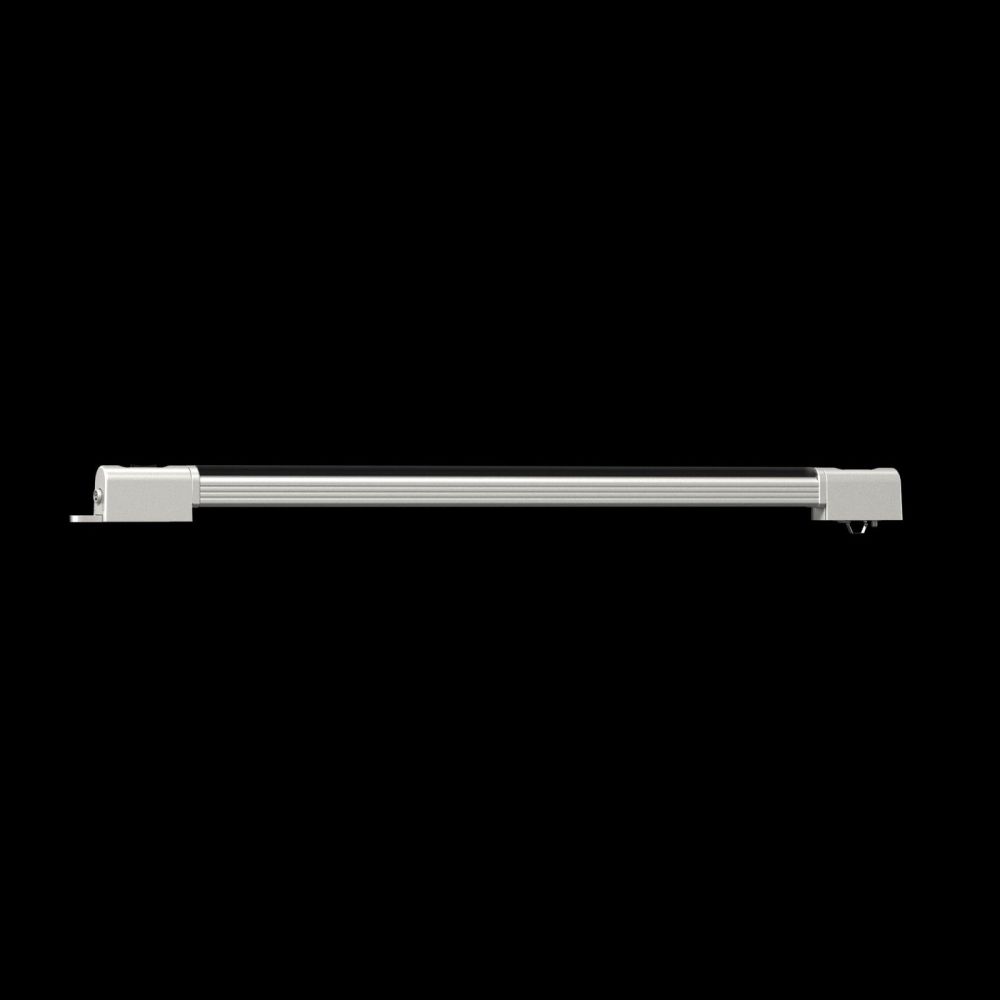

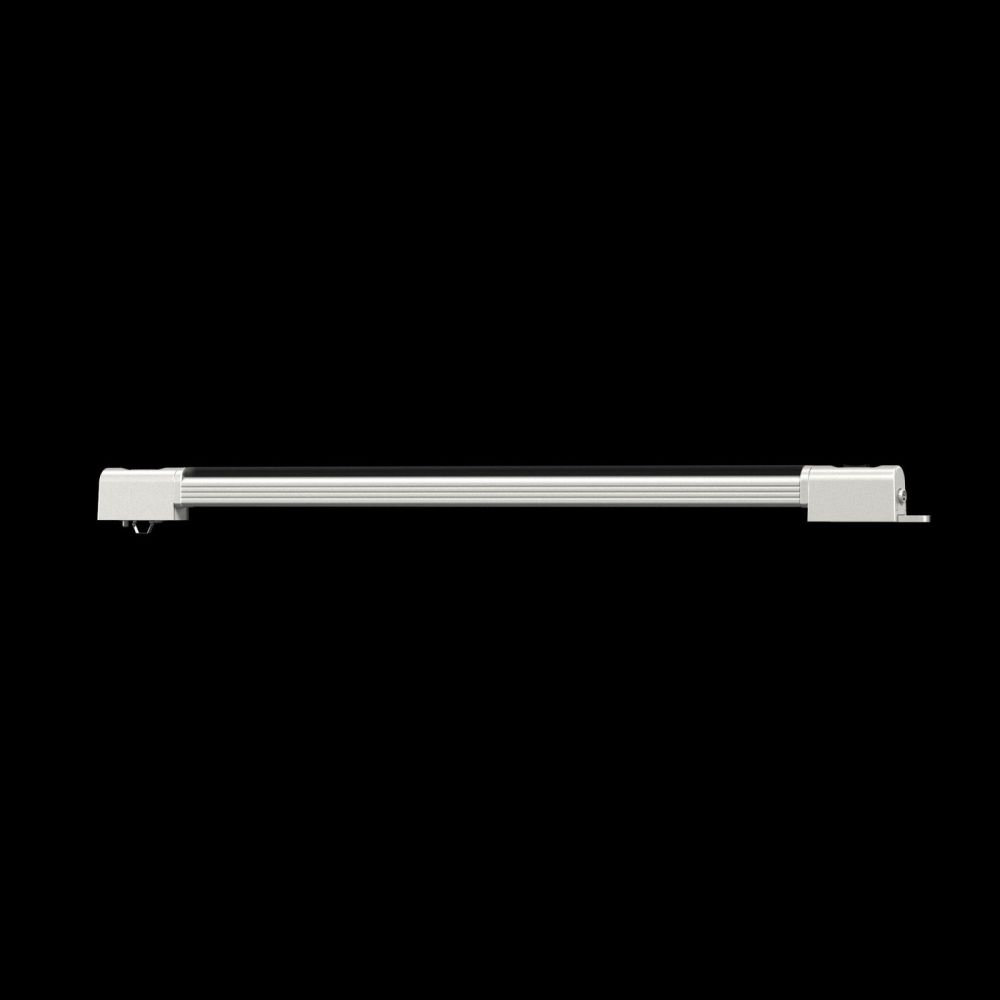

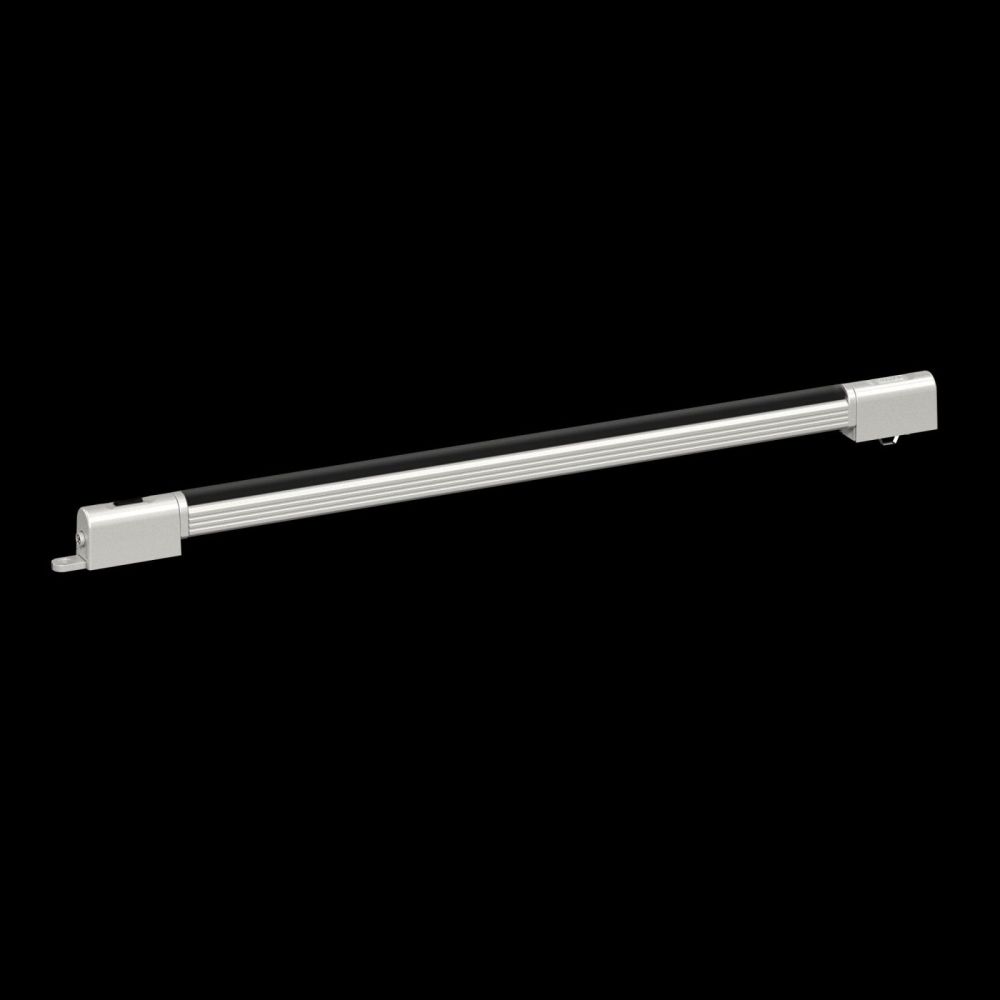

Rittal 4140830 System light LED compact
|
110,15 EUR |
|
|
( 131,08 EUR incl. VAT ) ≈ £93.08 | ≈ $123.15 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 713730 |
| Mfg Part No: | 4140830 |
| UPC/EAN: | 4028177630147 |
| Weight: | 0.38 kg |
| Type: | SZ 4140830 |
Further System Accessories from RittalFurther products in category System Accessories
All products of Rittal
Product information for Rittal 4140830:
Benefits: Max. EMC capacity.
Safe, thanks to operation in the extra-low safety voltage range.
Economical energy use.
Low-maintenance thanks to the use of LEDs.
May be connected to a door-operated switch.
Function principle: Integral through-wiring.
Universal attachment options.
Vertically hinged light cone
Material: Light body: Extruded aluminium
Light cover: Polycarbonate (halogen-free)
Light ends: PC-ABS
Colour: Similar to RAL 7035
Protection category IP to IEC 60 529: IP 20
Supply includes: LED system light with clip and screw mounting kits
Light
Light cover
Assembly parts
Product modification: From December 2015, the existing LED technology will be replaced with a new generation. The benefit to you: Double the luminous flux compared with the current version.
Note: Only intended for use in enclosures and sealed cases
When using on customer-supplied power packs, it is important to obtain the requisite approvals depending on the application
When configuring rows of lights, the maximum rated current is 2 amperes
Packs of: 1 pc(s).
EAN: 4028177630147
Customs tariff number: 94054099
eCl@ss 5.1: 27189241
eCl@ss 7.0: 27189241
ETIM 6.0: EC000321
Dimensions: Width: 430 mm
Height: 32.8 mm
Depth: 20.64 mm
Rated operating voltage: 24 V (DC)
Voltage tolerance: ± 10 %
Installation options: TS horizontal section of the roof frame: direct
TS, SE vertical section: direct
SE extrusions at the front and rear of the roof frame: direct
SE extrusions at the side of the roof frame: direct
AE, CM, TP: with magnetic attachment
AE: with rail for interior installation
Mounting dimensions: Mounting distance – clip/magnet: 375 mm
Mounting distance – screw attachment: 450 mm
Rated current: With DC (max.): 0.12 A
Note: When configuring rows of lights, the maximum rated current is 2 amperes
Equipment (electrical): Light: LEDs, cold white
Protection category: III (SELV)

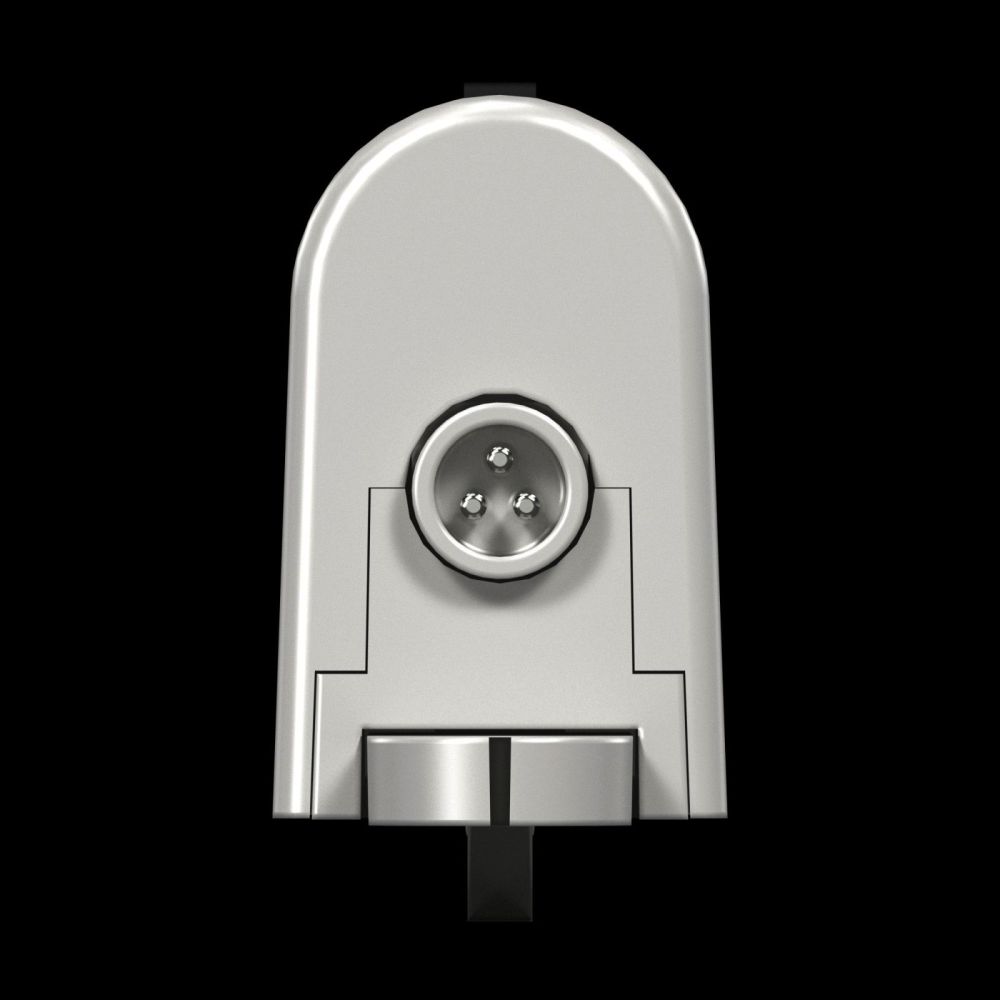

Connection options: Power supply via connectors
Connection options: Door-operated switch
Connection options: Through-wiring (creating rows of lights)
Switch (type): Integral, on/off/door-operated switch mode
Rated insulation voltage: Depending on the power pack
Rated impulse withstand voltage, phase to earth: Depending on the power pack
Rated impulse withstand voltage, phase to phase: Depending on the power pack
Number of LEDs: 30
Light – installation type: Screw-fastening
Clip attachment
Magnetic attachment (accessory)
Light cover: yes
Light cone adjustment: yes
Weight/pack: 0.38 kg
Safe, thanks to operation in the extra-low safety voltage range.
Economical energy use.
Low-maintenance thanks to the use of LEDs.
May be connected to a door-operated switch.
Function principle: Integral through-wiring.
Universal attachment options.
Vertically hinged light cone
Material: Light body: Extruded aluminium
Light cover: Polycarbonate (halogen-free)
Light ends: PC-ABS
Colour: Similar to RAL 7035
Protection category IP to IEC 60 529: IP 20
Supply includes: LED system light with clip and screw mounting kits
Light
Light cover
Assembly parts
Product modification: From December 2015, the existing LED technology will be replaced with a new generation. The benefit to you: Double the luminous flux compared with the current version.
Note: Only intended for use in enclosures and sealed cases
When using on customer-supplied power packs, it is important to obtain the requisite approvals depending on the application
When configuring rows of lights, the maximum rated current is 2 amperes
Packs of: 1 pc(s).
EAN: 4028177630147
Customs tariff number: 94054099
eCl@ss 5.1: 27189241
eCl@ss 7.0: 27189241
ETIM 6.0: EC000321
Dimensions: Width: 430 mm
Height: 32.8 mm
Depth: 20.64 mm
Rated operating voltage: 24 V (DC)
Voltage tolerance: ± 10 %
Installation options: TS horizontal section of the roof frame: direct
TS, SE vertical section: direct
SE extrusions at the front and rear of the roof frame: direct
SE extrusions at the side of the roof frame: direct
AE, CM, TP: with magnetic attachment
AE: with rail for interior installation
Mounting dimensions: Mounting distance – clip/magnet: 375 mm
Mounting distance – screw attachment: 450 mm
Rated current: With DC (max.): 0.12 A
Note: When configuring rows of lights, the maximum rated current is 2 amperes
Equipment (electrical): Light: LEDs, cold white
Protection category: III (SELV)
Connection options: Power supply via connectors
Connection options: Door-operated switch
Connection options: Through-wiring (creating rows of lights)
Switch (type): Integral, on/off/door-operated switch mode
Rated insulation voltage: Depending on the power pack
Rated impulse withstand voltage, phase to earth: Depending on the power pack
Rated impulse withstand voltage, phase to phase: Depending on the power pack
Number of LEDs: 30
Light – installation type: Screw-fastening
Clip attachment
Magnetic attachment (accessory)
Light cover: yes
Light cone adjustment: yes
Weight/pack: 0.38 kg
