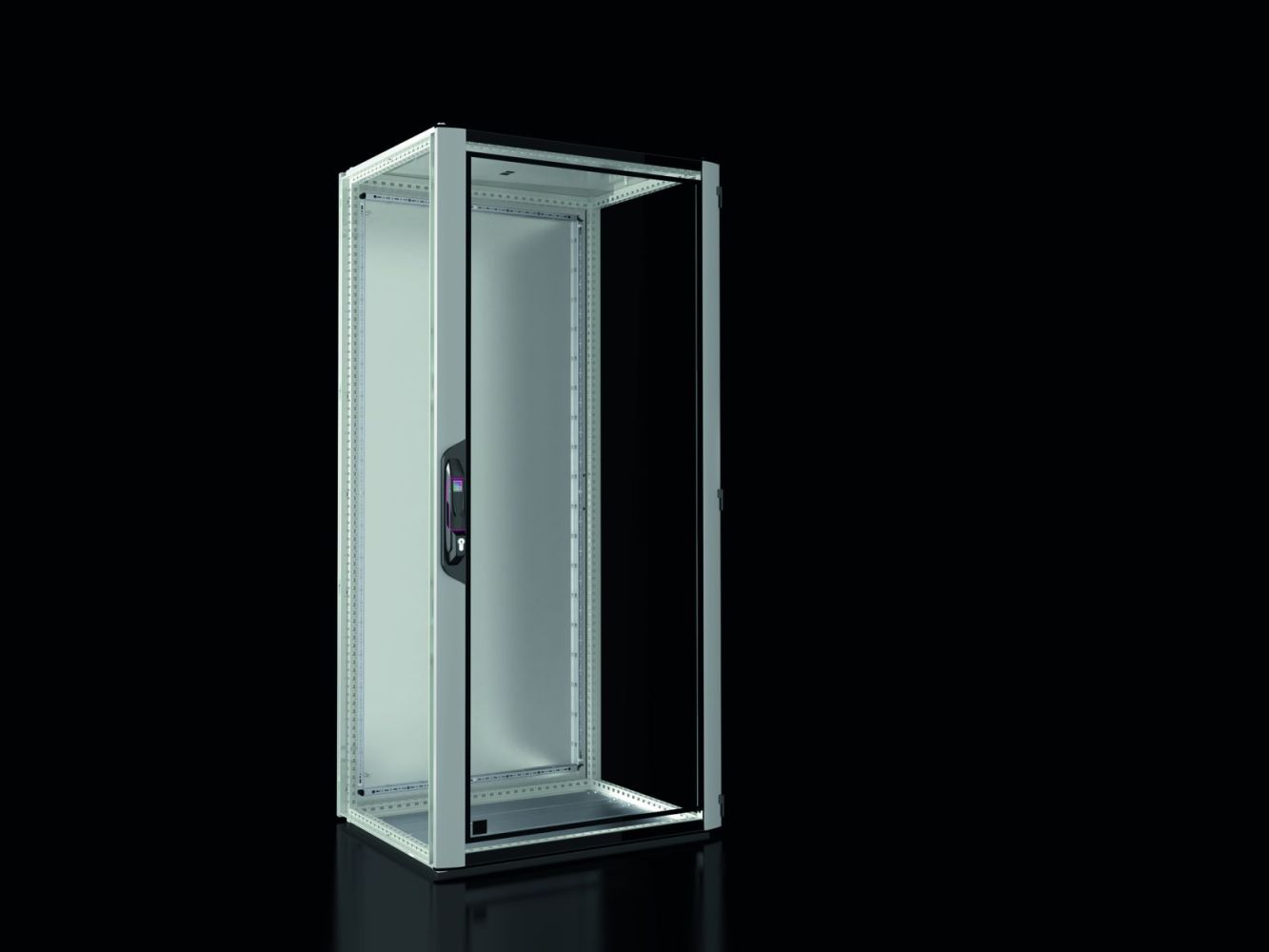

Rittal 5306190 Server rack VX IT closed IP55 800x2000x600 mm 42 U
|
851,46 EUR 888,03 EUR |
|
|
( 1.013,24 EUR incl. VAT ) ≈ £712.67 | ≈ $935.75 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >5 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1775555 |
| Mfg Part No: | 5306190 |
| UPC/EAN: | 4028177944930 |
| Weight: | 90.8 kg |
| Type: | VX 5306190 |
Product information for Rittal 5306190:
Applications
This rack is suitable for use in IT infrastructures, server rooms, data centres, or industrial environments where high mechanical stability and protection against dust and splashing water are required. The IK08 rating ensures high mechanical protection against impact. The blank enclosure design allows for individual internal configuration, with devices and modules able to be mounted directly onto the integrated blind rivet nuts M6. The horizontal perforation in a 25 mm grid, along with square-shaped holes on all sides, facilitates the installation of cage nuts and metric screws up to M8.
Functions and Equipment in Detail
The front aluminium viewing door is fitted with 180° hinges, allowing full opening. The rear sheet steel door opens 130° and is also designed as a single unit. Both doors are equipped with comfort handles for half cylinders, ensuring secure and convenient operation. The rack frame surface is dip-primed, while the rear door and roof are powder-coated. The front door is anodized/painted, with vertical profiles in silver and horizontal profiles in RAL 9005. The handles and hinges are also painted in RAL 9005. The enclosure frame, rear door, and roof are in the base colour RAL 7035.
Technology Explained Simply
The rack features a torsionally rigid, welded frame structure made from rolled, 9-fold bent closed hollow profiles. The integrated blind rivet nuts M6 allow secure mounting of fittings without compromising the protection rating. The horizontal profiles have an integrated groove above the PU foam seal to protect it from mechanical damage. The base sheet is multi-part and closed, with the base frame incorporating reinforcements to enable direct screwing of the rack to the floor from the inside. The seal for the base sheet and the baying seal are included in the delivery scope.
Compatibility and Accessories
The rack is designed for mounting 48,3 cm ( 19 inch ) equipment, with 12 pre-installed 48,3 cm ( 19 inch ) fasteners (1 HE, conductive) included in the delivery. Additionally, 25 conductive hex socket screws are provided. For individual configuration, various accessories are available, including insert modules such as PSM socket modules, connection cables, cable ties, Velcro fasteners, system lights, and component shelves. These components can be added as required to adapt the rack’s functionality to specific applications.
Mounting and Installation
Mounting is performed via the integrated mounting levels on the frame, accessible from both inside and outside. The base tray allows for secure fastening to the floor. The baying seal and seal set for the base sheet are included to ensure the IP 55 protection rating. Door opening angles may vary depending on the type and location of installation, so the actual opening should be checked in the specific application.
Operational Advantages
The rack offers high mechanical stability and protection through the IK08 rating. The viewing door allows visual inspection of installed components without opening the door. The integrated mounting elements and conductive screws support safe and efficient installation. The blank enclosure design provides flexibility for individual configuration and adaptation to specific requirements. The use of sheet steel and aluminium ensures high strength and durability of the enclosure.
Delivery Scope
The rack is delivered with the rack frame, front aluminium viewing door (180° hinges), rear sheet steel door (130° hinges), roof plate (single-piece, closed), base tray with base sheet (multi-part, closed), baying seal, seal set for base sheets, 12 x 48,3 cm ( 19 inch ) fasteners (1 HE, conductive), and 25 hex socket screws (conductive). Delivery is on an IPPC pallet.
Certifications
The rack is UL- and C-UL-certified (listed) and includes a negative certificate. A declaration of conformity according to EU directives is also available. The product description corresponds to the manufacturer’s website and technical data sheets.
| General | |
| Material | Sheet steel, aluminium, vision door: single-pane safety glass, 3 mm, front door: aluminium, 1.25 mm, rear door: sheet steel, 1.5 mm |
| Surface protection | Cabinet frame: dip-primed, rear door and roof: dip-primed, powder-coated, front door: aluminium, anodized/painted |
| Basic colour | RAL 7035 |
| Colour | Housing frame, rear door and roof: RAL 7035, front door: vertical profiles, silver, and horizontal profiles RAL 9005, handle and hinges: RAL 9005 |
| Width | 800 mm |
| Height | 2.000 mm |
| Depth | 600 mm |
| Height units | 42 HE |
| Roof type | One-piece, closed |
| Door configuration rear | Steel sheet door, closed, single-piece, 130° hinges |
| Front door configuration | Aluminium front door, closed, single-piece, 180° hinges |
| Profile rail version | None |
| Floor version | floor tray with floor plate, multi-part, closed |
| Mounting type for profile rail | None |
| Degree of protection IP according to EN 60 529 | IP 55 only in combination with gasket for rowing or screwed side walls |
| IK code | IK08 |
| Note | Depending on type and location of installation, the door opening angle may vary in the specific application |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 223.7 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
Questions & answers
What is the delivery time of Rittal 5306190 Server rack VX IT closed IP55 800x2000x600 mm 42 U?
The article Rittal 5306190 Server rack VX IT closed IP55 800x2000x600 mm 42 U is currently in stock
According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 5306190 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 5306190 Server rack VX IT closed IP55 800x2000x600 mm 42 U always at the best possible price. We can give you a discount of 2% on Rittal 5306190 Server rack VX IT closed IP55 800x2000x600 mm 42 U if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
