Rittal 8660140 plinth baying brackets for plinth system VX

Your rating:
Average rating
product review for Rittal 8660140 plinth baying brackets for plinth system VX
( 4.7 / 5 ) 3 ratings
Rittal 8660140
This image may differ from the desired article.
Rittal 8660140Rittal 8660140
20,73 EUR
( 24,67 EUR incl. VAT )
≈ £17.35  |  ≈ $22.78
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline
In Stock: >500 pieces
1x Rittal 8660140 plinth baying brackets for plinth system VX
Datasheet:file_download Download
Lieske Part No.:682798
Mfg Part No: 8660140
UPC/EAN: 4028177994751
Weight:0.635 kg
Type:VX 8660140

Product information for Rittal 8660140:

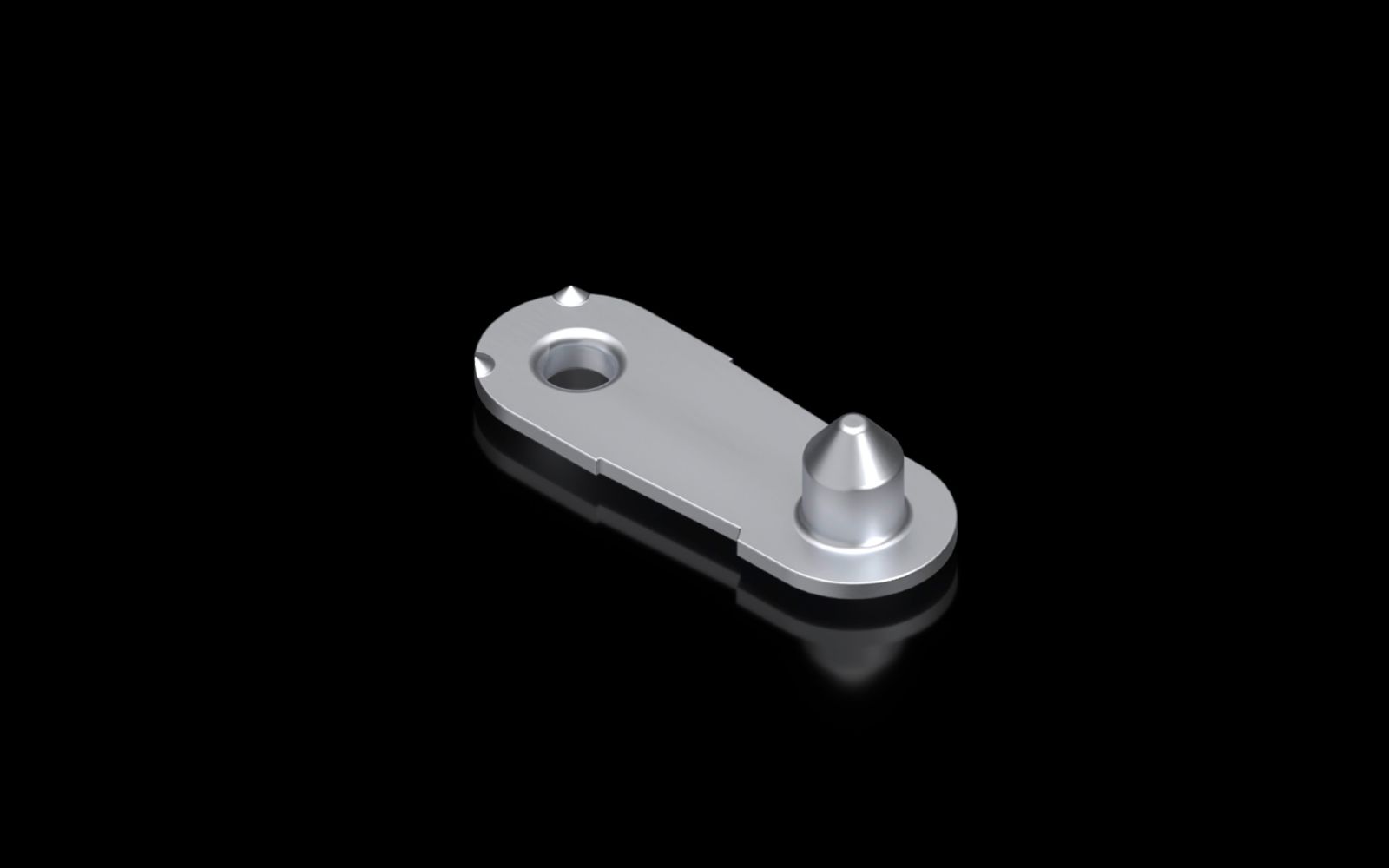

The VX plinth baying brace, manufacturer part number 8660140, is a system accessory from Rittal, specifically designed for the VX plinth system. It provides additional stabilization for bayed enclosures during transport, particularly when the plinth trim panels are mounted rotated 90° sideways. The brace is installed between adjacent plinths to ensure a secure connection and prevent unwanted movement or shifting of the enclosures. The product is made of sheet steel and features a galvanized surface, providing corrosion protection and supporting its use in industrial environments.

Applications
The baying brace is primarily intended for use in bayed combinations of enclosures where the plinth trim panels are mounted in a side configuration (100 mm or 200 mm) rotated 90°. In such configurations, additional mechanical stabilization is required to secure the structure during transport or under mechanical load. The brace is placed between two adjacent plinths to create a stable connection and enhance the overall stability of the arrangement.

Functions and Features in Detail
The brace is made of sheet steel, ensuring high mechanical strength and durability. The galvanized surface protects the material from corrosion and is suitable for use in industrial environments with increased humidity or aggressive atmospheres. The delivery includes M8 x 16 mm screws for mounting the brace onto the plinths. Two braces are required per plinth trim panel to ensure sufficient stabilization. The packaging unit contains 20 pieces, suitable for larger installation projects or series applications.

Technology Explained Simply
The plinth baying brace functions as a mechanical connecting element between two adjacent plinths. Its use is necessary when the plinth trim panels are mounted rotated 90°, as this can compromise the structural stability of the baying. The brace acts as a stabilization element, distributing mechanical load across the connection between the plinths and thus preventing connection failure.

Compatibility and Accessories
The baying brace is specifically designed for Rittal’s VX plinth system and fits exclusively with sheet steel plinths. It is not intended for other plinth systems or materials. It is used in combination with plinth trim panels in widths of 100 mm or 200 mm, mounted in a side position rotated 90°. The brace is directly fastened to the plinths and is therefore an integral part of the stabilization structure in bayed combinations.

Installation and Mounting

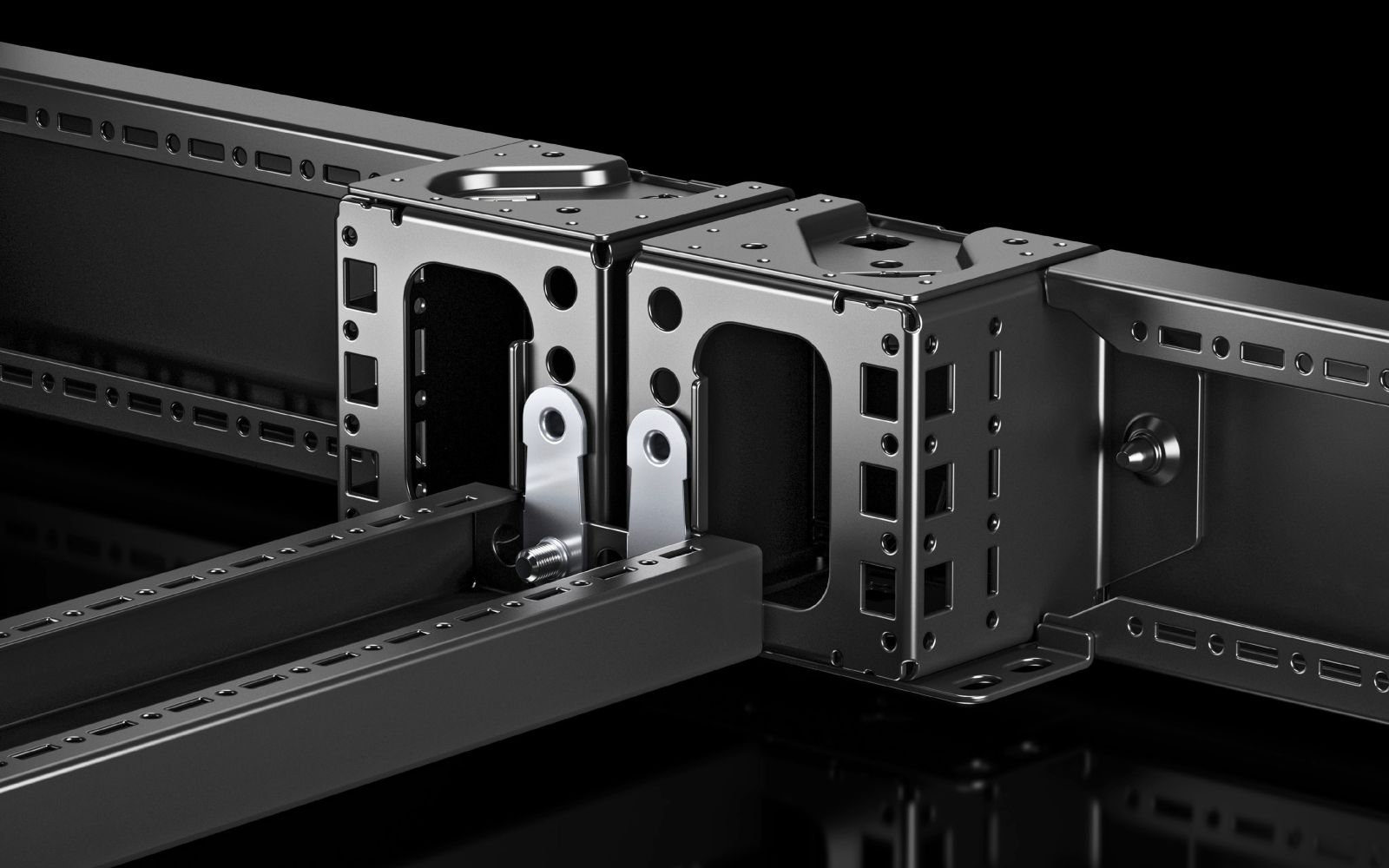

Installation is carried out by securing the brace to the plinths using the included M8 x 16 mm screws. The brace is placed between two adjacent plinths, with two braces required per plinth trim panel. The screws are inserted into the designated holes and tightened securely to ensure a stable connection. Installation should be performed before transporting the bayed enclosures to ensure stability during movement. The mounting process is simple and requires no special tools other than a screwdriver or appropriate wrench.

Operational Advantages
Using the plinth baying brace increases safety and reliability when transporting bayed enclosures. It prevents shifting or damage to the plinth trim panels and the enclosures themselves, which is particularly beneficial for long transport routes or under mechanical stress. The galvanized surface ensures longer service life and reduces maintenance requirements. The simple installation and clear delivery content, including the necessary screws, simplify the installation process and reduce planning time for mounting work.

General
Materialsteel sheet
Surface protectionZinc-plated
Scope of deliveryIncluding screws M8 x 16 mm
NoteRequired per panel: 2 pieces
Mounting optionsFor in-line combination, additional stabilisation for transport
Suitable forfor VX socket system, sheet steel


Product data sheet
Datasheet for Rittal 8660140, EAN: 4028177994751

Questions & answers

What is the delivery time of Rittal 8660140 plinth baying brackets for plinth system VX?

The article Rittal 8660140 plinth baying brackets for plinth system VX is currently in stock

According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8660140 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8660140 plinth baying brackets for plinth system VX always at the best possible price. We can give you a discount of 2% on Rittal 8660140 plinth baying brackets for plinth system VX if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
