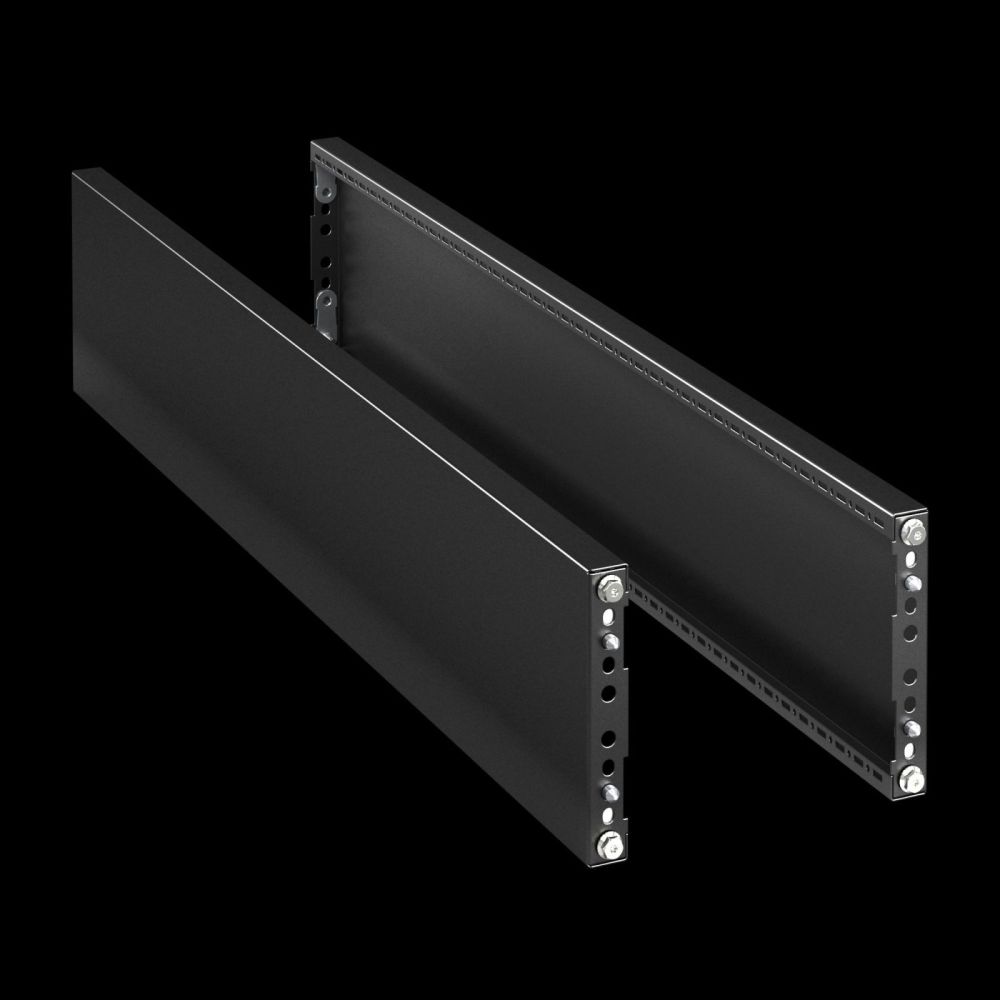

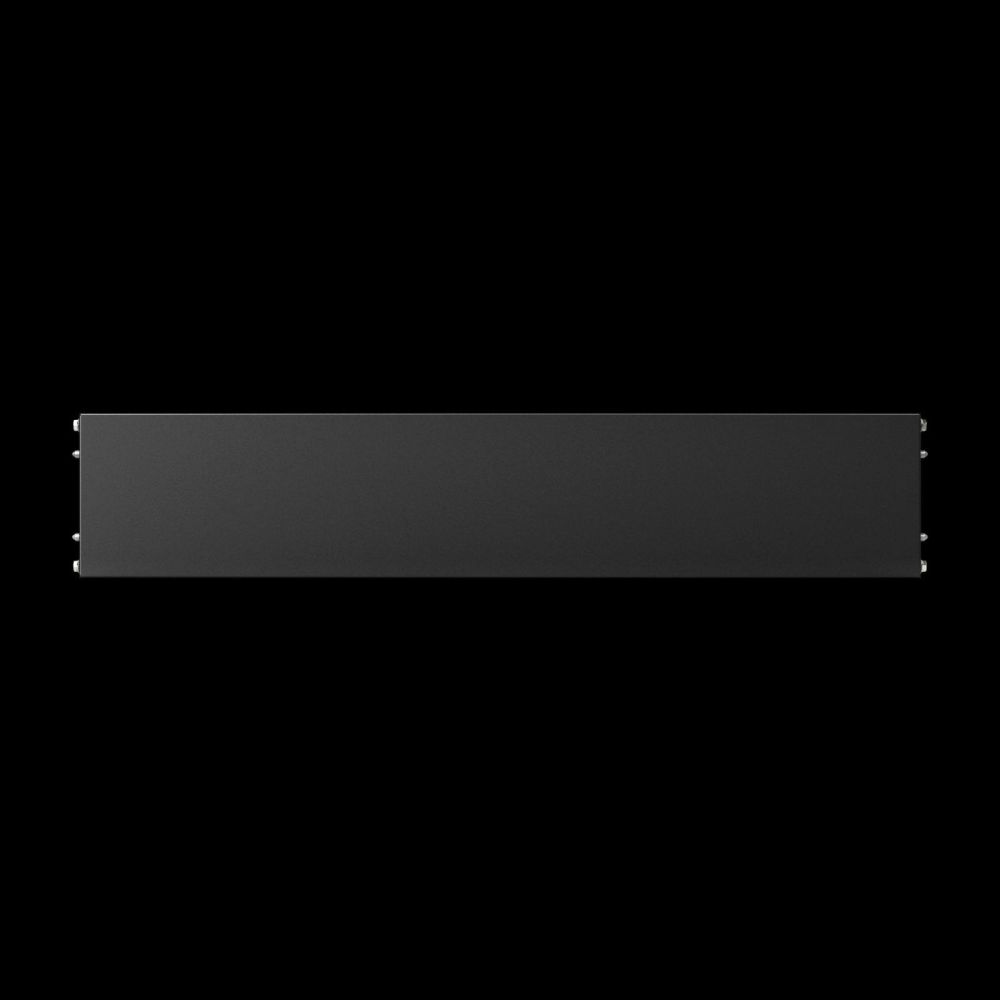

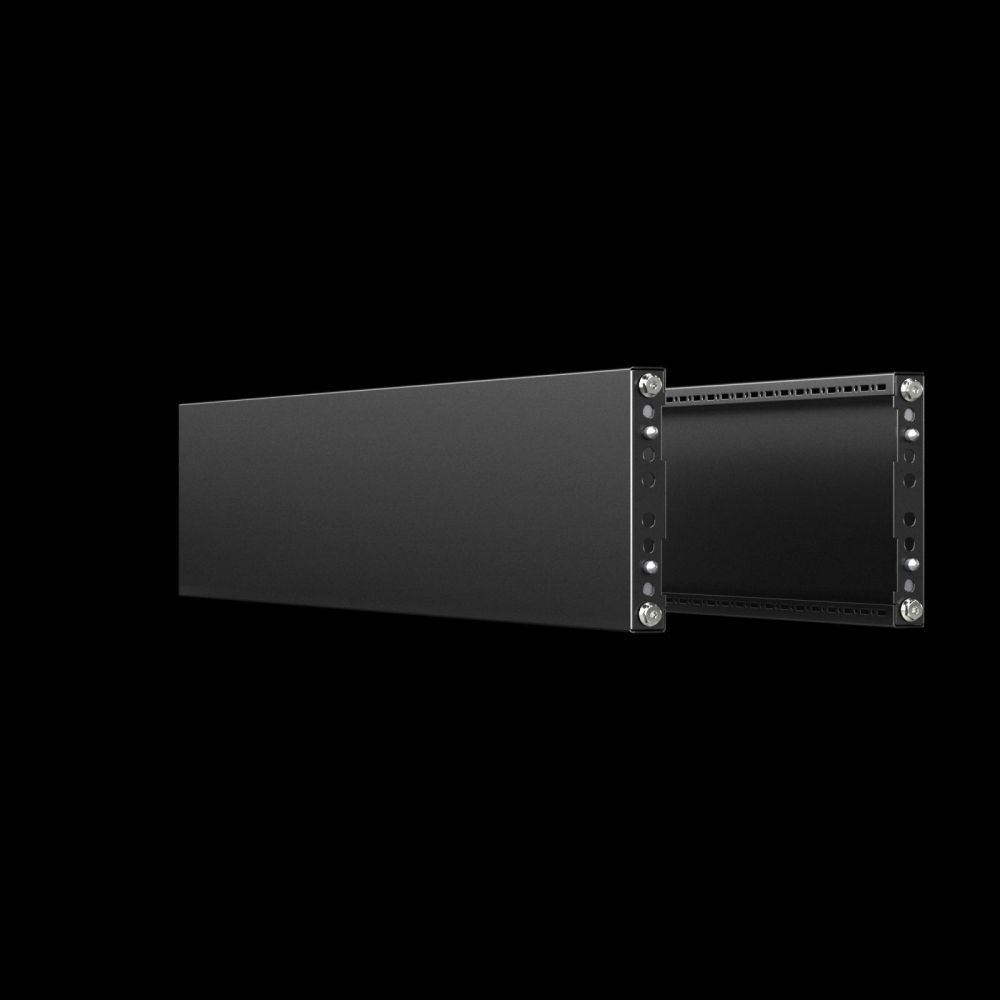

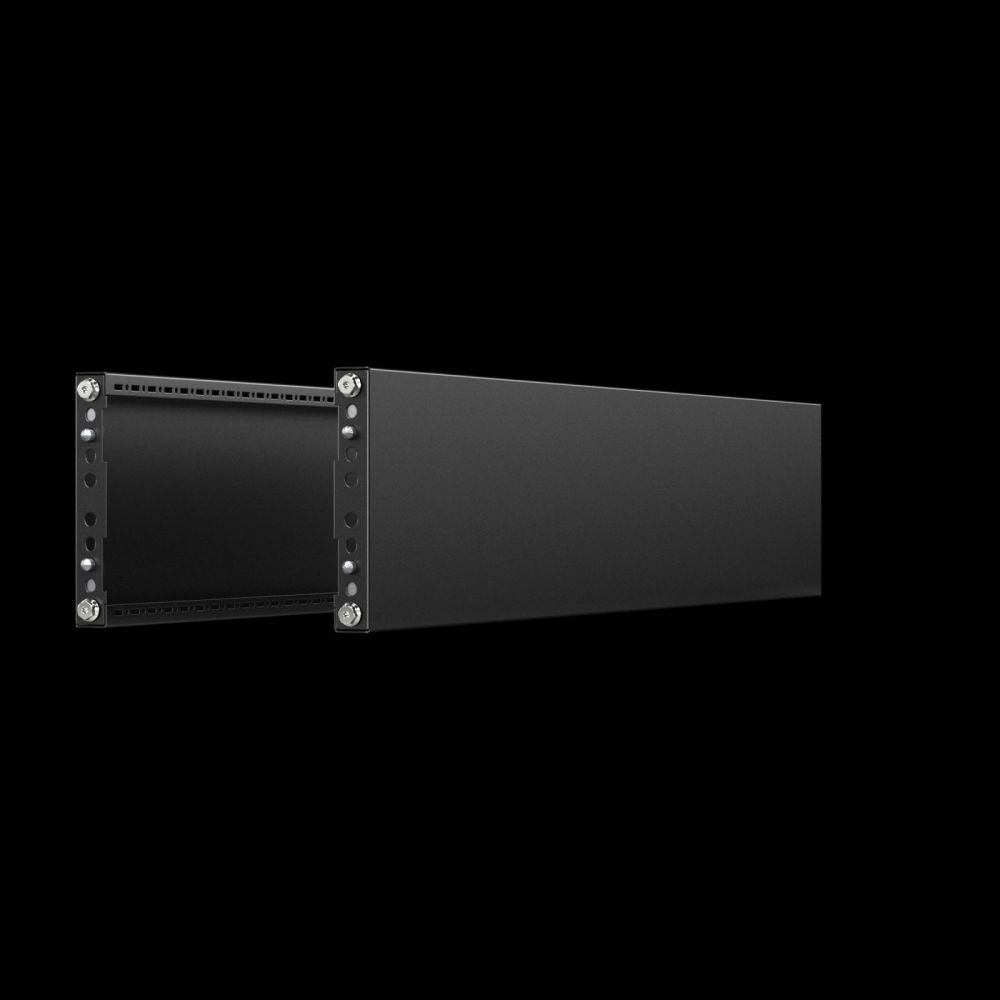

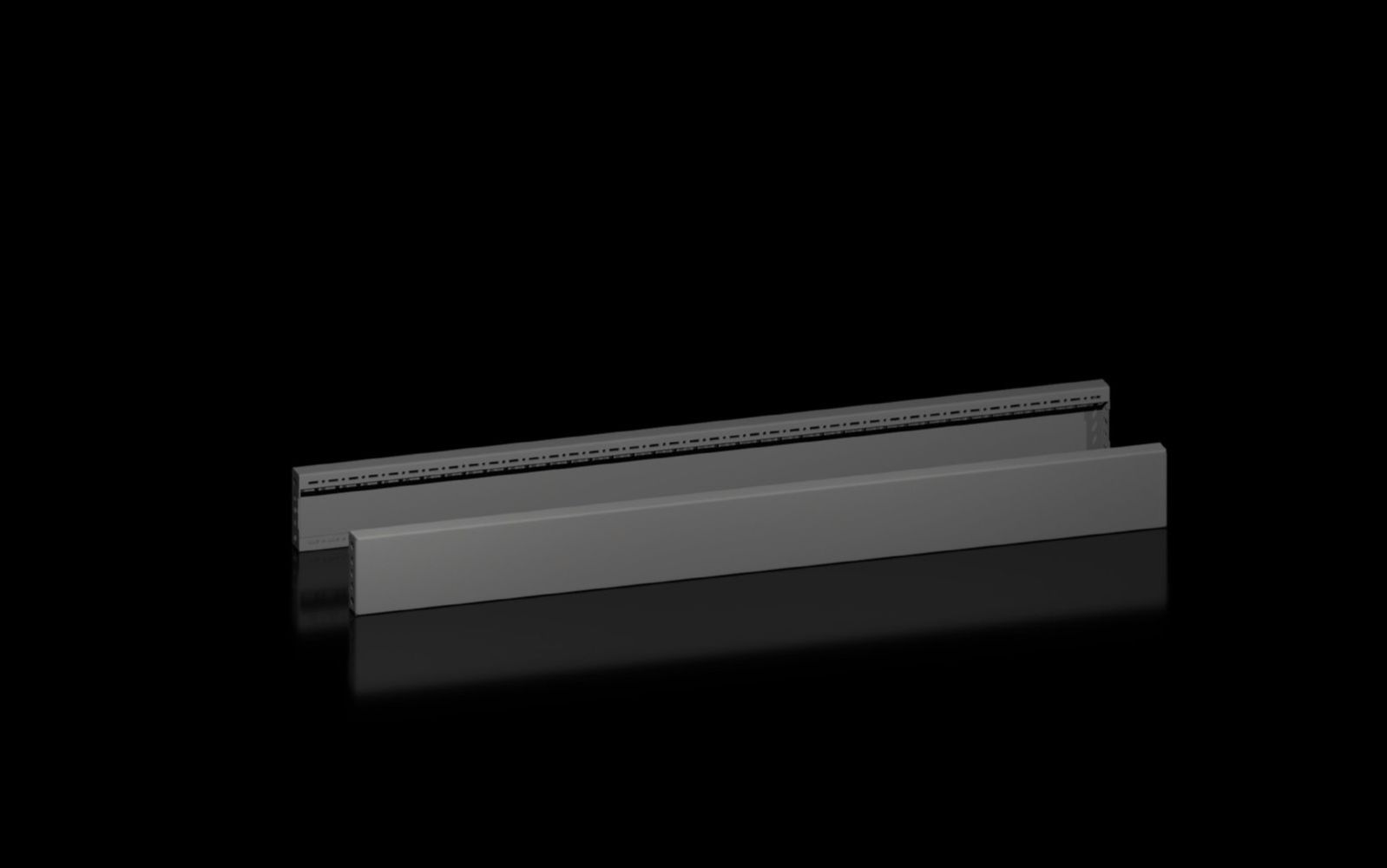

Rittal 8660036 VX plinth trim panel side 100 mm x 1200 mm

Your rating:
Average rating
product review for Rittal 8660036 VX plinth trim panel side 100 mm x 1200 mm
( 4 / 5 ) 1 ratings
Rittal 8660036
This image may differ from the desired article.
Rittal 8660036Rittal 8660036Rittal 8660036Rittal 8660036Rittal 8660036Rittal 8660036
95,84 EUR
( 114,05 EUR incl. VAT )
≈ £80.22  |  ≈ $105.33
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline
In Stock: >500 pieces
1x Rittal 8660036 VX plinth trim panel side 100 mm x 1200 mm
Datasheet:file_download Download
Lieske Part No.:682742
Mfg Part No: 8660036
UPC/EAN: 4028177978263
Weight:4.498 kg
Type:VX 8660036

Product information for Rittal 8660036:

The VX plinth trim panel, side, type 8660036, from Rittal is a system accessory made of sheet steel, specifically designed for the lateral closure of plinth units in the VX plinth system. With a height of 100 mm and a fit for a depth of 1,200 mm, it serves for the optical and mechanical closure of the side surfaces of plinths. The panel is finished in RAL 9005 and is delivered in a packaging unit containing two pieces. It is suitable for a variety of enclosure types, including VX, VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW, and CX. The design is closed, ensuring secure coverage of the side surfaces.

Applications

The plinth trim panel is primarily used in industrial environments where plinth systems are employed for mounting enclosures, controls, or other electrical components. It serves not only for aesthetic closure but also for additional stabilization of adjacent plinths. Particularly when mounting multiple plinths side by side, the panel ensures better mechanical connection and prevents shifting. The panel is also suitable for interior fitting, for example, when additional mounting points or structured division of the interior space are required.

Functions and Equipment in Detail

The panel is made of sheet steel, ensuring high mechanical stability and durability. The RAL 9005 color provides a uniform visual appearance, matching common enclosure and cabinet colors. The design is closed, meaning no openings or cutouts are present that could compromise mechanical integrity. The delivery includes the fastening material required for mounting the panel to the plinth. The panel is designed for a depth of 1,200 mm, making it suitable for most standard plinths in the VX system.

Technology Explained Simply

The panel is a passive component that does not perform any electrical or electronic functions. Its main purpose is mechanical and optical closure. The use of sheet steel ensures high strength and resistance to mechanical stress. The RAL 9005 color is a dark gray standard tone commonly used in industry to achieve a professional and uniform appearance. The closed design means the panel has no openings for cables or other components, making it suitable for pure closure and stabilization tasks.

Compatibility and Accessories

The panel is compatible with various enclosure types in the VX plinth system, including VX, VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW, and CX. It is specifically designed for a depth of 1,200 mm. As accessories, plinth baying brackets, VX plinth expansion angles (for panel heights of 100 mm or 200 mm), optional panel fastening elements, as well as VX system chassis and cable strain relief rail angle profile can be used. These components allow flexible adaptation of the plinth system to specific requirements, such as mounting multiple plinths side by side or integrating additional fastening elements.

Installation and Mounting

The mounting of the plinth trim panel is done using the fastening material included in the delivery. The panel is attached to the side edges of the plinth, with the exact mounting method depending on the specific plinth construction. For 200 mm high plinths, either a single 200 mm high panel or two 100 mm high panels can be mounted. Fastening is done using screws or similar connection elements included in the delivery. The installation does not require special tools, although a suitable screwdriver is required.

Operational Advantages

Using the plinth trim panel offers several operational advantages. It improves the mechanical stability of adjacent plinths, which is particularly important in larger installations. The closed design protects against dust and foreign objects entering the plinth. The uniform color design in RAL 9005 ensures a professional appearance that fits well in industrial environments. The simple installation and included fastening material reduce installation time and effort. Compatibility with various enclosure types increases flexibility in planning and executing enclosure installations.

Type rating according to UL 50E

The plinth trim panel complies with Type ratings Type 1 and Type 12 according to UL 50E. Type 1 refers to protection against solid foreign objects and limited water, while Type 12 provides additional protection against splashing water from above and the sides. These certifications make the panel suitable for indoor use, especially in environments where occasional moisture or splashing water may occur.

PCF value (Cradle-to-Gate)

The product life cycle footprint (PCF) is 14.81 kg CO2 equivalents per packaging unit (Cradle-to-Gate). This value is declared in category B, meaning it is approximately calculated based on product weight and self-declared. The information serves transparency regarding the environmental impact of production and is part of the manufacturer’s sustainability strategy.

Packaging unit

The plinth trim panel is delivered in a packaging unit containing two pieces. The net weight is 4.36 kg, the gross weight is 4.498 kg. The packaging unit is optimized for transport and storage and enables efficient handling in industrial environments.

General
Materialsteel sheet
ColourRAL 9005
Scope of deliveryIncluding mounting hardware
Height100 mm
Suitable forCabinet type: VX, VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW, CX, depth: = 1,200 mm
Type rating according to UL 50EType 1, Type 12
Weight/PU4,5 kg
PCF/VE (Cradle-to-Gate)14.81 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 8660036, EAN: 4028177978263

Questions & answers

What is the delivery time of Rittal 8660036 VX plinth trim panel side 100 mm x 1200 mm?

The article Rittal 8660036 VX plinth trim panel side 100 mm x 1200 mm is currently in stock

According to our experience the article is ready for dispatch within 7 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8660036 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8660036 VX plinth trim panel side 100 mm x 1200 mm always at the best possible price. We can give you a discount of 2% on Rittal 8660036 VX plinth trim panel side 100 mm x 1200 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
