Rittal 5310128 Server rack VX IT closed 600x2000x1200 mm 42 U

Your rating:
Average rating
product review for Rittal 5310128 Server rack VX IT closed 600x2000x1200 mm 42 U
( 4 / 5 ) 2 ratings

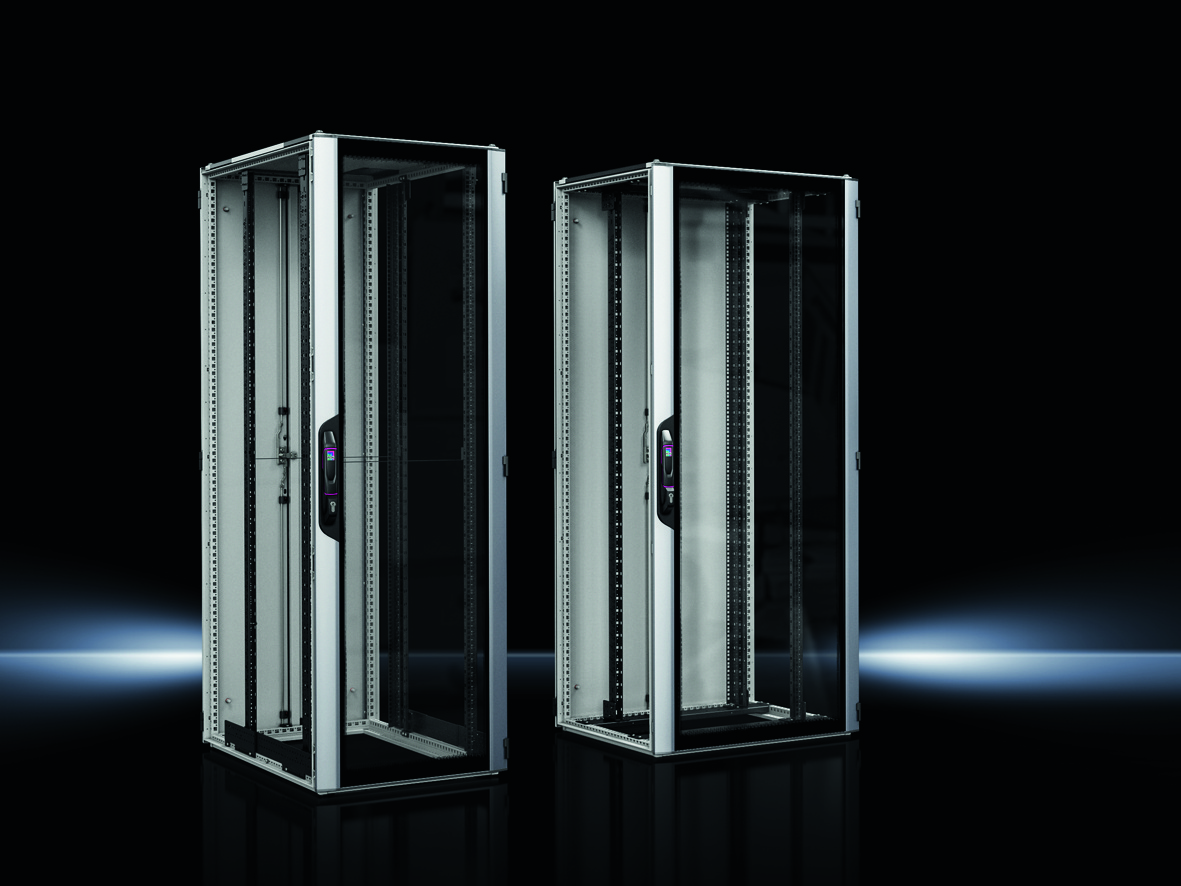

Rittal 5310128
This image may differ from the desired article.
Rittal 5310128Rittal 5310128Rittal 5310128Rittal 5310128Rittal 5310128Rittal 5310128Rittal 5310128
1.278,80 EUR 1.301,92 EUR
( 1.521,77 EUR incl. VAT )
≈ £1,070.36  |  ≈ $1,405.40
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 5310128 Server rack VX IT closed 600x2000x1200 mm 42 U
Datasheet:file_download Download
Lieske Part No.:1775820
Mfg Part No: 5310128
UPC/EAN: 4028177945180
Weight:97 kg
Type:VX 5310128

Product information for Rittal 5310128:

The Rittal VX 5310128 is a network/server rack of the VX IT series in standard configuration, designed for use in IT infrastructures, server rooms, and technical facilities. The enclosure has dimensions W x H x D 600 × 2000 × 1200 mm and offers an expansion height of 42 U. It features an aluminium viewing door at the front and a steel sheet door at the rear, both with 180° hinges, enabling full opening. The front door is single-piece, while the rear door is vertically divided, facilitating access to devices and cables. The viewing door consists of single-pane safety glass with 3 mm thickness, installed in an aluminium profile that is anodized/painted. The rear door is made of steel sheet with a thickness of 1.5 mm and powder-coated, as are the roof and rear panel. The rack frame is made of steel sheet and dip-primed, while the interior construction is painted. The base colour of the enclosure is RAL 7035, with the front door featuring vertical profiles in silver and horizontal profiles in RAL 9005, as well as the interior construction, handles, and hinges.

Applications include use in data centres, server rooms, IT distributions, and technical installations where a closed, robust, and yet easily accessible rack solution is required. The rack is designed for direct rack-based climate control, allowing it to be used in environments with increased cooling and ventilation requirements. The 48,3 cm ( 19 inch ) profile rails are standard in the VX IT and enable mounting of IT devices in the 48,3 cm ( 19 inch ) standard. Mounting is done via mounting brackets, which are screwed to the top and bottom of the frame structure. The bay spacing is 720 mm in the delivered state, with the 48,3 cm ( 19 inch ) bay positioned both at the front and rear. The mounting clearance is 150 mm at the front and 330 mm at the rear, providing sufficient space for cables and fans.

Functions and equipment in detail include a multi-part roof construction with cable entries in the front and rear corners, simplifying cable and conduit installation. The floor plate is open, enabling flexible installation. The rack’s load capacity is 15,000 N, with the maximum static load capacity per rack according to UL 2416 being 12,000 N. The protection class is classified as IK08, ensuring high mechanical strength against impact and shock. The door locks are equipped with comfort handles for half cylinders and security locking 3524 E, ensuring secure access. The delivery includes spacers for raising a roof plate above the fan outlet in the roof plate to enable passive ventilation, as well as 12 pieces of 48,3 cm ( 19 inch ) fasteners 1 U and 25 conductive internal hexagon socket screws.

Technology explained simply shows that the rack frame consists of a welded, torsion-resistant frame structure made of 9-fold bent, closed hollow profiles, with perforation in a 25 mm grid. The profiles are rounded, and horizontal profiles feature an integrated groove above the PU foam seal to protect it. Mounting is done via integrated blind rivet nuts M6, enabling protection-class-compliant fastening of fittings. The 48,3 cm ( 19 inch ) profile rails are depth-variable, allowing flexible adaptation to different devices. The single-pane safety glass viewing door provides a clear view into the rack without compromising mechanical strength.

Compatibility and accessories include a wide range of compatible components that adapt the rack to individual requirements. These include cable management panels, slide rails, component shelves, cable managers, hook-and-loop tape holders, drawers, document clamps, cable routing trough panels, elastic clamp profiles, and plinth trim panels. These elements enable structured and secure installation of devices and cables within the rack. The accessories are available in various sizes and versions to meet different mounting and cable management requirements.

Mounting and installation are performed via the pre-assembled frame structure, which is already equipped with doors and roof plate. The 48,3 cm ( 19 inch ) devices are mounted using the designated mounting brackets at the top and bottom ends of the frame. The spacers can be used to raise the roof plate above the fan outlet to ensure passive ventilation. The open floor construction allows flexible installation on various subfloors.

Operational advantages lie in the high mechanical strength (IK08), the robust construction from steel sheet and aluminium, easy accessibility via 180° hinges, and integrated 48,3 cm ( 19 inch ) mounting. The combination of a viewing door and a closed rear side enables good visibility of devices while protecting the rear from unauthorized access. The standardized 48,3 cm ( 19 inch ) mounting and the wide range of accessory options ensure flexible and scalable use in various IT environments. The load capacity of 15,000 N makes the rack suitable for heavier devices. The colour design in RAL 7035 and RAL 9005 ensures a professional appearance that integrates well into technical rooms.

The PCF values (Cradle-to-Gate) amount to 227.9 kg CO2 eq per packaging unit, with class B indicating that the value is approximately calculated based on product weight and self-declared. The packaging unit is 1 piece, with a net weight of 88 kg and a gross weight of 97 kg. The tariff code is 94032080, and the EAN is 4028177945180. The manufacturer’s number is 5310128, and the item is designated as VX IT network/server rack standard. The manufacturer’s product page confirms the specifications regarding material, surface, dimensions, load capacity, and equipment. The data sheets in German and English, as well as the description texts from various retailers, are consistent and confirm the technical features.

Discrepancies between sources have been checked, and no relevant deviations were found. The description is factual, technically precise, and limited to actual product features.

General
MaterialSheet steel, aluminium, vision door: single-pane safety glass, 3 mm, front door: aluminium, 1.25 mm, rear door: sheet steel, 1.5 mm
Surface protectionCabinet frame: dip-primed, interior: painted, rear door and roof: dip-primed, powder-coated, front door: aluminium, anodized/painted
Basic colourRAL 7035
ColourCasing frame, rear door and roof: RAL 7035, front door: vertical profiles silver, horizontal profiles RAL 9005, interior: RAL 9005, handle and hinges: RAL 9005
Width600 mm
Height2.000 mm
Depth1.200 mm
Height units42 HE
Mounting clearance to 19" plane, front/back150 mm / 330 mm
Mounting position 19" rackFront and rear
Layer spacing (as delivered)720 mm
19" mountingwith mounting bracket screwed to top and bottom of frame structure
ModelStandard
Roof typemulti-part, with cable entry in corner areas front and rear
Door configuration rearSteel sheet door, closed, vertically divided, 180° hinges
Front door configurationAluminium front door, closed, single-piece, 180° hinges
Profile rail version19" profile rails standard in VX IT
Floor versionOpen
19" rack configurationFront and rear
Mounting type for profile rail19"-level front and rear
Load capacity15.000 N
Max. load capacity (static) according to UL 2416 per cabinet12.000 N
IK codeIK08
NoteDepending on type and location of installation, the door opening angle may vary in the specific application
Base materialsteel sheet
PCF/VE (Cradle-to-Gate)227.9 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 5310128, EAN: 4028177945180
