Rittal 5311116 Server rack VX IT ventilated 800x2000x1200 mm 42 U (freight shipping)
|
1.470,16 EUR |
|
|
( 1.749,49 EUR incl. VAT ) ≈ £1,230.52 | ≈ $1,615.71 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >50 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1775819 |
| Mfg Part No: | 5311116 |
| UPC/EAN: | 4028177945210 |
| Weight: | 101 kg |
| Type: | VX 5311116 |
Product information for Rittal 5311116:
Applications
This rack is suitable for use in server rooms, data centers, IT management facilities, and other environments where continuous cooling and ventilation of IT systems are required. The ventilated doors, with a free area in the perforated section of approximately 85%, ensure efficient air circulation. The open floor construction allows for flexible cable routing and installation of floor plates or other floor units. The configuration with 180° hinges on both front and rear doors ensures full access to the devices.
Functions and Equipment in Detail

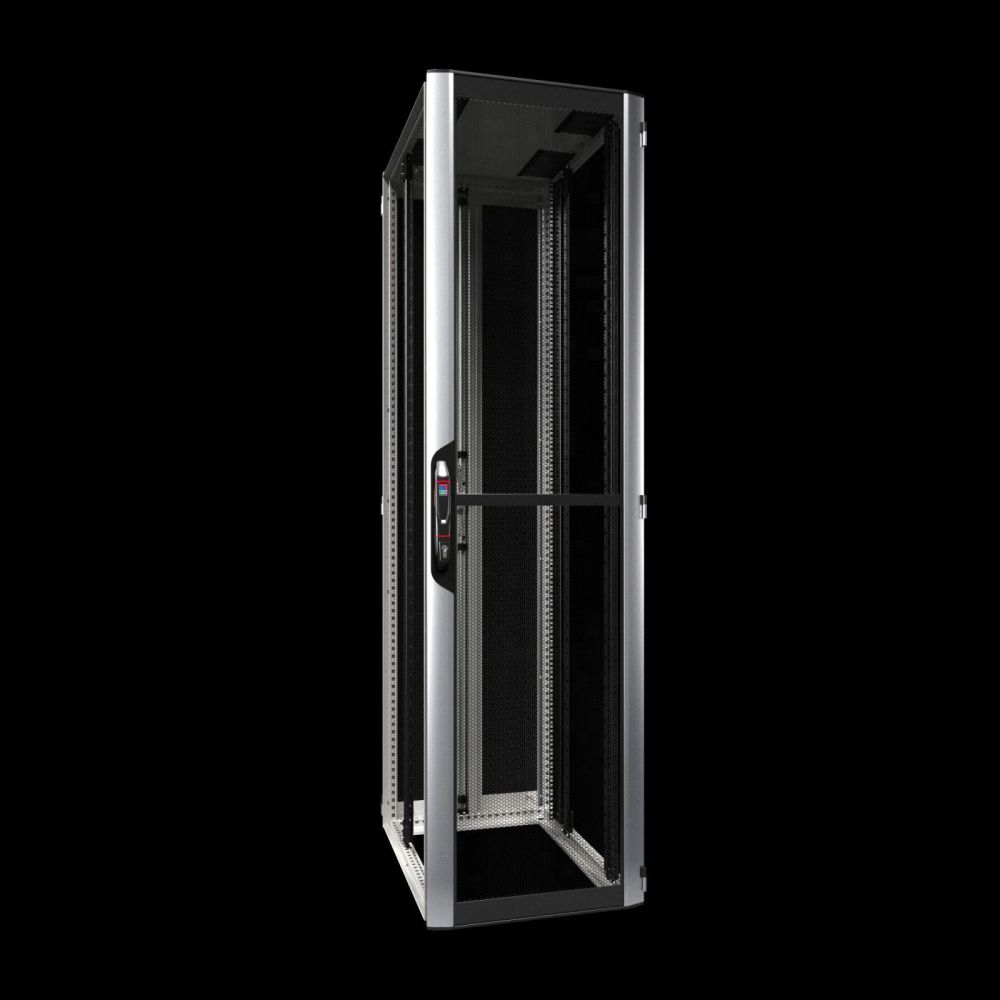

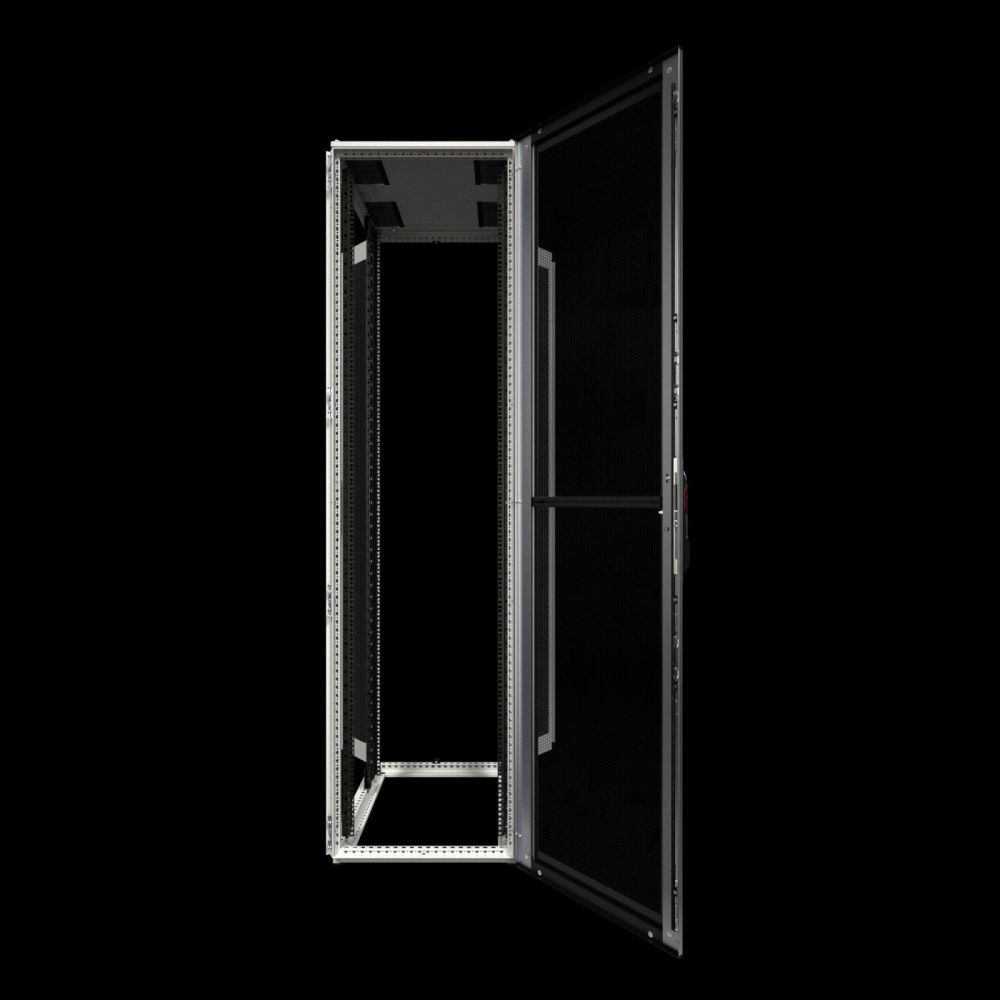

The front door is made of aluminum and steel sheet, ventilated and single-piece, while the rear door is made of steel sheet, ventilated and vertically split. Both doors are equipped with 180° hinges, allowing for full opening angle. The surface of the rack frame is dip-primed, the interior finish is painted, while the rear door and roof are dip-primed and powder-coated. The front door is made of aluminum, anodized/painted, with vertical profiles in silver and horizontal profiles in RAL 9005. The color of the enclosure frame, rear door, and roof corresponds to RAL 7035. The ventilation grilles at the front, as well as the handle and hinges, are in RAL 9005.
Technology Explained Simply

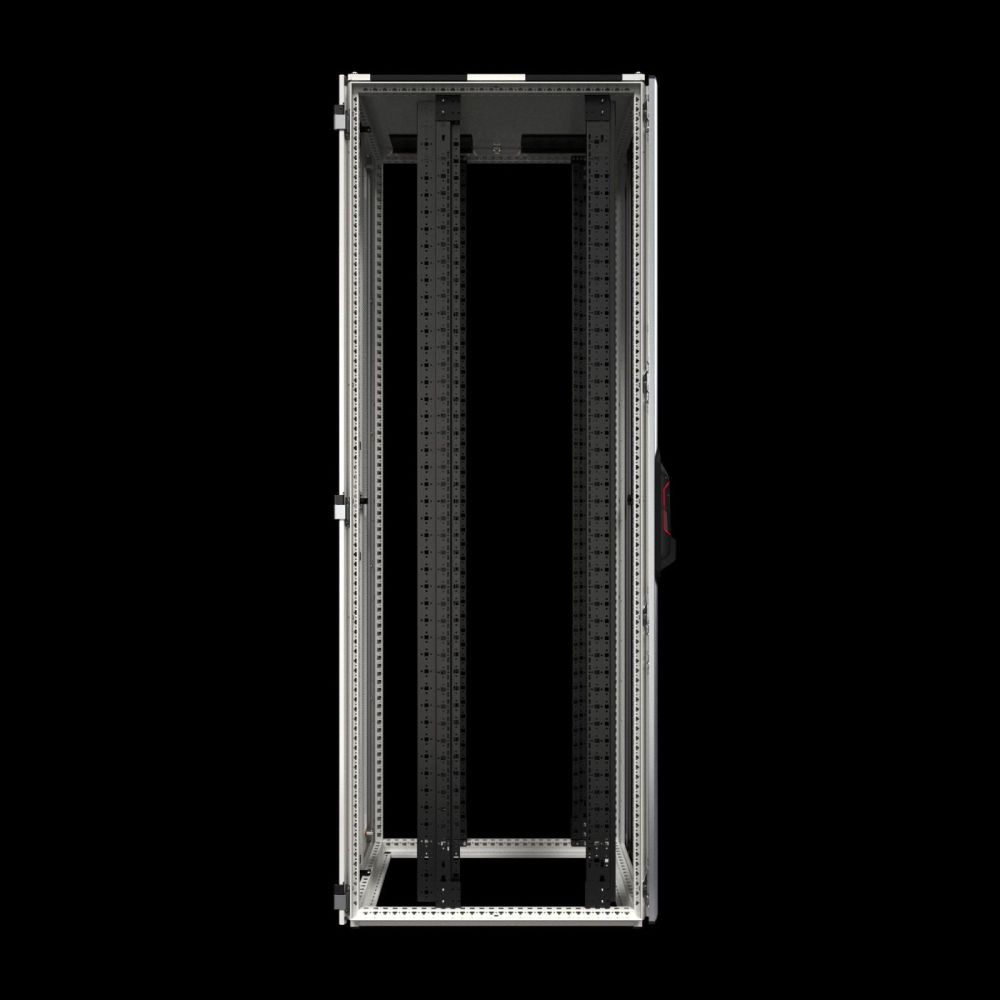

The 48,3 cm ( 19 inch ) profile rails are standard-integrated in the VX IT system and allow mounting of devices according to the standard 48,3 cm ( 19 inch ) norm. Fixing is done at the depth rails at top and bottom, as well as at the support rail on the frame structure. The spacing between mounting planes is 720 mm in the delivered state, with mounting clearance to the 48,3 cm ( 19 inch ) plane being 150 mm at the front and 330 mm at the rear. The roof plate is multi-part and features lateral cable entry on both sides, and is prepared for mounting a fan plate. The rack's load capacity is 15,000 N, with the maximum static load capacity according to UL 2416 per rack being 12,000 N.
Compatibility and Accessories
The rack is compatible with various accessories that ensure optimal use and adaptation to specific requirements. These include, for example, 48,3 cm ( 19 inch ) fasteners 1 HE with electrical connection, drawers in various heights (2 HE, 3 HE) and colors (RAL 7035, RAL 9005), component shelves in various configurations (e.g. 0.5 HE, 1.5 HE, 1 HE), cable ducts (e.g. DK TS IT 6HE), blank panels (e.g. 48,3 cm ( 19 inch ) toolless fixing, 3HE), VX plinth corner pieces, plinth trim panels, cable routing brackets, brush strips, sliding rails, and extended cable routing options. These components allow individual adaptation of the rack to specific mounting and cable routing requirements.
Mounting and Installation
Mounting is done at the depth rails at top and bottom, as well as at the support rail on the frame structure. The 48,3 cm ( 19 inch ) profile rails are depth-variable, allowing flexible adaptation to different devices. The open floor construction allows easy installation of floor plates or other floor units. The lateral cable entry in the roof plate supports cable routing and integration of fans. The front and rear doors are equipped with comfort handles for half cylinders and safety locking 3524 E, enabling secure and convenient operation.
Operational Advantages
The rack offers a high load capacity of 15,000 N and is designed for use in demanding environments. The ventilated doors ensure efficient cooling and air circulation, increasing the operational safety of installed devices. The 180° hinges allow full access to devices, simplifying maintenance and installation. The standard equipment with 48,3 cm ( 19 inch ) profile rails and designated mounting clearances ensures flexible and quick installation. The color design in RAL 7035 and RAL 9005 ensures a uniform and professional appearance in the server room.
Scope of Delivery
The rack is delivered with the rack frame, doors (front and rear), roof plate, 12 pieces of 48,3 cm ( 19 inch ) fasteners 1 HE (conductive), 25 internal hex socket screws (conductive), and spacers for raising a cover plate above the fan opening in the roof plate. The spacers are intended for passive ventilation and are not required if no openings are present in the roof plate. Delivery is on an IPPC pallet.
Certifications and Standards
The rack is UL- and C-UL-certified (listed) and meets the requirements of standard UL 2416 regarding static load capacity. The surface treatment corresponds to manufacturer specifications with dip-primed, powder-coated, and painted surfaces. The PCF values (Cradle-to-Gate) are 248.8 kg CO2 eq (Category B), calculated approximately based on product weight and self-declared.
Material and Construction
The base material of the rack is steel sheet, with the front door made of aluminum (1.25 mm) and the rear door made of steel sheet (1.5 mm). The frame structure is welded from rolled, 9-fold bent, closed hollow profiles and designed to be torsionally stiff. The perforation follows a 25 mm grid, enabling flexible mounting. The construction is designed for high mechanical stability, with a load capacity of 15,000 N and maximum static load capacity of 12,000 N according to UL 2416.
| General | |
| Model | Ventilated, standard, with 19" profile rails |
| Material | Sheet steel, aluminium, front door: aluminium, 1.25 mm, rear door: sheet steel, 1.5 mm |
| Surface protection | Cabinet frame: dip-primed, interior: painted, rear door and roof: dip-primed, powder-coated, front door: aluminium, anodized/painted |
| Basic colour | RAL 7035 |
| Colour | Housing frame, rear door and roof: RAL 7035, front door: vertical profiles silver, horizontal profiles RAL 9005, interior fitting, front ventilation grille: RAL 9005, handle and hinges: RAL 9005 |
| Width | 800 mm |
| Height | 2.000 mm |
| Depth | 1.200 mm |
| Height units | 42 HE |
| Mounting clearance to 19" plane, front/back | 150 mm / 330 mm |
| Mounting position 19" rack | Front and rear |
| Layer spacing (as delivered) | 720 mm |
| 19" mounting | screwed to depth rails top and bottom, and to mounting rail on frame structure |
| Roof type | Multi-part, with lateral cable entry in depth, on both sides, prepared for fan panel |

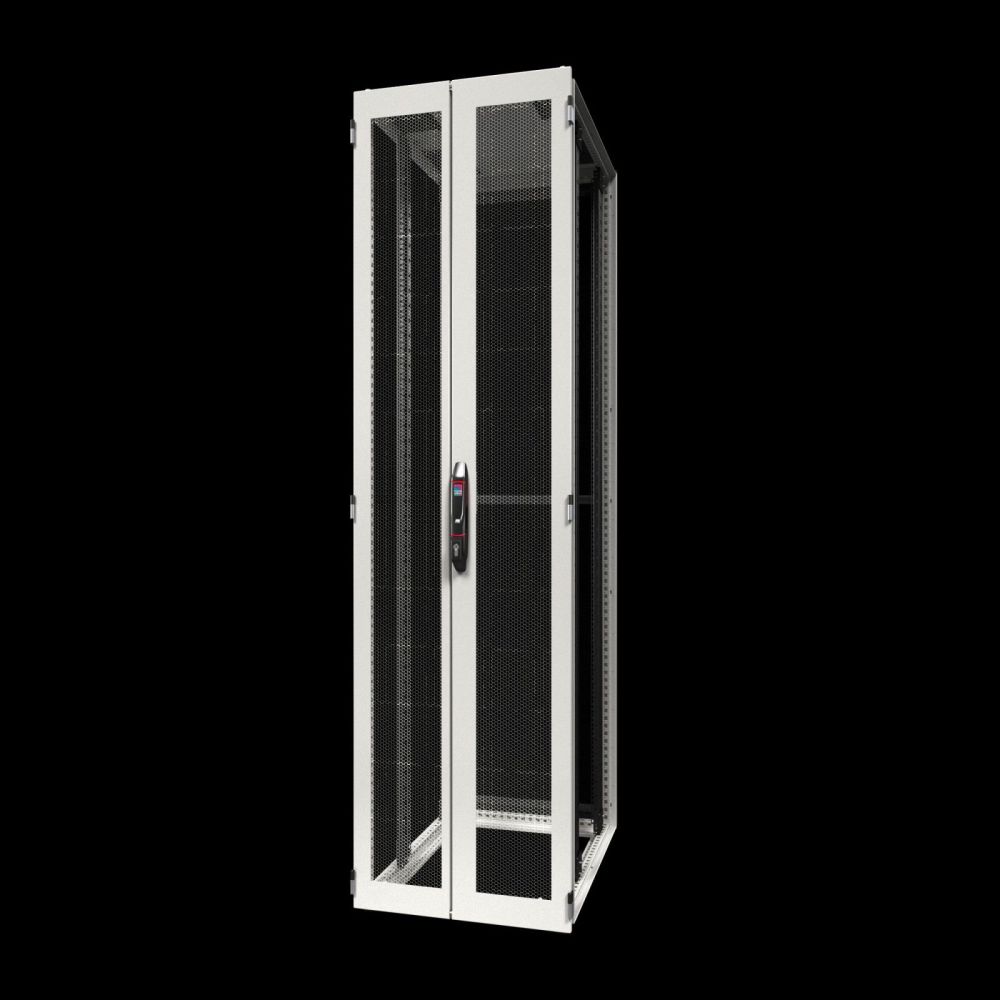

| Door configuration rear | Steel sheet door, ventilated, vertically divided, 180° hinges |
| Front door configuration | Aluminium-steel sheet door, ventilated, single-piece, 180° hinges |
| Profile rail version | 19" profile rails standard in VX IT |
| Floor version | Open |
| 19" rack configuration | Front and rear |
| Mounting type for profile rail | 19"-level front and rear |
| Load capacity | 15.000 N |
| Max. load capacity (static) according to UL 2416 per cabinet | 12.000 N |
| Note | Depending on type and location of installation, the door opening angle may vary in the specific application |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 248.8 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
