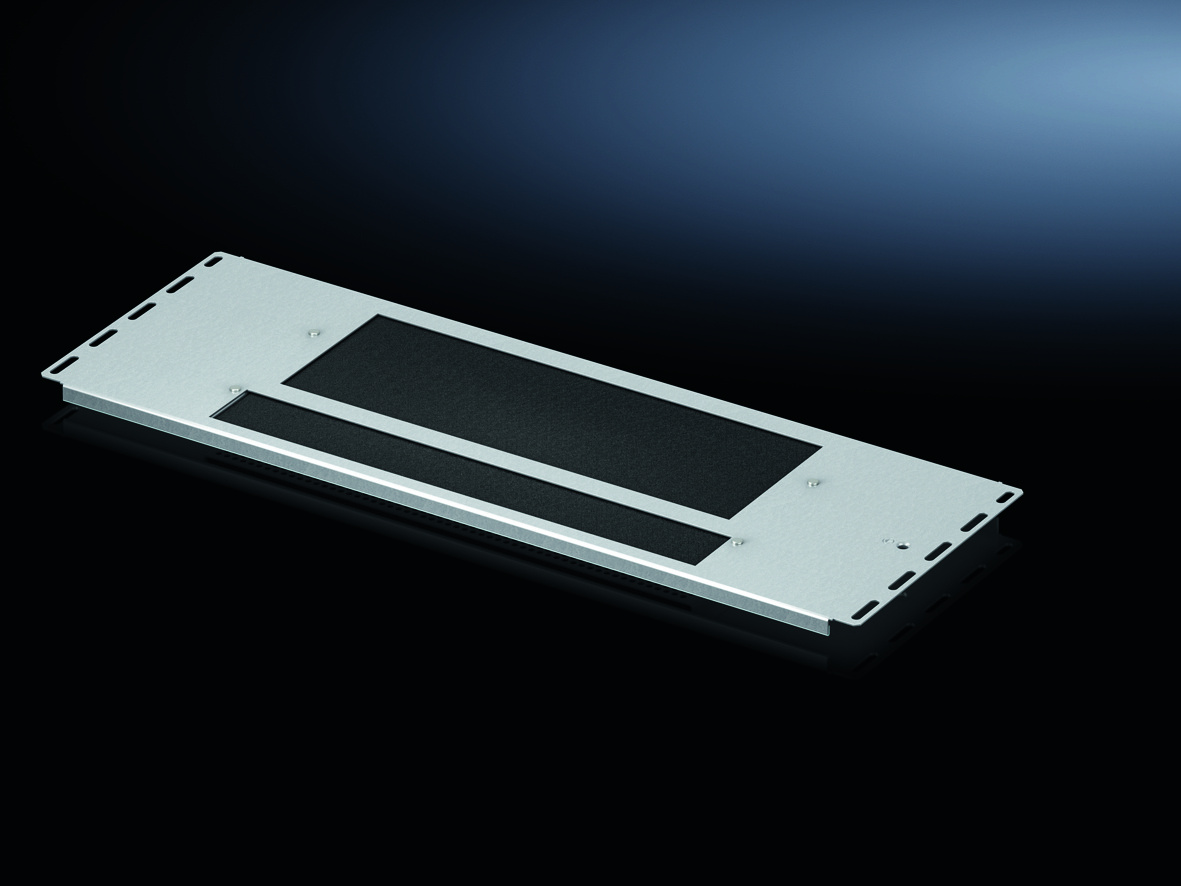

Rittal 5301331 VX IT floor plate module, ventilated, W x D: 800x237.5 mm

Your rating:
Average rating
product review for Rittal 5301331 VX IT floor plate module, ventilated, W x D: 800x237.5 mm
( 4 / 5 ) 4 ratings
Rittal 5301331
This image may differ from the desired article.
Rittal 5301331Rittal 5301331
-10% 39,68 EUR 44,26 EUR
( 47,22 EUR incl. VAT )
≈ £33.21  |  ≈ $43.61
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 5301331 VX IT floor plate module, ventilated, W x D: 800x237.5 mm
Datasheet:file_download Download
Lieske Part No.:1714520
Mfg Part No: 5301331
UPC/EAN: 4028177950832
Weight:2.38 kg
Type:VX 5301331

Product information for Rittal 5301331:

The Rittal VX 5301331 is a floor plate module, specifically designed for use in the VX IT enclosure with a width of 800 mm. It serves to close the enclosure floor and is made of sheet steel, whose surface is zinc-coated to prevent corrosion. The module is ventilated, thereby supporting passive ventilation of the enclosure. Dimensions include a depth of 237.5 mm and a width of 800 mm, with the depth being suitable for combination with other floor modules of the same depth.

Applications
This floor plate module is used in industrial environments where VX IT enclosures are installed. It is part of the system accessories components, contributing to the safe and functional finishing of the enclosure floor. The ventilation function supports heat dissipation inside the enclosure, which is particularly important with dense electronic installations. The modular design allows for flexible adaptation to different enclosure widths by combining multiple modules.

Functions and Equipment in Detail
The module features a large perforated area, supporting passive enclosure ventilation. Ventilation is achieved through the integrated filter mat, which is designed as a single-piece component and can be inserted from above. This enables easy replacement of the filter mat without complex disassembly. The filter mat is included in the delivery scope and serves to filter dust and particles, maintaining the cleanliness of the enclosure interior.

Technology Explained Simply
The zinc coating of the sheet steel surface provides protection against corrosion, which is particularly beneficial in humid or industrial environments. The ventilation openings are dimensioned to ensure sufficient airflow without compromising the mechanical stability of the module. The depth of 237.5 mm corresponds to the standard for VX IT enclosures, enabling compatible installation. Combining multiple modules is necessary to cover the entire floor area, as a single module only covers a portion of the total width.

Compatibility and Accessories
The floor plate module is specifically designed for the enclosure type VX IT with a width of 800 mm. It can be combined with other floor modules with a depth of 237.5 mm, enabling flexible adaptation to different enclosure configurations. As an accessory, a filter mat for floor plate, single-piece, ventilated is offered, which is inserted directly into the module. This is intended for replacement and supports air purification inside the enclosure.

Installation and Mounting
Mounting is done by securing the module to the enclosure floor. The delivery scope includes the floor plate module, the filter mat, and the necessary mounting hardware. The installation instructions are part of the delivery scope. Combining multiple modules is required to cover the entire floor area. The modules can be arranged in sequence according to the enclosure width, with the depth of 237.5 mm remaining constant.

Operational Advantages
The ventilation function supports the thermal stability of the enclosure, which can extend the service life of the installed components. The easy replaceability of the filter mat reduces maintenance time and allows regular cleaning without complete disassembly. The zinc-coated sheet steel surface provides high mechanical strength and corrosion protection, ensuring long-term stability of the module. The modular design enables flexible adaptation to different enclosure sizes within the VX IT series.

General
Materialsteel sheet
Surface protectionZinc-plated
Scope of deliveryfloor plate modules, ventilated, filter mat, including mounting hardware
Mounting noteCombining multiple floor plate modules is necessary to fully close the floor in VX IT; the floor plate module can be combined with other floor modules with a depth of 237.5 mm
Depth237,5 mm
Suitable forEnclosure type: VX IT, width: = 800 mm
PCF/VE (Cradle-to-Gate)9.1 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 5301331, EAN: 4028177950832
