Rittal 7888721 TX CableNet network enclosure, 800x2000x1000 mm, 42 U, disassemblable

Your rating:
Average rating
product review for Rittal 7888721 TX CableNet network enclosure, 800x2000x1000 mm, 42 U, disassemblable
( 4 / 5 ) 2 ratings

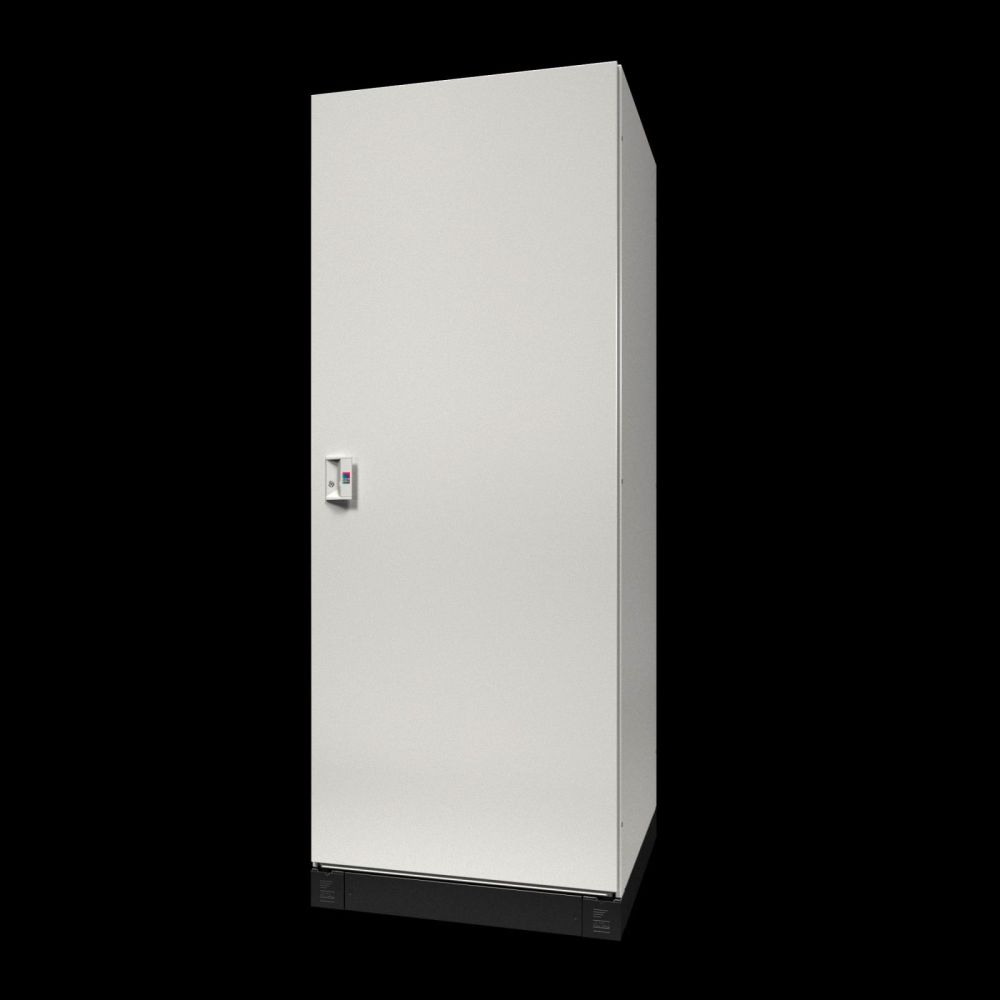

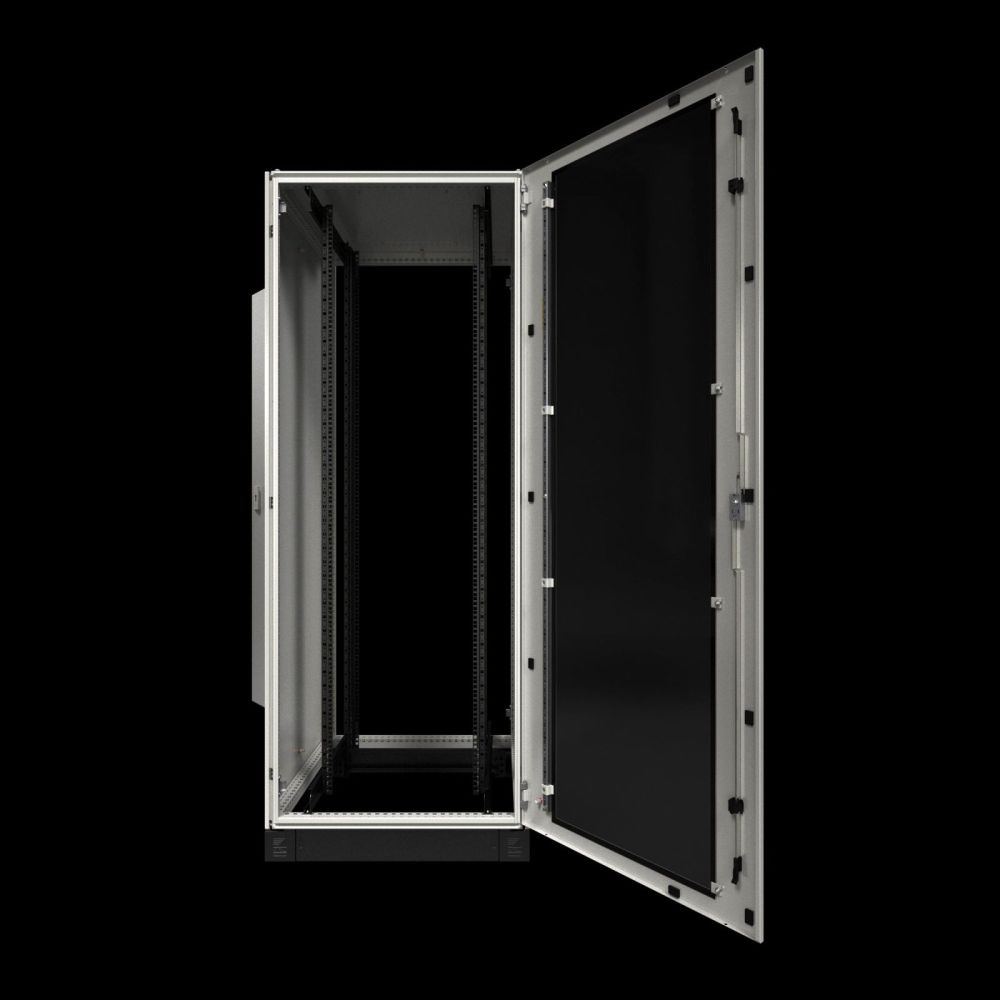

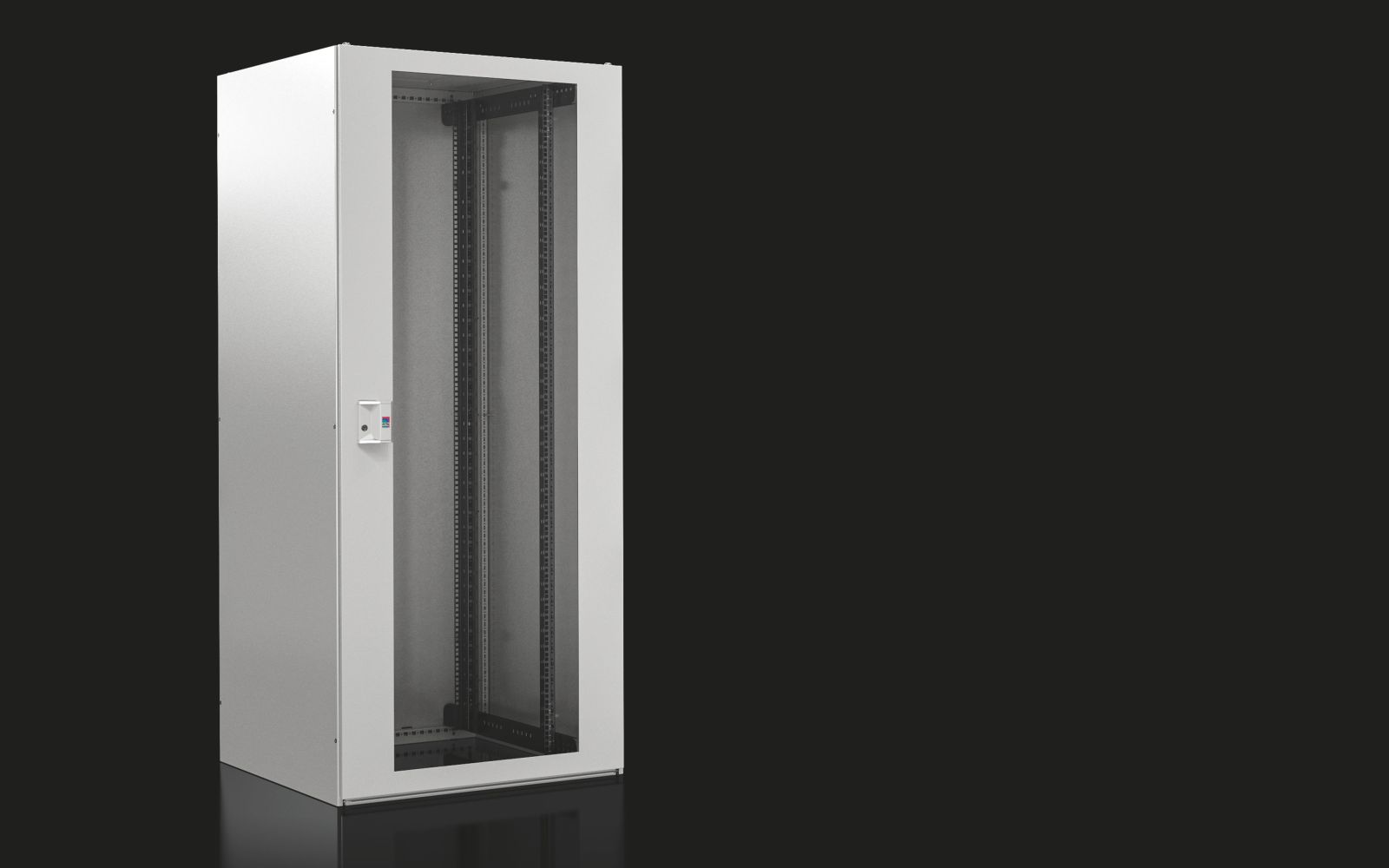

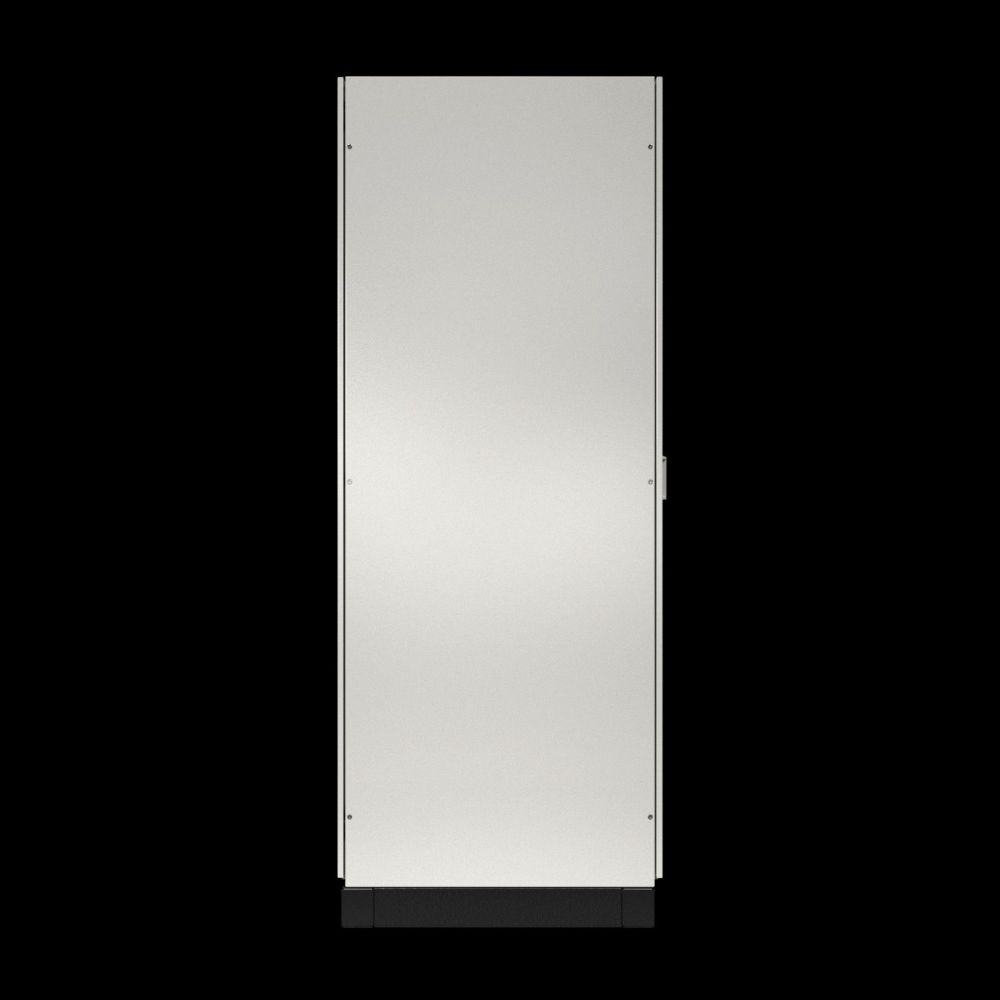

Rittal 7888721
This image may differ from the desired article.
Rittal 7888721Rittal 7888721Rittal 7888721Rittal 7888721Rittal 7888721Rittal 7888721Rittal 7888721
919,14 EUR
( 1.093,78 EUR incl. VAT )
≈ £769.32  |  ≈ $1,010.13
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >10 pieces
1x Rittal 7888721 TX CableNet network enclosure, 800x2000x1000 mm, 42 U, disassemblable
Datasheet:file_download Download
Lieske Part No.:1567528
Mfg Part No: 7888721
UPC/EAN: 4028177997530
Weight:133.5 kg
Type:TX 7888721

Product information for Rittal 7888721:

The Rittal TX 7888721 is a network cabinet of the TX CableNet series, designed for housing IT and electrical components in confined spaces, low ceiling heights, or hard-to-reach areas. The enclosure is manufactured in the 2nd generation, disassemblable, and features a viewing door at the front and a solid steel door at the rear. Dimensions are 800 mm width, 2,000 mm height, and 1,000 mm depth, corresponding to an expansion size of 42 HE. The cabinet is finished in RAL 7035 color, with flat surfaces dip-primed and powder-coated, while the cabinet frame is dip-primed.

Applications
This cabinet is suitable for installation in smaller IT network infrastructures, where space optimization and flexible adaptation to the specific environment are important. It is particularly suitable when only small electrical components are installed, avoiding power loss due to unused height units. The disassemblable construction allows for individual assembly and optional disassembly if required, making it advantageous for temporary or mobile installations.

Functions and Equipment in Detail

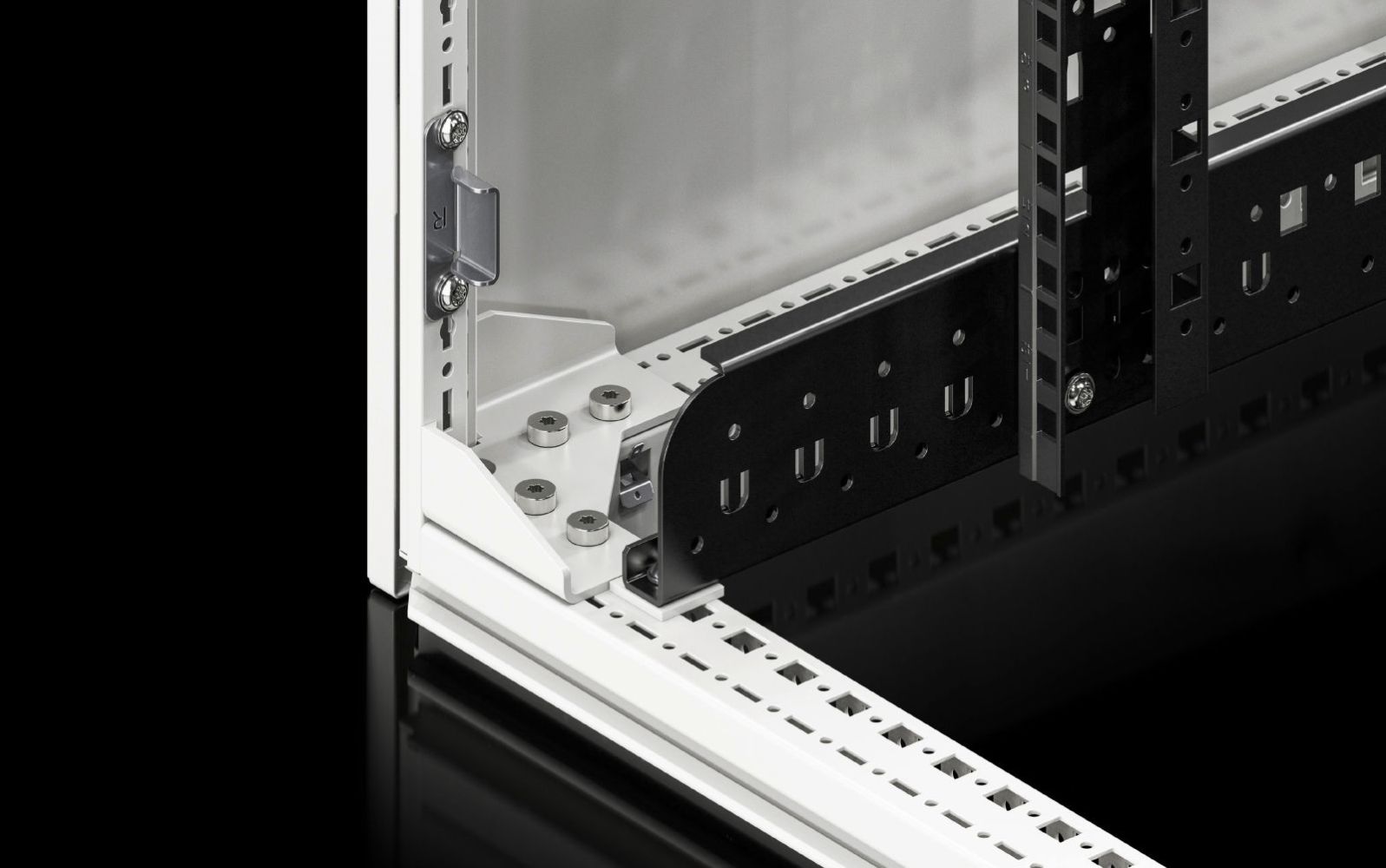

The enclosure is made of steel sheet with a wall thickness of 1.2 mm for doors and side panels, and 2 mm for the 19“ profile rails. The viewing door is single-piece and fitted with single-pane safety glass 3 mm, ensuring good visibility of installed components. The door opens up to 105° when baying. The rear door is also single-piece and made of steel sheet. The cabinet frame is equipped with 19“ profile rails, which are adjustable in both width and depth, allowing for asymmetric interior configuration. Side panels are screwed, enabling quick access to the interior.

Technology Explained Simply
The cabinet features a screwed roof plate with concealed cable entries on both sides across the full cabinet depth. This allows for orderly and concealed cabling. Additionally, a central, concealed opening in the roof plate is integrated, enabling easy installation of a fan module. However, brush strips are required for installing a fan module if cable entries are used or cover plates are removed. Static load capacity is 500 kg, and operational load capacity is 5000 N. The protection rating according to EN 60 529 is IP 20, meaning the cabinet is protected against finger contact and solid foreign objects up to 12.5 mm, but not against water or dust.

Compatibility and Accessories
Various accessories are available for extending and adapting the cabinet. These include, for example, component shelves in different heights and load capacities (e.g., 0.5 HE, 1 HE, 1.5 HE), slide rails for device mounting, base plates in closed or ventilated versions, plinth corner pieces with trim panels, slide plates, and cable ducts for concealed cable entry. The brush kit for TX CableNet is also available to seal cable entries if fan modules are installed.

Mounting and Installation
The cabinet is delivered in disassembled form, making it easy to transport and assemble. The 19“ profile rails are adjustable, allowing flexible device arrangement. Side panels are screwed, enabling quick access to the interior. The spacing between levels in the delivered state is 645 mm. Mounting is done via the integrated system perforation in a 25 mm grid, allowing components to be easily hung and secured. Baying of cabinets is possible at the front, rear, and sides.

Advantages in Operation
The cabinet offers optimal use of cabinet volume through the new roof plate concept, enabling concealed cable entry and integration of a fan module. The disassemblable construction and adjustable profile rails increase flexibility during installation. The static load capacity of 500 kg and operational load capacity of 5000 N ensure safe use even with heavy equipment. The viewing door allows quick visual inspection of installed components without opening the cabinet. The IP 20 protection rating is suitable for indoor environments where no special requirements for water tightness or dust protection apply.

General
Model2nd generation, disassemblable, with vision door, with side walls, with roof sheet
MaterialEnclosure: sheet steel, door: sheet steel, 1.2 mm, side wall: sheet steel, 1.2 mm, 19“-profile rails: sheet steel, 2 mm, side wall: sheet steel, 1.2 mm
Surface protectionCabinet frame: dip-primed, flat parts: dip-primed, powder-coated
Basic colourRAL 7035
ColourRAL 7035
Scope of deliveryHousing with front viewing door and rear door, cabinet frame, disassemblable, with 19" profile rails front and rear, side walls, screwed roof sheet with double-sided concealed cable entry over the entire cabinet depth and central, concealed opening for easy integration of a fan module.
Width800 mm
Height2.000 mm
Depth1.000 mm
Height units42 HE
Layer spacing (as delivered)645 mm
19" mountingdisassemblable
Door configuration rearSheet steel door, single-piece closed

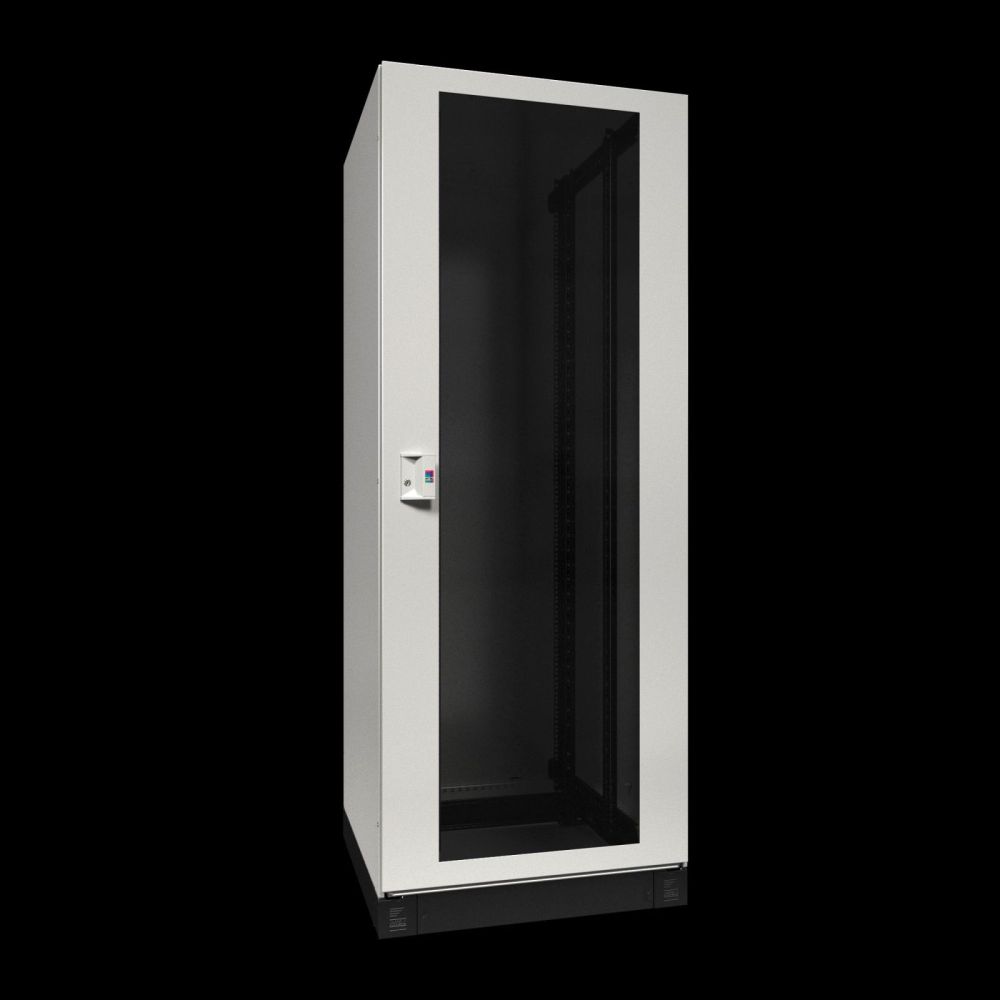

Front door configurationVision door, single-piece, with single-pane safety glass 3 mm, door opening angle in rowing max. 105°
Load capacity5000 N
Load capacity (static)500 kg
Degree of protection IP according to EN 60 529IP 20
NoteFor installation of a fan module, brush strips are required for equipping the cable passage openings, if these are used or the cover plates have been removed. Brush strips for covering the cable entry are available separately and can be conveniently ordered through our accessory range.
Base materialsteel sheet


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 7888721, EAN: 4028177997530
