Rittal 5301335 VX IT floor plate module 800x237.5 mm, two-piece

Your rating:
Average rating
product review for Rittal 5301335 VX IT floor plate module 800x237.5 mm, two-piece
( 4.5 / 5 ) 2 ratings
Rittal 5301335
This image may differ from the desired article.
Rittal 5301335Rittal 5301335Rittal 5301335
86,25 EUR 89,70 EUR
( 102,64 EUR incl. VAT )
≈ £72.19  |  ≈ $94.79
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 5301335 VX IT floor plate module 800x237.5 mm, two-piece
Datasheet:file_download Download
Lieske Part No.:1910588
Mfg Part No: 5301335
UPC/EAN: 4028177950870
Weight:2.14 kg
Type:VX 5301335

Product information for Rittal 5301335:

The Rittal VX 5301335 is a floor plate module for enclosures of type VX IT, specifically designed for a width of 800 mm. It is intended for targeted cable entry from below into the enclosure and is supplied as a two-piece module, allowing it to be retrofitted even when cables are already installed. The version with brush strip ensures higher sealing against the environment, supporting climate control within the enclosure. The brush strip is made of plastic, is halogen-free, and complies with flammability class UL 94-HB. The module plate itself is made of sheet steel and is zinc-coated to prevent corrosion. The depth of the module is 237.5 mm, making it compatible with other floor modules of the same depth.

Applications
This floor plate module is intended for use in VX IT enclosures, particularly in installations where targeted and sealed cable entry from below is required. The two-piece construction allows for flexible installation, even when cables are already routed in the enclosure. The brush strip provides improved air tightness, which is especially beneficial in environments with controlled climate conditioning. However, it is not suitable for applications requiring a protection rating according to IEC 60 529, as the brush strip does not provide sufficient mechanical or waterproof sealing.

Functions and Equipment in Detail

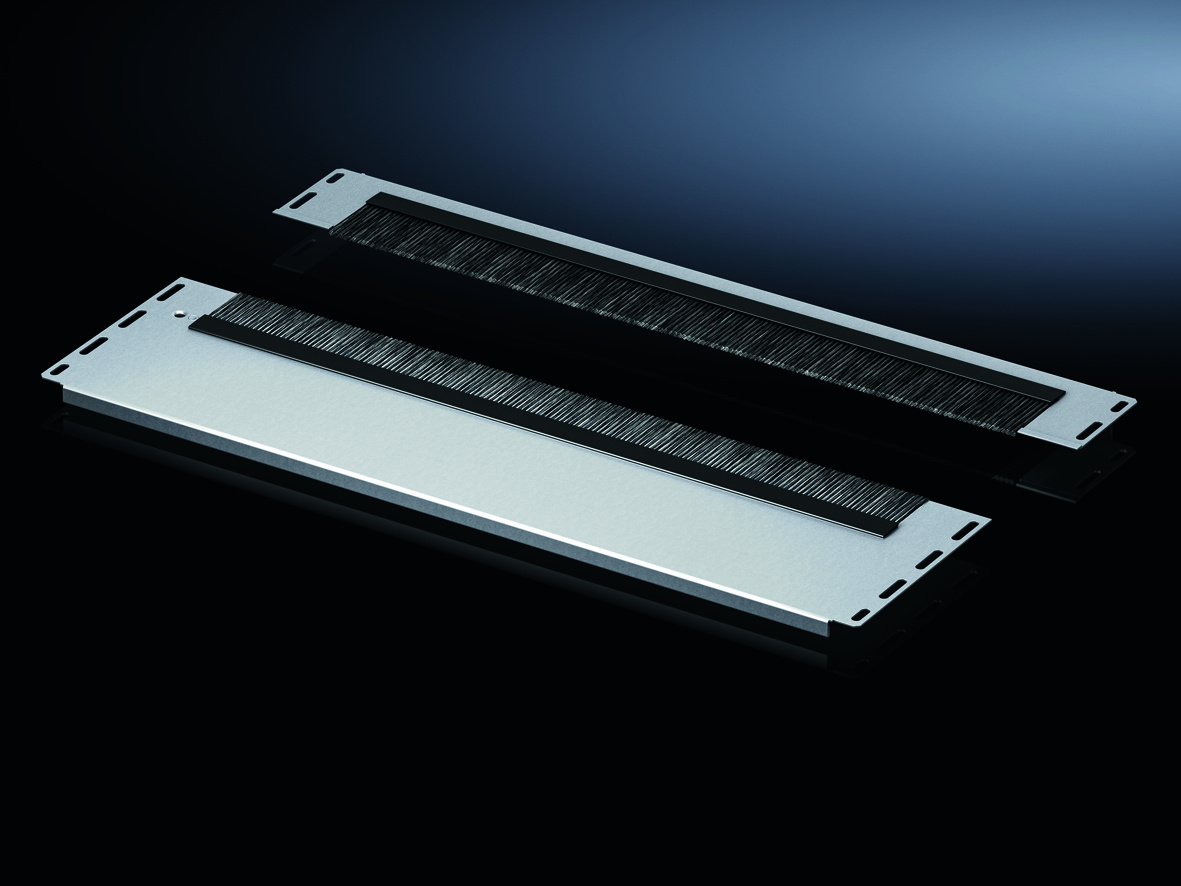

The module consists of two halves, each integrating a brush strip. The brushes are alternately offset to achieve optimal sealing performance. The brush strip is designed for high density to minimize air and dust ingress. The module plate is zinc-coated, ensuring high corrosion resistance. The delivery includes both module plate halves with brush strip, as well as the required mounting hardware. Installation is carried out by securing the module to the enclosure's base plate.

Technology Explained Simply

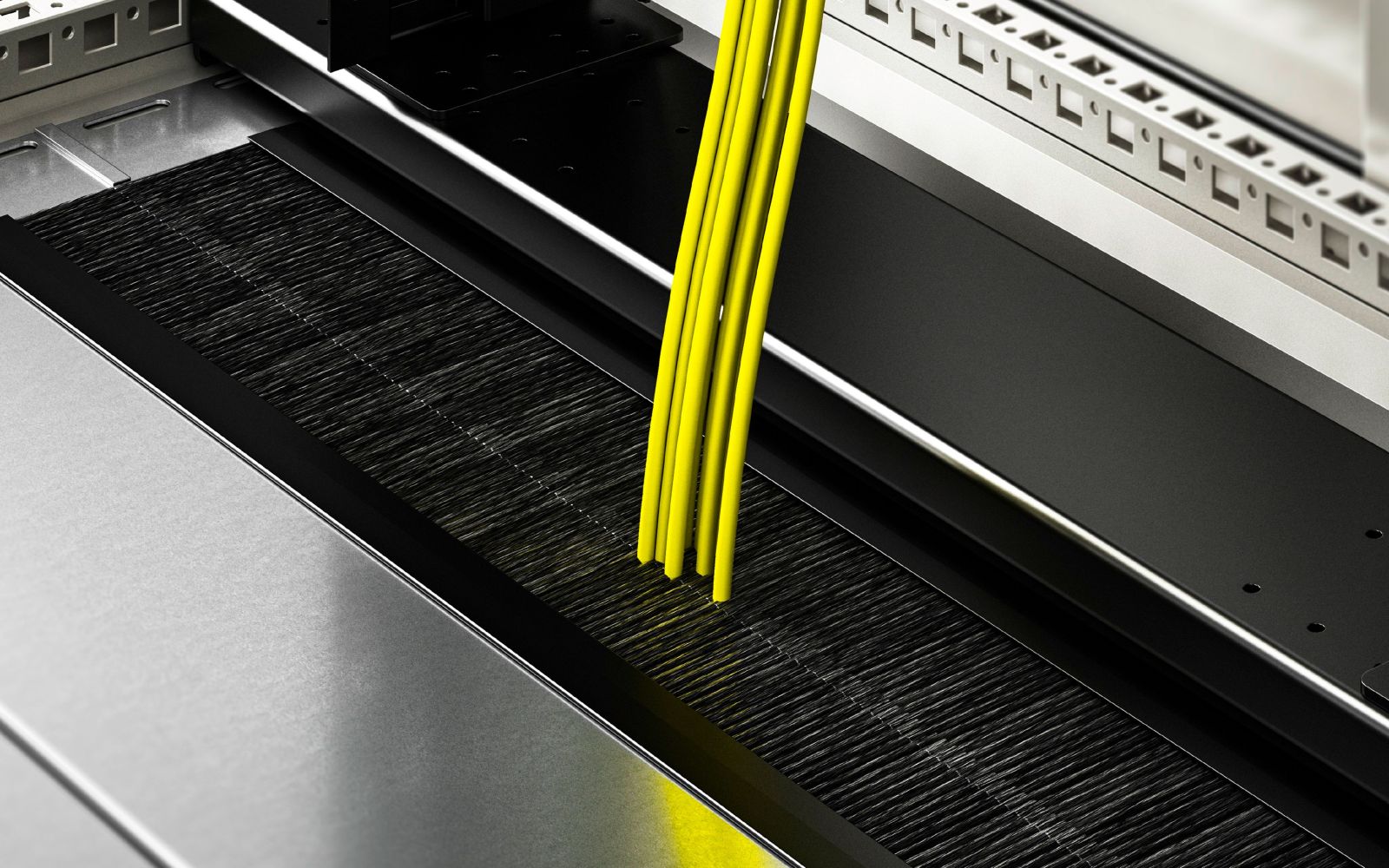

The brush strip functions as a mechanical seal, with the alternately offset bristles providing a tight fit around the cable or cable bundle. With proper cable entry, this achieves high air tightness, improving the efficiency of climate control within the enclosure. The zinc-coated surface of the sheet steel protects against corrosion, especially in humid or aggressive environments.

Compatibility and Accessories
The module is specifically designed for VX IT enclosures with a width of 800 mm. It can be combined with other floor modules with a depth of 237.5 mm to cover the entire floor area. Combining multiple modules is necessary to fully seal the floor in VX IT enclosures. It is not compatible with modules for other enclosure types or widths.

Installation and Mounting
Installation is performed by securing the two module halves to the base plate of the enclosure. The included mounting hardware is used for this purpose. The two-piece construction allows for flexible adaptation to already installed cables. The brush strip must be positioned so that it tightly encloses the cables to ensure effective sealing.

Operational Advantages
Using the floor plate module with brush strip enables targeted and sealed cable entry, controlling air circulation within the enclosure. This supports climate conditioning and can extend the service life of installed equipment. The zinc-coated surface ensures high corrosion resistance, enhancing the long-term stability of the module. The two-piece design simplifies installation, especially in existing installations, and reduces mounting effort.

General
ModelTwo-piece, with brush bar
MaterialModule sheet: steel sheet, brush strip: plastic, UL 94-HB, halogen-free, two-part, with brush strip
Surface protectionModule sheet: galvanised
Scope of delivery2 module sheet halves including brush bar, high-density, including fastening material
Mounting noteCombining multiple floor plate modules is necessary to fully close the floor in VX IT; the floor plate module can be combined with other floor modules with a depth of 237.5 mm
NoteBase plate modules with brush strip not suitable for applications with degree of protection according to IEC 60 529
Depth237,5 mm
Suitable forEnclosure type: VX IT, width: = 800 mm
PCF/VE (Cradle-to-Gate)8.2 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 5301335, EAN: 4028177950870

Questions & answers

What is the delivery time of Rittal 5301335 VX IT floor plate module 800x237.5 mm, two-piece?

The article Rittal 5301335 VX IT floor plate module 800x237.5 mm, two-piece is currently in stock

According to our experience the article is ready for dispatch within 7 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 5301335 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 5301335 VX IT floor plate module 800x237.5 mm, two-piece always at the best possible price. We can give you a discount of 2% on Rittal 5301335 VX IT floor plate module 800x237.5 mm, two-piece if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
