Rittal 5307114 Server rack VX IT ventilated 800x2000x800 mm 42 U (freight shipping)

Your rating:
Average rating
product review for Rittal 5307114 Server rack VX IT ventilated 800x2000x800 mm 42 U (freight shipping)
( 4.3 / 5 ) 3 ratings

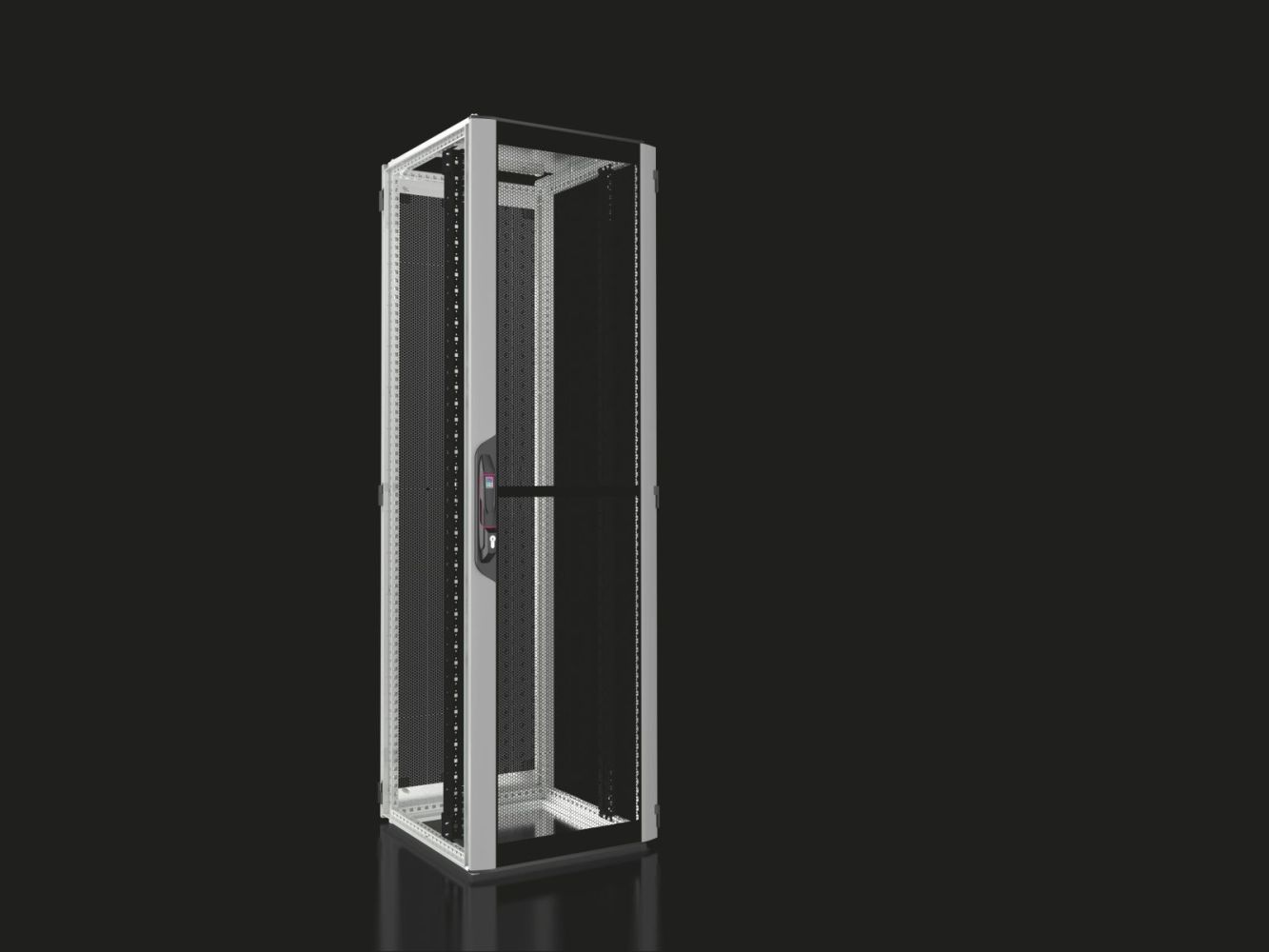

Rittal 5307114
This image may differ from the desired article.
Rittal 5307114Rittal 5307114Rittal 5307114Rittal 5307114Rittal 5307114Rittal 5307114Rittal 5307114Rittal 5307114
1.380,35 EUR 1.431,61 EUR
( 1.642,62 EUR incl. VAT )
≈ £1,155.35  |  ≈ $1,517.00
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 5307114 Server rack VX IT ventilated 800x2000x800 mm 42 U (freight shipping)
Datasheet:file_download Download
Lieske Part No.:1775539
Mfg Part No: 5307114
UPC/EAN: 4028177944947
Weight:89.8 kg
Type:VX 5307114

Product information for Rittal 5307114:

The Rittal VX 5307114 is a ventilated network and server rack of the VX IT series, designed for use in IT infrastructures with room climate control. It features dimensions of 800 mm width, 2,000 mm height, and 800 mm depth, offering an expansion size of 42 height units (HE). The construction is made of steel sheet and aluminium, with the front door made of aluminium (1.25 mm) and the rear door made of steel sheet (1.5 mm). The surface of the rack frame is dip-primed, the interior assembly is painted, while the rear door and roof are powder-coated. The front door is anodized/painted, ensuring a robust and aesthetically pleasing surface. The base colour of the enclosure is RAL 7035, with the front door featuring vertical silver profiles and horizontal profiles in RAL 9005. Interior assembly, ventilation grille at the front, handle, and hinges are also finished in RAL 9005.

Applications

The rack is designed for use in data centres, server rooms, and other IT environments where controlled ventilation and cooling of installed devices are required. The ventilated doors with a free area in the perforated sheet metal section of approximately 85 % support efficient air circulation. The configuration with 48,3 cm ( 19 inch ) profile rails enables the mounting of standard IT devices. The open floor construction offers flexibility for cable routing and integration with floor ventilation systems.

Functions and Equipment in Detail

The front door is designed as a single-piece aluminium-steel sheet door with 180° hinges, allowing for a full opening angle. The rear door is designed as a vertically divided steel sheet door with 180° hinges, ensuring convenient accessibility even with larger devices. The 48,3 cm ( 19 inch ) profile rails are standard in the VX IT and are screwed to the cross brace at the top and bottom. The mounting clearance is 150 mm at the front and 130 mm at the rear, providing sufficient space for cables and mounting accessories. The 48,3 cm ( 19 inch ) plane is positioned both at the front and rear, enabling flexible device arrangement.

Technology Explained Simply

The rack is designed for a static load capacity of 8,000 N, complying with the UL 2416 standard. The spacing between levels in the delivered state is 520 mm, suitable for mounting standard IT devices. The roof is multi-part and equipped with side cable entries at both sides of the depth, enabling flexible cable routing. It is prepared for mounting a fan plate, supporting the integration of fans for active ventilation. The integrated spacers with a height of 50 mm are used to raise a deck plate above the fan opening in the roof plate, enabling passive ventilation.

Compatibility and Accessories

The rack is supplied with 12 pieces of 48,3 cm ( 19 inch ) fasteners 1 HE and 25 conductive internal hexagon screws required for device mounting. Compatible accessories include, among others, plinth corner pieces, component shelves in various heights (0.5 HE to 1.5 HE), drawers in 2 HE and 3 HE, cable ducts, slide rails, blank panels, and cable routing brackets. These components allow individual adaptation of the rack to specific installation requirements.

Mounting and Installation

Mounting is done by screwing to the cross brace at the top and bottom. The 48,3 cm ( 19 inch ) profile rails are depth-variable, allowing flexible adjustment to device height. The open floor construction allows easy integration into existing floor ventilation systems. The side cable entries in the roof simplify cabling and reduce the number of required cable entry plates.

Operational Advantages

The rack offers high load capacity and a robust construction suitable for use in professional IT environments. The ventilated doors and open floor construction support efficient cooling of installed devices. The integrated mounting aids and extensive accessory range enable flexible and individual adaptation to specific requirements. The colour design in RAL 7035 and RAL 9005 ensures a uniform visual appearance in IT rooms.

Scope of Delivery

The rack is delivered with the rack frame, doors (front and rear), roof plate, 48,3 cm ( 19 inch ) profile rails, spacers (50 mm), 12 pieces of 48,3 cm ( 19 inch ) fasteners 1 HE, 25 conductive internal hexagon screws, and the IPPC pallet. The locking mechanism consists of comfort handles for half cylinders and a security locking system 3524 E at the front and rear.

Certifications and Standards

The rack is certified UL + C-UL (listed). The surface treatment corresponds to the manufacturer's specifications with dip-primed, powder-coated, and painted surfaces. The declaration of conformity and the manufacturer's declaration are documented in the manufacturer's datasheet.

Product Identification

Manufacturer: Rittal, Manufacturer's Number: 5307114, Type: VX 5307114, Category: unsorted › unsorted › 271414. The tariff code is 94032080, the EAN number is 4028177944947.

General
ModelVentilated, standard, with 19" profile rails
MaterialSheet steel, aluminium, front door: aluminium, 1.25 mm, rear door: sheet steel, 1.5 mm
Surface protectionCabinet frame: dip-primed, interior: painted, rear door and roof: dip-primed, powder-coated, front door: aluminium, anodized/painted
Basic colourRAL 7035
ColourHousing frame, rear door and roof: RAL 7035, front door: vertical profiles silver, horizontal profiles RAL 9005, interior fitting, front ventilation grille: RAL 9005, handle and hinges: RAL 9005
Width800 mm
Height2.000 mm
Depth800 mm
Height units42 HE
Mounting clearance to 19" plane, front/back150 mm / 130 mm
Mounting position 19" rackFront and rear
Layer spacing (as delivered)520 mm
19" mountingScrewed to top and bottom crossbar
Roof typeMulti-part, with lateral cable entry in depth, on both sides, prepared for fan panel
Door configuration rearSteel sheet door, ventilated, vertically divided, 180° hinges
Front door configurationAluminium-steel sheet door, ventilated, single-piece, 180° hinges
Profile rail version19" profile rails standard in VX IT
Floor versionOpen
19" rack configurationFront and rear
Mounting type for profile rail19"-level front and rear
Load capacity8.000 N
Max. load capacity (static) according to UL 2416 per cabinet8.000 N
NoteDepending on type and location of installation, the door opening angle may vary in the specific application
Base materialsteel sheet
PCF/VE (Cradle-to-Gate)221.2 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 5307114, EAN: 4028177944947

Questions & answers

What is the delivery time of Rittal 5307114 Server rack VX IT ventilated 800x2000x800 mm 42 U (freight shipping) ?

The article Rittal 5307114 Server rack VX IT ventilated 800x2000x800 mm 42 U (freight shipping) is currently in stock

According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 5307114 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 5307114 Server rack VX IT ventilated 800x2000x800 mm 42 U (freight shipping) always at the best possible price. We can give you a discount of 2% on Rittal 5307114 Server rack VX IT ventilated 800x2000x800 mm 42 U (freight shipping) if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
