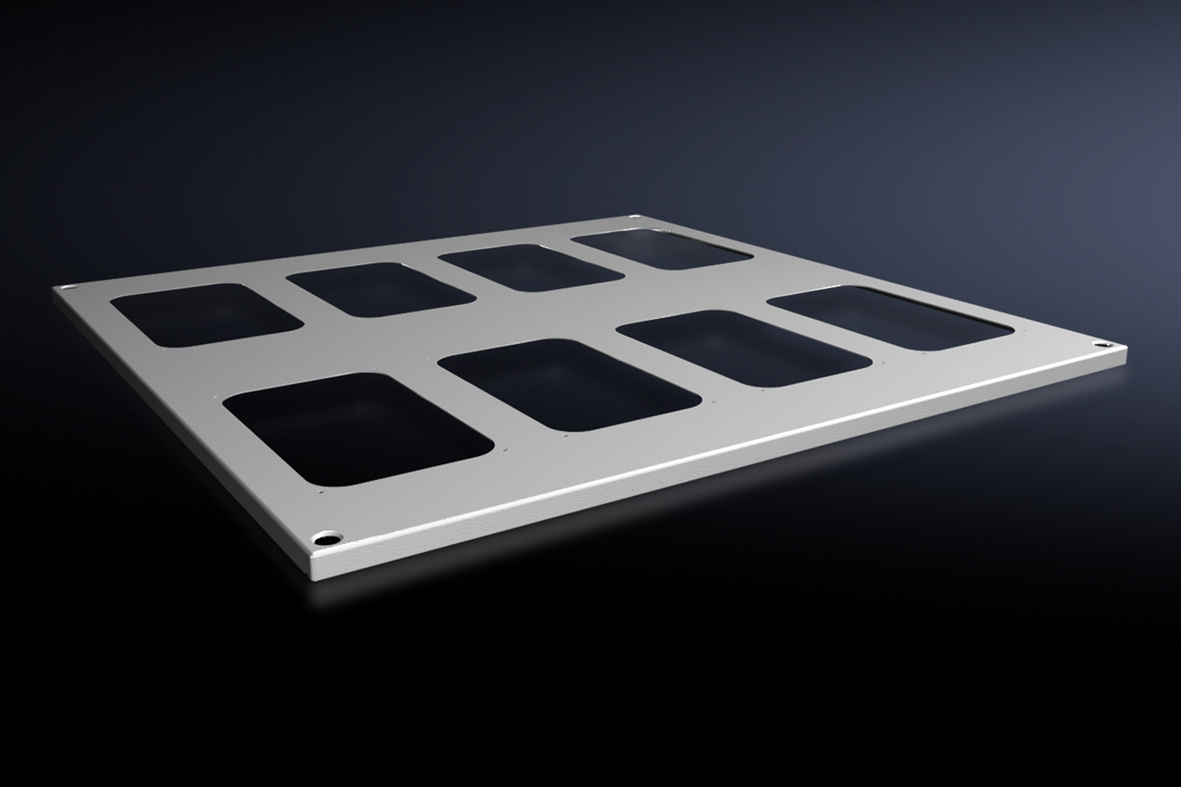

Rittal 9681588 SV roof plate for VX, width: 800x800 mm, for cable entry

Your rating:
Average rating
product review for Rittal 9681588 SV roof plate for VX, width: 800x800 mm, for cable entry
( 4.8 / 5 ) 9 ratings
Rittal 9681588
This image may differ from the desired article.
Rittal 9681588Rittal 9681588Rittal 9681588
-12% 86,14 EUR 98,06 EUR
( 102,51 EUR incl. VAT )
≈ £72.10  |  ≈ $94.67
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 9681588 SV roof plate for VX, width: 800x800 mm, for cable entry
Datasheet:file_download Download
Lieske Part No.:1597404
Mfg Part No: 9681588
UPC/EAN: 4028177926547
Weight:6.54 kg
Type:SV 9681588

Product information for Rittal 9681588:

The Rittal SV 9681588 is a roof plate for enclosures of the VX series, specifically designed for dimensions of 800 mm width and 800 mm depth. It serves as a replacement for the standard roof or as an addition for enclosures originally delivered without a roof plate. The product is made of steel sheet with a thickness of 1.5 mm and features a surface coated with textured paint in the colour RAL 7035, providing a robust and uniform coating. The use of textured paint ensures improved mechanical durability and resistance to external influences. The roof plate is designed for mounting cable entry flanges, requiring exactly eight flanges to ensure secure and orderly cable passage.

Applications

The roof plate is primarily intended for use in industrial enclosures of the VX series, particularly in installations where structured and secure cable routing above the enclosure roof is required. It is suitable for applications in production environments where protection against mechanical damage and orderly cable routing are prioritised. The dimensions of 800 mm width and depth fit precisely to the corresponding enclosure sizes of the VX series, enabling direct mounting without additional modifications.

Functions and Equipment in Detail

The roof plate includes mounting hardware in the delivery scope, simplifying installation and enabling secure anchoring to the enclosure body. The integrated mounting technology ensures the roof plate can be mounted stably and vibration-resistant. The use of eight cable entry flanges enables flexible and structured cable routing, with each flange installed at designated mounting points. The material thickness of 1.5 mm steel sheet ensures sufficient strength to withstand mechanical loads during operation.

Technology Explained Simply

The steel sheet with a thickness of 1.5 mm offers a balanced combination of strength and weight. The textured paint surface in RAL 7035 provides a uniform coating that resists mechanical stress and corrosion. The colour RAL 7035 is a grey tone commonly used in industrial environments to ensure a neutral and professional appearance. Mounting is done using the included mounting hardware, ensuring a secure and durable connection. The eight designated mounting points for cable entry flanges enable an orderly and clear cable routing.

Compatibility and Accessories

The roof plate is specifically designed for enclosures of the VX series with dimensions of 800 mm width and 800 mm depth. It is compatible with corresponding enclosure models and can be used as a replacement for the standard roof. As accessories, transport eyes for VX, TS, SE (4 pieces) are offered, suitable for freight shipping. These transport eyes can be optionally added to enhance the safety of enclosure transportation.

Mounting and Installation

Mounting of the roof plate is done by securing it to the designated mounting points of the enclosure. The included mounting hardware enables quick and secure installation. The eight cable entry flanges are mounted at the corresponding positions to ensure cable passage.

Operation

The roof plate ensures a stable and secure covering of the enclosure roof, preventing mechanical damage and unintended access to the cable routing. The structured cable routing via the eight cable entry flanges improves the clarity and maintainability of the installation. The material quality and surface coating ensure a long service life and low maintenance requirements in industrial use.

Advantages in Operation

The use of the roof plate increases the safety of cable routing, as cables are guided and protected through the designated flanges. The robust construction made of steel sheet with 1.5 mm thickness and textured paint surface ensures high mechanical stability and resistance to environmental influences. The integrated mounting enables quick and secure installation, reducing installation time. Compatibility with the VX series and the exact fit to enclosure dimensions of 800x800 mm facilitate integration into existing installations.

General
MaterialSheet steel, 1.5 mm
Surface protectionStructured lacquer
ColourRAL 7035
Scope of deliveryIncluding mounting hardware
Number of required cable entry flanges8
Suitable forWidth: = 800 mm, Depth: = 800 mm
PCF/VE (Cradle-to-Gate)24.9 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
