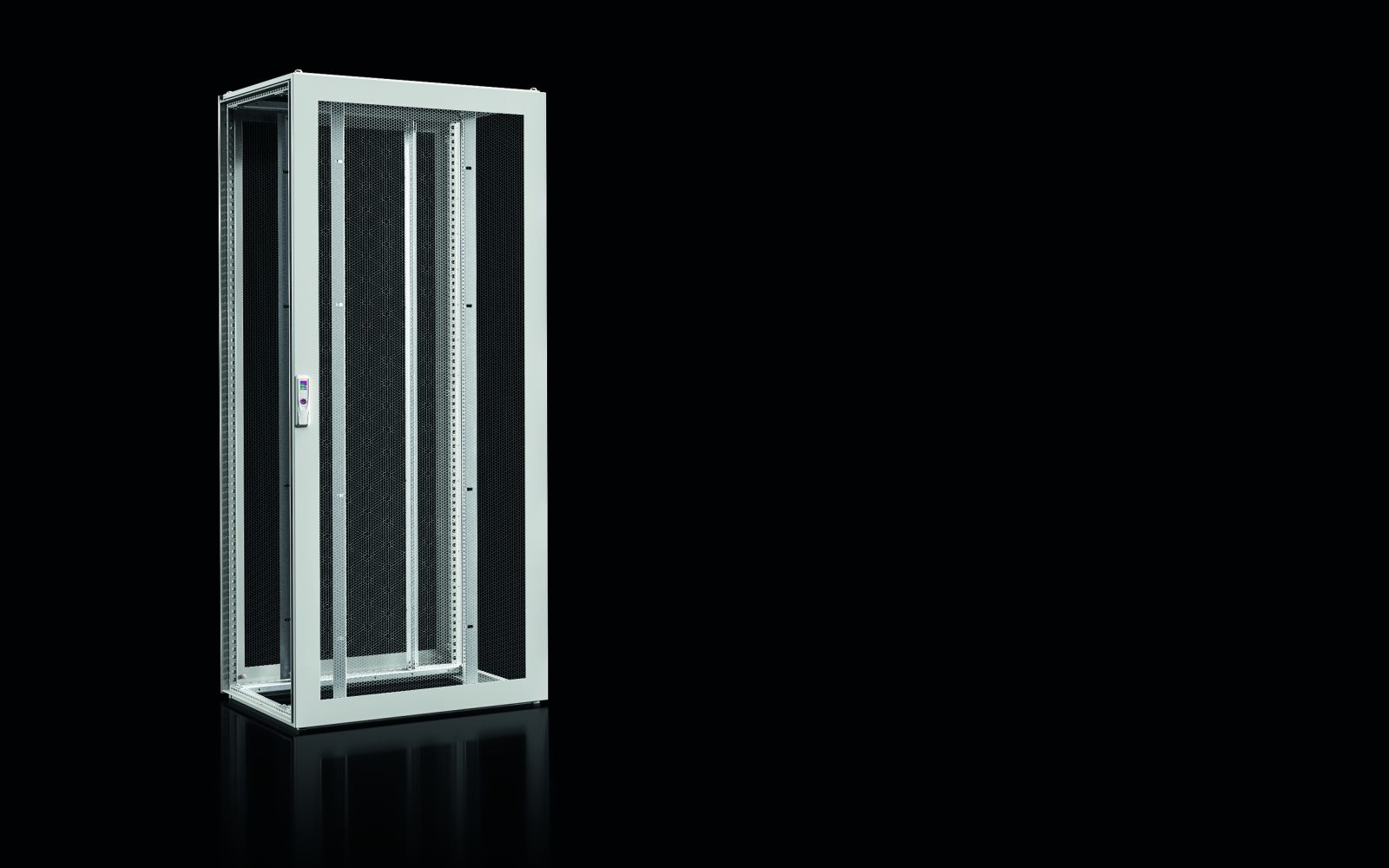

Rittal 9690043 SV VX ESS energy storage enclosure

Your rating:
Average rating
product review for Rittal 9690043 SV VX ESS energy storage enclosure
( 5 / 5 ) 1 ratings
Rittal 9690043
This image may differ from the desired article.
1.115,39 EUR 1.163,11 EUR
( 1.327,31 EUR incl. VAT )
≈ £933.58  |  ≈ $1,225.81
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 9690043 SV VX ESS energy storage enclosure
Datasheet:file_download Download
Lieske Part No.:895328
Mfg Part No: 9690043
UPC/EAN: 4028177044319
Weight:87.8 kg
Type:SV 9690043

Product information for Rittal 9690043:

The Rittal SV 9690043 is a VX ESS energy storage enclosure with dimensions width 800 mm, height 2,000 mm and depth 800 mm. It is specifically designed for use in energy storage systems and offers a flexible interior build, enabling modular and efficient installation of components. The enclosure frame is made of steel sheet with a thickness of 1.5 mm and is dip-primed, while the door, roof plate and rear panel are powder-coated with a textured lacquer in the colour RAL 7035. The surface treatment ensures high corrosion protection and resistance against mineral oils, lubricants, machining emulsions and solvents.

Applications

The enclosure is intended for use in industrial and technical installations, particularly in energy storage systems, where modular and scalable installation is required. The perforated door and rear panel with a free ventilation area of 85 % ensure efficient heat dissipation, which is important for the thermal stability of installed components. The protection rating IP 20 according to EN 60 529 protects against contact with fingers and against solid foreign objects, but not against water or dust – therefore, the enclosure is suitable for indoor use.

Functions and equipment in detail

The enclosure features a closed and profiled hollow section system with a hole pattern in a 25 mm grid, enabling flexible mounting of interior components. The door is fitted with a foamed PU foam seal, ensuring good sealing, and includes a four-point locking bar lock with double bar insert according to DIN 43668. The hinges are equipped with screwed stops, allowing the door opening angle to be set to 130° as standard and optionally upgraded to 180°. The floor clearance is 17 mm.

Technology explained simply

The interior build system allows for the installation of slide rails and other modular parts required for mounting energy storage modules. The rear panel and roof plate are electrically connected to the enclosure frame, ensuring automatic equipotential bonding according to DIN 62208. This is important for electrical safety and to avoid voltage differences. The flat parts are also fitted with integrated blind rivet nuts M6 to securely fasten fittings.

Compatibility and accessories

Various accessories are available to extend the enclosure, including plinth corner pieces, earthing straps in different cross-sections (4 mm², 10 mm², 16 mm², 25 mm²) and lengths (170 mm, 300 mm), plinth trim panels, side panels, baying connectors, baying brackets, baying blocks, roof plates for cable entry, sliding plates and floor plates. These elements allow individual adaptation to specific installation requirements.

Mounting and installation

Mounting is performed via the integrated hole grid in a 25 mm pitch, enabling precise and flexible fastening of interior components. The horizontal profiles are equipped with an integrated groove above the seal, facilitating seal installation and sealing. The profiles are bayable on all sides, allowing flexible arrangement of multiple enclosures in a row. The maximum load capacity of the enclosure frame is 15,000 N, and that of the interior build system is 10,000 N.

Advantages in operation

The enclosure offers high mechanical stability and flexible mounting options for energy storage modules. The perforated surfaces ensure sufficient ventilation, increasing the service life of installed components. The integrated earthing and automatic equipotential bonding enhance electrical safety. The powder-coated surface in RAL 7035 provides a robust and aesthetically pleasing design that fits well in industrial environments. QR codes on the door, roof, rear panel and nameplate enable unique identification and easy access to product information and documentation.

General
ModelWith flexible internal construction
Materialrack frame: sheet steel, 1.5 mm, roof sheet: sheet steel, 1.5 mm, door: sheet steel, 1.5 mm, rear panel: sheet steel, 1.5 mm
Surface protectionCabinet frame: dip primed, door, roof and rear panel: powder coated, textured lacquer
ColourRAL 7035
Scope of deliveryCabinet frame, door and rear panel, perforated, roof sheet, lock: 3 mm double tongue
Degree of protection IP according to EN 60 529IP 20
Width800 mm
Height2.000 mm
Depth800 mm
PCF/VE (Cradle-to-Gate)290.48 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 9690043, EAN: 4028177044319

Questions & answers

What is the delivery time of Rittal 9690043 SV VX ESS energy storage enclosure?

The article Rittal 9690043 SV VX ESS energy storage enclosure is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9690043 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9690043 SV VX ESS energy storage enclosure always at the best possible price. We can give you a discount of 2% on Rittal 9690043 SV VX ESS energy storage enclosure if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
