Rittal 9681888 SV roof plate for VX, width: 800x800 mm, IP 2X

Your rating:
Average rating
product review for Rittal 9681888 SV roof plate for VX, width: 800x800 mm, IP 2X
( 5 / 5 ) 1 ratings
Rittal 9681888
This image may differ from the desired article.
Rittal 9681888Rittal 9681888Rittal 9681888
82,46 EUR
( 98,13 EUR incl. VAT )
≈ £69.02  |  ≈ $90.62
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 9681888 SV roof plate for VX, width: 800x800 mm, IP 2X
Datasheet:file_download Download
Lieske Part No.:1903715
Mfg Part No: 9681888
UPC/EAN: 4028177926660
Weight:11.04 kg
Type:SV 9681888

Product information for Rittal 9681888:

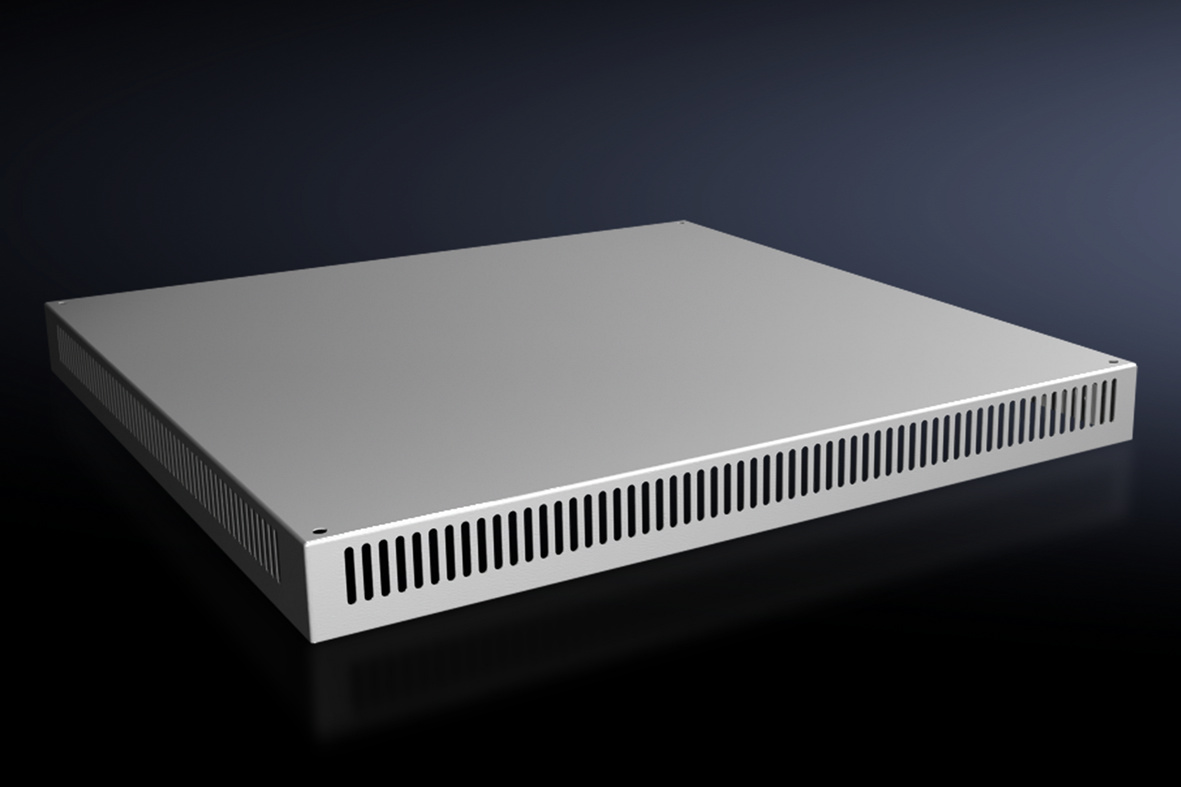

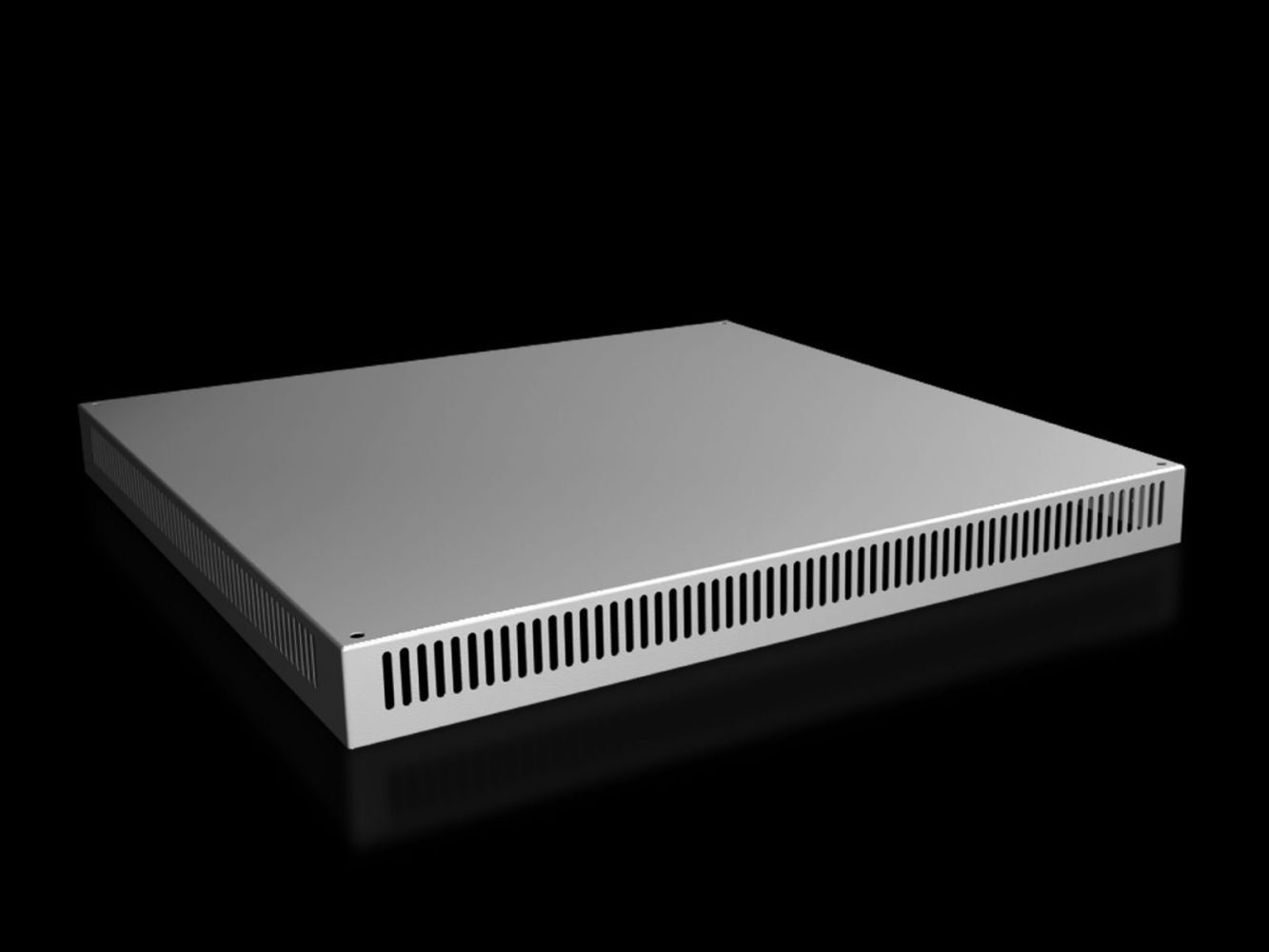

The Rittal SV 9681888 is a roof plate for enclosures of the VX series, specifically designed for enclosures with a width and depth of 800 mm each. It serves as a replacement for the standard roof or as an addition for enclosures originally delivered without a roof plate. The product features a ventilation opening to ensure sufficient air circulation inside the enclosure, which is particularly important for cooling electronic components.

Applications

The roof plate is intended for use in industrial environments where enclosures with external dimensions of 800 mm width and 800 mm depth are installed. It is suitable for applications requiring mechanical shielding of the top section of the enclosure without impairing ventilation function. The IP 2X protection rating ensures protection against contact with fingers and larger solid objects, but does not provide protection against water or dust. The ventilation opening supports natural convection, promoting heat dissipation from inside the enclosure.

Features and Equipment in Detail

The roof plate is made of sheet steel with a thickness of 1.5 mm, ensuring sufficient mechanical stability and durability. The surface is coated with a textured paint, forming a robust, scratch- and abrasion-resistant layer. The color corresponds to RAL 7035, a gray-beige standard tone commonly used for enclosures in industrial applications. The mounting height is 72 mm, enabling installation on enclosures with corresponding construction.

Technology Explained Simply

The use of 1.5 mm thick sheet steel ensures sufficient strength to protect the roof plate against mechanical loads such as wind pressure or contact. The textured paint coating prevents corrosion and provides an even, visually appealing surface finish. The ventilation opening is strategically positioned to support airflow inside the enclosure without compromising the IP 2X protection rating. The IP 2X protection rating means the device is protected against contact with fingers and larger solid objects, but not against water or dust. The dimensions of 800 mm width and depth fit exactly to the standard sizes of the VX enclosure series.

Compatibility and Accessories

The roof plate is specifically designed for enclosures of the VX series with dimensions of 800 mm width and 800 mm depth. It is suitable as a replacement part for the standard roof of other enclosures, provided the dimensions match. The ventilation opening allows use in combination with ventilation systems or cooling units that extract air through the enclosure roof.

Installation and Mounting

Mounting is done by securing to the existing mounting points of the enclosure. The included mounting hardware enables secure and stable fastening. The mounting height of 72 mm must be considered during planning of the enclosure height to ensure the roof plate fits correctly and no mechanical stress occurs. Installation does not require special tools, although the use of a screwdriver or a screwdriver combination tool is recommended.

Operational Advantages

The roof plate provides mechanical shielding of the top section of the enclosure, increasing safety. The ventilation opening supports cooling of electronic components installed in the enclosure, which can extend the lifespan of the devices. The use of sheet steel and textured paint ensures high robustness and durability. Compliance with the IP 2X protection rating ensures sufficient protection against mechanical contact, which is important in industrial applications. The dimensions and mounting hardware enable easy and secure installation without additional purchases.

General
MaterialSheet steel, 1.5 mm
Surface protectionStructured lacquer
ColourRAL 7035
Scope of deliveryIncluding mounting hardware
Mounting height72 mm
Suitable forWidth: = 800 mm, Depth: = 800 mm


Product data sheet
Datasheet for Rittal 9681888, EAN: 4028177926660

Questions & answers

What is the delivery time of Rittal 9681888 SV roof plate for VX, width: 800x800 mm, IP 2X?

The article Rittal 9681888 SV roof plate for VX, width: 800x800 mm, IP 2X is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9681888 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9681888 SV roof plate for VX, width: 800x800 mm, IP 2X always at the best possible price. We can give you a discount of 2% on Rittal 9681888 SV roof plate for VX, width: 800x800 mm, IP 2X if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
