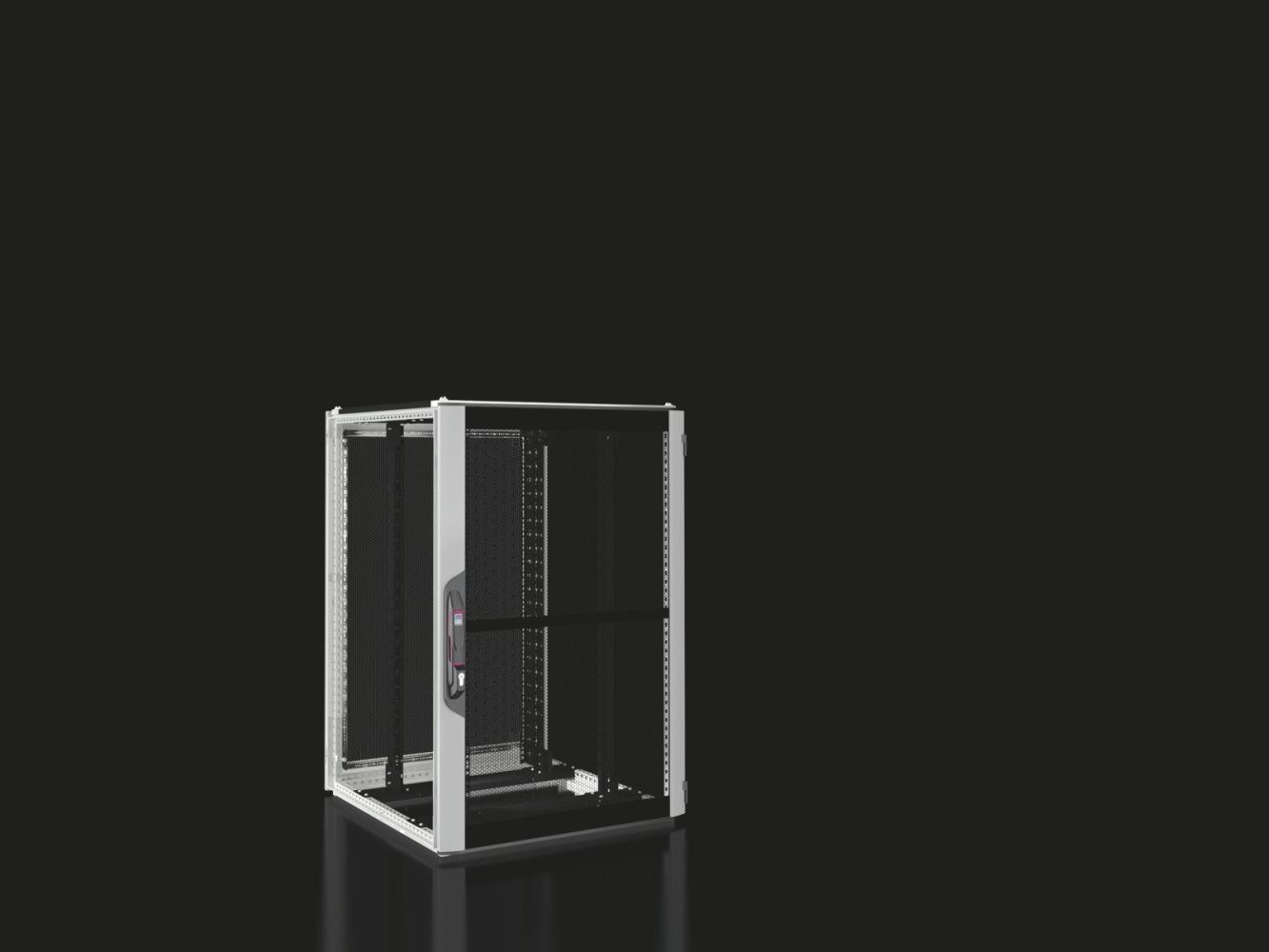

Rittal 5303114 Serverschrank VX IT ventilated 800x1200x800 mm 24 U
|
1.238,55 EUR |
|
|
( 1.473,87 EUR incl. VAT ) ≈ £1,036.67 | ≈ $1,361.17 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1775563 |
| Mfg Part No: | 5303114 |
| UPC/EAN: | 4028177944831 |
| Weight: | 67.5 kg |
| Type: | VX 5303114 |
Product information for Rittal 5303114:
Applications
The rack is designed for use in server rooms, data centers, and IT infrastructures where controlled ventilation and cooling of installed devices are required. The ventilated doors ensure efficient air circulation, supporting cooling of installed IT components. The open floor construction allows flexible cable routing and installation of floor plates or component shelves as needed.
Functions and Equipment in Detail
The rack features an aluminum sheet metal front door and a steel sheet metal rear door, both ventilated. The front door is single-piece and equipped with 180° hinges, allowing full opening. The rear door is also ventilated and offers a free area in the perforated section of approximately 85 %. The rack frame surface is dip-primed, the interior finish is painted, while the rear door and roof are powder-coated. The front door is made of aluminum with a thickness of 1.25 mm and is anodized/painted. The rear door is made of steel sheet metal with a thickness of 1.5 mm. The color scheme corresponds to RAL 7035 for enclosure frame, rear door, and roof, while the front door is vertically silver and horizontally RAL 9005. Handles and hinges are also finished in RAL 9005.
Technology Explained Simply
The 48,3 cm ( 19 inch ) profile rails are standard in the VX IT and are screwed to cross-braces at the top and bottom. The mounting clearances are 150 mm at the front and 520 mm at the rear, providing sufficient space for cables and devices. The roof is multi-part and features side cable entries at the depth, arranged on both sides, and is prepared for mounting a fan plate. The floor construction is open, enabling flexible use. The ventilation of the doors supports cooling of installed devices and is designed for efficient air circulation.
Compatibility and Accessories
The rack is compatible with various accessories that serve to extend and adapt the rack. These include, for example, plinth corner pieces, component shelves in various heights, drawers in 2 HE or 3 HE, blanking panels in various sizes, cable ducts, slide rails, adjustable traverse, and fan modules. These components allow individual adaptation of the rack to specific installation requirements.
Mounting and Installation
Mounting is done via the 48,3 cm ( 19 inch ) profile rails, which are screwed to cross-braces at the top and bottom. The rack construction is pre-assembled and consists of a torsion-resistant, welded frame structure made of rolled, 9-fold flanged, closed hollow profiles. The perforation follows a 25 mm grid, enabling flexible mounting of devices. The integrated blind rivet nuts M6 allow secure, IP-rated fastening of fittings to the profile.
Advantages in Operation
The rack offers a high load capacity of 8,000 N and is designed for use in professional IT environments. The ventilated doors ensure efficient cooling of installed devices, increasing operational reliability. The open floor construction allows flexible cable routing and installation of additional components. The standard configuration with 48,3 cm ( 19 inch ) profile rails and integrated mounting infrastructure simplifies installation and maintenance of devices. The color design in RAL 7035 and RAL 9005 ensures a uniform visual appearance in IT environments.
| General | |
| Model | Ventilated, standard, with 19" profile rails |
| Material | Sheet steel, aluminium, front door: aluminium, 1.25 mm, rear door: sheet steel, 1.5 mm |
| Surface protection | Cabinet frame: dip-primed, interior: painted, rear door and roof: dip-primed, powder-coated, front door: aluminium, anodized/painted |
| Basic colour | RAL 7035 |
| Colour | Housing frame, rear door and roof: RAL 7035, front door: vertical profiles silver, horizontal profiles RAL 9005, interior fitting, front ventilation grille: RAL 9005, handle and hinges: RAL 9005 |
| Width | 800 mm |
| Height | 1.200 mm |
| Depth | 800 mm |
| Height units | 24 HE |
| Mounting clearance to 19" plane, front/back | 150 mm / 520 mm |
| Mounting position 19" rack | Front and rear |
| Layer spacing (as delivered) | 520 mm |
| 19" mounting | Screwed to top and bottom crossbar |
| Roof type | Multi-part, with lateral cable entry in depth, on both sides, prepared for fan panel |
| Front door configuration | Aluminium-steel sheet door, ventilated, single-piece, 180° hinges |
| Profile rail version | 19" profile rails standard in VX IT |
| Floor version | Open |
| 19" rack configuration | Front and rear |
| Mounting type for profile rail | 19"-level front and rear |
| Load capacity | 8.000 N |
| Max. load capacity (static) according to UL 2416 per cabinet | 8.000 N |
| Note | Depending on type and location of installation, the door opening angle may vary in the specific application |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 166.3 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
Questions & answers
What is the delivery time of Rittal 5303114 Serverschrank VX IT ventilated 800x1200x800 mm 24 U?
The article Rittal 5303114 Serverschrank VX IT ventilated 800x1200x800 mm 24 U is currently in stock
According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 5303114 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 5303114 Serverschrank VX IT ventilated 800x1200x800 mm 24 U always at the best possible price. We can give you a discount of 2% on Rittal 5303114 Serverschrank VX IT ventilated 800x1200x800 mm 24 U if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
