Rittal 8175245 VX side panel, screwable, pack of 2 for H x D: 1200x800

Your rating:
Average rating
product review for Rittal 8175245 VX side panel, screwable, pack of 2 for H x D: 1200x800
( 4.5 / 5 ) 11 ratings
Rittal 8175245
This image may differ from the desired article.
Rittal 8175245Rittal 8175245Rittal 8175245Rittal 8175245
130,41 EUR
( 155,19 EUR incl. VAT )
≈ £109.15  |  ≈ $143.32
plus delivery charges: 235,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 8175245 VX side panel, screwable, pack of 2 for H x D: 1200x800
Datasheet:file_download Download
Lieske Part No.:1440649
Mfg Part No: 8175245
UPC/EAN: 4028177921641
Weight:23 kg
Type:VX 8175.245

Product information for Rittal 8175245:

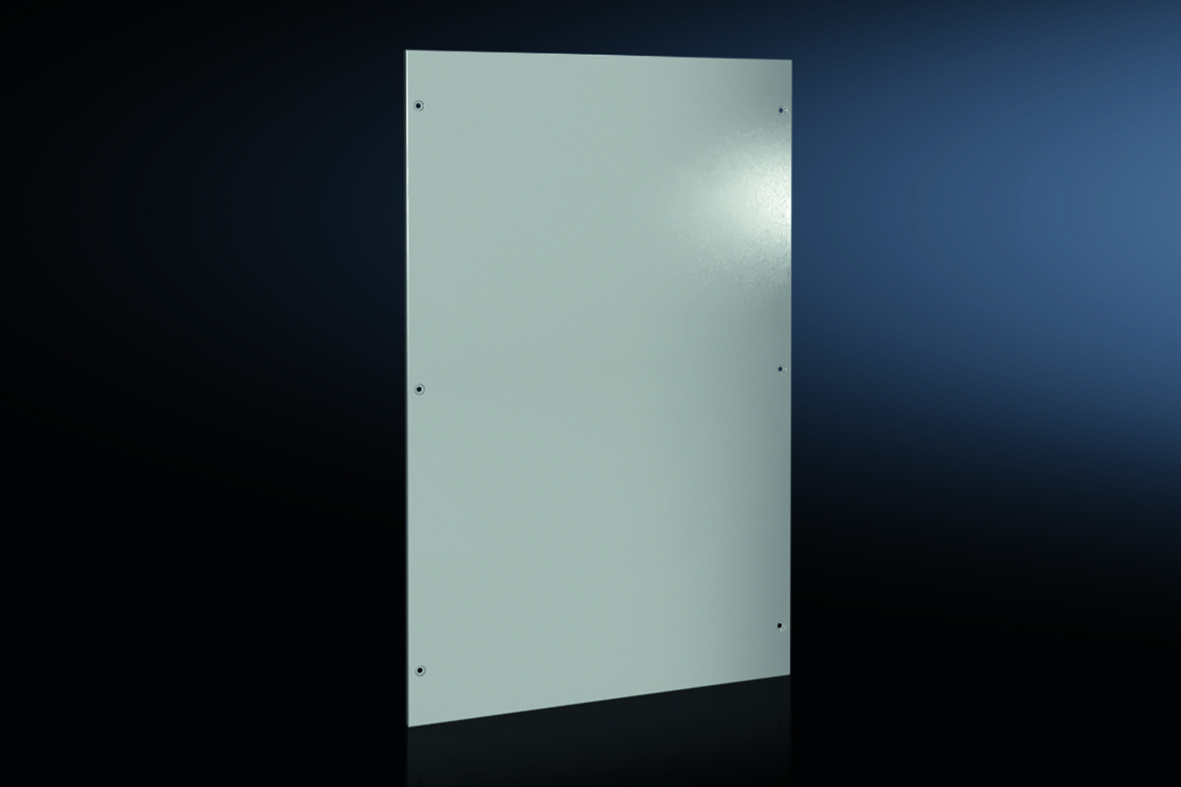

The Rittal VX 8175.245 is a screw-mounted side panel made of sheet steel, specifically designed for enclosures of the VX system with a height of 1,200 mm and a depth of 800 mm. The component serves as a stable and protection-compliant cover for the side surfaces of enclosures and is used in industrial electrical engineering and mechanical engineering, where reliable mechanical and electrical shielding is required. The side panel is made of 1.5 mm thick sheet steel, which is dip-primed and externally powder-coated, ensuring high corrosion resistance and uniform surface quality. The color is RAL 7035, a gray-black shade commonly used in industrial environments.

Applications

The side panel is intended for use in industrial enclosures, particularly in installations requiring protection class IP 55 according to IEC 60 529. This protection class ensures protection against dust and splashing water, making it suitable for indoor areas with increased humidity or mechanical stress. Additionally, it complies with Type Ratings Type 1 and Type 12 according to UL 50E, enabling use in environments with limited dust and splash water protection in the USA and Canada. The side panel is typically used in enclosures for control and distribution technology, in manufacturing automation, or in power supply applications.

Functions and Equipment in Detail

The side panel is mounted by screwing, with the use of clip-on side panel holders reducing mounting time. The holders allow for quick and precise fastening without additional tools. An integrated flat part holder with internal contact elements ensures automatic equipotential bonding and enhances electromagnetic compatibility (EMC) protection. Positioning in height and depth is facilitated by a hanging aid, ensuring exact alignment. The earthing bolts feature a large, paint-free contact surface to ensure optimal electrical connection and reliable earthing contact. Single-person mounting is possible, making on-site installation more efficient.

Technology Explained Simply

The use of sheet steel with a thickness of 1.5 mm ensures sufficient mechanical stability to protect the side panel against mechanical loads such as impact or vibration. The dip priming and external powder coating provide a durable corrosion protection layer that holds even under industrial conditions. Protection class IP 55 means the side panel is protected against dust and splashing water, making it suitable for indoor areas with increased humidity or for occasional cleaning operations. The UL approvals Type 1 and Type 12 refer to protection categories in the USA and Canada, where Type 1 provides protection against solid foreign objects and Type 12 includes protection against splashing water and dust.

Compatibility and Accessories

The side panel is specifically designed for enclosures of the VX system with a height of 1,200 mm and a depth of 800 mm. Compatible accessories include hinges for side panels, which are screw-mounted, as well as a VX internal locking mechanism for side panels, which is galvanized. These components can be used to extend functionality, for example, for secure locking or movable mounting.

Mounting and Installation

Mounting is done by screwing the side panel onto the designated holders inside the enclosure. The clip-on holders facilitate fastening, while the hanging aid enables precise positioning in height and depth. The earthing bolts are already integrated and ensure direct contact with the enclosure’s earthing. Mounting can be performed by one person, speeding up on-site installation.

Advantages in Operation

The side panel provides reliable mechanical and electrical shielding, ensuring the safety and functionality of the enclosure. The integrated earthing bolts and automatic equipotential bonding enhance EMC compatibility and reduce the risk of interference. Quick mounting via clip-on holders and single-person installation reduce installation time and labor costs. Protection class IP 55 and UL approvals expand the range of applications in various regions and application areas.

General
MaterialSheet steel, 1.5 mm
Surface protectionDip-coated, powder-coated exterior
ColourRAL 7035
Scope of deliveryIncluding mounting hardware
Suitable forCabinet type: VX, Height: = 1.200 mm, Depth: = 800 mm
Degree of protection IP according to IEC 60 529IP 55
Type rating according to UL 50EType 1, Type 12
Base materialsteel sheet
PCF/VE (Cradle-to-Gate)70.39 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 8175245, EAN: 4028177921641

Questions & answers

What is the delivery time of Rittal 8175245 VX side panel, screwable, pack of 2 for H x D: 1200x800?

The article Rittal 8175245 VX side panel, screwable, pack of 2 for H x D: 1200x800 is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8175245 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8175245 VX side panel, screwable, pack of 2 for H x D: 1200x800 always at the best possible price. We can give you a discount of 2% on Rittal 8175245 VX side panel, screwable, pack of 2 for H x D: 1200x800 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
