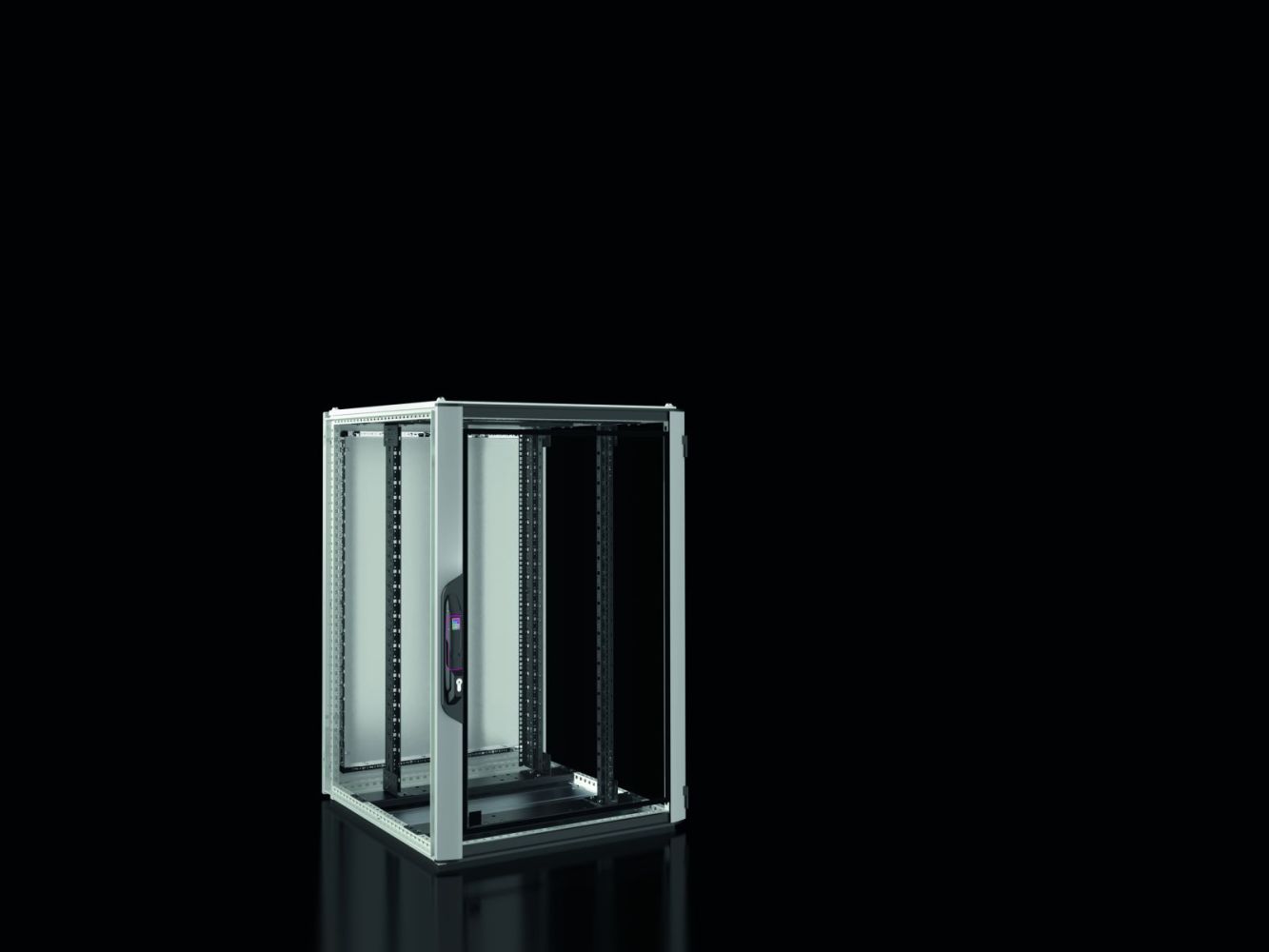

Rittal 5303134 Serverschrank VX IT closed IP55 800x1200x800 mm 24 U
|
1.025,57 EUR |
|
|
( 1.220,43 EUR incl. VAT ) ≈ £858.40 | ≈ $1,127.10 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: 3 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1775561 |
| Mfg Part No: | 5303134 |
| UPC/EAN: | 4028177944855 |
| Weight: | 90.8 kg |
| Type: | VX 5303134 |
Product information for Rittal 5303134:
Applications
The enclosure is intended for indoor use, particularly in environments where a protection rating of IP 55 is required. This protection rating ensures protection against dust and splashing water, with the IP 55 rating only achievable in combination with a baying seal or screwed side panels. The IK08 rating provides protection against mechanical impacts, such as light shocks or vibrations. The construction from steel sheet and aluminium ensures high stability and durability, even under load from heavy IT equipment.
Functions and Equipment in Detail
The front door is made of aluminium with a 3 mm thick single-pane safety glass viewing door, allowing clear visibility of installed equipment. The door is single-piece, closed, and equipped with 180° hinges, enabling full opening. The rear is covered by a closed steel sheet door with 130° hinges. Both doors are fitted with comfort handles for half cylinders, ensuring secure and convenient operation. The internal installation components, including the profile rails, are standardised for 48,3 cm ( 19 inch ) equipment.
Technology Explained Simply
The enclosure features a 48,3 cm ( 19 inch ) internal installation structure with profile rails screwed to cross braces at the top and bottom. The spacing between levels is 520 mm in the delivered state, with a mounting clearance of 150 mm at the front and 130 mm at the rear. The profile rails are designed for mounting IT equipment according to the 48,3 cm ( 19 inch ) standard. The base tray consists of multi-part base sheets and is closed, enabling secure fastening and cable routing. The roof is single-piece and closed, providing a stable and weather-resistant cover.
Compatibility and Accessories
The enclosure is equipped with a baying seal and a sealing kit for base sheets, required to achieve the IP 55 protection rating. Additionally, 12 pieces of 48,3 cm ( 19 inch ) fasteners (1 U, conductive) and 25 internal hexagon socket screws (conductive) are included in the delivery. Various accessories are available for mounting and operation, including component shelves in various heights, slide rails, door position switches, plinth corner pieces, and levelling elements. These components allow flexible adaptation to different operational requirements.
Mounting and Installation
Mounting is done via integrated blind rivet nuts M6 in the frame structure, enabling protection-rated fastening of fittings. The frame profiles are 9-fold bent and welded, ensuring high torsional stiffness. The perforation in a 25 mm grid allows flexible positioning of equipment. The profile rails are mounted to the cross braces at the top and bottom, with positioning possible both at the front and rear.
Operational Advantages
The enclosure offers a maximum static load capacity of 8,000 N, enabling secure installation of heavy IT systems. The surface treatment with dip priming and powder coating ensures high corrosion resistance. The colour design in RAL 7035 for enclosure frame, rear door, and roof, and RAL 9005 for internal installation, handle, and hinges, ensures a uniform and professional appearance. The combination of a viewing door at the front and a closed rear provides an optimal balance between visibility and protection. The integrated baying seal supports achieving the IP 55 protection rating and ensures a tight connection between adjacent enclosures.
Delivery Contents
The enclosure is delivered with the enclosure frame, doors, roof plate, baying seal, sealing kit for base sheets, 12 x 48,3 cm ( 19 inch ) fasteners (1 U, conductive), 25 internal hexagon socket screws (conductive), and an IPPC pallet. The listed components are included in the delivery and enable direct mounting and commissioning.
| General | |
| Material | Sheet steel, aluminium, vision door: single-pane safety glass, 3 mm, front door: aluminium, 1.25 mm, rear door: sheet steel, 1.5 mm |
| Surface protection | Cabinet frame: dip-primed, interior: painted, rear door and roof: dip-primed, powder-coated, front door: aluminium, anodized/painted |
| Basic colour | RAL 7035 |
| Colour | Casing frame, rear door and roof: RAL 7035, front door: vertical profiles silver, horizontal profiles RAL 9005, interior: RAL 9005, handle and hinges: RAL 9005 |
| Width | 800 mm |
| Height | 1.200 mm |
| Depth | 800 mm |
| Height units | 24 HE |
| Mounting clearance to 19" plane, front/back | 150 mm / 130 mm |
| Mounting position 19" rack | Front and rear |
| Layer spacing (as delivered) | 520 mm |
| 19" mounting | Screwed to top and bottom crossbar |
| Model | Standard |
| Roof type | One-piece, closed |
| Door configuration rear | Steel sheet door, closed, single-piece, 130° hinges |
| Front door configuration | Aluminium front door, closed, single-piece, 180° hinges |
| Profile rail version | 19" profile rails standard in VX IT |
| Floor version | floor tray with floor plate, multi-part, closed |
| 19" rack configuration | Front and rear |
| Mounting type for profile rail | 19"-level front and rear |
| Load capacity | 8.000 N |
| Max. load capacity (static) according to UL 2416 per cabinet | 8.000 N |
| Degree of protection IP according to EN 60 529 | IP 55 only in combination with gasket for rowing or screwed side walls |
| IK code | IK08 |
| Note | Depending on type and location of installation, the door opening angle may vary in the specific application |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 223.7 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
