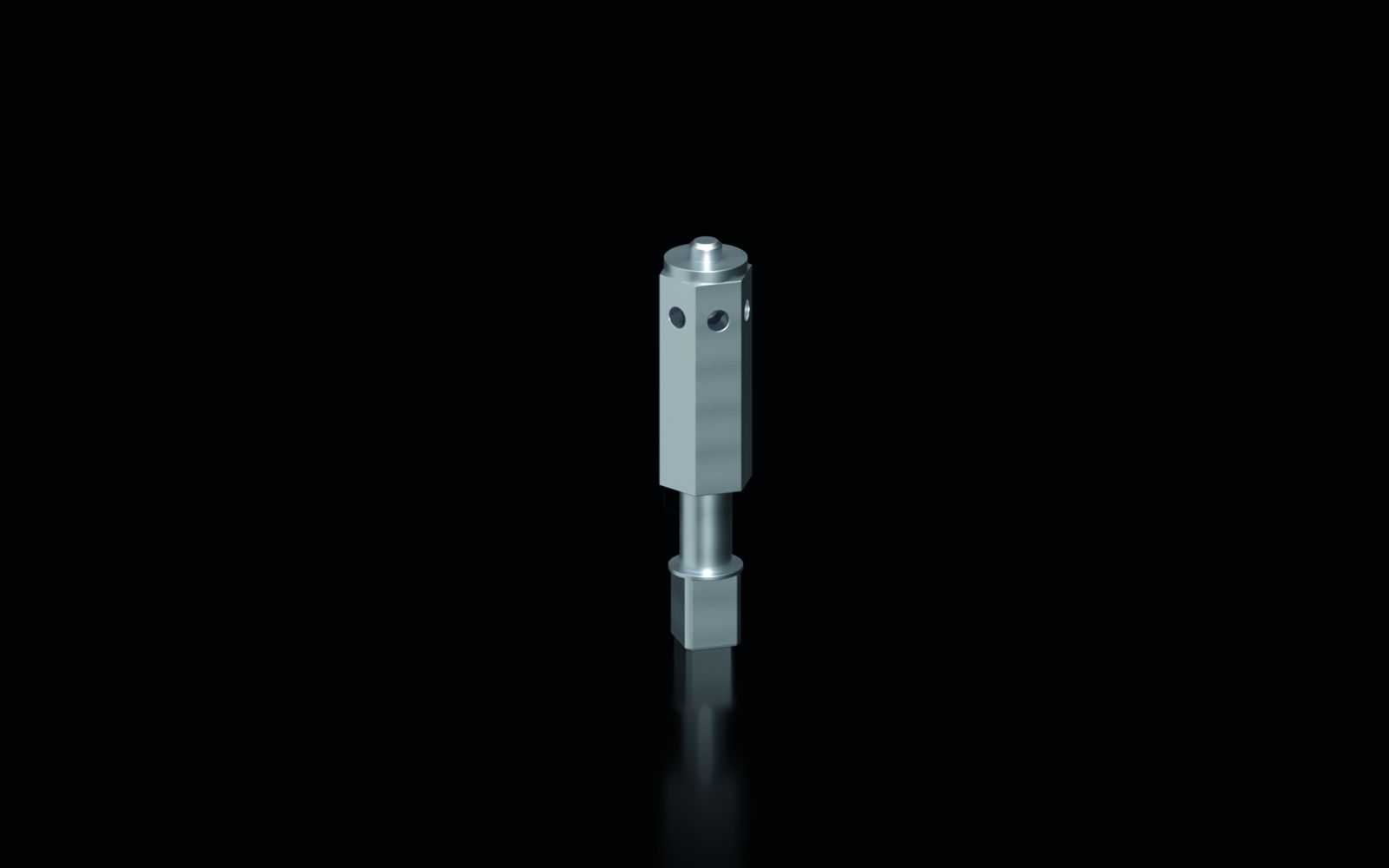

Rittal 8660120 Leveling element VX for plinth H100 mm 4 pcs
|
37,72 EUR 38,07 EUR |
|
|
( 44,89 EUR incl. VAT ) ≈ £31.57 | ≈ $41.45 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 5 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1103918 |
| Mfg Part No: | 8660120 |
| UPC/EAN: | 4028177984813 |
| Weight: | 0.611 kg |
| Type: | VX 8660120 |
Product information for Rittal 8660120:
Applications
The levelling element is intended for use in various enclosure systems, including combinations of VX, VX IT, VX SE, TX, TS, TS IT, PC, IW and TP, which are connected to the VX plinth system. It is primarily used in industrial plants, production halls or during the installation of enclosures in companies where precise horizontal alignment of devices is required.
Functions and Equipment in Detail
The element enables precise height adjustment to compensate for floor irregularities. The maximum permissible load is 2500 N per levelling element, ensuring high load capacity for typical enclosure applications. The galvanised surface provides protection against corrosion and ensures long service life, even under harsh operating conditions. Installation is carried out via the plinth corner piece, enabling simple and secure fastening to existing plinth structures.
Technology Explained Simply
The levelling element is a mechanical aid for aligning enclosures. It is placed under the plinth system to adjust the vertical position of the enclosure. The height of 100 mm allows sufficient adjustment without compromising the stability of the system. The load capacity of 2500 N per element is sufficient to support the weight of typical enclosures. The galvanised steel sheet surface provides high corrosion protection, which is particularly important in damp or industrial environments.
Compatibility and Accessories
The levelling element is compatible with enclosure systems VX, VX IT, VX SE, TX, TS, TS IT, PC, IW and TP that use the VX plinth system. It can be used in combination with these systems to ensure stable and horizontal mounting. However, the load capacity of the substructure must be checked to ensure that the weight of the enclosure and the levelling element can be safely supported.
Installation and Mounting
Mounting is done via the plinth corner piece, with the levelling element placed under the plinth system. Fastening is carried out using the included fastening material. Height adjustment is achieved by selecting the correct number and positioning of levelling elements to reach the desired horizontal level. The maximum compensation height is 15 mm, and multiple elements can be combined to compensate for larger irregularities.
Operational Advantages
Using the levelling element ensures stable and horizontal mounting of enclosures, positively influencing the function and service life of the devices. The high load capacity of 2500 N per element ensures safe operation, and the galvanised surface provides long-term corrosion protection. The simple installation via the plinth corner piece and the included fastening material reduce installation effort and time.
| General | |
| Material | steel sheet |
| Surface protection | Zinc-plated |
| Scope of delivery | Including mounting hardware |
| Load capacity | Max. permissible load: 2500 N per levelling element |
| Note | Suitable for use in combination VX, VX IT, VX SE, TX, TS, TS IT, PC, IW, TP with socket system VX, ground support capacity must be checked |
| Height | 100 mm |
| Weight/PU | 0,612 kg |
| Suitable for | for VX socket system, sheet steel |
Questions & answers
What is the delivery time of Rittal 8660120 Leveling element VX for plinth H100 mm 4 pcs?
The article Rittal 8660120 Leveling element VX for plinth H100 mm 4 pcs is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8660120 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 8660120 Leveling element VX for plinth H100 mm 4 pcs always at the best possible price. We can give you a discount of 2% on Rittal 8660120 Leveling element VX for plinth H100 mm 4 pcs if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
