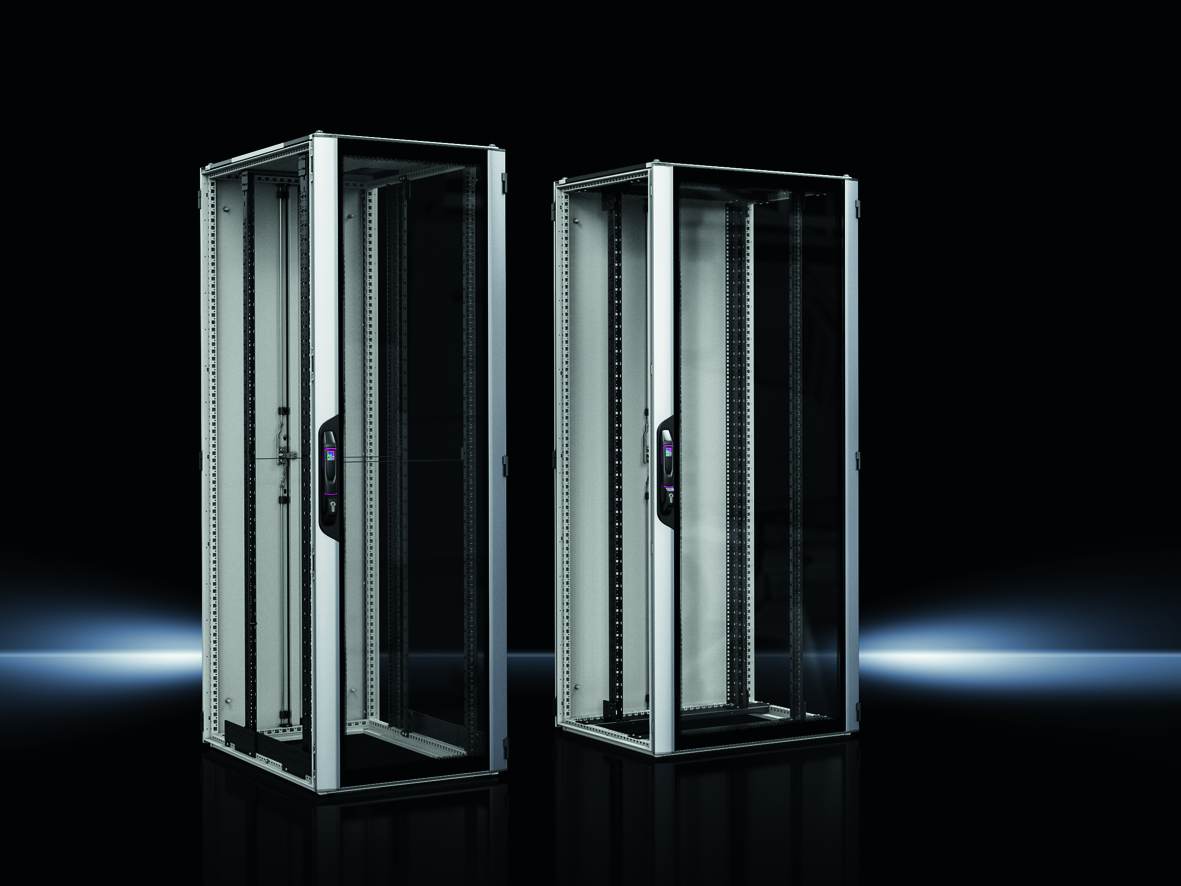

Rittal 5308123 Server rack VX IT closed 600x2000x1000 mm 42 U

Your rating:
Average rating
product review for Rittal 5308123 Server rack VX IT closed 600x2000x1000 mm 42 U
( 4.7 / 5 ) 3 ratings
Rittal 5308123
This image may differ from the desired article.
Rittal 5308123Rittal 5308123Rittal 5308123Rittal 5308123Rittal 5308123Rittal 5308123Rittal 5308123
-8% 1.236,25 EUR 1.338,89 EUR
( 1.471,14 EUR incl. VAT )
≈ £1,034.74  |  ≈ $1,358.64
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 5308123 Server rack VX IT closed 600x2000x1000 mm 42 U
Datasheet:file_download Download
Lieske Part No.:1775547
Mfg Part No: 5308123
UPC/EAN: 4028177945036
Weight:90.4 kg
Type:VX 5308123

Product information for Rittal 5308123:

The Rittal VX 5308123 is a network/server rack of the VX IT series in standard configuration, designed for use in IT infrastructures, server rooms, and technical facilities. The enclosure has dimensions of 600 mm width, 2,000 mm height, and 1,000 mm depth, offering a mounting height of 42 U. It is designed for direct rack-based climate control and features an aluminum viewing door at the front and a steel sheet door at the rear, both with 180° hinges. The front door is single-piece, while the rear door is vertically divided, enabling optimal accessibility. The viewing door is made of single-pane safety glass with a thickness of 3 mm, ensuring clear visibility of installed devices without compromising the protection rating.

Applications
This rack is suitable for use in data centers, IT server rooms, technical rooms, and other environments where structured and secure mounting of IT and network devices is required. The configuration with 48,3 cm ( 19 inch ) profile rails at the front and rear enables mounting of standard IT equipment. The open floor construction provides flexibility for cable routing and integration of floor ventilation systems. The multi-part roof construction with cable entries at the front and rear corners supports organized cable management and facilitates installation of fans or climate control units.

Functions and Equipment in Detail
The rack frame is made of sheet steel and is dip-primed, providing a good corrosion protection base. Internal mounting components are painted, while the rear door and roof are dip-primed and powder-coated. The aluminum front door is anodized/painted and features vertical silver-colored profiles and horizontal profiles in RAL 9005. The enclosure is finished in RAL 7035, with internal mounting components, handle, and hinges in RAL 9005. Mounting is done via mounting brackets, which are screwed to the frame structure at the top and bottom. The 48,3 cm ( 19 inch ) profile rails are standard in the VX IT and allow depth-variable mounting. The spacing between mounting levels is 720 mm in the delivered state, with front mounting clearance of 87 mm and rear clearance of 193 mm.

Technology Explained Simply
The rack has a load capacity of 15,000 N, with a maximum static load capacity per rack according to UL 2416 of 12,000 N. The IK rating of IK08 indicates that the rack is protected against mechanical impacts such as shocks or vibrations up to a certain degree. The surface treatment ensures high resistance to corrosion and mechanical stress. The use of single-pane safety glass in the front door ensures transparency and safety without compromising the protection rating. The 180° hinges allow full door opening, ensuring easy maintenance and installation of devices.

Compatibility and Accessories
The rack is compatible with a wide range of accessories that extend its functionality. These include cable management panels, slide rails, 48,3 cm ( 19 inch ) fasteners, component shelves, cable managers, hook-and-loop tape holders, drawers, cable ducts, and cable routing trough panels. These components support structured cable routing, device mounting, and maintenance. Accessories are available in various sizes and configurations to meet individual requirements. Installation is done via integrated mounting brackets and blind rivet nuts on the frame structure.

Mounting and Installation
Mounting is done via pre-installed mounting brackets, which are screwed to the frame structure at the top and bottom. The 48,3 cm ( 19 inch ) profile rails are standard and allow easy mounting of IT equipment. The open floor construction provides flexibility for cable routing and integration of floor ventilation systems. The multi-part roof construction with cable entries facilitates installation of fans or climate control units. The doors are equipped with 180° hinges, allowing full opening. The product is delivered on an IPPC pallet, with the rack frame pre-assembled with doors and roof plate.

Operational Advantages
The rack offers high load capacity and a robust construction suitable for professional environments. The integrated 48,3 cm ( 19 inch ) profile rails and open floor construction enable flexible and structured mounting of IT equipment. The safety glass viewing door ensures clear visibility of devices without compromising the protection rating. The 180° hinges and vertically divided rear door facilitate maintenance and installation. The multi-part roof construction with cable entries supports organized cable routing and integration of fans or climate control units. The surface treatment ensures high resistance to corrosion and mechanical stress. The IK rating of IK08 indicates protection against mechanical impacts. Mounting is done via integrated mounting brackets and blind rivet nuts on the frame structure, enabling simple and secure installation.

General
MaterialSheet steel, aluminium, vision door: single-pane safety glass, 3 mm, front door: aluminium, 1.25 mm, rear door: sheet steel, 1.5 mm
Surface protectionCabinet frame: dip-primed, interior: painted, rear door and roof: dip-primed, powder-coated, front door: aluminium, anodized/painted
Basic colourRAL 7035
ColourCasing frame, rear door and roof: RAL 7035, front door: vertical profiles silver, horizontal profiles RAL 9005, interior: RAL 9005, handle and hinges: RAL 9005
Width600 mm
Height2.000 mm
Depth1.000 mm
Height units42 HE
Mounting clearance to 19" plane, front/back87 mm / 193 mm
Mounting position 19" rackFront and rear
Layer spacing (as delivered)720 mm
19" mountingwith mounting bracket screwed to top and bottom of frame structure
ModelStandard
Roof typemulti-part, with cable entry in corner areas front and rear
Door configuration rearSteel sheet door, closed, vertically divided, 180° hinges
Front door configurationAluminium front door, closed, single-piece, 180° hinges
Profile rail version19" profile rails standard in VX IT
Floor versionOpen
19" rack configurationFront and rear
Mounting type for profile rail19"-level front and rear
Load capacity15.000 N
Max. load capacity (static) according to UL 2416 per cabinet12.000 N
IK codeIK08
NoteDepending on type and location of installation, the door opening angle may vary in the specific application
Base materialsteel sheet
PCF/VE (Cradle-to-Gate)217.3 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 5308123, EAN: 4028177945036
