Rittal 8660052 VX VX plinth corner piece 1=2 with trim panel front/back H:100 mm for W:1000 mm

Your rating:
Average rating
product review for Rittal 8660052 VX VX plinth corner piece 1=2 with trim panel front/back H:100 mm for W:1000 mm
( 5 / 5 ) 1 ratings
Rittal 8660052
This image may differ from the desired article.
Rittal 8660052Rittal 8660052Rittal 8660052Rittal 8660052
-6% 195,39 EUR 208,87 EUR
( 232,51 EUR incl. VAT )
≈ £163.54  |  ≈ $214.73
plus delivery charges: 100,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 8660052 VX VX plinth corner piece 1=2 with trim panel front/back H:100 mm for W:1000 mm
Datasheet:file_download Download
Lieske Part No.:877366
Mfg Part No: 8660052
UPC/EAN: 4028177037878
Weight:5.652 kg
Type:VX 8660052

Product information for Rittal 8660052:

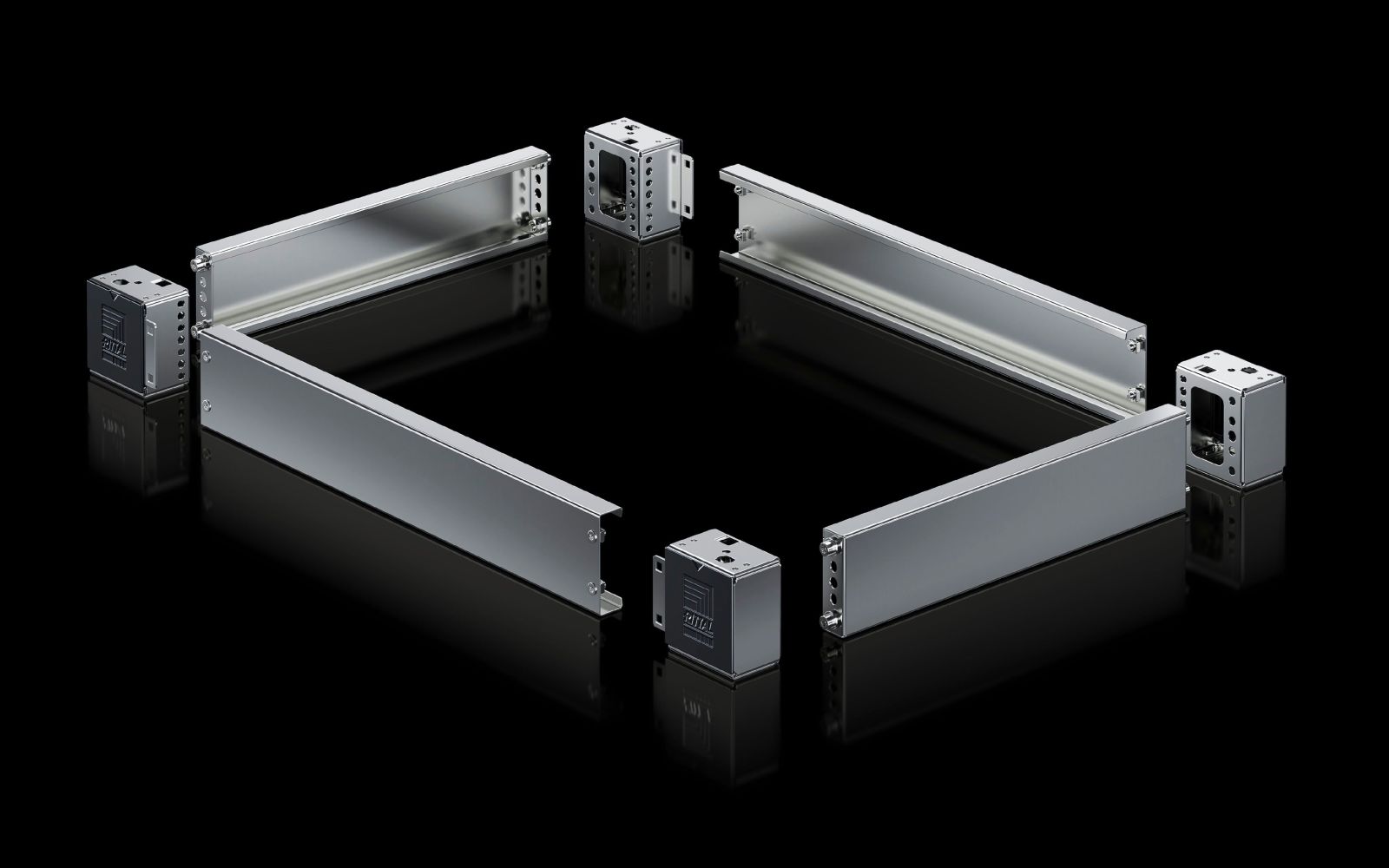

The Rittal VX 8660052 is a plinth corner piece with integrated plinth trim panels at the front and rear, specifically developed for the plinth system VX. It serves as a stable base for enclosures and housings of types VX, VX SE, TS and PC with a width of 1000 mm. The component is made of stainless steel 1.4301 (AISI 304), ensuring high corrosion resistance and mechanical strength. The surface is brushed with a grit of 400, providing a uniform, easy-to-clean and aesthetically pleasing finish. The height is 100 mm, making it suitable for standard plinth heights.

Applications

The plinth corner piece is used in industrial environments where a robust and durable mounting base for enclosures is required. It is particularly suitable for applications in manufacturing, process automation and electrical engineering, where enclosures must stand on a stable foundation. Use in environments with increased humidity, chemical exposure or mechanical stress is possible due to the stainless steel material. Compatibility with enclosure types VX, VX SE, TS and PC enables flexible integration into existing systems.

Functions and equipment in detail

The product includes four plinth corner pieces, two plinth trim panels at the front and rear, and four ABS caps. The plinth trim panels serve not only for optical finishing but also contribute to additional stabilization between plinths. The caps can be replaced, if required, with stainless steel caps for the VX plinth system to ensure a uniform material design. The plinth corner pieces feature large openings that allow optimal access to the screw connection, facilitating installation and maintenance. Fastening materials are included in the delivery scope.

Technology explained simply

The use of stainless steel 1.4301 (AISI 304) ensures high resistance to rust and chemical influences, which is particularly important in industrial environments. The brushed surface with grit 400 provides a uniform, easy-to-clean and robust surface finish. The height of 100 mm matches standard plinth heights and enables seamless baying of multiple plinths. The integrated front and rear trim panels ensure a closed optical finish and increase the stability of the entire plinth construction.

Compatibility and accessories

The plinth corner piece is designed for enclosures of types VX, VX SE, TS and PC with a width of 1000 mm. It is not compatible with components of the 2nd generation of the plinth system, as it belongs to the 1st generation. Suitable accessories include, among others, cable strain relief rails, mounting angles, mounting plates, TS mounting brackets, double swivel castors, plinth adapters, levelling elements and VX cable strain relief rail with angle profile. These components allow individual adaptation of the mounting and stabilization of the enclosure.

Installation and mounting

Installation is carried out using the fastening materials included in the delivery scope. The plinth corner pieces are attached to the corners of the enclosure, with the integrated front and rear trim panels forming the finish. The caps are inserted over the fastening elements to ensure a clean appearance. The large opening in the corner piece facilitates access to the screw connection. The components are designed to be arranged seamlessly next to each other, enabling a clean and stable installation.

Advantages in operation

The use of stainless steel 1.4301 (AISI 304) ensures long service life and low maintenance. The brushed surface is easy to clean and resistant to contamination. The integrated trim panels and caps ensure a professional optical finish. Compatibility with various enclosure types and the possibility to individually supplement accessories increase flexibility during installation. The stable construction ensures a secure mounting base for enclosures in demanding environments.

Type rating according to UL 50E

The product complies with Type ratings Type 1, Type 3R, Type 4, Type 4X and Type 12 according to UL 50E, confirming suitability for various environments, including damp, dusty or slightly corrosive areas. These approvals are relevant for use in industrial plants where protection against environmental influences is required.

General
MaterialSocket corner piece: stainless steel 1.4301 (AISI 304), socket faceplate front/back: stainless steel 1.4301 (AISI 304), cover caps: ABS
Surface protectionLinear grind, grit 400
Scope of deliveryIncluding mounting hardware, 4 socket corner pieces, 4 end caps, 2 socket front/rear covers, 100 mm
NoteSocket inserts, required on the sides to complete a socket unit and provide additional stabilization between sockets. The included cover caps can be replaced, if required, with stainless steel cover caps for VX socket system, stainless steel. Components of the 1st generation of the socket system cannot be combined with components of the 2nd generation of the socket system.
Height100 mm
Suitable forEnclosure type: VX, VX SE, TS, PC, width: = 1,000 mm
Type rating according to UL 50EType 1, Type 3R, Type 4, Type 4X, Type 12


Product data sheet
Datasheet for Rittal 8660052, EAN: 4028177037878
