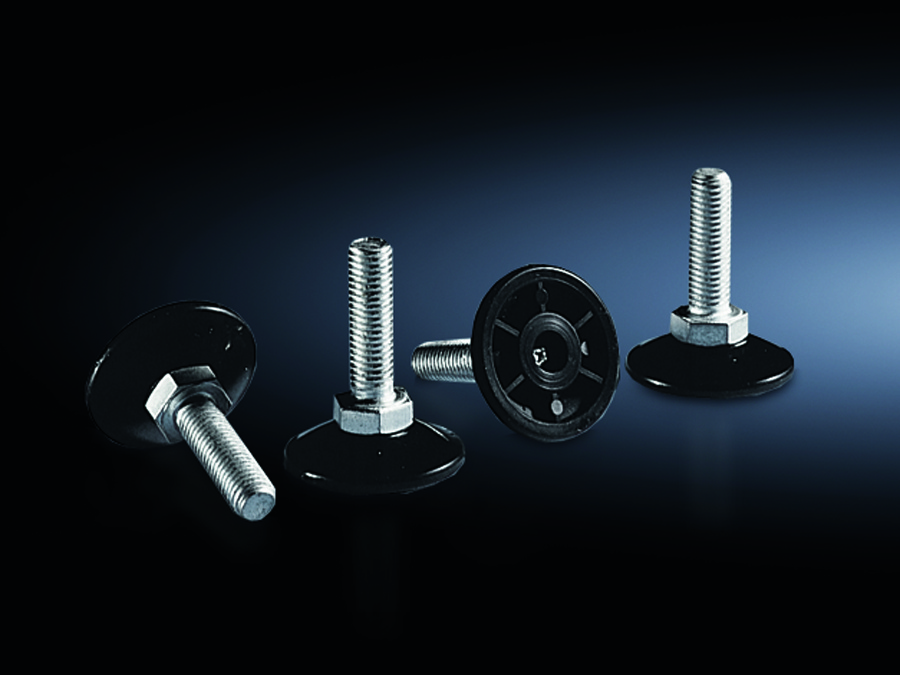

Rittal 8100780 VX levelling foot, stainless steel
|
108,36 EUR |
|
|
( 128,95 EUR incl. VAT ) ≈ £90.70 | ≈ $119.09 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1440664 |
| Mfg Part No: | 8100780 |
| UPC/EAN: | 4028177927094 |
| Weight: | 0.862 kg |
| Type: | VX 8100.780 |
Product information for Rittal 8100780:
Applications
The levelling foot is primarily intended for use in industrial electrical engineering and automation technology. It is mounted at the frame corners of enclosures to enable precise levelling. The application is suitable for both new installations and for maintenance or replacement of existing feet. Compatibility with various housing types such as VX, TS, VX SE, PC, and the VX plinth system significantly extends the range of applications. It is particularly suitable for installations requiring high mechanical load capacity and long-term stability.
Functions and Equipment in Detail
The foot features an M12 thread, enabling secure and torque-resistant mounting to the enclosure frame. The levelling range is 30 to 110 mm, allowing flexible adjustment to different floor irregularities. The maximum static load capacity per component is 3,000 N, ensuring suitability for heavy industrial applications. The construction from stainless steel 1.4301 (AISI 304) ensures high resistance to rust and chemical influences, extending the component's service life.
Technology Explained Simply
The design of the levelling foot allows for precise height adjustment by rotating the foot, enabling the enclosure to be accurately adjusted to a horizontal position. The use of stainless steel 1.4301 (AISI 304) provides excellent corrosion resistance, especially in moist or aggressive environments. The M12 thread ensures a secure mechanical connection that remains stable even under static loads of up to 3,000 N. The levelling function is particularly important to ensure the stability of the enclosure and the correct operation of installed components.
Compatibility and Accessories
This adapter enables secure attachment of the levelling foot to the plinth system and ensures a stable connection. The use of the adapter is necessary to maintain the intended load capacity and functionality.
Installation and Mounting
Mounting is carried out directly at the frame corner of the enclosure profile. When used with the VX plinth system, the plinth adapter must be installed first. Fastening is done via the M12 thread, with torque control ensuring the connection is tight and rotation-resistant. Levelling is achieved by rotating the foot, with the range of 30 to 110 mm sufficient to compensate for most floor irregularities. Installation does not require special tools, but a suitable screwdriver or wrench is required.
Operational Advantages
Using the Rittal VX 8100.780 ensures stable and level positioning of the enclosure, reducing mechanical stress and extending the service life of the installation. The high corrosion resistance of stainless steel 1.4301 (AISI 304) protects the component from environmental influences and ensures long-term functionality. Precise levelling supports the correct operation of internal components, especially sensitive electronic devices. Compatibility with various housing types and the VX plinth system increases flexibility in planning and installing enclosures.
| General | |
| Material | Stainless steel 1.4301 (AISI 304) |
| Note | When mounting on VX socket, socket adapter is required |
| Maximum load capacity (static) per component | 3.000 N |
| Thread | M12 |
| Suitable for | Cabinet type: VX, TS, VX SE, PC, VX socket system |
| Levelling range | 30 ‐ 110 mm |
Questions & answers
What is the delivery time of Rittal 8100780 VX levelling foot, stainless steel?
The article Rittal 8100780 VX levelling foot, stainless steel is currently in stock
According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8100780 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 8100780 VX levelling foot, stainless steel always at the best possible price. We can give you a discount of 2% on Rittal 8100780 VX levelling foot, stainless steel if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
