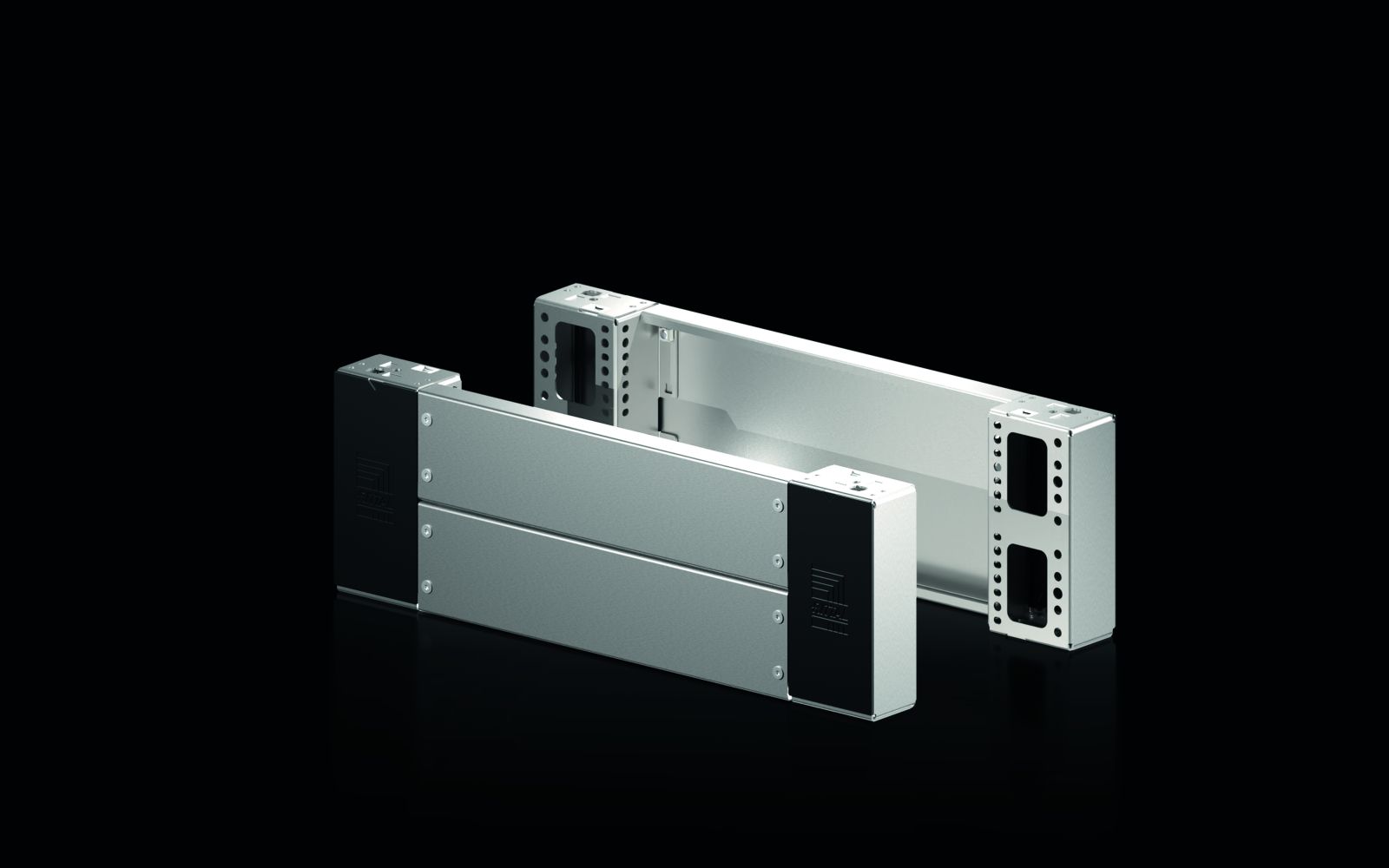

Rittal 8660060 VX plinth corner piece with trim panel, H: 200 mm, W: 600 mm
|
241,97 EUR |
|
|
( 287,94 EUR incl. VAT ) ≈ £202.53 | ≈ $265.93 plus delivery charges: 100,00 € |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >50 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 877355 |
| Mfg Part No: | 8660060 |
| UPC/EAN: | 4028177037915 |
| Weight: | 6.602 kg |
| Type: | VX 8660060 |
Product information for Rittal 8660060:
Applications
This plinth corner piece is used in industrial applications where robust and durable floor mounting of enclosures is required. It is particularly suitable for environments with high demands on mechanical load capacity and corrosion resistance, such as in manufacturing, automation technology, or machine building. Compatibility with various housing types (VX, VX SE, TS, PC) enables flexible use in different enclosure configurations.
Functions and Equipment in Detail

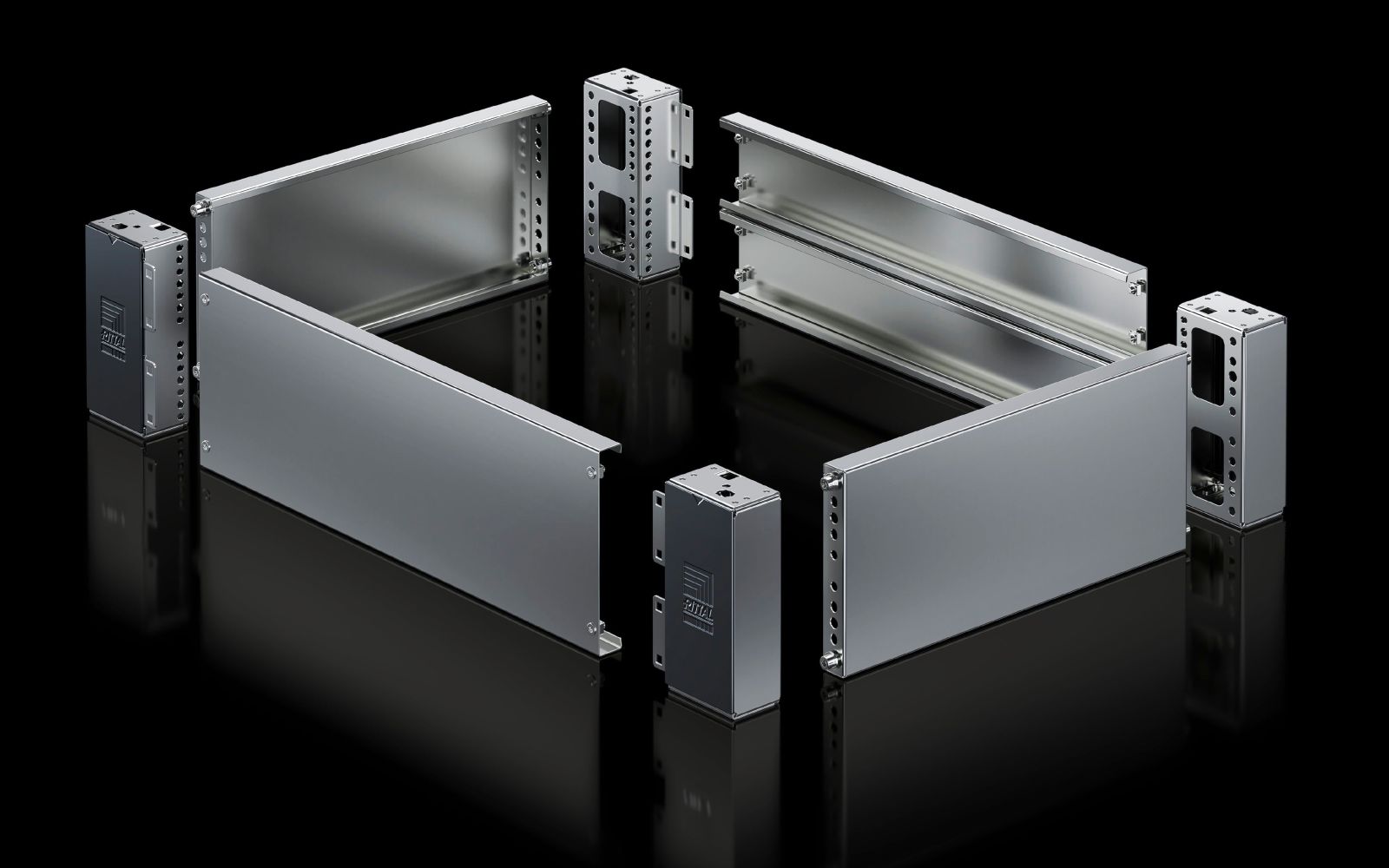

The product includes four plinth corner pieces, four ABS caps, one front/rear plinth trim panel with a height of 200 mm, and two front/rear plinth trim panels with a height of 100 mm. The plinth trim panels serve not only for aesthetic finishing but also contribute to additional stabilization between the plinths. The caps can be replaced with stainless steel caps if required, to enhance material consistency. Fixing is done using the included fastening materials.
Technology Explained Simply
The plinth corner pieces feature large openings that allow optimal access to the screwing points. This significantly simplifies mounting and maintenance. The seamless baying capability of the plinth corner pieces ensures a clean and uniform visual appearance of the enclosure base. The use of stainless steel 1.4301 (AISI 304) ensures high resistance against moisture, salt spray, and chemical influences, which is particularly beneficial in outdoor or damp environments. The surface treatment with brushed finish grit 400 provides an even, easy-to-clean surface.
Compatibility and Accessories
The plinth corner piece is designed for enclosures with a width of 600 mm and fits housing types VX, VX SE, TS, and PC. It is certified with Type Ratings according to UL 50E Type 1, Type 3R, Type 4, Type 4X, and Type 12, enabling use in various environments, including damp or dusty areas. Various mounting accessories are available, such as mounting brackets, mounting plates, cable strain relief rails, and levelling elements, which facilitate integration into existing systems. Components of the 1st generation of the plinth system are not compatible with those of the 2nd generation.
Mounting and Installation
Mounting is done using the included fastening materials. The plinth corner pieces are positioned at the corners of the enclosure base and screwed in place. The plinth trim panels are attached to the front and rear sides, with the 200 mm high panels intended for main surfaces and the 100 mm high panels for side surfaces. The caps protect the fastening points and improve the visual appearance. The seamless baying capability of the plinth corner pieces enables clean and uniform installation.
Advantages in Operation
The use of stainless steel 1.4301 (AISI 304) ensures long service life and low maintenance. The large accessibility of the screwing points simplifies mounting and maintenance. The additional stabilization provided by the plinth trim panels prevents shifting of the plinths under load. Certification according to UL 50E enables flexible use in various environments. Compatibility with different enclosure types increases the product’s application flexibility.
| General | |
| Material | Socket corner piece: stainless steel 1.4301 (AISI 304), socket faceplate front/back: stainless steel 1.4301 (AISI 304), cover caps: ABS |
| Surface protection | Linear grind, grit 400 |
| Scope of delivery | including mounting material, 4 socket corner pieces, 4 end caps, 1 socket front/rear cover, 200 mm, 2 socket front/rear covers, 100 mm |
| Note | Socket inserts, required on the sides to complete a socket unit and provide additional stabilization between sockets. The included cover caps can be replaced, if required, with stainless steel cover caps for VX socket system, stainless steel. Components of the 1st generation of the socket system cannot be combined with components of the 2nd generation of the socket system. |
| Height | 200 mm |
| Suitable for | housing type: VX, VX SE, TS, PC, width: = 600 mm |
| Type rating according to UL 50E | Type 1, Type 3R, Type 4, Type 4X, Type 12 |
Questions & answers
What is the delivery time of Rittal 8660060 VX plinth corner piece with trim panel, H: 200 mm, W: 600 mm?
The article Rittal 8660060 VX plinth corner piece with trim panel, H: 200 mm, W: 600 mm is currently in stock
According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8660060 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 8660060 VX plinth corner piece with trim panel, H: 200 mm, W: 600 mm always at the best possible price. We can give you a discount of 2% on Rittal 8660060 VX plinth corner piece with trim panel, H: 200 mm, W: 600 mm if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
