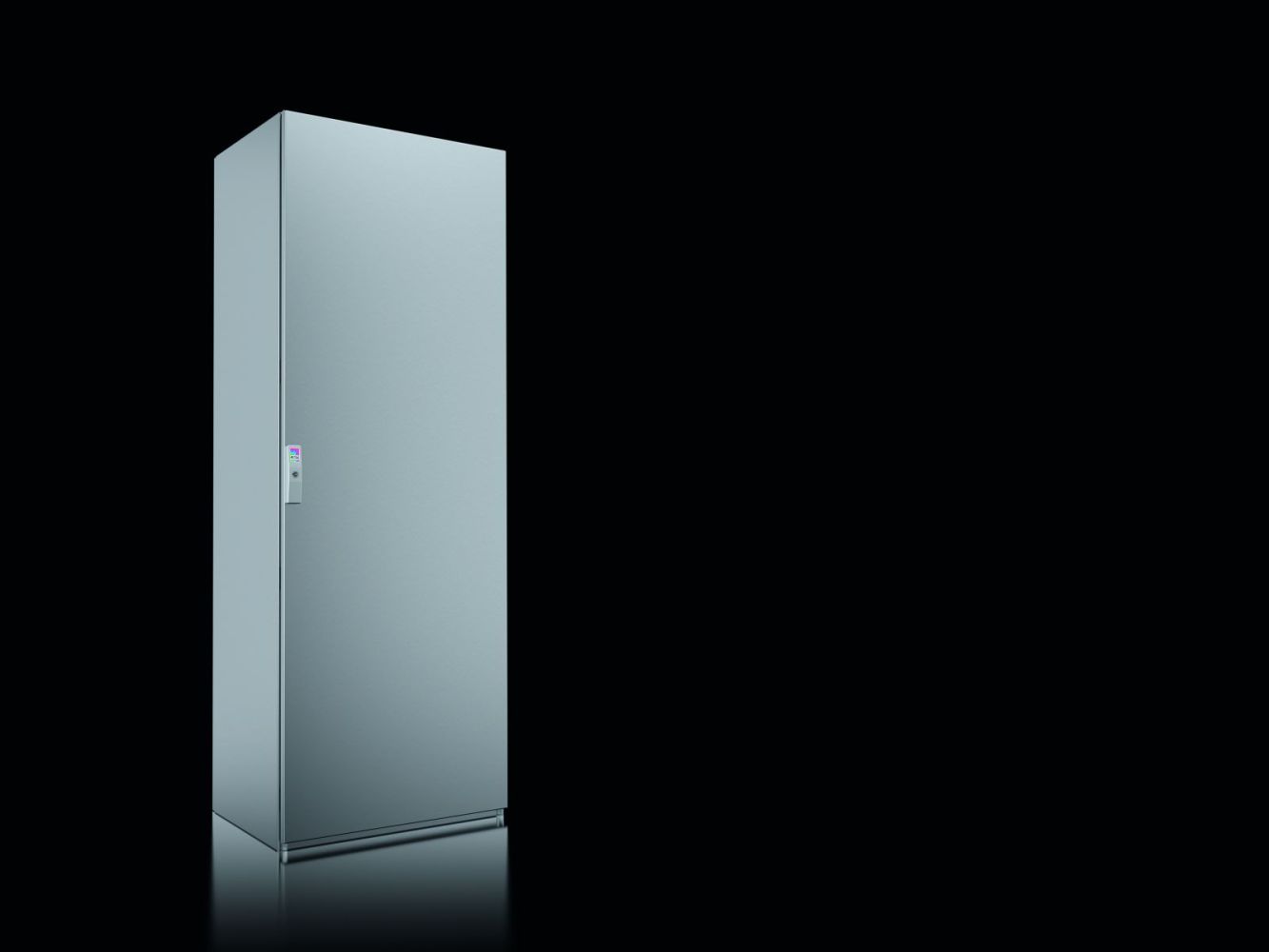

Rittal 5850600 SE system single enclosure 600x1600x400 mm stainless steel
|
2.128,08 EUR |
|
|
( 2.532,42 EUR incl. VAT ) ≈ £1,781.20 | ≈ $2,338.76 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1864883 |
| Mfg Part No: | 5850600 |
| UPC/EAN: | 4028177959361 |
| Weight: | 87.6 kg |
| Type: | SE 5850600 |
Product information for Rittal 5850600:
Applications include particularly installations in process industry, manufacturing technology, energy supply, and machine building, where robust, low-maintenance enclosures are required. The use of stainless steel 1.4301 ensures high corrosion resistance, especially in damp or aggressive environments. The surface of the enclosure, door, and rear panel is finished with a brushed finish, grain 400, providing a uniform, easy-to-clean surface. The base plates are plain, and the mounting plate is galvanized.
Functions and equipment in detail include a removable rear panel, enabling easy access to the interior, as well as a steel sheet mounting plate with a thickness of 3.0 mm. The mounting plate is side C-bent and depth-adjustable in 25 mm increments via integrated plastic gliding pieces and mounting rails. Two mounting rails (18 × 39 mm) are included in the delivery scope to facilitate installation of components. The locking mechanism consists of a 3 mm double bar, ensuring secure latching. The door is fitted with a horizontally double-foamed sealing gasket, providing effective protection against dust and moisture. The door opening angle is 130° according to VDI, but can be upgraded to 180°. The hinges are equipped with non-removable hinge pins, and an automatic equipotential bonding between door and enclosure body is integrated.
Technology explained simply shows that the enclosure is made from a single piece, reducing assembly time as no additional side panels need to be mounted. The material thickness is 1.5 mm for the enclosure, rear panel, and base plates, while the door has a thickness of 2.0 mm. The steel sheet mounting plate (3.0 mm) provides a stable base for mounting components. The integrated drilling in 25 mm DIN grid spacing allows flexible and space-saving mounting of components. The base plates are three-part, removable, and replaceable, enabling easy maintenance and cleaning.
Compatibility and accessories include use with the baying system VX25, allowing the enclosure to be integrated into larger systems. Suitable accessories include stainless steel 1.4301 transport eyes, system chassis, comfort handles, lock inserts, mounting brackets, support rollers, 180° hinges, door latches, and C-profile rails. These components allow individual adaptation to specific requirements, such as mounting devices on the outer or inner mounting plane.
Mounting and installation is performed using the integrated mounting planes and drilling in 25 mm grid. The mounting plate is depth-adjustable, enabling flexible adaptation to different installation situations. The base plates are pre-mounted and can be replaced if necessary. The rear panel is removable, facilitating access to the interior. The manufacturer's recommendation to use the internal hexagon sheet metal screw 2486.400 for internal assembly takes into account the hardness of the stainless steel material.
Operational advantages include high mechanical stability, corrosion resistance, easy assembly and maintenance, as well as flexibility in integration into existing systems. The protection rating IP 55 and IK code IK10 ensure reliable operation even under demanding operating conditions. The integrated mounting planes and DIN grid drilling enable efficient and space-saving installation of components. The use of stainless steel 1.4301 ensures long service life and low maintenance requirements.
The enclosure is designed for use in industrial installations where reliability, safety, and ease of maintenance are crucial. The combination of robust material, high protection rating, and flexible mounting design makes it a suitable solution for various applications in industrial electrical engineering and automation technology.
| General | |
| Material | Housing: stainless steel 1.4301 (AISI 304), 1.5 mm, outside brushed finish, Door: stainless steel 1.4301 (AISI 304), 2.0 mm, outside brushed finish, Rear panel: stainless steel 1.4301 (AISI 304), 1.5 mm, outside brushed finish, Base plates: stainless steel 1.4301 (AISI 304), 1.5 mm, Mounting plate: sheet steel, 3.0 mm |
| Surface protection | Housing, door and rear panel: brushed finish, grain 400, base plates: plain, mounting plate: galvanised |
| Scope of delivery | Housing top and sides closed, door(s), for single-door cabinets door hinge on right, changeable to left, rear panel, removable, mounting plate, base plates, lock: 3 mm double bar, 2 mounting rails 18 x 39 mm |
| Width | 600 mm |
| Height | 1.600 mm |
| Depth | 400 mm |
| Mounting plate dimensions (W x H) | 499 mm x 1.496 mm |
| Degree of protection IP according to EN 60 529 | IP 55 |
| NEMA degree of protection | NEMA 3R, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 2, Type 3, Type 3R, Type 12 |
| IK code | IK10 |
| Number of doors | 1 |
| Note | Due to the material hardness, we recommend using the internal hexagon sheet metal screw 2486.400 for internal installation |
| Base material | Stainless steel 1.4301 (AISI 304) |
| PCF/VE (Cradle-to-Gate) | 273,84 |
