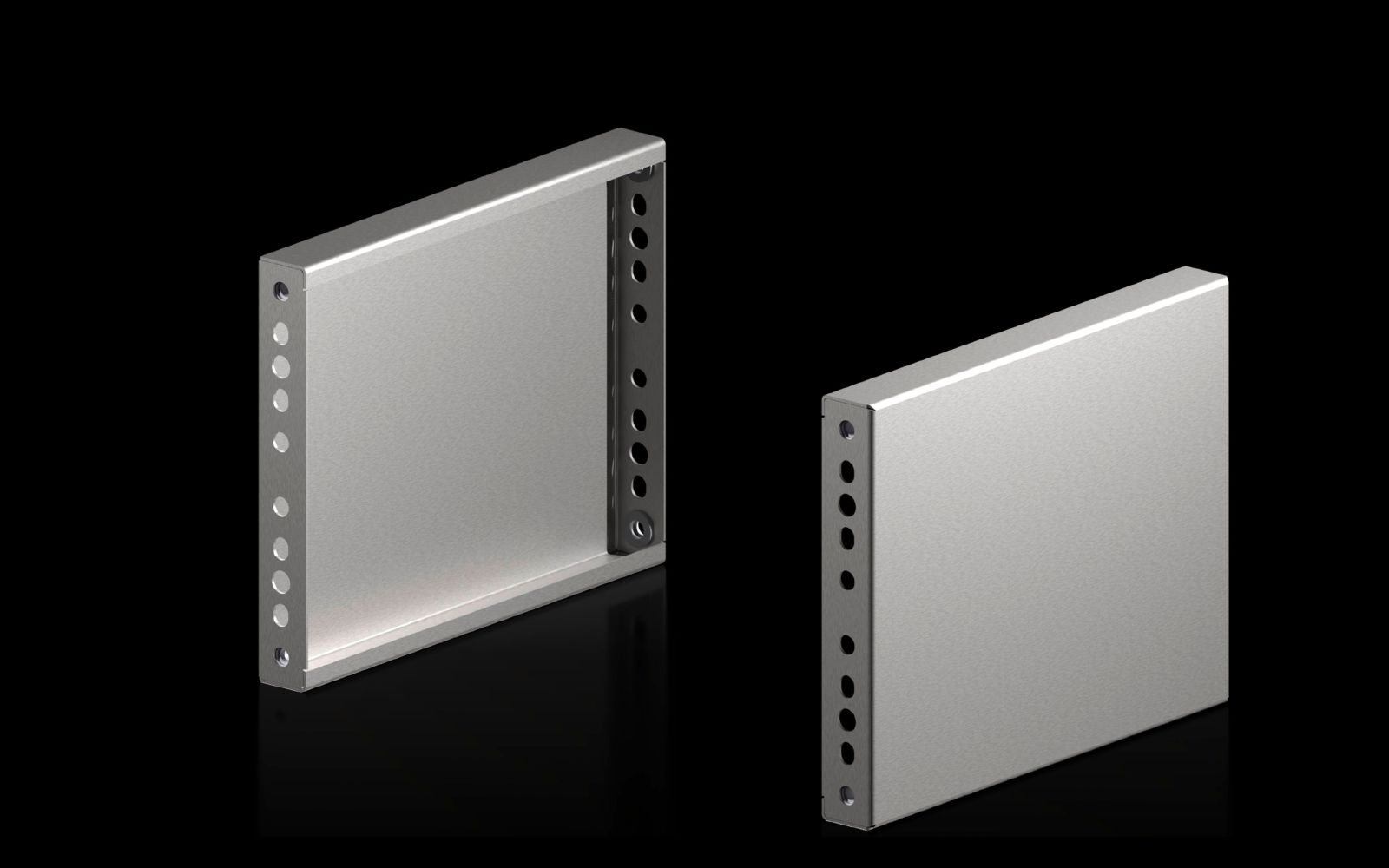

Rittal 8660080 VX VX plinth trim panel 1=2 side H:200 mm for D:400 mm stainless steel

Your rating:
Average rating
product review for Rittal 8660080 VX VX plinth trim panel 1=2 side H:200 mm for D:400 mm stainless steel
( 4 / 5 ) 2 ratings
Rittal 8660080
This image may differ from the desired article.
Rittal 8660080Rittal 8660080Rittal 8660080
-6% 115,92 EUR 123,94 EUR
( 137,94 EUR incl. VAT )
≈ £97.03  |  ≈ $127.40
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 8660080 VX VX plinth trim panel 1=2 side H:200 mm for D:400 mm stainless steel
Datasheet:file_download Download
Lieske Part No.:877377
Mfg Part No: 8660080
UPC/EAN: 4028177037724
Weight:2.113 kg
Type:VX 8660080

Product information for Rittal 8660080:

The Rittal VX plinth trim panel, type 8660080, is a side closure for plinth units in industrial and enclosure construction. It is specifically designed for enclosures of the VX, VX SE, TS, and PC series with a depth of 400 mm. The panel is made of stainless steel 1.4301 (AISI 304), a material suitable for its corrosion resistance and mechanical strength in industrial environments. The surface is finished with a brushed finish, grain 400, providing a uniform, slightly textured appearance that is both aesthetically pleasing and robust against mechanical stress.

Applications

The plinth trim panel serves as a side closure for plinth systems, ensuring a closed and clean appearance of the enclosure base. It is used in installations requiring high mechanical and chemical resistance, for example in manufacturing, process engineering, or environments with increased humidity. The panel is suitable for indoor and outdoor use, as it meets the requirements of UL 50E Type Ratings, including Type 1, Type 3R, Type 4, Type 4X, and Type 12. These certifications guarantee protection against dust, splashing water, and other environmental influences.

Functions and Features in Detail

The panel has a height of 200 mm and fits precisely into a depth of 400 mm, ensuring an exact fit for the specified enclosure types. The use of stainless steel 1.4301 ensures long service life and resistance to oxidation and corrosion. The panel is part of the 1st generation plinth system and cannot be combined with components of the 2nd generation, which must be considered when planning the enclosure configuration.

Technical Explanation

The brushed surface finish (grain 400) gives the panel a uniform, slightly textured appearance that reduces fingerprints and dirt. Stainless steel 1.4301 (AISI 304) is a non-rusting steel widely used in industrial applications due to its resistance to moisture, salt, and weak acids. The UL 50E Type Ratings refer to the enclosure protection class: Type 1 protects against contact and normal environmental conditions, Type 3R protects against splashing water and dust, Type 4 protects against splashing water and dust, Type 4X protects against splashing water, dust, and chemical substances, and Type 12 protects against dust and splashing water. These certifications make the panel suitable for a wide range of operating conditions.

Compatibility and Accessories

The plinth trim panel is compatible with enclosure types VX, VX SE, TS, and PC, provided the depth is 400 mm. It is specifically designed for the 1st generation plinth system and cannot be used with components of the 2nd generation. Using matching plinth system components ensures a uniform and stable construction of the enclosure.

Installation and Mounting

Installation is carried out using the mounting hardware included in the delivery. The panel is attached to the side of the plinth unit, with the precise fit and predefined mounting points ensuring a secure and clean connection.

Operational Advantages

Using the Rittal VX plinth trim panel ensures a professional and closed appearance of the enclosure. The high corrosion resistance of stainless steel 1.4301 reduces maintenance requirements and extends the component’s service life. The UL 50E certifications allow use in various environments, including those with increased humidity or chemical exposure. The precise fit and included mounting hardware simplify installation and ensure a stable connection.

General
MaterialStainless steel 1.4301 (AISI 304)
Surface protectionLinear grind, grit 400
Scope of deliveryIncluding mounting hardware
NoteComponents of the 1st generation of the socket system cannot be combined with components of the 2nd generation of the socket system.
Height200 mm
Suitable forCabinet type: VX, VX SE, TS, PC, Depth: = 400 mm
Type rating according to UL 50EType 1, Type 3R, Type 4, Type 4X, Type 12


Product data sheet
Datasheet for Rittal 8660080, EAN: 4028177037724
