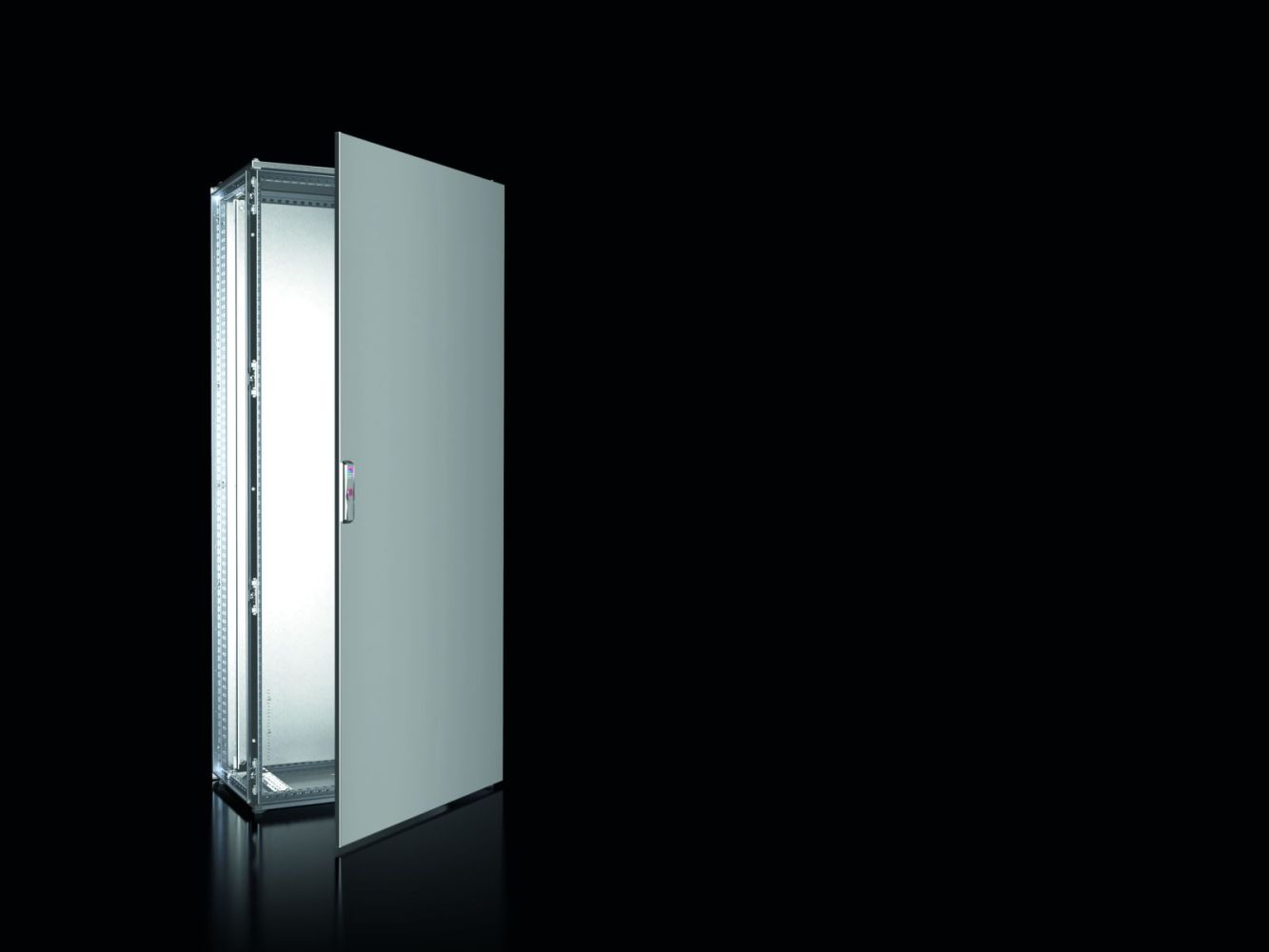

Rittal 8454000 VX bayed enclosure system, 1-door, W x H x D: 800x1800x400 mm
|
2.332,20 EUR 2.392,00 EUR |
|
|
( 2.775,32 EUR incl. VAT ) ≈ £1,952.05 | ≈ $2,563.09 plus delivery charges |
|
| Made to order · Delivery time approx. 5 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1440942 |
| Mfg Part No: | 8454000 |
| UPC/EAN: | 4028177920149 |
| Weight: | 109.8 kg |
| Type: | VX 8454.000 |
Product information for Rittal 8454000:
Applications
This enclosure system is designed for use in industrial applications such as machine building, manufacturing technology, or automation technology. The use of stainless steel 1.4301 ensures high corrosion resistance and mechanical strength, making it suitable for environments with moisture, aggressive chemicals, or mechanical stress. The protection rating IP 55 according to EN 60 529 protects against dust and splashing water, enabling use outdoors or in damp indoor areas. The NEMA classification includes NEMA 1 and NEMA 12, confirming suitability for dry indoor environments as well as environments with dirt and liquid contaminants. The type rating according to UL 50E includes Type 1 and Type 12, demonstrating compliance with North American safety standards. The IK code IK10 provides high mechanical protection against impact and shock.
Functions and Equipment in Detail
The enclosure system consists of an enclosure frame, a door, a roof plate, floor plates, a rear panel, and a mounting plate. The door is equipped with a 3 mm double-bar lock, ensuring a quadruple locking security. Door hinges are standard on the right side but can be toollessly repositioned to the left. The door opening angle is 130° and can be toollessly extended to 180°. The door features a PU foam seal to ensure a tight closure. The floor plates are triple-divided, removable, and replaceable, facilitating maintenance and cleaning. The mounting plate is side C-bent and depth-adjustable in 25 mm increments via integrated plastic glides and reusable mounting rails. The mounting plate includes an integrated mounting grid for easy positioning of components.
Technology Explained Simply
The enclosure system is constructed from a symmetrical profile frame structure made of closed and profiled hollow sections with a hole pattern in a 25 mm grid. The frame profiles feature integrated blind rivet nuts M6, enabling protection-rated fastening of fittings. All profile edges are rounded, and horizontal profiles have an additional groove above the seal to improve sealing. The frame construction offers two mounting planes accessible from inside and outside, enabling space-saving and quick internal installation. The entire square hole pattern allows use of cage nuts and metric screws up to M8. The base frame is welded and includes an integrated base reinforcement for securing to the floor. The load capacity of the enclosure system is up to 15,000 N.
Compatibility and Accessories
The enclosure system is compatible with various accessories to meet individual requirements for internal installation. These include stainless steel 1.4301 transport eyes, circuit diagram pockets for various enclosure types, mounting plate spacers, TS mounting brackets for external mounting plane, C-profile rails, steel sheet circuit diagram pockets, VX plinth corner pieces with trim panels, VX plinth trim panels, VX system chassis in various dimensions, VX levelling feet, VX baying connectors, baying brackets, and baying blocks. These components enable flexible adaptation of the enclosure to specific requirements in mounting, protection, or expandability.
Mounting and Installation
Mounting of the enclosure is performed via the integrated mounting planes and the square hole pattern in a 25 mm grid. The mounting plate is depth-adjustable, enabling precise positioning of components. The floor plates are removable, simplifying installation and maintenance. The door hinges are interchangeable, allowing the door to be mounted on the left or right side as required. Mounting is done using integrated blind rivet nuts M6, ensuring secure fastening. The manufacturer’s recommendation to use the internal hex socket sheet metal screw 2486.400 for internal installation takes into account the hardness of the stainless steel and ensures secure and durable mounting.
Operational Advantages
The enclosure system offers high mechanical and chemical resistance due to the use of stainless steel 1.4301. The protection rating IP 55 and NEMA classification NEMA 1 and NEMA 12 enable use in demanding environments. The baying construction and integrated mounting planes simplify internal installation and integration into existing systems. The depth-adjustable mounting plate and removable floor plates increase flexibility during installation and maintenance. The quadruple-locked door with double-bar lock ensures high security. The integrated base reinforcement and load capacity up to 15,000 N make the enclosure system suitable for heavily loaded applications. The surface of the door, roof, and rear panel is externally brushed (grit 400), providing an attractive appearance and high resistance to soiling. The mounting plate is galvanized, offering additional corrosion protection. Electrical conductivity between the rear panel, roof, floor plates, and frame ensures automatic equipotential bonding according to DIN 62 208, which is important for operational safety.
| General | |
| Material | Cabinet frame: stainless steel 1.4301 (AISI 304), 1.5 mm, roof: stainless steel 1.4301 (AISI 304), 1.5 mm, exterior brushed finish, door: stainless steel 1.4301 (AISI 304), 2.0 mm, exterior brushed finish, rear panel: stainless steel 1.4301 (AISI 304), 1.5 mm, exterior brushed finish, floor plates: stainless steel 1.4301 (AISI 304), 1.5 mm, mounting plate: steel sheet, 3.0 mm |
| Surface protection | Cabinet frame and base plates: plain, door, roof and rear panel: exterior brushed finish, grit 400, mounting plate: galvanized |
| Scope of delivery | Cabinet frame, door(s), door hinge right, reversible to left, roof sheet, floor sheets, rear panel, mounting plate, lock: 3 mm double bar, 2 mounting rails 18 x 39 mm |
| Width | 800 mm |
| Height | 1.800 mm |
| Depth | 400 mm |
| Mounting plate dimensions (W x H) | 699 mm x 1.696 mm |
| Degree of protection IP according to EN 60 529 | IP 55 |
| NEMA degree of protection | NEMA 1, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 12 |
| IK code | IK10 |
| Number of doors | 1 |
| Note | Due to the material hardness, we recommend using the internal hexagon sheet metal screw 2486.400 for internal installation |
| Base material | Stainless steel 1.4301 (AISI 304) |
| PCF/VE (Cradle-to-Gate) | 337,64 |
Questions & answers
What is the delivery time of Rittal 8454000 VX bayed enclosure system, 1-door, W x H x D: 800x1800x400 mm?
The article Rittal 8454000 VX bayed enclosure system, 1-door, W x H x D: 800x1800x400 mm is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8454000 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 8454000 VX bayed enclosure system, 1-door, W x H x D: 800x1800x400 mm always at the best possible price. We can give you a discount of 2% on Rittal 8454000 VX bayed enclosure system, 1-door, W x H x D: 800x1800x400 mm if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
