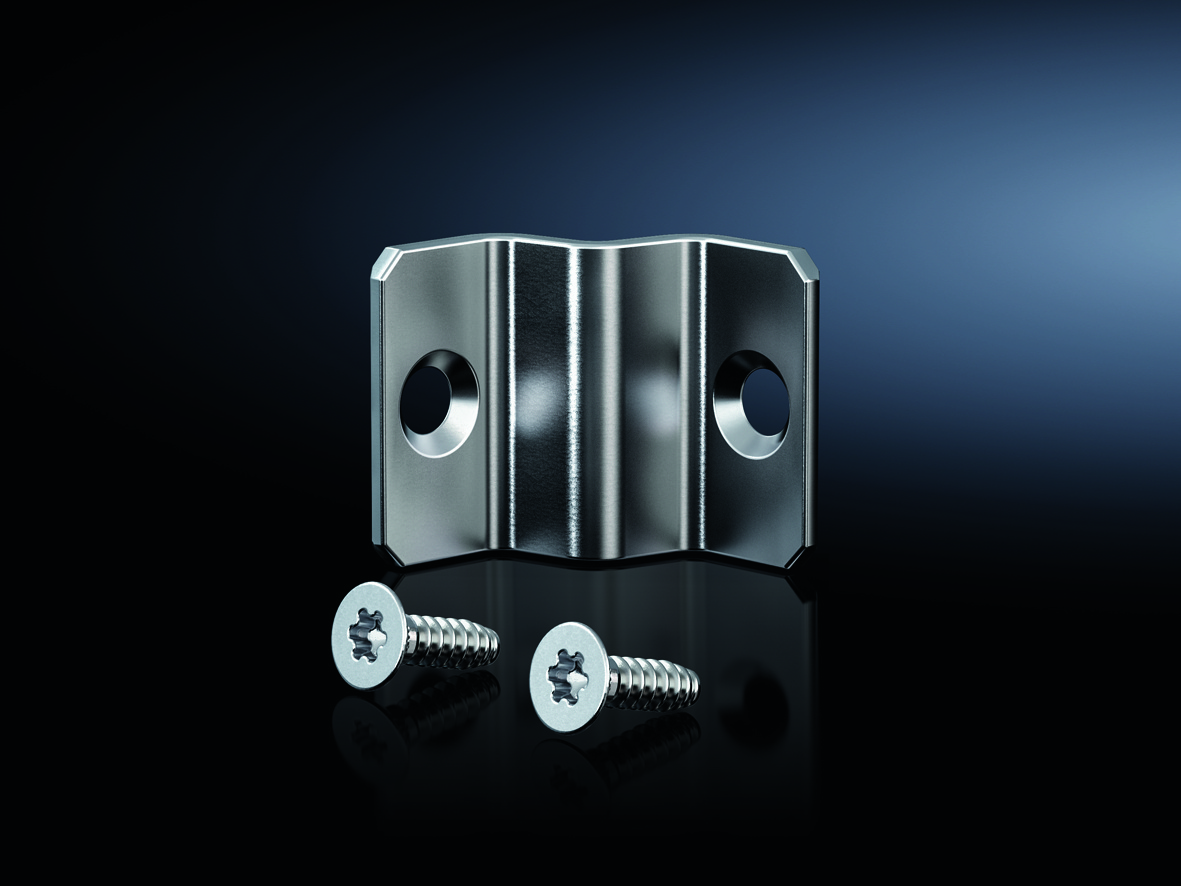

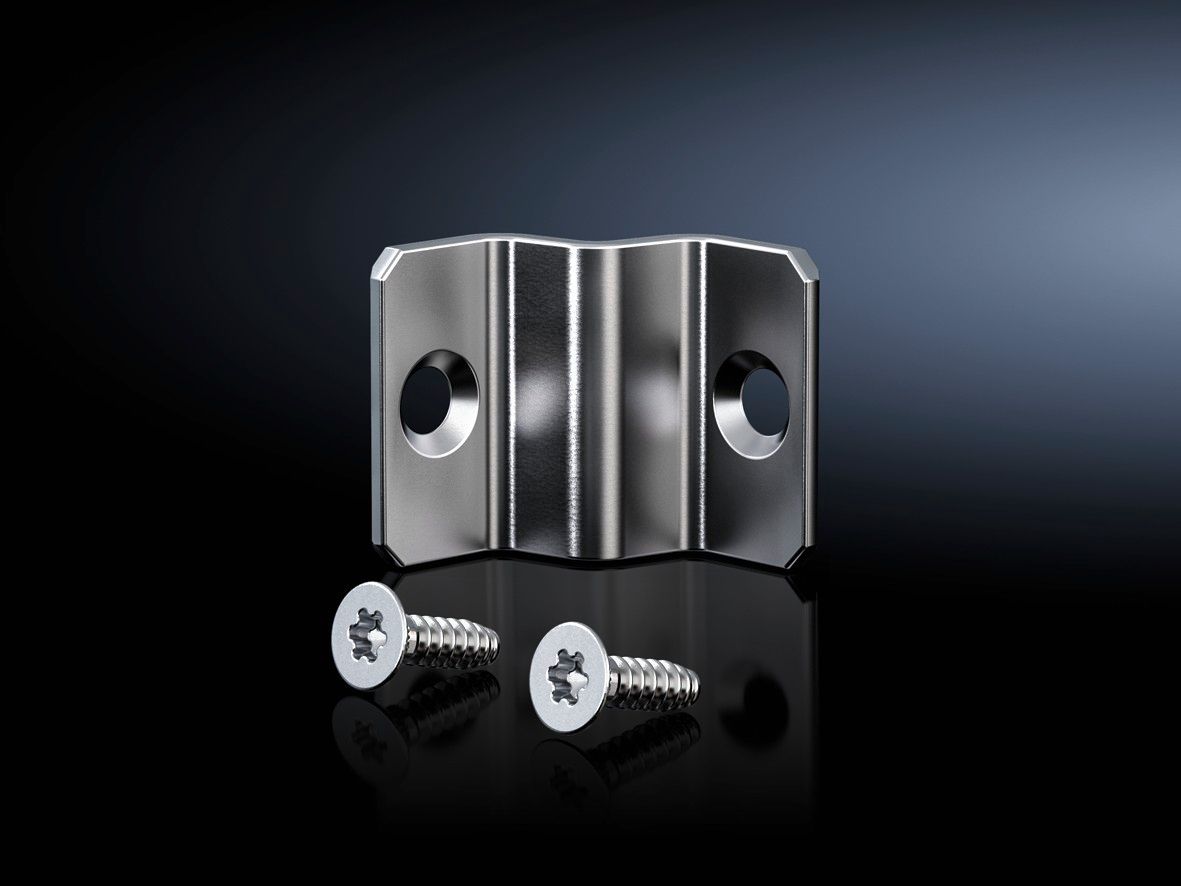

Rittal 8617503 VX baying connector, external, stainless steel

Your rating:
Average rating
product review for Rittal 8617503 VX baying connector, external, stainless steel
( 4.3 / 5 ) 7 ratings
Rittal 8617503
This image may differ from the desired article.
Rittal 8617503Rittal 8617503
37,03 EUR
( 44,07 EUR incl. VAT )
≈ £30.99  |  ≈ $40.70
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 8617503 VX baying connector, external, stainless steel
Datasheet:file_download Download
Lieske Part No.:1440883
Mfg Part No: 8617503
UPC/EAN: 4028177919358
Weight:0.84 kg
Type:VX 8617.503

Product information for Rittal 8617503:

The Rittal VX 8617.503 is an external baying connector, specifically designed for mounting on vertical enclosure profiles from the outside. It is used to securely and tightly connect enclosures of type VX and VX IT, creating a continuous, sealed row of enclosures. The product is made of stainless steel 1.4301 (AISI 304), a material known for its high corrosion resistance and mechanical strength, making it suitable for demanding applications, such as industrial environments with humidity or aggressive media.

Applications

The baying connector is used in industrial electrical engineering and enclosure technology, where multiple enclosures are arranged in a row. It ensures a mechanically stable and electrically insulated connection between enclosures, stabilizing the structure of the enclosure row. Its use is particularly beneficial in production facilities, automation systems, or areas with high environmental requirements.

Functions and Equipment in Detail

The connector is mounted directly onto the vertical profiles of the enclosures and enables a tight connection between adjacent enclosures. The delivery includes the external baying connector, a baying seal, and the required mounting hardware. The seal ensures that the connection is protected against dust and splashing water, supporting the protection rating IP 55. One packaging unit (PU) is sufficient for one baying point, with one PU containing 6 pieces.

Technology Explained Simply

The use of stainless steel 1.4301 ensures high resistance to rust and chemical influences, extending the service life of the connector in demanding environments. The protection rating IP 55 according to IEC 60 529 means the product is dust-protected (not fully dust-tight, but no harmful ingress) and protected against splashing water from any direction. This makes the baying connector suitable for outdoor use or in humid indoor environments. The certification according to UL 50E in categories Type 1, Type 3R, Type 4, Type 4X, and Type 12 confirms suitability for various environmental conditions, including humid, dusty, or slightly corrosive environments.

Compatibility and Accessories

The baying connector is specifically developed for enclosure types VX and VX IT. It is compatible with the corresponding enclosure profiles of this series. Suitable accessories available in the range include VX internal baying brackets and VX internal baying blocks, intended for the inner side of the enclosure connection. These components complement the external connector and enable a complete, tight connection between enclosures.

Mounting and Installation

Installation is carried out from the outside on the vertical enclosure profiles. Mounting is done using the included hardware, with the exact installation instructions corresponding to the specific enclosure type. The baying seal is placed between the enclosures to ensure tightness.

Operational Advantages

The use of the Rittal VX 8617.503 ensures a mechanically stable and tight connection between enclosures, stabilizing the structure of the enclosure row and preventing ingress of dust or moisture. The choice of stainless steel 1.4301 ensures long service life and low maintenance. The UL 50E certifications and the IP 55 protection rating guarantee suitability for a wide range of operating conditions, making the connector applicable in various industrial applications.

General
MaterialStainless steel 1.4301 (AISI 304)
Scope of deliveryChassis connector, external, sealing gasket, including fastening material
Note1 unit is sufficient for one row position
Suitable forHousing type: VX, VX IT
Type rating according to UL 50EType 1, Type 3R, Type 4, Type 4X, Type 12
Degree of protection IP according to IEC 60 529IP 55


Product data sheet
Datasheet for Rittal 8617503, EAN: 4028177919358
