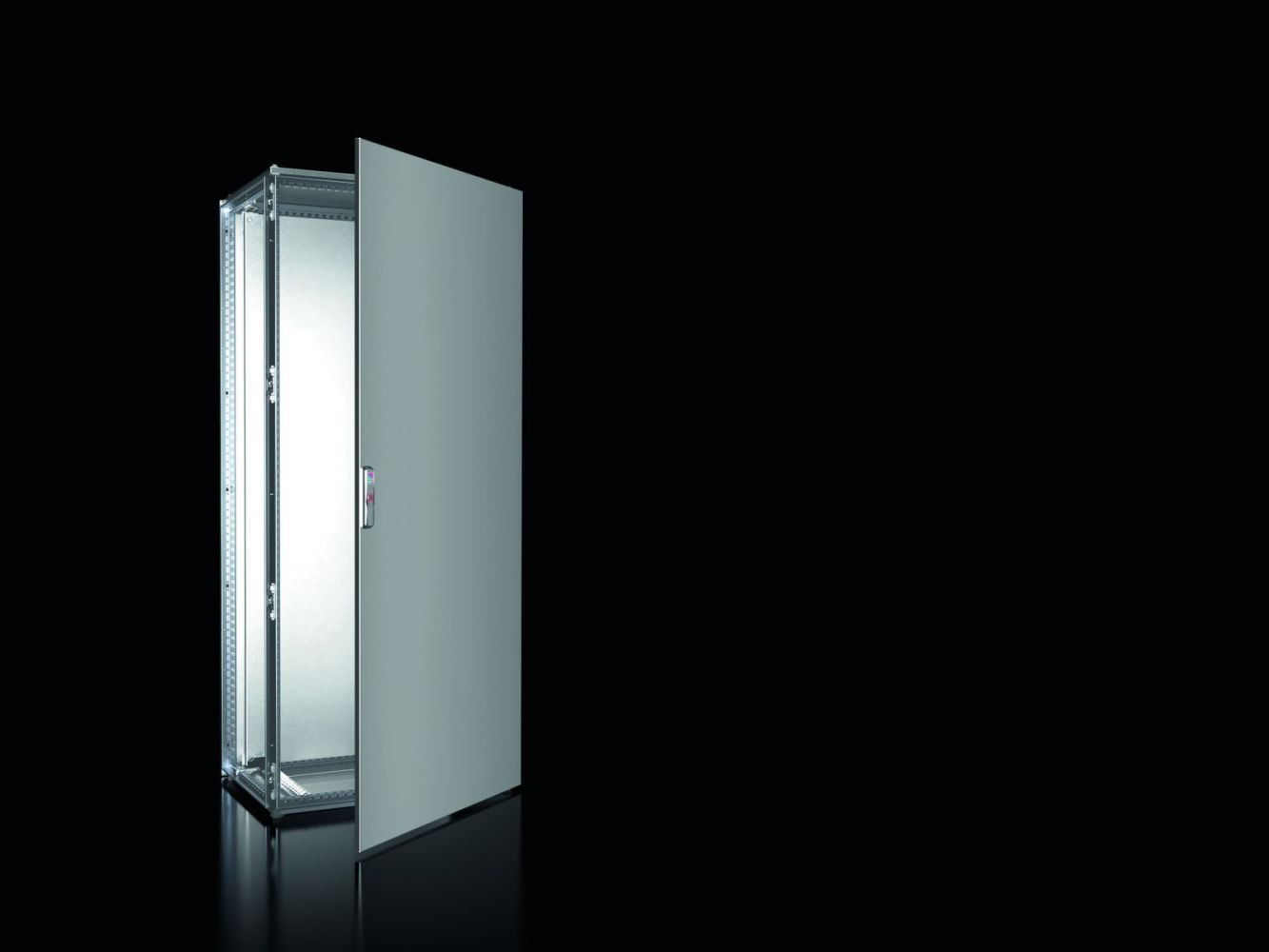

Rittal 8455000 VX bayed enclosure system, 1-door, W x H x D: 800x1800x500 mm
|
2.395,78 EUR |
|
|
( 2.850,98 EUR incl. VAT ) ≈ £2,005.27 | ≈ $2,632.96 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 4 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1440955 |
| Mfg Part No: | 8455000 |
| UPC/EAN: | 4028177920170 |
| Weight: | 113.2 kg |
| Type: | VX 8455.000 |
Product information for Rittal 8455000:
Applications
This enclosure system is suitable for use in indoor environments as well as in areas with increased contamination risk, for example in the food industry, chemical industry, or manufacturing. The protection rating IP 55 according to EN 60 529 ensures protection against dust and splashing water, making it suitable for areas with humid or dusty atmospheres. The NEMA classification includes NEMA 1 and NEMA 12, confirming its use in dry indoor environments as well as in areas with slight contamination risk. The IK code IK10 indicates high mechanical resistance against impact and shock, which is relevant for use in industrial facilities subject to mechanical stress.
Functions and Equipment in Detail
The enclosure system consists of an enclosure frame made of stainless steel 1.4301 with a wall thickness of 1.5 mm, equipped with a roof plate, rear panel, base plates, and a front door. The door has a wall thickness of 2.0 mm and is externally brushed (grit 400), providing a uniform, robust surface finish. The door is standard right-hinged but can be toollessly reconfigured to the left side. The locking mechanism uses a 3 mm double bar, ensuring secure latching. The door opens up to 130° and can be toollessly extended to 180°. The clearance from the floor is 17 mm, allowing sufficient air circulation and accessibility for cables and installation.
Technology Explained Simply
The construction of the enclosure system is based on a symmetrical profile frame made of closed and profiled hollow profiles with a hole pattern in a 25 mm grid. This enables flexible mounting of components and parts. The horizontal profiles feature a groove above the PU foam seal, providing additional protection against moisture or dust ingress. The mounting plate made of steel sheet (3.0 mm) is C-bent on the sides and is depth-adjustable in 25 mm increments via integrated plastic glides and reusable mounting rails. This facilitates component positioning and allows for adjustable mounting height. The base plates are three-piece, removable, and replaceable, reducing maintenance and installation effort.
Compatibility and Accessories
The enclosure system is designed for use with various accessories to meet individual requirements for enclosure build-out. These include, for example, stainless steel 1.4301 transport eyes, circuit diagram pockets, mounting brackets, mounting plate spacers, VX partial mounting plates, C-profile rails, VX plinth corner pieces with trim panel, VX system chassis in various dimensions, VX levelling feet, VX baying connectors, and baying brackets. These components enable extended functionality, such as integrating control panels, reinforcing the mounting plane, or baying with other enclosures.
Mounting and Installation
Mounting is achieved via integrated blind rivet nuts M6 in the frame, enabling protection-rated fastening of fittings. The entire construction is designed to be accessible from inside and outside, making internal installation space-saving and quick. The base plates are attached to the base frame with integrated base reinforcement, allowing secure mounting to the floor. The rear panel and roof plate are removable and secured with screws, enabling easy maintenance and cleaning. Electrical conductivity between the rear panel, roof, base plates, and frame ensures automatic equipotential bonding according to DIN 62 208.
Operational Advantages
The enclosure system offers high mechanical stability and corrosion resistance due to the use of stainless steel 1.4301. The brushed surface of the door, roof, and rear panel provides an attractive appearance and facilitates cleaning. The modular design and wide range of compatible accessories allow flexible adaptation to different applications. The depth-adjustable mounting plate and 25 mm hole pattern simplify component installation and reduce installation effort. The load capacity of the enclosure system is up to 15,000 N, ensuring high load-bearing capacity for heavier installations. Due to the material hardness, it is recommended to use the internal hexagon sheet screw 2486.400 for internal installation to avoid damage.
The Rittal VX 8455.000 is therefore a robust, flexible, and maintenance-friendly enclosure system designed for demanding industrial applications and provides a reliable base for building enclosures.
| General | |
| Material | Cabinet frame: stainless steel 1.4301 (AISI 304), 1.5 mm, roof: stainless steel 1.4301 (AISI 304), 1.5 mm, exterior brushed finish, door: stainless steel 1.4301 (AISI 304), 2.0 mm, exterior brushed finish, rear panel: stainless steel 1.4301 (AISI 304), 1.5 mm, exterior brushed finish, floor plates: stainless steel 1.4301 (AISI 304), 1.5 mm, mounting plate: steel sheet, 3.0 mm |
| Surface protection | Cabinet frame and base plates: plain, door, roof and rear panel: exterior brushed finish, grit 400, mounting plate: galvanized |
| Scope of delivery | Cabinet frame, door(s), door hinge right, reversible to left, roof sheet, floor sheets, rear panel, mounting plate, lock: 3 mm double bar, 2 mounting rails 18 x 39 mm |
| Width | 800 mm |
| Height | 1.800 mm |
| Depth | 500 mm |
| Mounting plate dimensions (W x H) | 699 mm x 1.696 mm |
| Degree of protection IP according to EN 60 529 | IP 55 |
| NEMA degree of protection | NEMA 1, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 12 |
| IK code | IK10 |
| Number of doors | 1 |
| Note | Due to the material hardness, we recommend using the internal hexagon sheet metal screw 2486.400 for internal installation |
| Base material | Stainless steel 1.4301 (AISI 304) |
| PCF/VE (Cradle-to-Gate) | 346,55 |
Questions & answers
What is the delivery time of Rittal 8455000 VX bayed enclosure system, 1-door, W x H x D: 800x1800x500 mm?
The article Rittal 8455000 VX bayed enclosure system, 1-door, W x H x D: 800x1800x500 mm is currently in stock
According to our experience the article is ready for dispatch within 4 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8455000 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 8455000 VX bayed enclosure system, 1-door, W x H x D: 800x1800x500 mm always at the best possible price. We can give you a discount of 2% on Rittal 8455000 VX bayed enclosure system, 1-door, W x H x D: 800x1800x500 mm if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
