Rittal 8618220 VX comfort handle, for lock inserts, stainless steel

Your rating:
Average rating
product review for Rittal 8618220 VX comfort handle, for lock inserts, stainless steel
( 4.3 / 5 ) 14 ratings
Rittal 8618220
This image may differ from the desired article.
Rittal 8618220Rittal 8618220Rittal 8618220Rittal 8618220
-10% 127,88 EUR 142,65 EUR
( 152,18 EUR incl. VAT )
≈ £107.04  |  ≈ $140.54
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 8618220 VX comfort handle, for lock inserts, stainless steel
Datasheet:file_download Download
Lieske Part No.:1440908
Mfg Part No: 8618220
UPC/EAN: 4028177921757
Weight:0.88 kg
Type:VX 8618.220

Product information for Rittal 8618220:

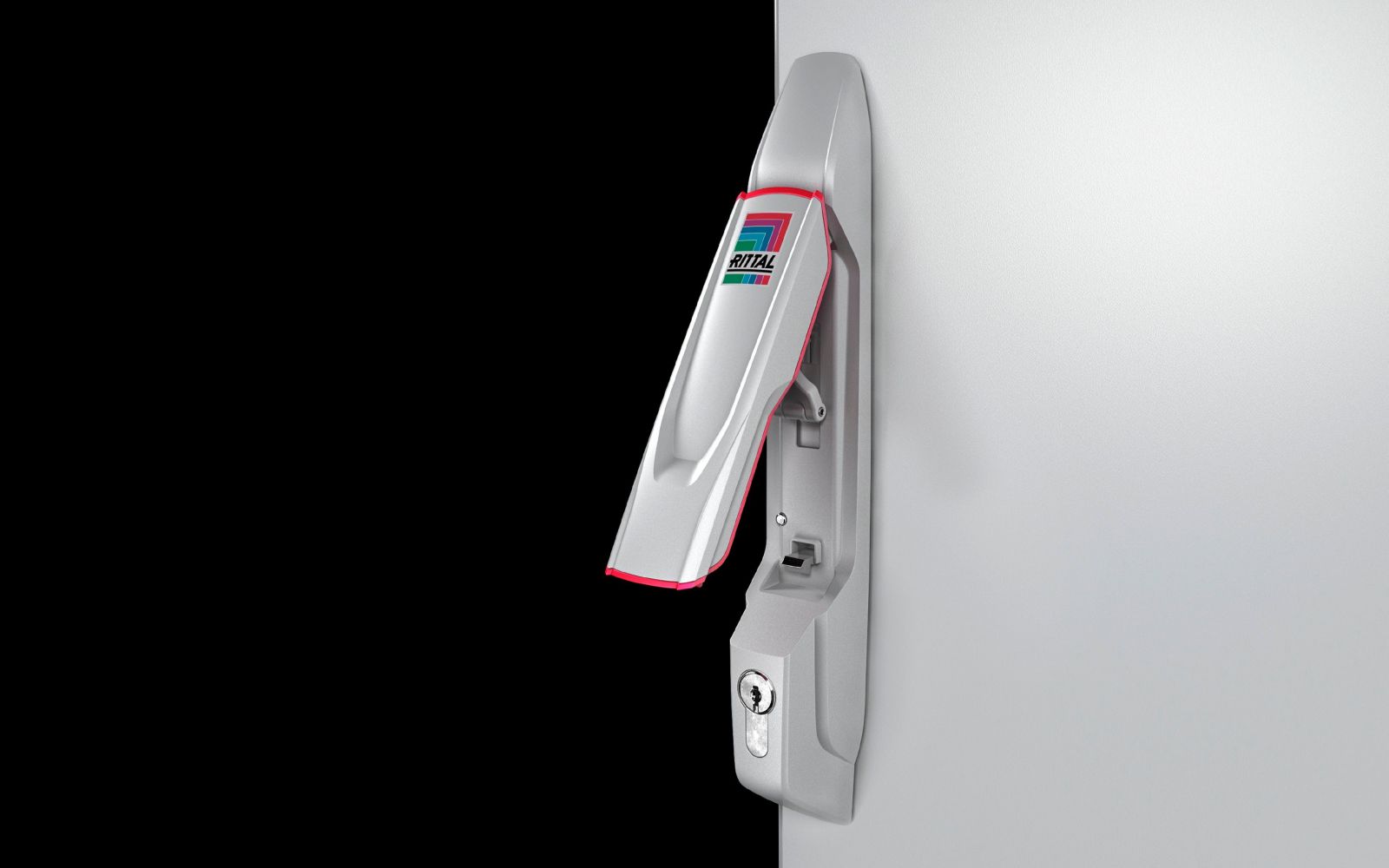

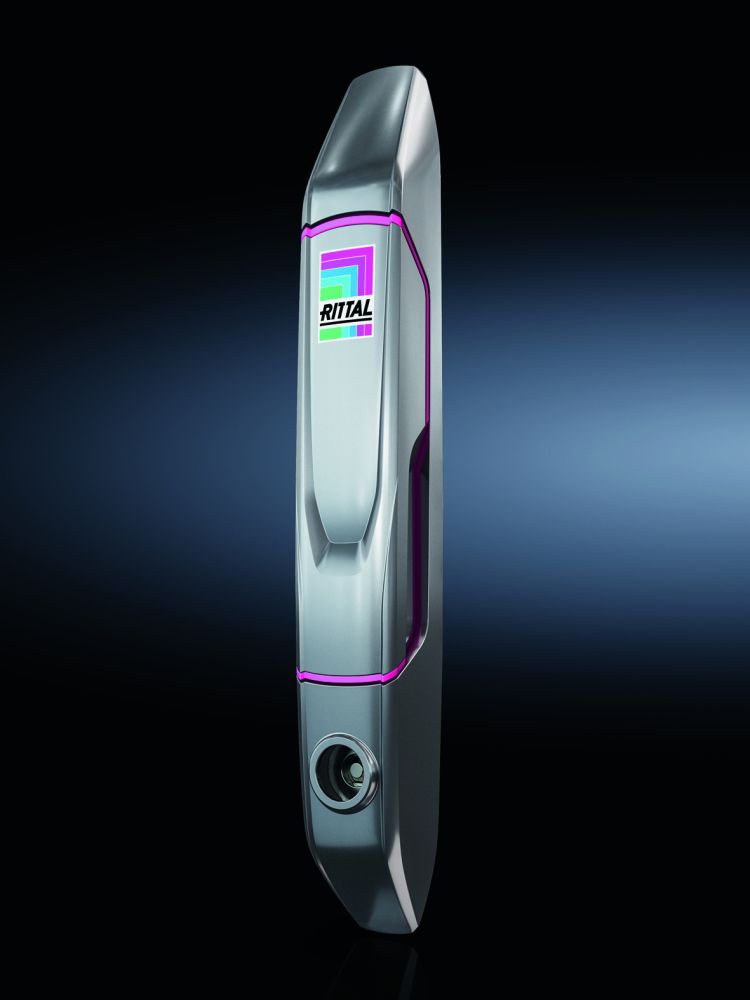

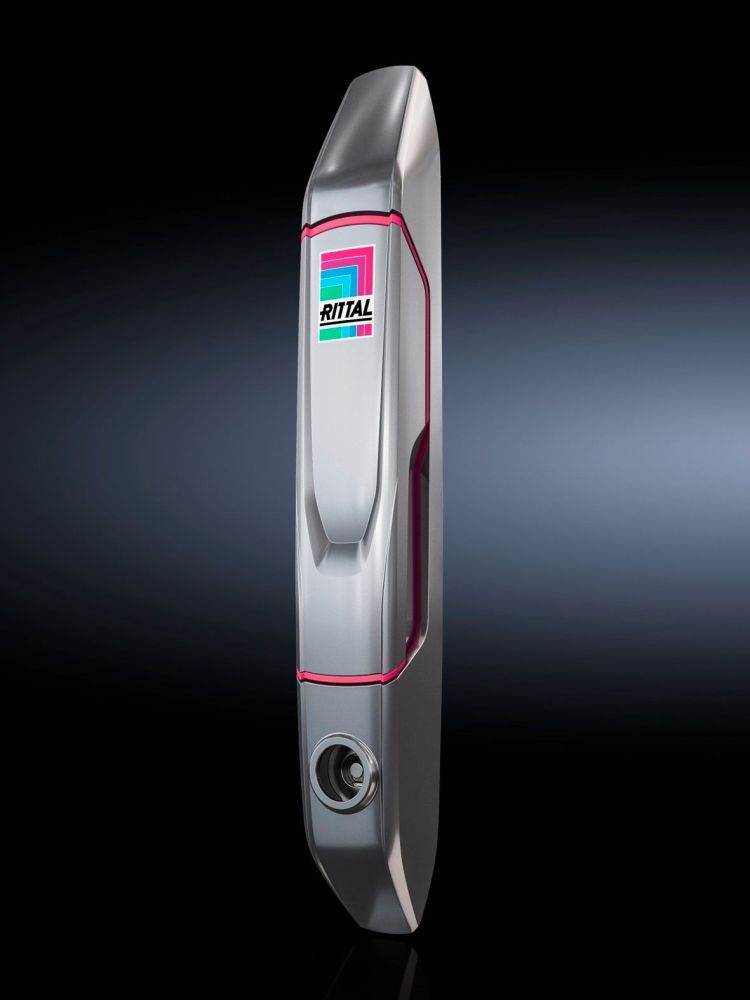

The Rittal VX 8618.220 is a comfort handle for enclosure doors, specifically developed for use with lock inserts in the VX and VX IT enclosure system. It is made of stainless steel die-casting, ensuring high mechanical stability and corrosion resistance. The handle is designed for use in industrial environments where a robust and durable mounting component is required. The folding mechanism of the handle ensures that it does not occupy any swing clearance when opening the door, allowing the entire door surface to be optimally used for installed components.

Applications
The handle is intended for enclosures and housings of type VX and VX IT, used in industrial electrical engineering, automation technology, and IT infrastructure. Its use in environments with increased requirements for mechanical strength and environmental resistance is possible due to the stainless steel material and the structural design. The approval according to UL 50E in versions Type 1, Type 3R, Type 4, Type 4X, and Type 12 makes it suitable for indoor and outdoor applications, particularly in areas with moisture, dust, or light splashing water.

Functions and Equipment in Detail
The handle is prepared for lock inserts of type G as well as for safety and push-button inserts with a maximum length of 26.5 mm. This allows flexible adaptation to different safety requirements and access control systems. Installation is carried out via a snap-in handle system, enabling simple and quick installation without additional tools or drilling. The folding mechanism ensures that the handle lies flat against the door surface when not in use, minimizing space requirements.

Technology Explained Simply
The material stainless steel die-casting offers high strength and uniform surface quality, which is required for industrial applications. The die-casting technique enables precise shaping and high resistance to mechanical stress. The folding mechanism of the handle reduces the space required when opening the door, which is particularly advantageous in tight mounting conditions or when installing additional components on the door. The snap-in mounting is achieved through a mechanical locking mechanism, ensuring secure fastening without additional fastening elements.

Compatibility and Accessories
The handle is compatible with various lock inserts, including types such as screwdriver, 7 mm square, 7 mm triangle, 8 mm triangle, 6.5 mm triangle, Fiat, 3 mm double bar, Daimler insert, and 8 mm square. These inserts allow individual adaptation to specific safety requirements and access control systems. The use of lock inserts of type G is directly intended, with a maximum insert length of 26.5 mm.

Mounting and Installation
Installation is performed using the snap-in system, enabling quick and tool-free installation. No additional drilling or fastening is required. The folding mechanism ensures that the handle lies flat against the door surface when the door is closed, eliminating the need for additional movement space. Use is exclusively intended for enclosure types VX and VX IT.

Operational Advantages
The handle enables optimal use of the door surface, as it does not occupy any swing clearance. The robust construction from stainless steel die-casting ensures long service life and high reliability. The simple mounting and compatibility with various lock inserts increase flexibility during installation and maintenance. The UL 50E approval in multiple versions ensures suitability for various environments, including outdoor areas with moisture or dust.

General
ModelFor closure inserts
MaterialStainless steel die-cast
LockClosure type: Prepared for closure inserts type G or safety and push-button inserts with a length up to 26.5 mm
Suitable for housing typeVX, VX IT
Type rating according to UL 50EType 1, Type 3R, Type 4, Type 4X, Type 12


Product data sheet
Datasheet for Rittal 8618220, EAN: 4028177921757

Questions & answers

What is the delivery time of Rittal 8618220 VX comfort handle, for lock inserts, stainless steel?

The article Rittal 8618220 VX comfort handle, for lock inserts, stainless steel is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8618220 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8618220 VX comfort handle, for lock inserts, stainless steel always at the best possible price. We can give you a discount of 2% on Rittal 8618220 VX comfort handle, for lock inserts, stainless steel if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
