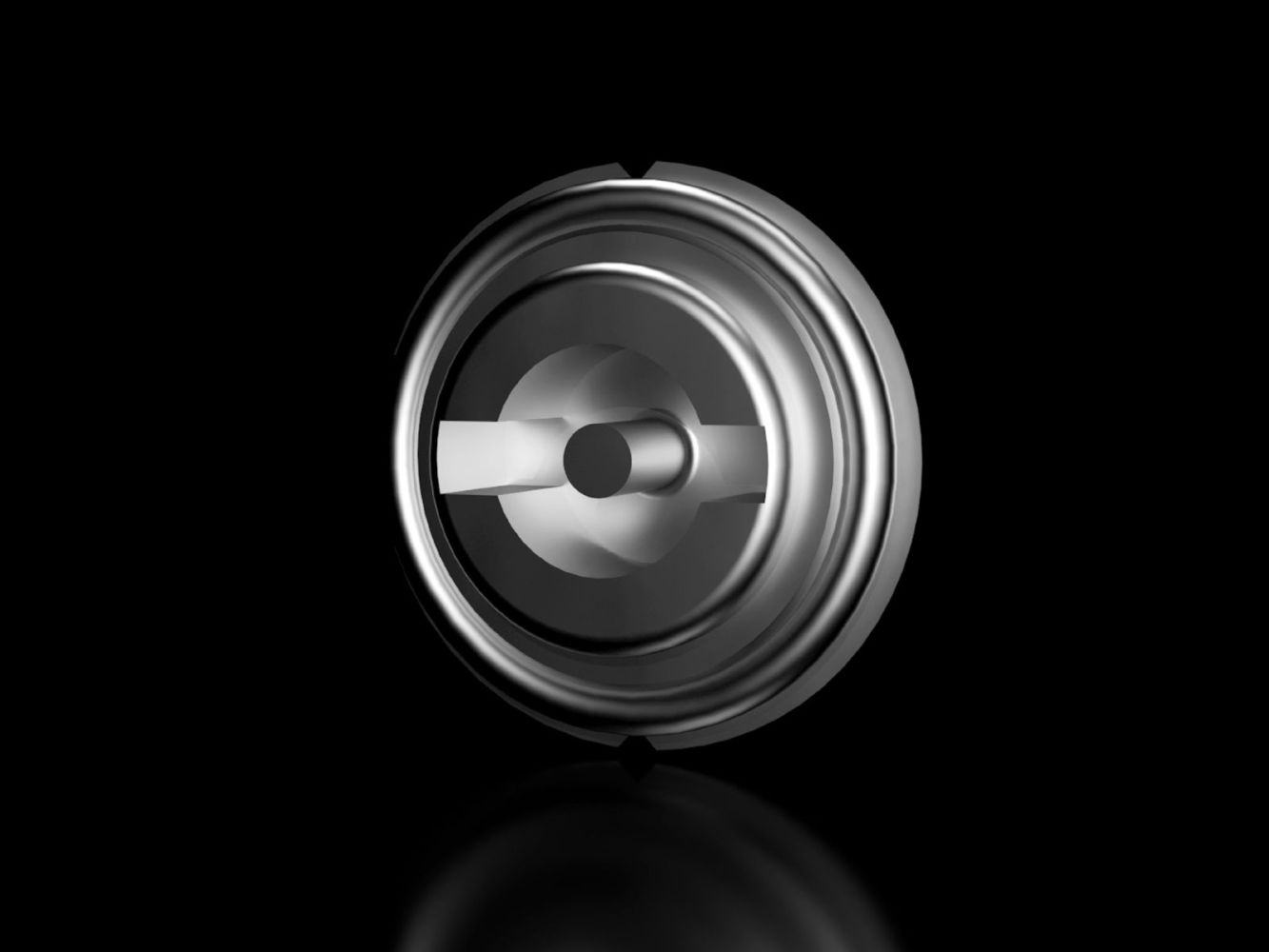

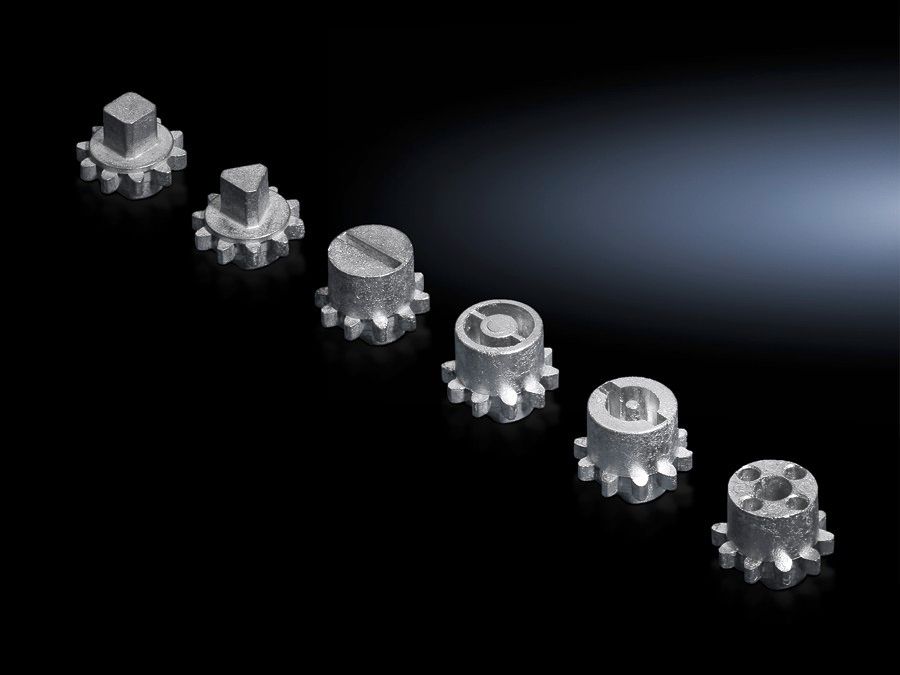

Rittal 8618306 VX lock insert, type G, 3 mm double latch

Your rating:
Average rating
product review for Rittal 8618306 VX lock insert, type G, 3 mm double latch
( 4.7 / 5 ) 22 ratings
Rittal 8618306
This image may differ from the desired article.
Rittal 8618306Rittal 8618306Rittal 8618306
3,79 EUR
( 4,51 EUR incl. VAT )
≈ £3.17  |  ≈ $4.17
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >500 pieces
1x Rittal 8618306 VX lock insert, type G, 3 mm double latch
Datasheet:file_download Download
Lieske Part No.:1441070
Mfg Part No: 8618306
UPC/EAN: 4028177921870
Weight:0.019 kg
Type:VX 8618.306

Product information for Rittal 8618306:

The Rittal VX 8618.306 is a lock insert of type G, specifically developed for use in comfort handles of the VX system. It serves as a mechanical locking mechanism in enclosures and housings of the VX series as well as VX IT. The insert is used in combination with the VX comfort handle, which is designed for mounting padlocks and lock inserts. The product is made of zinc die-cast, a material known for its high strength and shape stability at low weight. Type G is designed for a 3 mm double-tongue lock, ensuring secure and precise locking.

Lock insert

The lock insert is a modular component integrated into the handle to enable mechanical locking. The 3 mm double-tongue geometry ensures precise fit and prevents unintended opening. Type G is specifically designed for use in VX comfort handles, which are standard in VX and VX IT housing types. The use of zinc die-cast ensures high mechanical load capacity and long service life under industrial conditions.

Application areas

The lock insert is used in industrial enclosures and housings where secure and reliable locking is required. It is part of the VX system, widely used in electrical and automation technology. Compatibility with VX and VX IT housing types makes it a universally applicable component in various application areas, such as manufacturing automation, power supply, or process control.

Functions and equipment in detail

The lock insert enables integration of a mechanical lock into the handle, allowing the enclosure door to be securely locked. The 3 mm double-tongue shape is specifically designed for use with matching keys or locking cylinders. Installation is carried out in the VX comfort handle, which is already integrated in VX and VX IT housings. The zinc die-cast material provides sufficient strength to withstand mechanical loads during operation without deformation.

Technology explained simply

Zinc die-cast is a process in which zinc alloys are pressed under high pressure into a mold to produce precise and dense components. This material is particularly suitable for small, highly stressed components such as lock inserts, as it offers high strength at low weight. The 3 mm double-tongue geometry is a specific shape that enables secure locking by engaging with a matching key or locking cylinder. Type G is a standard variant within the VX system and was specifically developed for use in VX comfort handles.

Compatibility and accessories

The lock insert is specifically designed for use in VX comfort handles, which are installed in VX and VX IT housing types. It is thus part of a modular system that allows flexible adaptation to different security requirements. Use with padlocks is possible, as the handle is designed for this purpose.

Installation and mounting

Mounting is carried out in the existing VX comfort handle, which is integrated in VX and VX IT housings. The lock insert is inserted into the handle and locks via the 3 mm double-tongue geometry. Installation requires no additional tools or mounting aids, as the insert fits directly into the handle.

Advantages in operation

Use of the lock insert ensures secure and reliable locking of the enclosure door. The use of zinc die-cast provides high mechanical stability, even under industrial conditions. Compatibility with VX and VX IT housing types enables universal use in various application areas. The modular construction of the VX system allows flexible adaptation to different security requirements without having to replace the entire housing.

General
ModelG
Materialzinc die-cast
Installation in handle systemComfort grip VX for padlock and lock inserts
LockLock insert: 3 mm double barb
Suitable for housing typeVX, VX IT


Product data sheet
Datasheet for Rittal 8618306, EAN: 4028177921870

Questions & answers

What is the delivery time of Rittal 8618306 VX lock insert, type G, 3 mm double latch?

The article Rittal 8618306 VX lock insert, type G, 3 mm double latch is currently in stock

According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8618306 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8618306 VX lock insert, type G, 3 mm double latch always at the best possible price. We can give you a discount of 2% on Rittal 8618306 VX lock insert, type G, 3 mm double latch if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
